TCR20L-REMDKK (1990)
Toyota Previa
(9005- )TCR2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10140 | ||||
| 90105-12106 | ||||
| 90105-12193 | ||||
| 90105-12194 | ||||
| 90105-12196 | ||||
| 90105-12235 | ||||
| 90105-12316 | ||||
| 90105-14090 | ||||
| 90201-10203 | ||||
| 91651-60820 | ||||

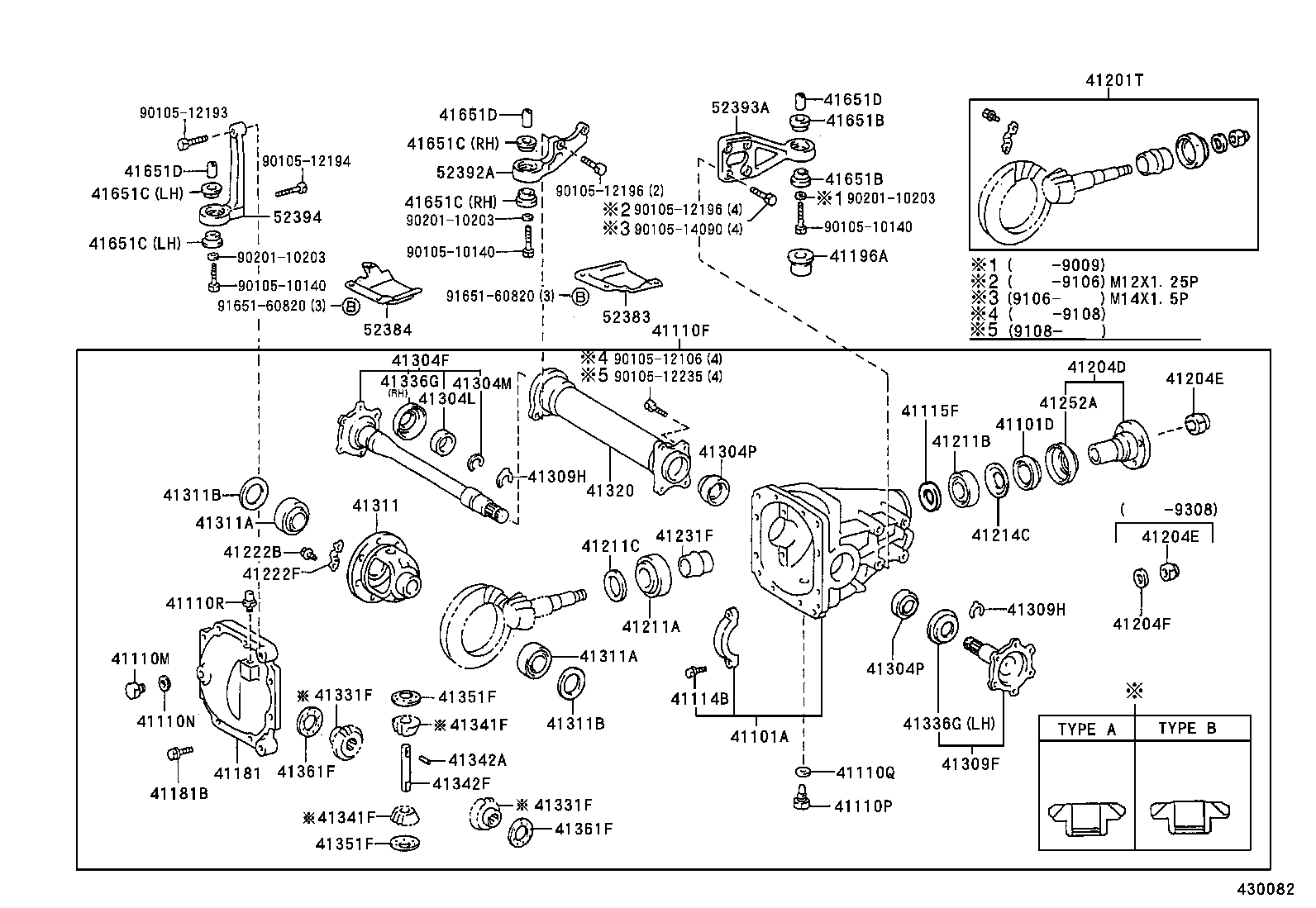

(9001- )TCR20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-28020 |
TCR20 |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38027 |
TCR20 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-28150 |
TCR20 *FGR=43:10=4.300 |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-18006 |
TCR20 |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
TCR20 |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-18030 |
TCR20 |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 12157-10010 |
TCR20 |
1 | ||
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03031 |
TCR20 |
1 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41108-28020 |
TCR20 |
1 | ||
| 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90119-10307 |
TCR20 |
8 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-20020 |
TCR20 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-18001 |
TCR20 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-18001 |
TCR20 |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-18485 |
TCR20 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90368-34049 |
TCR20 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90368-30002 |
TCR20 |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35435 |
TCR20 T=2.27,MARK 02 |
1 | ||
| 90201-35437 |
TCR20 T=2.33,MARK 04 |
1 | ||
| 90201-35436 |
TCR20 T=2.30,MARK 03 |
1 | ||
| 90201-35399 |
TCR20 T=2.43,MARK 08 |
1 | ||
| 90201-35400 |
TCR20 T=2.48,MARK 09 |
1 | ||
| 90201-35398 |
TCR20 T=2.42,MARK 07 |
1 | ||
| 90201-35402 |
TCR20 T=2.54,MARK 11 |
1 | ||
| 90201-35397 |
TCR20 T=2.39,MARK 06 |
1 | ||
| 90201-35438 |
TCR20 T=2.63,MARK 14 |
1 | ||
| 90201-35440 |
TCR20 T=2.69,MARK 16 |
1 | ||
| 90201-35439 |
TCR20 T=2.66,MARK 15 |
1 | ||
| 90201-35401 |
TCR20 T=2.51,MARK 10 |
1 | ||
| 90201-35403 |
TCR20 T=2.57,MARK 12 |
1 | ||
| 90201-35396 |
TCR20 T=2.36,MARK 05 |
1 | ||
| 90201-35404 |
TCR20 T=2.60,MARK 13 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
TCR20 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TCR20 |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-28010 |
TCR20 |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
TCR20 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-22010 |
TCR20 |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41304-28020 |
TCR20 |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90369-36009 |
TCR20 |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-33008 |
TCR20 |
1 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
TCR20 |
2 | ||
| 41304P - SEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-35018 |
TCR20 |
2 | ||
| 41309F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-28010 |
TCR20 |
1 | ||
| 41309H - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-22012 |
TCR20 |
2 | ||
| 41309H - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90520-22012 |
TCR20 |
2 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-14031 |
TCR20..EFI |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-41001 |
TCR20 |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90368-41001 |
TCR20 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-54003 |
TCR20 T=2.28 |
2 | ||
| 90201-54005 |
TCR20 T=2.34 |
2 | ||
| 90201-54006 |
TCR20 T=2.37 |
2 | ||
| 90201-54002 |
TCR20 T=2.25 |
2 | ||
| 90201-54004 |
TCR20 T=2.31 |
2 | ||
| 90201-54001 |
TCR20 T=2.22 |
2 | ||
| 90201-54013 |
TCR20 T=2.58 |
2 | ||
| 90201-54009 |
TCR20 T=2.46 |
2 | ||
| 90201-54015 |
TCR20 T=2.64 |
2 | ||
| 90201-54016 |
TCR20 T=2.67 |
2 | ||
| 90201-54011 |
TCR20 T=2.52 |
2 | ||
| 90201-54010 |
TCR20 T=2.49 |
2 | ||
| 90201-54021 |
TCR20 T=2.82 |
2 | ||
| 90201-54014 |
TCR20 T=2.61 |
2 | ||
| 90201-54008 |
TCR20 T=2.43 |
2 | ||
| 90201-54012 |
TCR20 T=2.55 |
2 | ||
| 90201-54023 |
TCR20 T=2.88 |
2 | ||
| 90201-54028 |
TCR20 T=3.03 |
2 | ||
| 90201-54007 |
TCR20 T=2.40 |
2 | ||
| 90201-54024 |
TCR20 T=2.91 |
2 | ||
| 90201-54017 |
TCR20 T=2.70 |
2 | ||
| 90201-54019 |
TCR20 T=2.76 |
2 | ||
| 90201-54018 |
TCR20 T=2.73 |
2 | ||
| 90201-54022 |
TCR20 T=2.85 |
2 | ||
| 90201-54020 |
TCR20 T=2.79 |
2 | ||
| 90201-54029 |
TCR20 T=3.06 |
2 | ||
| 90201-54026 |
TCR20 T=2.97 |
2 | ||
| 90201-54025 |
TCR20 T=2.94 |
2 | ||
| 90201-54027 |
TCR20 T=3.00 |
2 | ||
| 90201-54031 |
TCR20 T=3.12 |
2 | ||
| 90201-54033 |
TCR20 T=3.18 |
2 | ||
| 90201-54032 |
TCR20 T=3.15 |
2 | ||
| 90201-54034 |
TCR20 T=3.21 |
2 | ||
| 90201-54030 |
TCR20 T=3.09 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-54003 |
TCR20 T=2.28 |
2 | ||
| 90201-54005 |
TCR20 T=2.34 |
2 | ||
| 90201-54006 |
TCR20 T=2.37 |
2 | ||
| 90201-54002 |
TCR20 T=2.25 |
2 | ||
| 90201-54004 |
TCR20 T=2.31 |
2 | ||
| 90201-54001 |
TCR20 T=2.22 |
2 | ||
| 90201-54013 |
TCR20 T=2.58 |
2 | ||
| 90201-54009 |
TCR20 T=2.46 |
2 | ||
| 90201-54015 |
TCR20 T=2.64 |
2 | ||
| 90201-54016 |
TCR20 T=2.67 |
2 | ||
| 90201-54011 |
TCR20 T=2.52 |
2 | ||
| 90201-54010 |
TCR20 T=2.49 |
2 | ||
| 90201-54021 |
TCR20 T=2.82 |
2 | ||
| 90201-54014 |
TCR20 T=2.61 |
2 | ||
| 90201-54008 |
TCR20 T=2.43 |
2 | ||
| 90201-54012 |
TCR20 T=2.55 |
2 | ||
| 90201-54023 |
TCR20 T=2.88 |
2 | ||
| 90201-54028 |
TCR20 T=3.03 |
2 | ||
| 90201-54007 |
TCR20 T=2.40 |
2 | ||
| 90201-54024 |
TCR20 T=2.91 |
2 | ||
| 90201-54017 |
TCR20 T=2.70 |
2 | ||
| 90201-54019 |
TCR20 T=2.76 |
2 | ||
| 90201-54018 |
TCR20 T=2.73 |
2 | ||
| 90201-54022 |
TCR20 T=2.85 |
2 | ||
| 90201-54020 |
TCR20 T=2.79 |
2 | ||
| 90201-54029 |
TCR20 T=3.06 |
2 | ||
| 90201-54026 |
TCR20 T=2.97 |
2 | ||
| 90201-54025 |
TCR20 T=2.94 |
2 | ||
| 90201-54027 |
TCR20 T=3.00 |
2 | ||
| 90201-54031 |
TCR20 T=3.12 |
2 | ||
| 90201-54033 |
TCR20 T=3.18 |
2 | ||
| 90201-54032 |
TCR20 T=3.15 |
2 | ||
| 90201-54034 |
TCR20 T=3.21 |
2 | ||
| 90201-54030 |
TCR20 T=3.09 |
2 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-28020 |
TCR20 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28010 |
TCR20 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28010 |
TCR20 |
2 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
TCR20 LH |
1 | ||
| 41336-28010 |
TCR20 RH |
1 | ||
| 41336G - COVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
TCR20 LH |
1 | ||
| 41336-28010 |
TCR20 RH |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-22020 |
TCR20 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-22020 |
TCR20 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04193 |
TCR20 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-22010 |
TCR20 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12030 |
TCR20 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12030 |
TCR20 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
TCR20 T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
TCR20 T=1.15,MARK 16 |
2 | ||
| 41361-22040 |
TCR20 T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
TCR20 T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
TCR20 T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
TCR20 T=1.05,MARK 15 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
TCR20 T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
TCR20 T=1.15,MARK 16 |
2 | ||
| 41361-22040 |
TCR20 T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
TCR20 T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
TCR20 T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
TCR20 T=1.05,MARK 15 |
2 | ||
| 41651B - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-28010 |
TCR20 |
2 | ||
| 41651B - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-28010 |
TCR20 |
2 | ||
| 41651C - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-28010 |
TCR20..MTM |
4 | ||
| 41651C - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-28010 |
TCR20..MTM |
4 | ||
| 41651C - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-28010 |
TCR20..MTM |
4 | ||
| 41651C - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-28010 |
TCR20..MTM |
4 | ||
| 41651D - COLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION) | ||||
| 90387-14025 |
TCR20 |
3 | ||
| 41651D - COLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION) | ||||
| 90387-14025 |
TCR20 |
3 | ||
| 41651D - COLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION) | ||||
| 90387-14025 |
TCR20 |
3 | ||
| 52383 - PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-28010 |
TCR20 |
1 | ||
| 52384 - PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-28010 |
TCR20 |
1 | ||
| 52392A - SUPPORT, FRONT DIFFERENTIAL, NO.1 | ||||
| 52391-28010 |
TCR20 |
1 | ||
| 52393A - SUPPORT, FRONT DIFFERENTIAL, NO.2 | ||||
| 52391-28020 |
TCR20 |
1 | ||
| 52394 - SUPPORT, FRONT DIFFERENTIAL, NO.3 | ||||
| 52392-28010 |
TCR20 |
1 | ||
| Common parts | ||||
| 90105-10140 | ||||
| 90105-12106 | ||||
| 90105-12193 | ||||
| 90105-12194 | ||||
| 90105-12196 | ||||
| 90105-12235 | ||||
| 90105-14090 | ||||
| 90201-10203 | ||||
| 91651-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
