Toyota Previa TCR20 STARTER - JDM Part Detective

TCR20L-REMDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1991

Engine 2TZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9005- )

Click highlighted areas on diagram

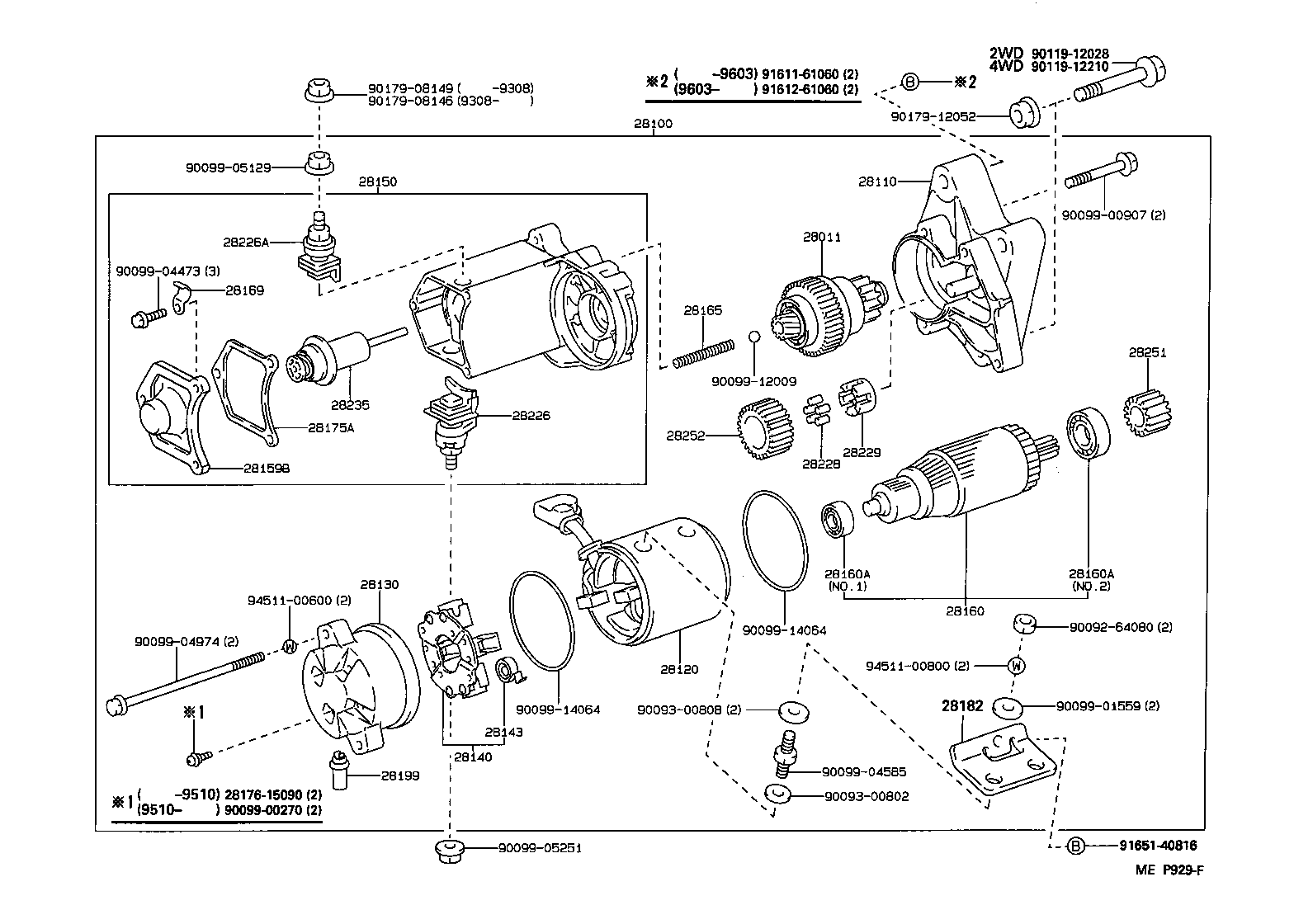

12V 1.6KW

Part #	Description	Period	Qty	Price
Common parts
28176-15090
90092-64080
90093-00802
90093-00808
90099-00907
90099-01559
90099-04473
90099-04585
90099-04974
90099-05129
90099-05251
90099-12009
90099-14064
90119-12028
90119-12210
90179-08176
90179-12052
91611-61060
91612-61060
91651-40816
94511-00600
94511-00800

(9005- )

Click highlighted areas on diagram

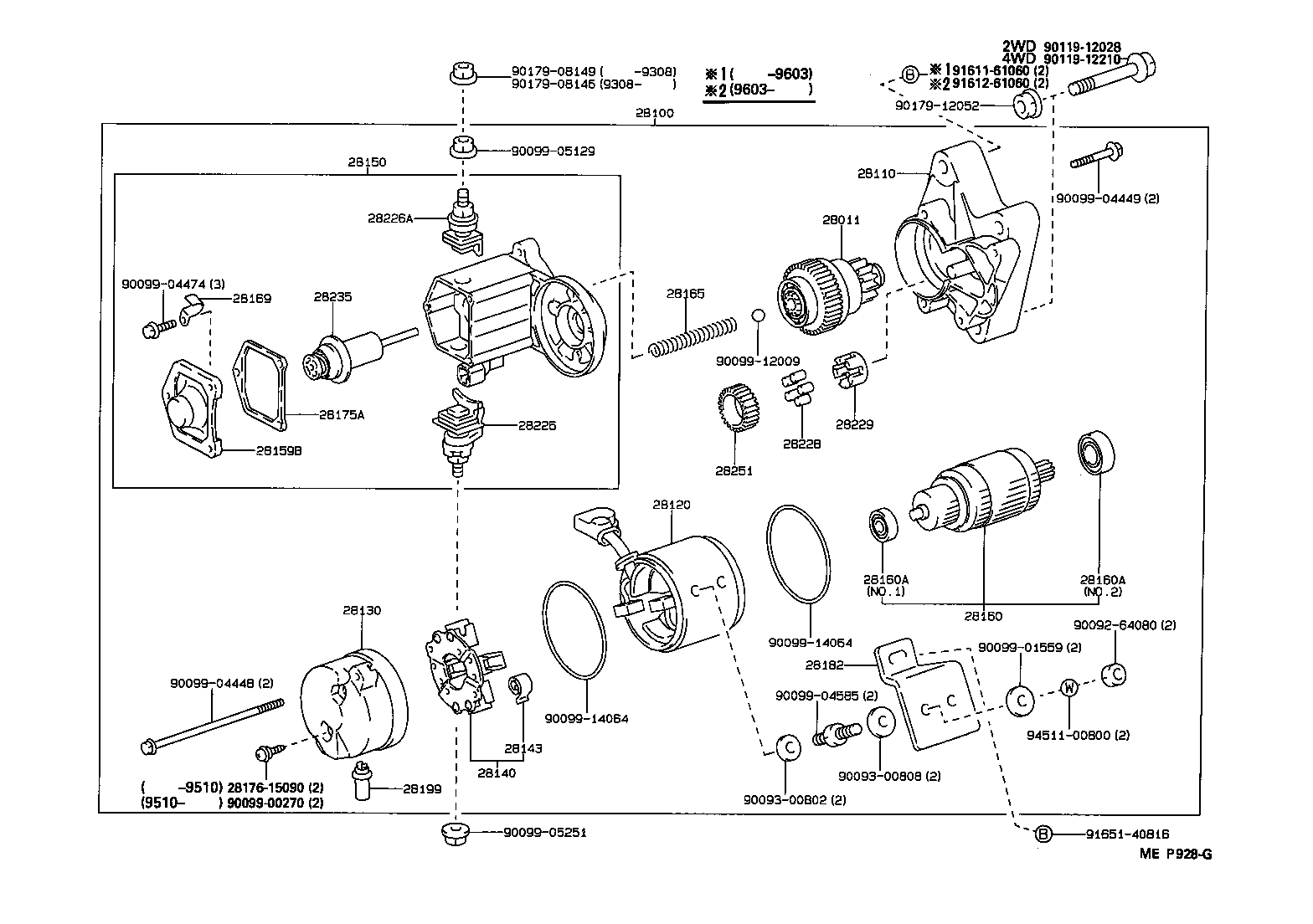

12V 1.2KW,1.4KW

Part #	Description	Period	Qty	Price
Common parts
28176-15090
90092-64080
90093-00802
90093-00808
90099-01559
90099-04449
90099-04450
90099-04474
90099-04585
90099-05129
90099-05251
90099-12009
90099-14064
90119-12028
90119-12210
90179-08176
90179-12052
91611-61060
91612-61060
91651-40816
94511-00800

(9001- )

Click highlighted areas on diagram

12V 1.4KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28100 - STARTER ASSY
28100-76050	2TZFE..TCR10,20..CND 12V 1.6KW	01/1990 - 08/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-76050	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28120 - YOKE ASSY, STARTER
28120-76051	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-76050	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28143 - SPRING, STARTER BRUSH
90099-17112	2TZ#..TCR10,20	01/1990 - 07/1997	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-76050	2TZFE..TCR10,20..CND	01/1990 - 08/1993	1
28159B - COVER, MAGNET SWITCH
28159-10040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28160 - ARMATURE ASSY, STARTER
28160-65031	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2TZ#..TCR10,20..CND NO.2	01/1990 - 07/1997	1
90099-10144	2TZ#..TCR10,20..CND NO.1	01/1990 - 07/1997	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2TZ#..TCR10,20..CND NO.2	01/1990 - 07/1997	1
90099-10144	2TZ#..TCR10,20..CND NO.1	01/1990 - 07/1997	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28182 - STAY, STARTER COMMUTATOR END FRAME
28182-76050	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28199 - COVER, STARTER
28199-72020	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-64110	2TZFE..TCR10,20..CND	01/1990 - 08/1993	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	2TZ#..TCR10,20	01/1990 - 07/1997	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28235 - PLUNGER, MAGNET SWITCH
28235-35080	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28251 - PINION, STARTER DRIVE
28251-15090	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
Common parts
28176-15090
90092-64080
90093-00802
90093-00808
90099-00270
90099-01559
90099-04448
90099-04449
90099-04474
90099-04585
90099-05129
90099-05251
90099-12009
90099-14064
90119-12028
90119-12210
90179-08146
90179-08149
90179-12052
91611-61060
91612-61060
91651-40816
94511-00800

(9001- )

Click highlighted areas on diagram

12V 1.6KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28100 - STARTER ASSY
28100-76050	2TZFE..TCR10,20..CND 12V 1.6KW	01/1990 - 08/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-76050	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28120 - YOKE ASSY, STARTER
28120-76051	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-76050	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28143 - SPRING, STARTER BRUSH
90099-17112	2TZ#..TCR10,20	01/1990 - 07/1997	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-76050	2TZFE..TCR10,20..CND	01/1990 - 08/1993	1
28159B - COVER, MAGNET SWITCH
28159-10040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28160 - ARMATURE ASSY, STARTER
28160-65031	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2TZ#..TCR10,20..CND NO.2	01/1990 - 07/1997	1
90099-10144	2TZ#..TCR10,20..CND NO.1	01/1990 - 07/1997	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2TZ#..TCR10,20..CND NO.2	01/1990 - 07/1997	1
90099-10144	2TZ#..TCR10,20..CND NO.1	01/1990 - 07/1997	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28182 - STAY, STARTER COMMUTATOR END FRAME
28182-76050	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28199 - COVER, STARTER
28199-72020	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-64110	2TZFE..TCR10,20..CND	01/1990 - 08/1993	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	2TZ#..TCR10,20	01/1990 - 07/1997	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28235 - PLUNGER, MAGNET SWITCH
28235-35080	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28251 - PINION, STARTER DRIVE
28251-15090	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
28252 - GEAR, STARTER IDLE
28254-45020	2TZ#..TCR10,20..CND	01/1990 - 07/1997	1
Common parts
28176-15090
90092-64080
90093-00802
90093-00808
90099-00270
90099-00907
90099-01559
90099-04473
90099-04585
90099-04974
90099-05129
90099-05251
90099-12009
90099-14064
90119-12028
90119-12210
90179-08146
90179-08149
90179-12052
91611-61060
91612-61060
91651-40816
94511-00600
94511-00800
