TCR20L-REMDKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1992
Engine
2TZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

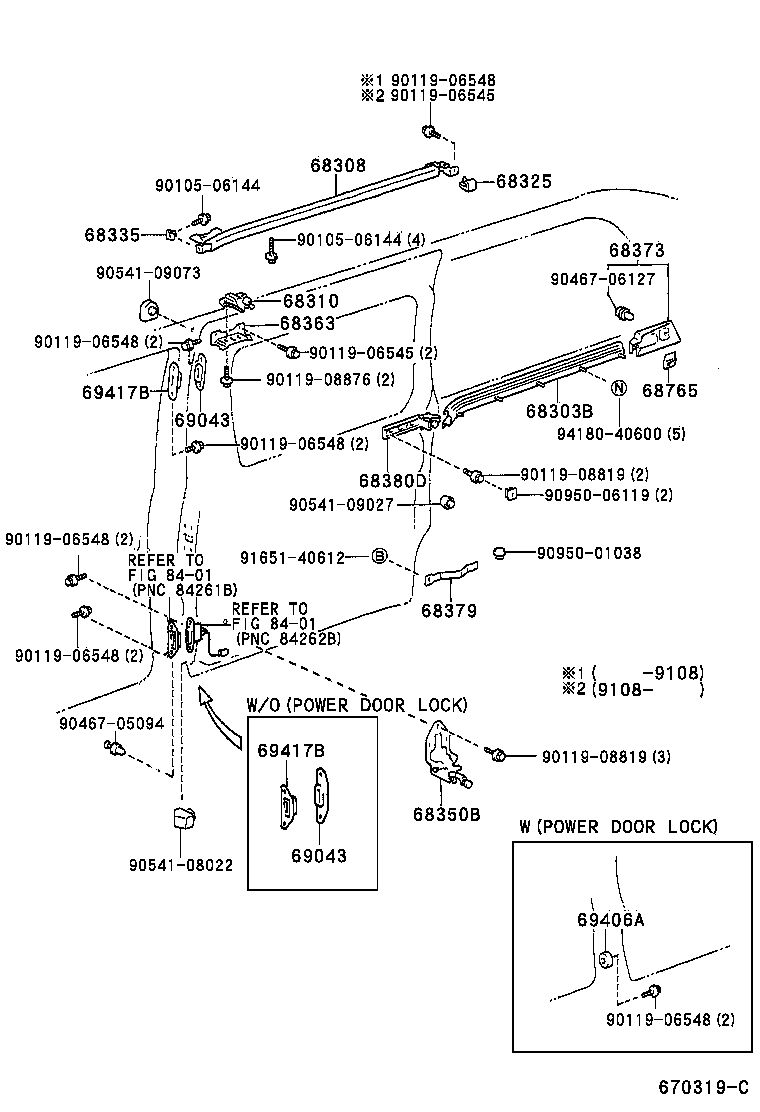

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06144 | ||||
| 90119-06545 | ||||
| 90119-06548 | ||||
| 90119-08819 | ||||
| 90119-08876 | ||||
| 90333-40001 | ||||
| 90467-05094 | ||||
| 90467-06127 | ||||
| 90541-08022 | ||||
| 90541-09027 | ||||
| 90541-09073 | ||||
| 90541-09074 | ||||
| 90950-01038 | ||||
| 90950-06119 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-28020 |
TCR10,20..05S |
1 | ||
| 68303-95D00 |
TCR10,20..05S W(BLACK PAINTED) |
1 | ||
| 68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68308-95D00 |
TCR10,20 |
1 | ||
| 68310 - ROLLER ASSY, SLIDE DOOR, UPPER | ||||
| 68301-95D00 |
TCR10,20 |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-95D00 |
TCR10,20 |
1 | ||
| 68335 - PAD, SLIDE DOOR UPPER RAIL | ||||
| 68335-95702 |
TCR10,20 |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-95D00 |
TCR10,20 |
1 | ||
| 68363 - BRACKET, SLIDE DOOR UPPER ROLLER | ||||
| 68363-95D00 |
TCR10,20 |
1 | ||
| 68373 - MOULDING, SLIDE RAIL END, RH | ||||
| 68373-95D00 |
TCR10,20..05S W(BLACK PAINTED) |
1 | ||
| 68373-28020 |
TCR10,20..05S |
1 | ||
| 68379 - SPRING, SLIDE DOOR CATCH, RH | ||||
| 68379-95D00 |
TCR10,20 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-95D00 |
TCR10,20 |
1 | ||
| 68765 - BRACKET, SLIDE DOOR RAIL END MOULDING, RH | ||||
| 68765-28010 |
TCR10,20 |
1 | ||
| 69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE | ||||
| 69043-95D00 |
TCR10,20..05S W(POWER DOOR LOCK) |
1 | ||
| 69043-95D00 |
TCR10,20..05S |
2 | ||
| 69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE | ||||
| 69043-95D00 |
TCR10,20..05S W(POWER DOOR LOCK) |
1 | ||
| 69043-95D00 |
TCR10,20..05S |
2 | ||
| 69406A - STOP SUB-ASSY, SLIDE DOOR DOWN MALE | ||||
| 69417-95D01 |
TCR10,20 |
1 | ||
| 69417B - STOPPER, SLIDE DOOR DOWN MALE, LOWER RH | ||||
| 69416-95D00 |
TCR10,20 W(POWER DOOR LOCK) |
1 | ||
| 69417B - STOPPER, SLIDE DOOR DOWN MALE, LOWER RH | ||||
| 69416-95D00 |
TCR10,20 W(POWER DOOR LOCK) |
1 | ||
| Common parts | ||||
| 90105-06144 | ||||
| 90119-06545 | ||||
| 90119-06548 | ||||
| 90119-08819 | ||||
| 90119-08876 | ||||
| 90467-05094 | ||||
| 90467-06127 | ||||
| 90541-08022 | ||||
| 90541-09027 | ||||
| 90541-09073 | ||||
| 90950-01038 | ||||
| 90950-06119 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
