TCR11R-RRSGKQ (1990)

Toyota Previa

Production May 1990 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9810)W ; (9810- )GL,XL..ARL,W

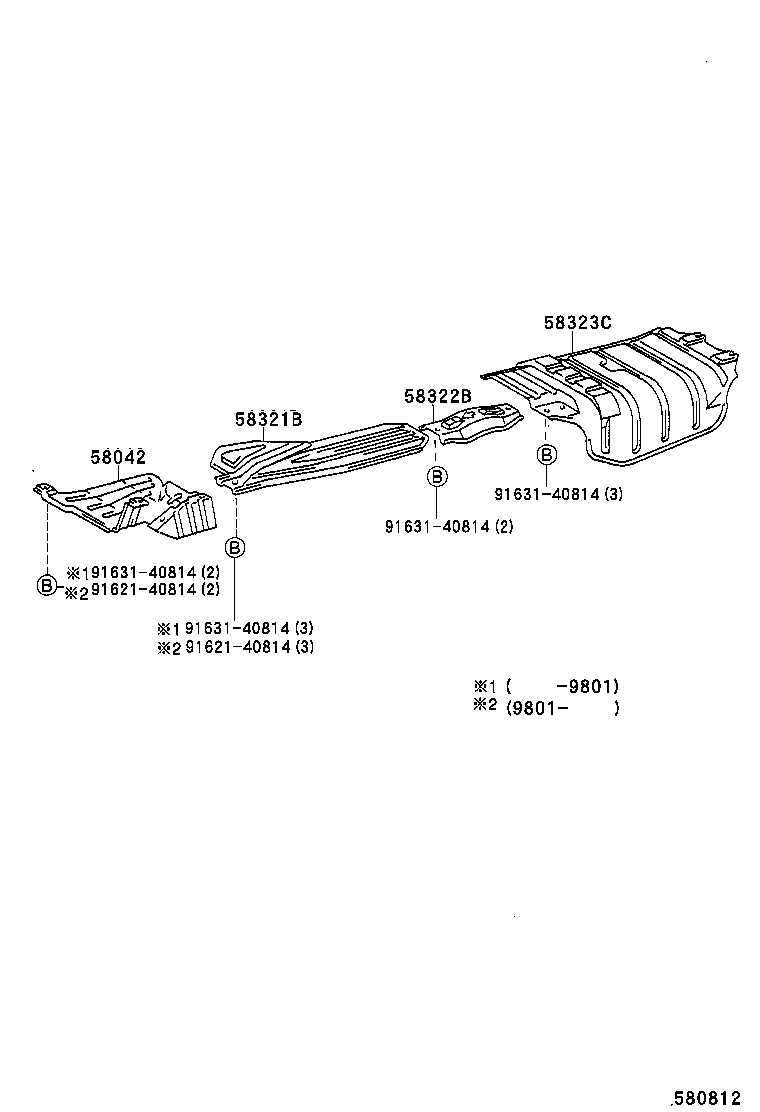

Click highlighted areas on diagram

diagram 58042 58321B 58322B 58323C 9162140814 9162140814 9163140814 9163140814 9163140814 9163140814
Part # Description Qty Price
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-28010

TCR1#..ATM

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95D02

TCR1#,2#

 1
58041-28020

TCR1#,2#

 1
58322B - INSULATOR, REAR FLOOR HEAT, NO.2
58322-28050

TCR11,21

 1
58323C - INSULATOR, REAR FLOOR HEAT, NO.3
58323-28030

TCR11,21

 1
Common parts
91621-40814
91631-40814

(9005-9608) ; (9608-9810)ARL,GEN,V ; (9608-9810)TCR11..RHD..MTM ; (9810- )TCR10.

Click highlighted areas on diagram

diagram 58042 58045 58321B 58321B 9162140814 9162140814 9163140814 9163140814 9163140814 9163140814
Part # Description Qty Price
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-28010

TCR1#..ATM

 1
58045 - INSULATOR SUB-ASSY, REAR FLOOR HEAT
58045-95D00

TCR11..RHD..MTM;TCR1#..ARL,GEN,V

 1
58045-95D00

TCR1#,2#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95D02

TCR1#,2#

 1
58041-28020

TCR1#,2#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95D02

TCR1#,2#

 1
58041-28020

TCR1#,2#

 1
Common parts
91621-40814
91631-40814
