TCR11L-RRSGKW (1990)

Toyota Previa

Production May 1990 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR11,21

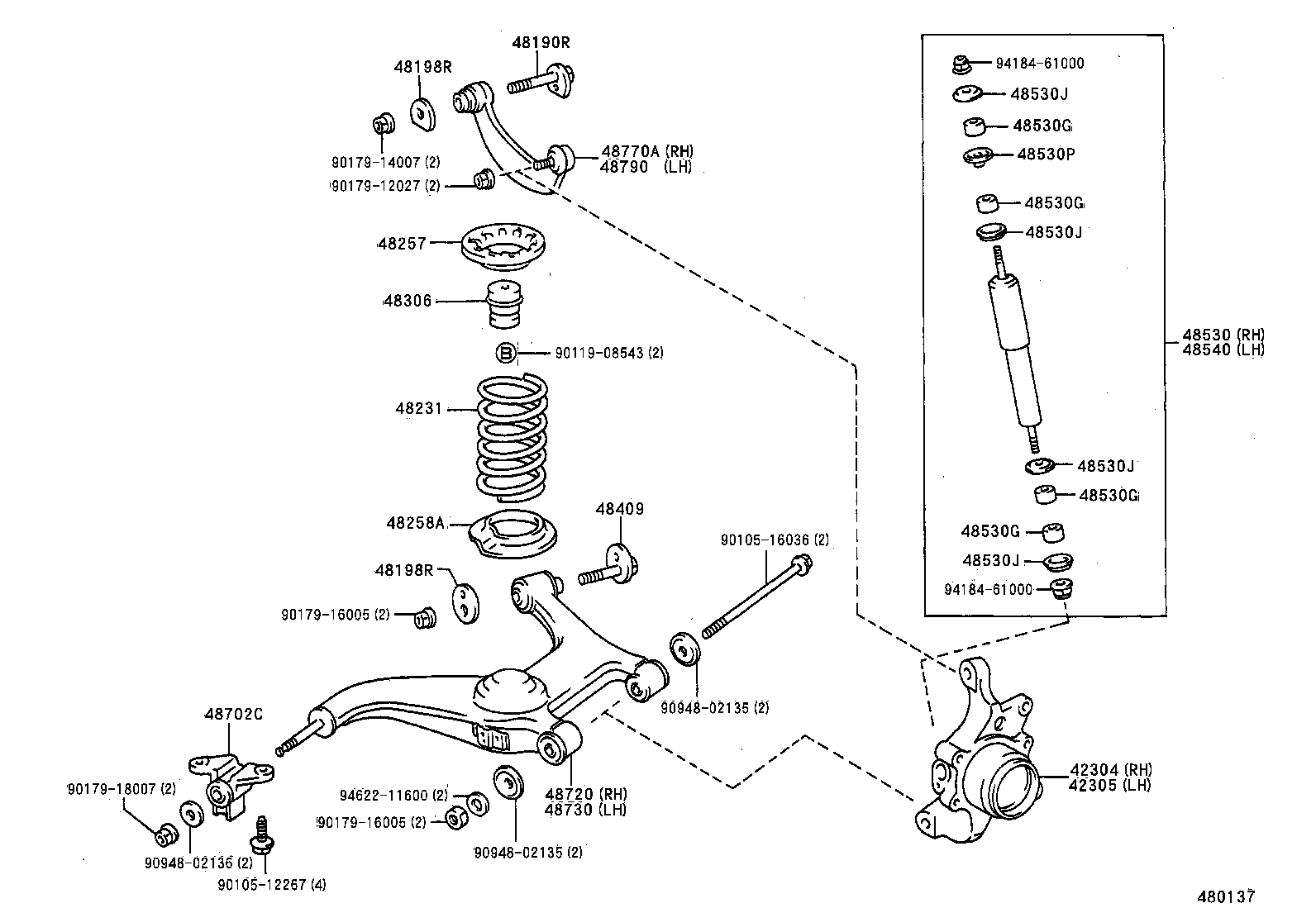

Click highlighted areas on diagram

diagram 42304 42305 48190R 48198R 48198R 48231 48257 48258A 48306 48409 48530 48530G 48530G 48530G 48530G 48530J 48530J 48530J 48530J 48530P 48540 48702C 48720 48730 48770A 48790 9010512267 9010516036 9011908543 9017912027 9017914007 9017916005 9017916005 9017918007 9094802135 9094802135 9094802136 9418461000 9418461000 9462211600
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42313-28020

TCR11,21..W

W(ABS & RR DISC BRAKE)

 1
42313-28020

TCR11,21

W(ABS)

 1
42313-28010

TCR11;TCR21..W

 1
42313-28030

TCR11,21

W(RR DISC BRAKE)

 1
42313-28030

TCR11,21

 1
42313-28030

TCR21;TCR11..W

W(RR DISC BRAKE)

 1
42313-28010

TCR11,21

 1
42313-28010

TCR11,21..W

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42314-28010

TCR11,21..W

 1
42314-28010

TCR11,21

 1
42314-28030

TCR21;TCR11..W

W(RR DISC BRAKE)

 1
42314-28030

TCR11,21

 1
42314-28030

TCR11,21

W(RR DISC BRAKE)

 1
42314-28010

TCR11;TCR21..W

 1
42314-28020

TCR11,21

W(ABS)

 1
42314-28020

TCR11,21..W

W(ABS & RR DISC BRAKE)

 1
48190R - CAM ASSY, CAMBER ADJUST
48190-28010

TCR11,21

 2
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-14010

TCR11,21

UPR CONTROL ARM

 2
48198-28010

TCR11,21

LWR CONTROL ARM

 2
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-14010

TCR11,21

UPR CONTROL ARM

 2
48198-28010

TCR11,21

LWR CONTROL ARM

 2
48231 - SPRING, COIL, REAR
48231-28380

TCR11..LHD

W(SUN ROOF OR RR RETRCT CAPTAIN SEAT W/ARM REST)

 2
48231-28240

TCR11..W

 2
48231-28260

TCR11..LHD

W(SUN ROOF OR RR RETRCT CAPTAIN SEAT W/ARM REST)

 2
48231-28380

TCR11..W

W(SUN ROOF OR RR RETRCT CAPTAIN SEAT W/ARM REST)

 2
48257 - INSULATOR, REAR COIL SPRING
48257-28030

TCR11,21

 2
48258A - INSULATOR, REAR COIL SPRING, LOWER
48258-28030

TCR11,21

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-28010

TCR11,21

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-28020

TCR11,21

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80413

TCR11,21

 1
48531-80655

TCR11,21

 1
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10004

TCR11,21

 8
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10004

TCR11,21

 8
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10004

TCR11,21

 8
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10004

TCR11,21

 8
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02132

TCR11,21

 8
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02132

TCR11,21

 8
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02132

TCR11,21

 8
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02132

TCR11,21

 8
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02134

TCR11,21

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80655

TCR11,21

 1
48531-80413

TCR11,21

 1
48702C - BUSH SUB-ASSY, LOWER CONTROL ARM
48702-28060

TCR11,21

RH

 1
48704-28020

TCR11,21

LH

 1
48702-28061

TCR11,21

RH

 1
48704-28021

TCR11,21

LH

 1
48720 - ARM ASSY, LOWER CONTROL, RH
48720-28071

TCR11,21

 1
48720-28070

TCR11,21

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48730-28071

TCR11,21

 1
48730-28070

TCR11,21

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-28010

TCR11,21

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-28010

TCR11,21

 1
Common parts
90105-12267
90105-16036
90119-08543
90179-12027
90179-14007
90179-16005
90179-18007
90948-02135
90948-02136
94184-61000
94622-11600
