TCR11L-RRMGKW (1990)
Toyota Previa
ILLUST NO. 3 OF 4(9005- )ARL,GEN,W
REAR, DENSO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 87105-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 87105-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D01 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 87138-95D02 |
TCR11..W;TCR10..08S |
1 | ||
| 87138-95D02 |
TCR1#..LHD..GL NIPPONDENSO |
1 | ||
| 87138-95D02 |
TCR11..W;TCR10..ARL,W |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28060 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88550-28050 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28060 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88550-28050 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28130 |
TCR1#..LHD..GL NIPPONDENSO |
1 | ||
| 88501-28130 |
TCR1#..LHD..W |
1 | ||
| 88501-28140 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 88501-28130 |
TCR1#..LHD..08S |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-28040 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10..GEN;TCR11..LHD..MTM LH,NIPPONDENSO |
1 | ||
| 88504-95D03 |
TCR10..GEN;TCR11..LHD..MTM RH,NIPPONDENSO |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-28040 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10..GEN;TCR11..LHD..MTM LH,NIPPONDENSO |
1 | ||
| 88504-95D03 |
TCR10..GEN;TCR11..LHD..MTM RH,NIPPONDENSO |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28440B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,NIPPONDENSO |
1 | ||
| 88510-28450E0 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,MATSUSHITA |
1 | ||
| 88510-28441B0 |
TCR1#..LHD..GL LT.GRAY,TRIM1# |
1 | ||
| 87030-28070B0 |
TCR1#..LHD..W LT.GRAY,TRIM1# |
1 | ||
| 87030-28070B1 |
TCR1#..LHD..W LT.GRAY,TRIM1# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28050 |
TCR1#..LHD..GL NIPPONDENSO |
1 | ||
| 88515-28050 |
TCR1#..W |
1 | ||
| 88515-28070 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 88515-28050 |
TCR1#..GEN,W |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28010B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88502-28180B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28300E0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM4#,LOWER,MATSUSITA |
1 | ||
| 88521-28030E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-28301E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28410B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28400B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28400B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28181B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28410B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28010B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88502-28180B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28300E0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM4#,LOWER,MATSUSITA |
1 | ||
| 88521-28030E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-28301E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28410B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28400B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28400B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28181B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28410B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88544-28040 |
TCR1#..LHD..GL RH,NO.2,MATSUSHITA |
1 | ||
| 88544-28030 |
TCR1#..LHD..GL LH,NO.2,MATSUSHITA |
1 | ||
| 88544-28050 |
TCR1#..LHD..GL LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR1#..GEN,W LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D02 |
TCR1#..LHD..GL RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR1#..GEN,W RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88544-28040 |
TCR1#..LHD..GL RH,NO.2,MATSUSHITA |
1 | ||
| 88544-28030 |
TCR1#..LHD..GL LH,NO.2,MATSUSHITA |
1 | ||
| 88544-28050 |
TCR1#..LHD..GL LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR1#..GEN,W LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D02 |
TCR1#..LHD..GL RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR1#..GEN,W RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-28080 |
TCR1#..GEN,W LH |
1 | ||
| 88560-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-28070 |
TCR1#..LHD..GL RH |
1 | ||
| 88560-28070 |
TCR1#..GEN,W RH |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28080 |
TCR1#..LHD..GL LH |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-28080 |
TCR1#..GEN,W LH |
1 | ||
| 88560-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-28070 |
TCR1#..LHD..GL RH |
1 | ||
| 88560-28070 |
TCR1#..GEN,W RH |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28080 |
TCR1#..LHD..GL LH |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-28100 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88570-28101 |
TCR1#..LHD..GL RH |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88570-28111 |
TCR1#..LHD..GL LH |
1 | ||
| 88570-28090 |
TCR1#..W LH |
1 | ||
| 88570-28080 |
TCR1#..W RH |
1 | ||
| 88570-28110 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-28100 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88570-28101 |
TCR1#..LHD..GL RH |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88570-28111 |
TCR1#..LHD..GL LH |
1 | ||
| 88570-28090 |
TCR1#..W LH |
1 | ||
| 88570-28080 |
TCR1#..W RH |
1 | ||
| 88570-28110 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-28220 |
TCR11..LHD;TCR1#..GL..(ARL,GEN) |
1 | ||
| 88578-28220 |
TCR1#..GL,XL |
1 | ||
| 88578-28220 |
TCR1#..LHD..08S |
1 | ||
| 88578-28220 |
TCR10..08S;TCR11..LHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28190 |
TCR1#,2#..LHD |
1 | ||
| 88605-28190 |
TCR1#,2#..LHD..MTM |
1 | ||
| 88605-2J790 |
TCR11..LHD;TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J680 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 88605-2J260 |
TCR11..RHD..W;TCR10,2#..ARL,W;TCR11..LHD..MTM |
1 | ||
| 88605-2J260 |
TCR11..RHD..W;TCR1#,2#..LHD..MTM |
1 | ||
| 88605-2J790 |
TCR1#..W W(REAR HEATER) |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28750 |
TCR11..LHD;TCR10..ARL,GEN |
1 | ||
| 88710-28750 |
TCR1#..GEN,W |
1 | ||
| 88710-28750 |
TCR1#..LHD..GL |
1 | ||
| Common parts | ||||
| 88688-28210 | ||||
| 90094-90414 | ||||
| 90099-00930 | ||||
| 90099-01340 | ||||
| 90099-04381 | ||||
| 93540-14012 | ||||

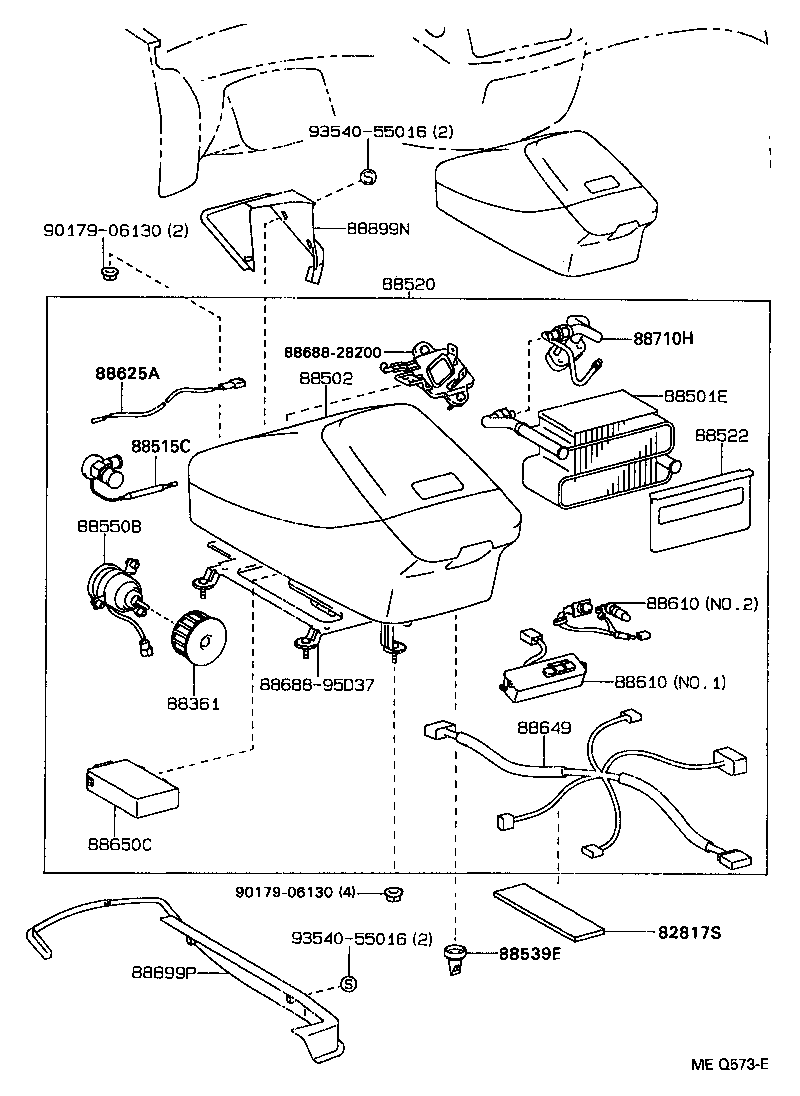

ILLUST NO. 2 OF 4(9108-9308)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-12400 |
TCR11..W;TCR10..LHD..ATM |
2 | ||
| 82817-87013 |
TCR1#..GEN,W |
2 | ||
| 82817-87013 |
TCR1#..W |
1 | ||
| 82817-12400 |
TCR1#..GEN,W |
2 | ||
| 82817-12400 |
TCR1#..GEN,V,W |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-12400 |
TCR11..W;TCR10..LHD..ATM |
2 | ||
| 82817-87013 |
TCR1#..GEN,W |
2 | ||
| 82817-87013 |
TCR1#..W |
1 | ||
| 82817-12400 |
TCR1#..GEN,W |
2 | ||
| 82817-12400 |
TCR1#..GEN,V,W |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 87105-87004 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 87105-87004 |
TCR1#..GEN,V,W |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28180 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88501-95D04 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88501-28180 |
TCR1#..GEN,V,W |
1 | ||
| 88501-28030 |
TCR1#..LHD |
1 | ||
| 88501-28180 |
TCR1#..GEN,W |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28210E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-95D0003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60020 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88515-60020 |
TCR1#..GEN,W |
1 | ||
| 88515-95700 |
TCR1#..LHD |
1 | ||
| 88515-60010 |
TCR1#..LHD |
1 | ||
| 88515-60020 |
TCR1#..GEN,V,W |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-2803005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-2803003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR1#..LHD GRAY,TRIM1# |
1 | ||
| 88520-28140B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-28140B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050E1 |
TCR11..LHD GRAIGE,TRIM4# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88539-95708 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 88539-95708 |
TCR1#..GEN,V,W |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88550-28040 |
TCR1#..GEN,V,W |
1 | ||
| 88550-28040 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88550-87003 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88550-28040 |
TCR1#..GEN,W |
1 | ||
| 88550-28040 |
TCR1#..LHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR1#..W;TCR21..ATM NO.1 |
1 | ||
| 88610-95713 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GL..(GEN,W) NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GL..(GEN,W) NO.2 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-95713 |
TCR1#..W;TCR21..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR1#..W;TCR21..ATM NO.1 |
1 | ||
| 88610-95713 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GL..(GEN,W) NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GL..(GEN,W) NO.2 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-95713 |
TCR1#..W;TCR21..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88625-28050 |
TCR1#..GEN,W |
1 | ||
| 88625-28050 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88625-28050 |
TCR1#..LHD |
1 | ||
| 88625-28050 |
TCR1#..GEN,V,W |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-95D23 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR11..LHD;TCR10..LHD..ATM NO.1 |
1 | ||
| 88605-28330 |
TCR1#..LHD |
1 | ||
| 88605-28240 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR11..W;TCR10..LHD..ATM NO.2 |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,V,W NO.2 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 88650-28120 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88650-95705 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88650-28120 |
TCR1#..GEN,V,W |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-95D07 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88710-28320 |
TCR1#..LHD |
1 | ||
| 88710-28890 |
TCR1#..GEN,V,W |
1 | ||
| 88710-28890 |
TCR1#..GEN,W |
1 | ||
| 88710-28890 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88710-28150 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR1#..W;TCR21..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0005 |
TCR11..W;TCR21..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28240B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240E2 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28240B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-28200B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0203 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0205 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28210E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-28200B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0203 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0205 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28210E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,RH |
1 | ||
| Common parts | ||||
| 88688-28400 | ||||
| 88688-28420 | ||||
| 88688-28430 | ||||
| 88688-28440 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500401 | ||||
| 91651-40616 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||

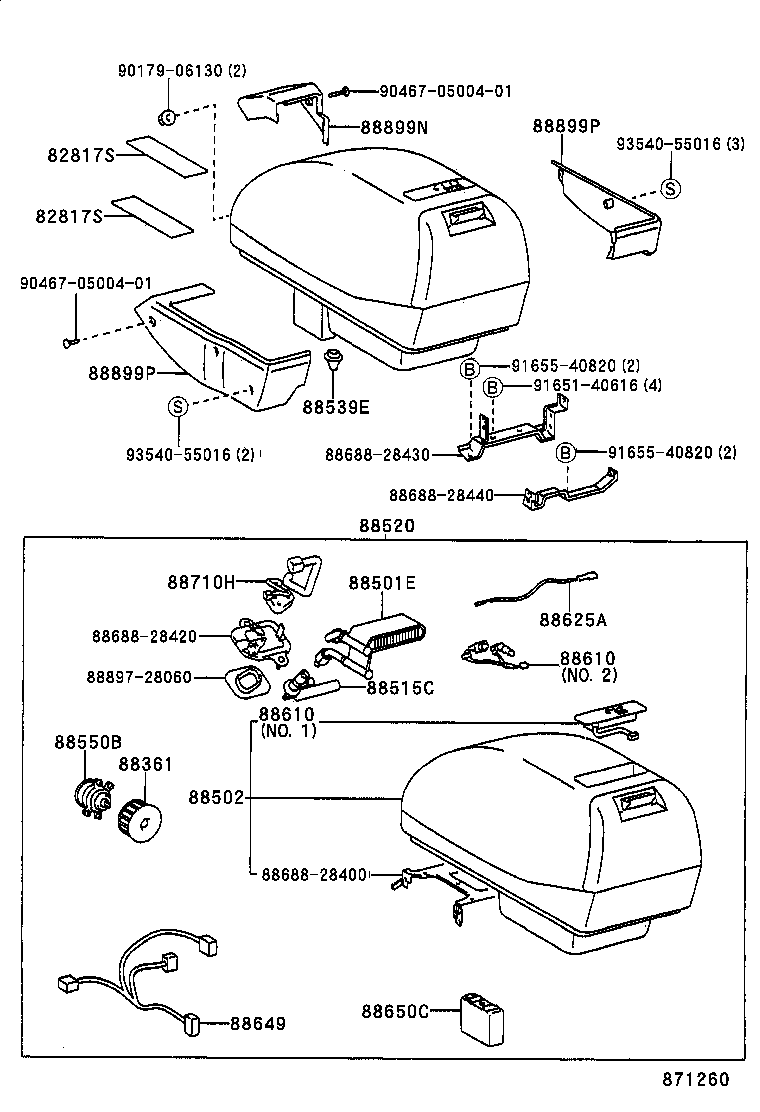

ILLUST NO. 2 OF 4(9308- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-12400 |
TCR11..W;TCR10..LHD..ATM |
2 | ||
| 82817-87013 |
TCR1#..GEN,W |
2 | ||
| 82817-87013 |
TCR1#..W |
1 | ||
| 82817-12400 |
TCR1#..GEN,W |
2 | ||
| 82817-12400 |
TCR1#..GEN,V,W |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-12400 |
TCR11..W;TCR10..LHD..ATM |
2 | ||
| 82817-87013 |
TCR1#..GEN,W |
2 | ||
| 82817-87013 |
TCR1#..W |
1 | ||
| 82817-12400 |
TCR1#..GEN,W |
2 | ||
| 82817-12400 |
TCR1#..GEN,V,W |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 87105-87004 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 87105-87004 |
TCR1#..GEN,V,W |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28180 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88501-95D04 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88501-28180 |
TCR1#..GEN,V,W |
1 | ||
| 88501-28030 |
TCR1#..LHD |
1 | ||
| 88501-28180 |
TCR1#..GEN,W |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28210E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-95D0003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60020 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88515-60020 |
TCR1#..GEN,W |
1 | ||
| 88515-95700 |
TCR1#..LHD |
1 | ||
| 88515-60010 |
TCR1#..LHD |
1 | ||
| 88515-60020 |
TCR1#..GEN,V,W |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-2803005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-2803003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR1#..LHD GRAY,TRIM1# |
1 | ||
| 88520-28140B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-28140B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050E1 |
TCR11..LHD GRAIGE,TRIM4# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88539-95708 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 88539-95708 |
TCR1#..GEN,V,W |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88550-28040 |
TCR1#..GEN,V,W |
1 | ||
| 88550-28040 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88550-87003 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88550-28040 |
TCR1#..GEN,W |
1 | ||
| 88550-28040 |
TCR1#..LHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR1#..W;TCR21..ATM NO.1 |
1 | ||
| 88610-95713 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GL..(GEN,W) NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GL..(GEN,W) NO.2 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-95713 |
TCR1#..W;TCR21..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR1#..W;TCR21..ATM NO.1 |
1 | ||
| 88610-95713 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GL..(GEN,W) NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GL..(GEN,W) NO.2 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-95713 |
TCR1#..W;TCR21..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88625-28050 |
TCR1#..GEN,W |
1 | ||
| 88625-28050 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88625-28050 |
TCR1#..LHD |
1 | ||
| 88625-28050 |
TCR1#..GEN,V,W |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-95D23 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR11..LHD;TCR10..LHD..ATM NO.1 |
1 | ||
| 88605-28330 |
TCR1#..LHD |
1 | ||
| 88605-28240 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR11..W;TCR10..LHD..ATM NO.2 |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,V,W NO.2 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-95D23 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR11..LHD;TCR10..LHD..ATM NO.1 |
1 | ||
| 88605-28330 |
TCR1#..LHD |
1 | ||
| 88605-28240 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR11..W;TCR10..LHD..ATM NO.2 |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,V,W NO.2 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 88650-28120 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88650-95705 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88650-28120 |
TCR1#..GEN,V,W |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-95D07 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88710-28320 |
TCR1#..LHD |
1 | ||
| 88710-28890 |
TCR1#..GEN,V,W |
1 | ||
| 88710-28890 |
TCR1#..GEN,W |
1 | ||
| 88710-28890 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88710-28150 |
TCR1#..W;TCR21..ATM |
1 | ||

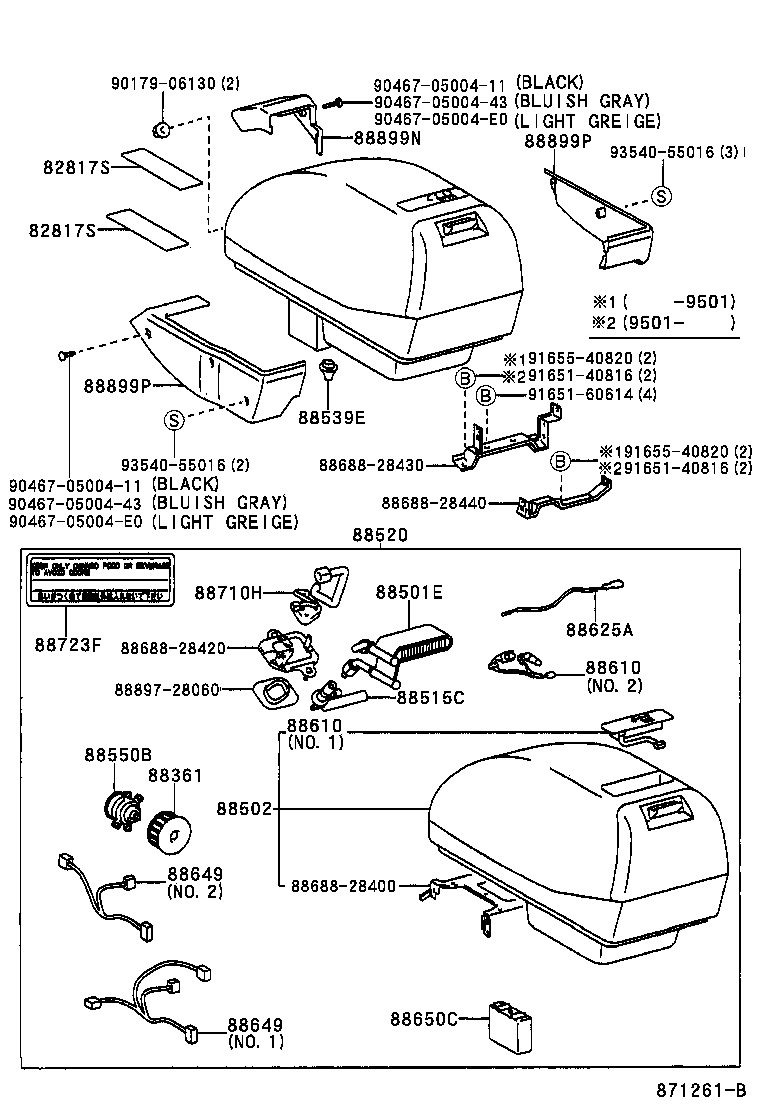

| 88723F - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28150 |
TCR1#..GEN,V,W |
1 | ||
| 88723-28150 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88723-28150 |
TCR1#..GEN,W |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR1#..W;TCR21..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0005 |
TCR11..W;TCR21..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28240B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240E2 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28240B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-28200B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0203 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0205 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28210E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-28200B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0203 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0205 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28210E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,RH |
1 | ||
| Common parts | ||||
| 88688-28400 | ||||
| 88688-28420 | ||||
| 88688-28430 | ||||
| 88688-28440 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500411 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
ILLUST NO. 4 OF 4(9005- )
W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 4 OF 4(9005- )
W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 3 OF 4(9005- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95D32 |
TCR10..GEN;TCR11..LHD..MTM DUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88688-95D30 |
TCR11..LHD..MTM W(TWIN SUN ROOF) |
1 | ||
| 88688-95D32 |
TCR10..LHD..08S;TCR11..LHD..MTM DUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95D34 |
TCR10..GEN;TCR11..LHD..MTM |
1 | ||
| 88688-95D34 |
TCR10..LHD..08S;TCR11..LHD..MTM DUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88688-95D34 |
TCR10..GEN;TCR11..LHD..MTM DUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88688-95D40 |
TCR11..LHD..MTM W(TWIN SUN ROOF) |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-95D27 |
TCR1#..GL |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-95D42 |
TCR1#..LHD..GL |
1 | ||
| 88688-95D42 |
TCR1#..LHD..08S |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95D00 |
TCR11..LHD;TCR1#..ARL,GEN |
1 | ||
| 88539-95D00 |
TCR1#..08S |
1 | ||
| 88539-95D00 |
TCR11..W;TCR10..08S |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-28080 |
TCR1#..LHD..GL |
1 | ||
| 88539-28160 |
TCR1#..LHD..08S |
1 | ||
| 88539-28200 |
TCR1#..LHD..08S |
1 | ||
| 88539-28080 |
TCR1#..LHD..08S |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95D02 |
TCR11..LHD;TCR1#..ARL,GEN,V |
1 | ||
| 88539-95D02 |
TCR1# |
1 | ||
| 88539-28180 |
TCR1#..GEN,V,W |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-95D03 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88561-95D00 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88561-95D02 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88561-28100 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88561-28100 |
TCR1#..08S RH |
1 | ||
| 88561-95D01 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88561-28110 |
TCR1#..ARL,W LH |
1 | ||
| 88561-28110 |
TCR11..W;TCR10..ARL,W LH |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-95D03 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88561-95D00 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88561-95D02 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88561-28100 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88561-28100 |
TCR1#..08S RH |
1 | ||
| 88561-95D01 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88561-28110 |
TCR1#..ARL,W LH |
1 | ||
| 88561-28110 |
TCR11..W;TCR10..ARL,W LH |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-95D02 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88571-28090 |
TCR1#..LHD..GL LH |
1 | ||
| 88571-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88571-95D01 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88571-28070 |
TCR1#..GEN,W LH |
1 | ||
| 88571-28100 |
TCR11..LHD;TCR1#..GL..(ARL,GEN) RH |
1 | ||
| 88571-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88571-28080 |
TCR1#..GEN,W RH |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-95D02 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88571-28090 |
TCR1#..LHD..GL LH |
1 | ||
| 88571-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88571-95D01 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88571-28070 |
TCR1#..GEN,W LH |
1 | ||
| 88571-28100 |
TCR11..LHD;TCR1#..GL..(ARL,GEN) RH |
1 | ||
| 88571-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88571-28080 |
TCR1#..GEN,W RH |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95D28 |
TCR1#,2#..W |
1 | ||
| 88605-2J230 |
TCR1#,2#..LHD..MTM SINGLE TYPE |
1 | ||
| 88605-2J420 |
TCR1#,2#..MTM..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88605-2J230 |
TCR10,2#..W SINGLE TYPE |
1 | ||
| 88605-2J230 |
TCR11..LHD..MTM SINGLE TYPE OR DUAL TYPE---DEALER OPT |
1 | ||
| 88605-2J330 |
TCR1#..LHD..GL DUAL TYPE---MAKER OPT |
1 | ||
| 88605-95D28 |
TCR1#,21..LHD SINGLE TYPE |
1 | ||
| 88605-2J230 |
TCR1#,2#..LHD..MTM SINGLE TYPE |
1 | ||
| 88605-2J330 |
TCR10..08S;TCR11..LHD DUAL TYPE---MAKER OPT |
1 | ||
| 88605-2J420 |
TCR11..RHD..W;TCR1#,2#..LHD..MTM SINGLE TYPE---MAKER OPT |
1 | ||
| 88605-2J690 |
TCR1#..LHD..GL ISRAEL SPEC & W(TWIN *SNR) & DUAL TYPE OR ISRAEL SPEC & DUAL TYPE |
1 | ||
| 88605-2J330 |
TCR1#..LHD..08S DUAL TYPE---MAKER OPT |
1 | ||
| 88605-2J690 |
TCR11..LHD ISRAEL SPEC & W(TWIN *SNR) & DUAL TYPE OR ISRAEL SPEC & DUAL TYPE |
1 | ||
| 88605-2J420 |
TCR11..RHD..W;TCR10,2#..ARL,W;TCR11..LHD..MTM SINGLE TYPE---MAKER OPT |
1 | ||
| 88605-2J420 |
TCR11..LHD..ATM;TCR1#,2#..MTM..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95D01 |
TCR11..RHD..W;TCR1#,2#..LHD..MTM SINGLE TYPE |
1 | ||
| 88630-95D01 |
TCR11..LHD..MTM SINGLE TYPE OR W(REAR HEATER) |
1 | ||
| 88630-28050 |
TCR1#,2#..LHD SINGLE TYPE(DEALER OPT) |
1 | ||
| 88630-95D01 |
TCR1#,2#..W SINGLE TYPE |
1 | ||
| 88630-95D01 |
TCR11..RHD..W;TCR1#..LHD..MTM SINGLE TYPE OR W(REAR HEATER) |
1 | ||
| 88630-95D01 |
TCR10,2#..W;TCR11..RHD..W SINGLE TYPE |
1 | ||
| 88630-28060 |
TCR1#,2#..W SINGLE TYPE(DEALER OPT) |
1 | ||
| 88630-28050 |
TCR1#,2#..LHD..MTM |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95D03 |
TCR1#,21..LHD SINGLE TYPE |
1 | ||
| 88630-95D03 |
TCR1#,2#..LHD |
1 | ||
| 88630-95D04 |
TCR11..LHD;TCR10,2#..ARL,W SINGLE TYPE---DEALER OPT |
1 | ||
| 88630-95D03 |
TCR1#,2#..LHD..MTM SINGLE TYPE---MAKER OPT |
1 | ||
| 88630-95D03 |
TCR1#,2#..LHD..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88630-28070 |
TCR11..LHD DUAL TYPE---MAKER OPT |
1 | ||
| 88630-28070 |
TCR1#..LHD..W DUAL TYPE---MAKER OPT |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95D02 |
TCR11..LHD;TCR10..ARL,GEN,V |
1 | ||
| 88630-95D02 |
TCR10;TCR11..W |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-14030 |
TCR11..W;TCR10,2#..ARL,W |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28100 |
TCR1#,2#..LHD SINGLE TYPE(DEALER OPT) |
1 | ||
| 88650-28290 |
TCR20;TCR1#,21..LHD..GL |
1 | ||
| 88650-28100 |
TCR1#,2#..LHD |
1 | ||
| 88650-95D01 |
TCR1#,2#..LHD SINGLE TYPE |
1 | ||
| 88650-28610 |
TCR1#..LHD..MTM SINGLE TYPE OR W(REAR HEATER) |
1 | ||
| 88650-28290 |
TCR11,2#..LHD..MTM |
1 | ||
| 88650-28290 |
TCR11,2#..LHD |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28100 |
TCR1#,2#..LHD SINGLE TYPE(DEALER OPT) |
1 | ||
| 88650-28290 |
TCR20;TCR1#,21..LHD..GL |
1 | ||
| 88650-28100 |
TCR1#,2#..LHD |
1 | ||
| 88650-95D01 |
TCR1#,2#..LHD SINGLE TYPE |
1 | ||
| 88650-28610 |
TCR1#..LHD..MTM SINGLE TYPE OR W(REAR HEATER) |
1 | ||
| 88650-28290 |
TCR11,2#..LHD..MTM |
1 | ||
| 88650-28290 |
TCR11,2#..LHD |
1 | ||
| 88895 - HOLDER, FUSE | ||||
| 88895-95J00 |
TCR10..08S;TCR11..ARL;TCR11..LHD |
1 | ||
| 88895-95J00 |
TCR11..LHD;TCR1#..ARL,GEN |
1 | ||
| 88895-95J00 |
TCR1#..08S |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28110 |
TCR1#..GEN,V,W |
2 | ||
| 88899-28110 |
TCR10;TCR11..W |
2 | ||
| 88899-28110 |
TCR11..LHD;TCR10..LHD..ATM |
2 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28110 |
TCR1#..GEN,V,W |
2 | ||
| 88899-28110 |
TCR10;TCR11..W |
2 | ||
| 88899-28110 |
TCR11..LHD;TCR10..LHD..ATM |
2 | ||
| 88899K - PLATE, COVER | ||||
| 88899-95D04L1 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,NIPPONDENSO,LH |
1 | ||
| 88899-95D05B8 |
TCR1#..LHD..GL LT.GRAY,TRIM1#,RH |
1 | ||
| 88899-28540B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D04B8 |
TCR1#..LHD..GL LT.GRAY,TRIM1#,NIPPONDENSO,LH |
1 | ||
| 88899-28530B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28530B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,LH |
1 | ||
| 88899-28540B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,RH |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-95D04L1 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,NIPPONDENSO,LH |
1 | ||
| 88899-95D05B8 |
TCR1#..LHD..GL LT.GRAY,TRIM1#,RH |
1 | ||
| 88899-28540B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D04B8 |
TCR1#..LHD..GL LT.GRAY,TRIM1#,NIPPONDENSO,LH |
1 | ||
| 88899-28530B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28530B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,LH |
1 | ||
| 88899-28540B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,RH |
1 | ||
| Common parts | ||||
| 82715-28630 | ||||
| 88578-28100 | ||||
| 88578-28140 | ||||
| 88688-28230 | ||||
| 88688-28240 | ||||
| 88718-95D27 | ||||
| 88894-28020 | ||||
| 90099-00930 | ||||
| 90119-06159 | ||||
| 90119-06700 | ||||
| 90179-06032 | ||||
| 90179-06069 | ||||
| 90179-06115 | ||||
| 90189-05037 | ||||
| 90468-04134 | ||||
| 90480-25024 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(9208- )ARL,GEN,W
REAR, MATSUSHITA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 87105-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 87105-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D01 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 87138-95D02 |
TCR11..W;TCR10..08S |
1 | ||
| 87138-95D02 |
TCR1#..LHD..GL NIPPONDENSO |
1 | ||
| 87138-95D02 |
TCR11..W;TCR10..ARL,W |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28060 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88550-28050 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28060 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88550-28050 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28130 |
TCR1#..LHD..GL NIPPONDENSO |
1 | ||
| 88501-28130 |
TCR1#..LHD..W |
1 | ||
| 88501-28140 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 88501-28130 |
TCR1#..LHD..08S |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-28040 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10..GEN;TCR11..LHD..MTM LH,NIPPONDENSO |
1 | ||
| 88504-95D03 |
TCR10..GEN;TCR11..LHD..MTM RH,NIPPONDENSO |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-28040 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10..GEN;TCR11..LHD..MTM LH,NIPPONDENSO |
1 | ||
| 88504-95D03 |
TCR10..GEN;TCR11..LHD..MTM RH,NIPPONDENSO |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28440B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,NIPPONDENSO |
1 | ||
| 88510-28450E0 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,MATSUSHITA |
1 | ||
| 88510-28441B0 |
TCR1#..LHD..GL LT.GRAY,TRIM1# |
1 | ||
| 87030-28070B0 |
TCR1#..LHD..W LT.GRAY,TRIM1# |
1 | ||
| 87030-28070B1 |
TCR1#..LHD..W LT.GRAY,TRIM1# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28050 |
TCR1#..LHD..GL NIPPONDENSO |
1 | ||
| 88515-28050 |
TCR1#..W |
1 | ||
| 88515-28070 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 88515-28050 |
TCR1#..GEN,W |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28010B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88502-28180B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28300E0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM4#,LOWER,MATSUSITA |
1 | ||
| 88521-28030E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-28301E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28410B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28400B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28400B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28181B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28410B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-28010B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88502-28180B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28300E0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM4#,LOWER,MATSUSITA |
1 | ||
| 88521-28030E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-28301E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28410B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88502-28400B0 |
TCR1#..LHD..W LIGHT GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28400B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,UPPER |
1 | ||
| 88502-28181B0 |
TCR1#..LHD..GL LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28410B1 |
TCR1#..LHD..W LT.GRAY,TRIM1#,LOWER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88544-28040 |
TCR1#..LHD..GL RH,NO.2,MATSUSHITA |
1 | ||
| 88544-28030 |
TCR1#..LHD..GL LH,NO.2,MATSUSHITA |
1 | ||
| 88544-28050 |
TCR1#..LHD..GL LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR1#..GEN,W LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D02 |
TCR1#..LHD..GL RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR1#..GEN,W RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88544-28040 |
TCR1#..LHD..GL RH,NO.2,MATSUSHITA |
1 | ||
| 88544-28030 |
TCR1#..LHD..GL LH,NO.2,MATSUSHITA |
1 | ||
| 88544-28050 |
TCR1#..LHD..GL LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR1#..GEN,W LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D02 |
TCR1#..LHD..GL RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR1#..GEN,W RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88544-28040 |
TCR1#..LHD..GL RH,NO.2,MATSUSHITA |
1 | ||
| 88544-28030 |
TCR1#..LHD..GL LH,NO.2,MATSUSHITA |
1 | ||
| 88544-28050 |
TCR1#..LHD..GL LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR1#..GEN,W LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D02 |
TCR1#..LHD..GL RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR1#..GEN,W RH,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D05 |
TCR11..LHD;TCR10..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88544-95D05 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88544-28040 |
TCR1#..LHD..GL RH,NO.2,MATSUSHITA |
1 | ||
| 88544-28030 |
TCR1#..LHD..GL LH,NO.2,MATSUSHITA |
1 | ||
| 88544-28050 |
TCR1#..LHD..GL LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR1#..GEN,W LH,NIPPONDENSO |
1 | ||
| 88544-95D04 |
TCR11..LHD;TCR10..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88544-95D02 |
TCR1#..LHD..GL RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR1#..GEN,W RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-28080 |
TCR1#..GEN,W LH |
1 | ||
| 88560-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-28070 |
TCR1#..LHD..GL RH |
1 | ||
| 88560-28070 |
TCR1#..GEN,W RH |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28080 |
TCR1#..LHD..GL LH |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-28080 |
TCR1#..GEN,W LH |
1 | ||
| 88560-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88560-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88560-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88560-28070 |
TCR11..W;TCR10..08S RH |
1 | ||
| 88560-28070 |
TCR1#..LHD..GL RH |
1 | ||
| 88560-28070 |
TCR1#..GEN,W RH |
1 | ||
| 88560-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88560-28080 |
TCR11..W;TCR10..08S LH |
1 | ||
| 88560-28080 |
TCR1#..LHD..GL LH |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-28100 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88570-28101 |
TCR1#..LHD..GL RH |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88570-28111 |
TCR1#..LHD..GL LH |
1 | ||
| 88570-28090 |
TCR1#..W LH |
1 | ||
| 88570-28080 |
TCR1#..W RH |
1 | ||
| 88570-28110 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-28100 |
TCR1#..LHD..GL RH,NIPPONDENSO |
1 | ||
| 88570-95D02 |
TCR11..LHD;TCR1#..ARL,GEN RH,NIPPONDENSO |
1 | ||
| 88570-95D01 |
TCR1#..LHD..GL LH,MATSUSHITA |
1 | ||
| 88570-28101 |
TCR1#..LHD..GL RH |
1 | ||
| 88570-95D03 |
TCR11..LHD;TCR1#..ARL,GEN LH,NIPPONDENSO |
1 | ||
| 88570-95D00 |
TCR1#..LHD..GL RH,MATSUSHITA |
1 | ||
| 88570-28111 |
TCR1#..LHD..GL LH |
1 | ||
| 88570-28090 |
TCR1#..W LH |
1 | ||
| 88570-28080 |
TCR1#..W RH |
1 | ||
| 88570-28110 |
TCR1#..LHD..GL LH,NIPPONDENSO |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28190 |
TCR1#,2#..LHD |
1 | ||
| 88605-28190 |
TCR1#,2#..LHD..MTM |
1 | ||
| 88605-2J790 |
TCR11..LHD;TCR10..ARL,GEN NIPPONDENSO |
1 | ||
| 88605-2J680 |
TCR1#..LHD..GL MATSUSHITA |
1 | ||
| 88605-2J260 |
TCR11..RHD..W;TCR10,2#..ARL,W;TCR11..LHD..MTM |
1 | ||
| 88605-2J260 |
TCR11..RHD..W;TCR1#,2#..LHD..MTM |
1 | ||
| 88605-2J790 |
TCR1#..W W(REAR HEATER) |
1 | ||
| Common parts | ||||
| 88899-28410 | ||||
| 88899-28420 | ||||

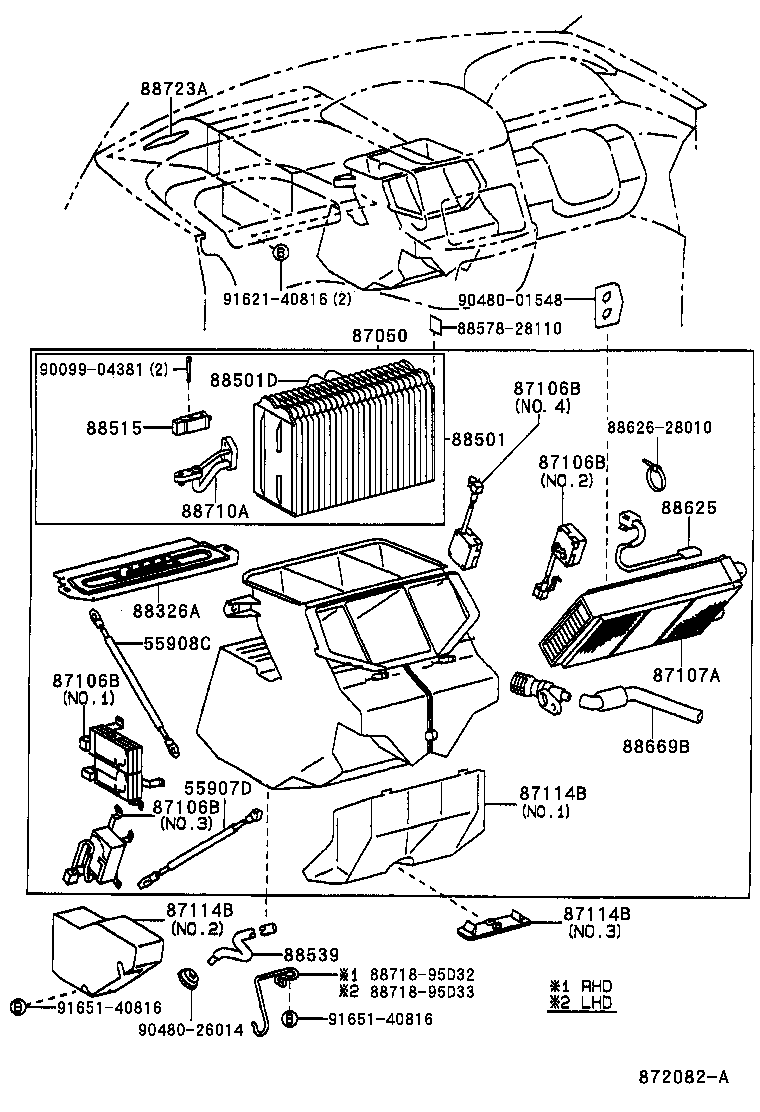

ILLUST NO. 1 OF 4(9108- )
AUTO TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28210 |
TCR1#,2#..LHD |
1 | ||
| 87050-95D02 |
TCR1#,2#..LHD SINGLE TYPE |
1 | ||
| 87050-28070 |
TCR1#,2#..LHD |
1 | ||
| 87050-95D00 |
TCR11,2#..LHD..MTM |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95D03 |
TCR1#,2#..LHD SINGLE TYPE |
1 | ||
| 87107-28130 |
TCR1#,2#..LHD |
1 | ||
| 87107-95D02 |
TCR11,2#..LHD..MTM |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D00 |
TCR1#,2#..LHD NO.2 |
1 | ||
| 87114-95D00 |
TCR1#,2#..LHD |
1 | ||
| 87114-95D04 |
TCR1#,2#..LHD NO.1 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D00 |
TCR1#,2#..LHD NO.2 |
1 | ||
| 87114-95D00 |
TCR1#,2#..LHD |
1 | ||
| 87114-95D04 |
TCR1#,2#..LHD NO.1 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D00 |
TCR1#,2#..LHD NO.2 |
1 | ||
| 87114-95D00 |
TCR1#,2#..LHD |
1 | ||
| 87114-95D04 |
TCR1#,2#..LHD NO.1 |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR1#,2# |
1 | ||
| 88326-95D01 |
TCR10,20;TCR11,21..W |
1 | ||
| 88326-28040 |
TCR1#,2# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95D03 |
TCR1#,2# |
1 | ||
| 88501-28110 |
TCR1#,2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33010 |
TCR1#,2#..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88515-20100 |
TCR1#,2#..ARL,GEN,W |
1 | ||
| 88515-14062 |
TCR20;TCR11..RHD;TCR10,21..DX,GL;TCR11..LHD..MTM |
1 | ||
| 88515-33010 |
TCR1#,2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28100 |
TCR10,2#..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88539-28100 |
TCR1#,2#..LHD..MTM SINGLE TYPE---MAKER OPT |
1 | ||
| 88539-28100 |
TCR1#..LHD..MTM SINGLE TYPE |
1 | ||
| 88539-28100 |
TCR11..LHD..MTM SINGLE TYPE |
1 | ||
| 88539-95D04 |
TCR1#,2#..LHD..W |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
TCR10,20;TCR11,21..LHD |
1 | ||
| 88625-60050 |
TCR1#,2#..LHD |
1 | ||
| 88625-60050 |
TCR1#,2#..LHD..W SINGLE TYPE---DEALER OPT |
1 | ||
| 88625-16210 |
TCR1#,2#..GEN,V,W |
1 | ||
| 88625-16210 |
TCR10,2#;TCR11..W |
1 | ||
| 88625-60050 |
TCR10,2#;TCR11..ARL;TCR11..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28870 |
TCR1#,2# |
1 | ||
| 88710-28720 |
TCR1#,2# |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-33020 |
TCR1#,21..LHD *FRG & SINGLE TYPE |
1 | ||
| 88723-20040 |
TCR1#,2# |
1 | ||
| 88723-20040 |
TCR10,2#;TCR11..RHD;TCR11..LHD..MTM |
1 | ||
| Common parts | ||||
| 88578-28110 | ||||
| 88626-28010 | ||||
| 88718-95D32 | ||||
| 88718-95D33 | ||||
| 90099-04381 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||
ILLUST NO. 1 OF 4(9005- )
MANUAL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28210 |
TCR1#,2#..LHD |
1 | ||
| 87050-95D02 |
TCR1#,2#..LHD SINGLE TYPE |
1 | ||
| 87050-28070 |
TCR1#,2#..LHD |
1 | ||
| 87050-95D00 |
TCR11,2#..LHD..MTM |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95D03 |
TCR1#,2#..LHD SINGLE TYPE |
1 | ||
| 87107-28130 |
TCR1#,2#..LHD |
1 | ||
| 87107-95D02 |
TCR11,2#..LHD..MTM |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D00 |
TCR1#,2#..LHD NO.2 |
1 | ||
| 87114-95D00 |
TCR1#,2#..LHD |
1 | ||
| 87114-95D04 |
TCR1#,2#..LHD NO.1 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D00 |
TCR1#,2#..LHD NO.2 |
1 | ||
| 87114-95D00 |
TCR1#,2#..LHD |
1 | ||
| 87114-95D04 |
TCR1#,2#..LHD NO.1 |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR1#,2# |
1 | ||
| 88326-95D01 |
TCR10,20;TCR11,21..W |
1 | ||
| 88326-28040 |
TCR1#,2# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95D03 |
TCR1#,2# |
1 | ||
| 88501-28110 |
TCR1#,2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33010 |
TCR1#,2#..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88515-20100 |
TCR1#,2#..ARL,GEN,W |
1 | ||
| 88515-14062 |
TCR20;TCR11..RHD;TCR10,21..DX,GL;TCR11..LHD..MTM |
1 | ||
| 88515-33010 |
TCR1#,2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28100 |
TCR10,2#..W SINGLE TYPE---MAKER OPT |
1 | ||
| 88539-28100 |
TCR1#,2#..LHD..MTM SINGLE TYPE---MAKER OPT |
1 | ||
| 88539-28100 |
TCR1#..LHD..MTM SINGLE TYPE |
1 | ||
| 88539-28100 |
TCR11..LHD..MTM SINGLE TYPE |
1 | ||
| 88539-95D04 |
TCR1#,2#..LHD..W |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
TCR10,20;TCR11,21..LHD |
1 | ||
| 88625-60050 |
TCR1#,2#..LHD |
1 | ||
| 88625-60050 |
TCR1#,2#..LHD..W SINGLE TYPE---DEALER OPT |
1 | ||
| 88625-16210 |
TCR1#,2#..GEN,V,W |
1 | ||
| 88625-16210 |
TCR10,2#;TCR11..W |
1 | ||
| 88625-60050 |
TCR10,2#;TCR11..ARL;TCR11..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28870 |
TCR1#,2# |
1 | ||
| 88710-28720 |
TCR1#,2# |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-33020 |
TCR1#,21..LHD *FRG & SINGLE TYPE |
1 | ||
| 88723-20040 |
TCR1#,2# |
1 | ||
| 88723-20040 |
TCR10,2#;TCR11..RHD;TCR11..LHD..MTM |
1 | ||
| Common parts | ||||
| 88626-28010 | ||||
| 88718-95D32 | ||||
| 88718-95D33 | ||||
| 88897-28140 | ||||
| 90099-04381 | ||||
| 90119-08632 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 4(9005-9108)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-12400 |
TCR11..W;TCR10..LHD..ATM |
2 | ||
| 82817-87013 |
TCR1#..GEN,W |
2 | ||
| 82817-87013 |
TCR1#..W |
1 | ||
| 82817-12400 |
TCR1#..GEN,W |
2 | ||
| 82817-12400 |
TCR1#..GEN,V,W |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 87105-87004 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 87105-87004 |
TCR1#..GEN,V,W |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28180 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88501-95D04 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88501-28180 |
TCR1#..GEN,V,W |
1 | ||
| 88501-28030 |
TCR1#..LHD |
1 | ||
| 88501-28180 |
TCR1#..GEN,W |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28210E0 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-95D0003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60020 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88515-60020 |
TCR1#..GEN,W |
1 | ||
| 88515-95700 |
TCR1#..LHD |
1 | ||
| 88515-60010 |
TCR1#..LHD |
1 | ||
| 88515-60020 |
TCR1#..GEN,V,W |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-2803005 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88520-2803003 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR1#..LHD GRAY,TRIM1# |
1 | ||
| 88520-28140B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-28140B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050E1 |
TCR11..LHD GRAIGE,TRIM4# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-95D00 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88539-95708 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 88539-95708 |
TCR1#..GEN,V,W |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88550-28040 |
TCR1#..GEN,V,W |
1 | ||
| 88550-28040 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88550-87003 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88550-28040 |
TCR1#..GEN,W |
1 | ||
| 88550-28040 |
TCR1#..LHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR1#..W;TCR21..ATM NO.1 |
1 | ||
| 88610-95713 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GL..(GEN,W) NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GL..(GEN,W) NO.2 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-95713 |
TCR1#..W;TCR21..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR1#..W;TCR21..ATM NO.1 |
1 | ||
| 88610-95713 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GL..(GEN,W) NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88610-95713 |
TCR1#..GL..(GEN,W) NO.2 |
1 | ||
| 88610-95713 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88610-95713 |
TCR1#..W;TCR21..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR1#..LHD W(*AIC & SMALL COOL BOX),NO.1 |
1 | ||
| 88610-28150 |
TCR1#..GEN,W NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88625-28050 |
TCR1#..GEN,W |
1 | ||
| 88625-28050 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88625-28050 |
TCR1#..LHD |
1 | ||
| 88625-28050 |
TCR1#..GEN,V,W |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-95D23 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR11..LHD;TCR10..LHD..ATM NO.1 |
1 | ||
| 88605-28330 |
TCR1#..LHD |
1 | ||
| 88605-28240 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR11..W;TCR10..LHD..ATM NO.2 |
1 | ||
| 88605-28330 |
TCR1#..LHD NO.1 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,V,W NO.2 |
1 | ||
| 88605-2J440 |
TCR1#..GEN,W NO.2 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
TCR21..ATM;TCR1#..GEN,W |
1 | ||
| 88650-28120 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88650-95705 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88650-28120 |
TCR1#..GEN,V,W |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-95D07 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88710-28320 |
TCR1#..LHD |
1 | ||
| 88710-28890 |
TCR1#..GEN,V,W |
1 | ||
| 88710-28890 |
TCR1#..GEN,W |
1 | ||
| 88710-28890 |
TCR11..W;TCR10..LHD..ATM |
1 | ||
| 88710-28150 |
TCR1#..W;TCR21..ATM |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR1#..W;TCR21..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0005 |
TCR11..W;TCR21..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28240B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240E2 |
TCR1#..LHD..GL LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28240B0 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-28200B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28210B0 |
TCR11..LHD;TCR10..LHD..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0203 |
TCR1#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0205 |
TCR11..LHD LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-28210B0 |
TCR1#..LHD LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28210E2 |
TCR1#..LHD..GL LIGHT GREIGE,TRIM4#,RH |
1 | ||
| Common parts | ||||
| 88688-28200 | ||||
| 88688-95D37 | ||||
| 90179-06130 | ||||
| 93540-55016 | ||||
ILLUST NO. 4 OF 5(9108-9308)
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-28400 | ||||
| 88688-28420 | ||||
| 88688-28430 | ||||
| 88688-28440 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40616 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
ILLUST NO. 4 OF 5(9308- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-28400 | ||||
| 88688-28420 | ||||
| 88688-28430 | ||||
| 88688-28440 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
ILLUST NO. 4 OF 5(9001-9108)
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-28200 | ||||
| 88688-95D37 | ||||
| 90179-06130 | ||||
| 93540-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
