TCR10R-RRMDKQ (1990)
Toyota Previa

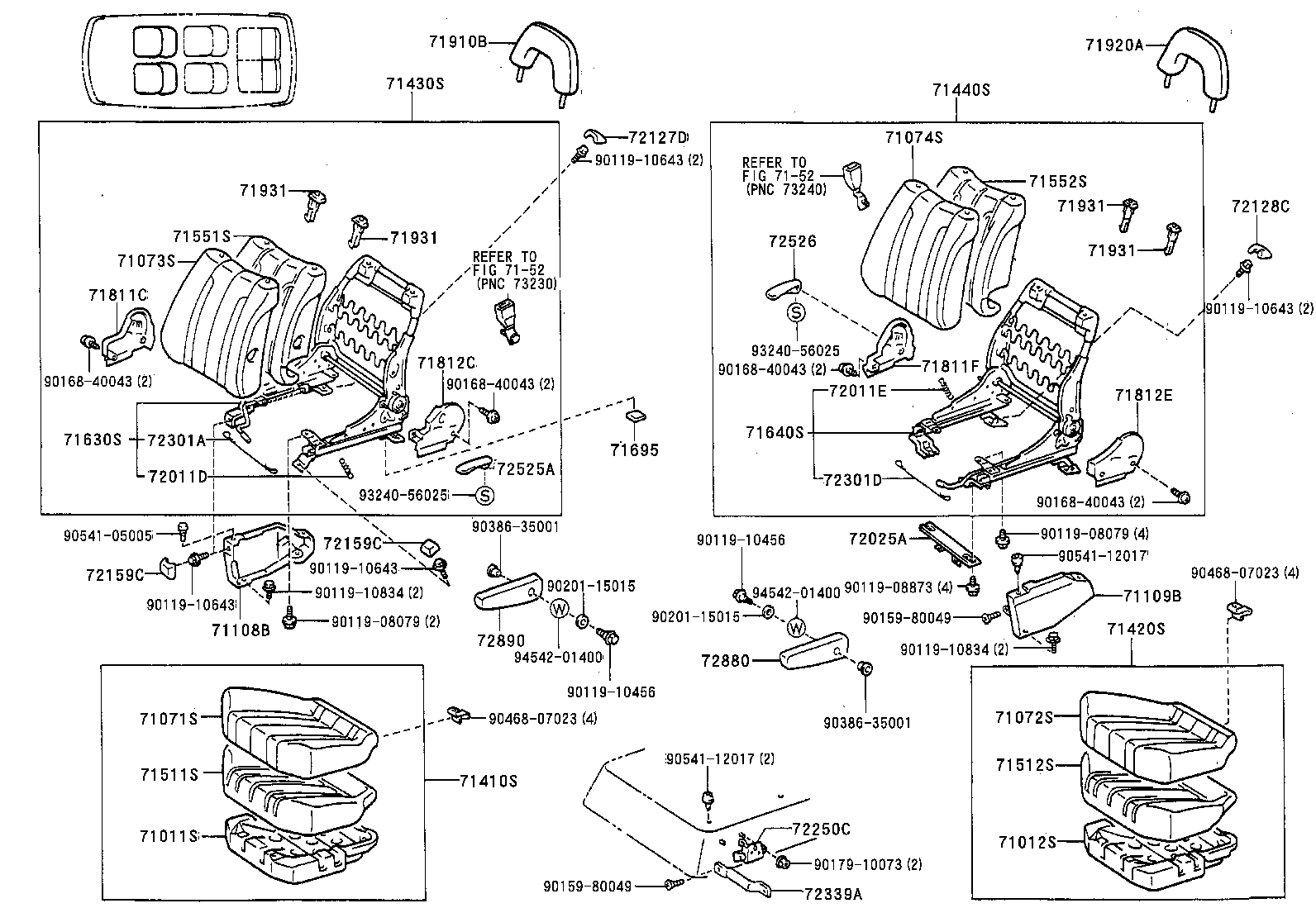

ILLUST NO. 1 OF 3(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71011-28160 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-28130 |
TCR1#,2# |
1 | ||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71012-28130 |
TCR11..W;TCR10,2#..ARL,GEN,W |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28470B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28730B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28470B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28720B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28380B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28680B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28380B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2J240B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71108-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71108-95D0103 |
TCR1#,21..RHD GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28080B0 |
TCR1#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71109-95D0103 |
TCR1#,21..RHD GRAY,TRIM1# |
1 | ||
| 71109-28030B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71109-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28340B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28830B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95D0403 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28340B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28770B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-95D0403 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28510B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2J080B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J380B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J381B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-95D0503 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28510B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2J210B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71440-2J211B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95D00 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2# |
1 | ||
| 71511-28100 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2#..ARL,V,W |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28100 |
TCR1#,2# |
1 | ||
| 71512-95D00 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
TCR11..W;TCR10,2#..ARL,GEN,W |
8 | ||
| 71537-26010 |
TCR1#,2# |
8 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
TCR11..W;TCR10,2#..ARL,GEN,W |
8 | ||
| 71537-26010 |
TCR1#,2# |
8 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71551-28110 |
TCR10,20..ARL,W |
1 | ||
| 71551-28190 |
TCR10,20..ARL,W |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71551-28190 |
TCR10,20..ARL,W |
1 | ||
| 71551-28190 |
TCR10..ARL |
1 | ||
| 71551-28110 |
TCR10,20..ARL,W |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-95D02 |
TCR1#,2# |
1 | ||
| 71630-95D02 |
TCR10,20 |
1 | ||
| 71630-28180 |
TCR10,20..ARL,W |
1 | ||
| 71630-28310 |
TCR10,20..ARL,W |
1 | ||
| 71630-28310 |
TCR10..ARL |
1 | ||
| 71630-28330 |
TCR10,20..ARL,W |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-95D04 |
TCR1#,2# |
1 | ||
| 71640-28230 |
TCR10,20..ARL,W |
1 | ||
| 71640-28420 |
TCR10,20..ARL,W |
1 | ||
| 71640-28360 |
TCR10,20..ARL,W |
1 | ||
| 71640-95D04 |
TCR10,20 |
1 | ||
| 71640-28470 |
TCR10,20..ARL,W |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-28090B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D02B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-28100B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28130B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-95D03B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28100B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28680B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71910-28200B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28200B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28190B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2#..RHD |
1 | ||
| 72025-28050 |
TCR1#..RHD |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
2 | ||
| 72127-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
2 | ||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28060 |
TCR1#,2# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-28060 |
TCR1#,2# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
2 | ||
| 71139-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
2 | ||
| 71139-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-28040 |
TCR1#,2# |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-28040 |
TCR1#,2# |
1 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72250-28010 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-28040B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-28030B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-28050 |
TCR1#,2# INNER |
1 | ||
| 72551-28060 |
TCR1#,2# OUTER |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-28050 |
TCR1#,2# INNER |
1 | ||
| 72551-28060 |
TCR1#,2# OUTER |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-28050 |
TCR1#,2# OUTER |
1 | ||
| 72551-28060 |
TCR1#,2# INNER |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-28050 |
TCR1#,2# OUTER |
1 | ||
| 72551-28060 |
TCR1#,2# INNER |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10824 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90386-35001 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-16025 | ||||
ILLUST NO. 1 OF 3(9005-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71011-28160 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-28130 |
TCR1#,2# |
1 | ||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71012-28130 |
TCR11..W;TCR10,2#..ARL,GEN,W |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28470B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28730B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28470B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28720B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28380B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28680B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28380B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2J240B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71108-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71108-95D0103 |
TCR1#,21..RHD GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28080B0 |
TCR1#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71109-95D0103 |
TCR1#,21..RHD GRAY,TRIM1# |
1 | ||
| 71109-28030B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71109-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28340B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28830B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95D0403 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28340B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28770B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-95D0403 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28510B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2J080B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J380B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J381B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-95D0503 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28510B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2J210B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71440-2J211B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95D00 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2# |
1 | ||
| 71511-28100 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2#..ARL,V,W |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28100 |
TCR1#,2# |
1 | ||
| 71512-95D00 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71551-28110 |
TCR10,20..ARL,W |
1 | ||
| 71551-28190 |
TCR10,20..ARL,W |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71551-28190 |
TCR10,20..ARL,W |
1 | ||
| 71551-28190 |
TCR10..ARL |
1 | ||
| 71551-28110 |
TCR10,20..ARL,W |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-95D02 |
TCR1#,2# |
1 | ||
| 71630-95D02 |
TCR10,20 |
1 | ||
| 71630-28180 |
TCR10,20..ARL,W |
1 | ||
| 71630-28310 |
TCR10,20..ARL,W |
1 | ||
| 71630-28310 |
TCR10..ARL |
1 | ||
| 71630-28330 |
TCR10,20..ARL,W |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-95D04 |
TCR1#,2# |
1 | ||
| 71640-28230 |
TCR10,20..ARL,W |
1 | ||
| 71640-28420 |
TCR10,20..ARL,W |
1 | ||
| 71640-28360 |
TCR10,20..ARL,W |
1 | ||
| 71640-95D04 |
TCR10,20 |
1 | ||
| 71640-28470 |
TCR10,20..ARL,W |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-28020 |
TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-28090B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D02B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-28100B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28130B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-95D03B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28100B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28680B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71910-28200B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28200B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28190B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR1#,2# |
2 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR1#,2# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2#..RHD |
1 | ||
| 72025-28050 |
TCR1#..RHD |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
2 | ||
| 72127-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
2 | ||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
2 | ||
| 71139-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
2 | ||
| 71139-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72250-28010 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-28040B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-28030B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(9308-9608)ARL,GEN,W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71011-28160 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-28130 |
TCR1#,2# |
1 | ||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71012-28130 |
TCR11..W;TCR10,2#..ARL,GEN,W |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28470B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28730B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28470B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28720B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28380B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28680B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28380B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2J240B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71108-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71108-95D0103 |
TCR1#,21..RHD GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28080B0 |
TCR1#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71109-95D0103 |
TCR1#,21..RHD GRAY,TRIM1# |
1 | ||
| 71109-28030B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71109-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28340B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28830B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95D0403 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28340B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28770B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-95D0403 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28510B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71430-2J080B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J380B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J381B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-95D0503 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28510B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2J210B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71440-2J211B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95D00 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2# |
1 | ||
| 71511-28100 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2#..ARL,V,W |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28100 |
TCR1#,2# |
1 | ||
| 71512-95D00 |
TCR1#,2# |
1 | ||
| 71511-28160 |
TCR1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71551-28110 |
TCR10,20..ARL,W |
1 | ||
| 71551-28190 |
TCR10,20..ARL,W |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71551-28190 |
TCR10,20..ARL,W |
1 | ||
| 71551-28190 |
TCR10..ARL |
1 | ||
| 71551-28110 |
TCR10,20..ARL,W |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-95D02 |
TCR1#,2# |
1 | ||
| 71630-95D02 |
TCR10,20 |
1 | ||
| 71630-28180 |
TCR10,20..ARL,W |
1 | ||
| 71630-28310 |
TCR10,20..ARL,W |
1 | ||
| 71630-28310 |
TCR10..ARL |
1 | ||
| 71630-28330 |
TCR10,20..ARL,W |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-95D04 |
TCR1#,2# |
1 | ||
| 71640-28230 |
TCR10,20..ARL,W |
1 | ||
| 71640-28420 |
TCR10,20..ARL,W |
1 | ||
| 71640-28360 |
TCR10,20..ARL,W |
1 | ||
| 71640-95D04 |
TCR10,20 |
1 | ||
| 71640-28470 |
TCR10,20..ARL,W |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-28020 |
TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-28090B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D02B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-28100B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28130B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-95D03B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28100B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28680B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71910-28200B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28200B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28190B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR1#,2# |
2 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR1#,2# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2#..RHD |
1 | ||
| 72025-28050 |
TCR1#..RHD |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
2 | ||
| 72127-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
2 | ||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
2 | ||
| 71139-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
2 | ||
| 71139-28020B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72250-28010 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-28040B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-28030B0 |
TCR1#,2# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 3(9005-9608)ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71844-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28790B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28330B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D02 |
TCR1# |
1 | ||
| 72301-95D02 |
TCR21..W;TCR1#,20..ARL,W |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95D00 |
TCR1#..RHD |
1 | ||
| 72660-28050 |
TCR1#..RHD |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95D0603 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28360B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28361B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28220B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95D0403 |
TCR1#;TCR2#..W W(SPLIT TYPE REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79105-95D0403 |
TCR1#,20;TCR21..W W(SPLIT TYPE REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79105-28070 |
TCR1#,2#..ARL,V,W |
1 | ||
| 79105-28070 |
TCR1#,2#..ARL,W |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95D01 |
TCR1#..RHD |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95D06 |
TCR1#..RHD |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-10635 | ||||
| 90119-10650 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94180-41000 | ||||
| 94542-01400 | ||||
ILLUST NO. 2 OF 3(9005- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
1 | ||
| 71629-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
1 | ||
| 71629-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
1 | ||
| 71629-95D00B0 |
TCR1#,2#..ARL,V,W GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71844-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71878-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71878-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28790B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28330B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-95D01 |
TCR1#..RHD |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-95D01C0 |
TCR1#..RHD BLACK,TRIM1# |
1 | ||
| 72170-95D01C0 |
TCR10..ARL BLACK,TRIM1# |
1 | ||
| 72170-95D01C0 |
TCR10..ARL;TCR11..RHD..W BLACK,TRIM1# |
1 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D02 |
TCR1# |
1 | ||
| 72301-95D02 |
TCR21..W;TCR1#,20..ARL,W |
1 | ||
| 72346 - HOOK, RECLINING CONNECTING | ||||
| 72346-95D00 |
TCR2#..W;TCR1#..ARL,W |
1 | ||
| 72346-95D00 |
TCR1#,2#..ARL,V,W |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-28020 |
TCR1#..RHD |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
1 | ||
| 72593-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
1 | ||
| 72593-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
1 | ||
| 72593-95D00B0 |
TCR1#,2#..ARL,V,W GRAY,TRIM1# |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95D00 |
TCR1#..RHD |
1 | ||
| 72660-28050 |
TCR1#..RHD |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
1 | ||
| 72665-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
1 | ||
| 72665-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
1 | ||
| 72665-95D00B0 |
TCR1#,2#..ARL,V,W GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
1 | ||
| 72679-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
1 | ||
| 72679-28010B0 |
TCR1#,2#..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 72679-28010B0 |
TCR1#,2#..ARL,V,W BLUISH GRAY,TRIM1# |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-95J02 |
TCR2#..W;TCR1#..ARL,W |
1 | ||
| 72695-95J02 |
TCR1#,2#..ARL,V,W |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-95D08 |
TCR1#..RHD |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-95D08 |
TCR1#..RHD |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
2 | ||
| 72996-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
2 | ||
| 72996-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
2 | ||
| 72996-95D00B0 |
TCR1#,2#..ARL,V,W GRAY,TRIM1# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
2 | ||
| 72996-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
2 | ||
| 72996-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
2 | ||
| 72996-95D00B0 |
TCR1#,2#..ARL,V,W GRAY,TRIM1# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95D0603 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28360B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28361B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28220B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-95D1303 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D1103 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28180B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28270B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28480B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28481B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-95D0703 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-95D0503 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28210B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28150B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28360B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95D0403 |
TCR1#;TCR2#..W W(SPLIT TYPE REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79105-95D0403 |
TCR1#,20;TCR21..W W(SPLIT TYPE REAR SEAT),GRAY,TRIM1# |
1 | ||
| 79105-28070 |
TCR1#,2#..ARL,V,W |
1 | ||
| 79105-28070 |
TCR1#,2#..ARL,W |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95D0603 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28310B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28760B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28761B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95D01 |
TCR1#..RHD |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-95D0903 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-95D1403 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28390B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J040B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J041B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-95D1103 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-95D1603 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28330B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28780B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95D06 |
TCR1#..RHD |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28040 |
TCR1#..RHD |
1 | ||
| 79175-95D05 |
TCR1#..RHD |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-95D07 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL W(HEADREST) |
1 | ||
| 79180-28210 |
TCR1#..ARL |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-95D03 |
TCR1#..RHD |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-95D08 |
TCR1#..ARL |
1 | ||
| 79190-95D06 |
TCR1#..RHD |
1 | ||
| 79190-95D06 |
TCR1#..RHD W(HEADREST) |
1 | ||
| 79190-28200 |
TCR1#..RHD |
1 | ||
| Common parts | ||||
| 90109-08200 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90149-40012 | ||||
| 90168-40049 | ||||
| 90386-12051 | ||||
| 90468-07023 | ||||
| 90541-12017 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 93240-16025 | ||||
| 93510-53510 | ||||
| 93540-53510 | ||||
| 96160-01000 | ||||
| 96160-01500 | ||||
ILLUST NO. 2 OF 3(9005-9308)ARL
CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-28020 |
TCR1#,2# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71844-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28790B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28330B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D02 |
TCR1# |
1 | ||
| 72301-95D02 |
TCR21..W;TCR1#,20..ARL,W |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-95D1303 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D1103 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28180B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28270B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28480B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28481B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-95D0703 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-95D0503 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28210B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28150B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28360B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-95D0903 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-95D1403 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28390B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J040B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J041B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-95D1103 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-95D1603 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28330B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28780B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28040 |
TCR1#..RHD |
1 | ||
| 79175-95D05 |
TCR1#..RHD |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-95D07 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL W(HEADREST) |
1 | ||
| 79180-28210 |
TCR1#..ARL |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-95D03 |
TCR1#..RHD |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-95D08 |
TCR1#..ARL |
1 | ||
| 79190-95D06 |
TCR1#..RHD |
1 | ||
| 79190-95D06 |
TCR1#..RHD W(HEADREST) |
1 | ||
| 79190-28200 |
TCR1#..RHD |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 3(9308- )ARL
CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-28020 |
TCR1#,2# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71844-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28790B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28330B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#;TCR2#..W GRAY,TRIM1# |
4 | ||
| 72159-95D0003 |
TCR1#,20;TCR21..W GRAY,TRIM1# |
4 | ||
| 72159-95D00B0 |
TCR1#,2#..ARL,W GRAY,TRIM1# |
4 | ||
| 72159-95D00C0 |
TCR10,20..ARL,W BLACK,TRIM1# |
4 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D02 |
TCR1# |
1 | ||
| 72301-95D02 |
TCR21..W;TCR1#,20..ARL,W |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-95D1303 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D1103 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28180B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28270B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28480B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28481B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-95D0703 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-95D0503 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28210B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28150B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28360B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-95D0903 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-95D1403 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28390B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J040B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J041B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-95D1103 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-95D1603 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28330B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28780B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28040 |
TCR1#..RHD |
1 | ||
| 79175-95D05 |
TCR1#..RHD |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-95D07 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL W(HEADREST) |
1 | ||
| 79180-28210 |
TCR1#..ARL |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-95D03 |
TCR1#..RHD |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-95D08 |
TCR1#..ARL |
1 | ||
| 79190-95D06 |
TCR1#..RHD |
1 | ||
| 79190-95D06 |
TCR1#..RHD W(HEADREST) |
1 | ||
| 79190-28200 |
TCR1#..RHD |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 93240-16025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR10,2#;TCR11..ARL |
4 | ||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR10,2#;TCR11..ARL |
4 | ||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR10,2#;TCR11..ARL |
2 | ||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR10,2#;TCR11..ARL |
2 | ||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71696 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71696-28020 |
TCR1#,2# |
1 | ||
| 71696-28010 |
TCR1#,2# |
1 | ||
| 71696 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71696-28020 |
TCR1#,2# |
1 | ||
| 71696-28010 |
TCR1#,2# |
1 | ||
| 71696A - PROTECTOR, REAR SEAT, NO.2 LH | ||||
| 71696-28010 |
TCR1#,2# |
1 | ||
| 71696-28020 |
TCR1#,2# |
1 | ||
| 71696A - PROTECTOR, REAR SEAT, NO.2 LH | ||||
| 71696-28010 |
TCR1#,2# |
1 | ||
| 71696-28020 |
TCR1#,2# |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-28010 |
TCR1#,2# |
2 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-28010 |
TCR1#,2# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71843-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71843-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71843-95D04B0 |
TCR11..W;TCR10,2#..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71843-95D04B0 |
TCR10,20..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71843-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71843-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71843-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71843-95D04B0 |
TCR11..W;TCR10,2#..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71843-95D04B0 |
TCR10,20..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71843-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844-95D04B0 |
TCR10,20..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71844-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71844-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844-95D04B0 |
TCR11..W;TCR10,2#..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844-95D04B0 |
TCR10,20..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71844-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71844-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844-95D04B0 |
TCR11..W;TCR10,2#..ARL,V,W GRAY,TRIM1# |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28790B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28330B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-2802003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 71959-2802003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 71959-28020B0 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-2802003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 71959-2802003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 71959-28020B0 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72065-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72065-95D00B1 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72065-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72065-95D00B1 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-95D06 |
TCR1#,2# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-95D06 |
TCR1#,2# |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28011B2 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-28011B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-28020B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28011B2 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-28011B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507-28020B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1# |
4 | ||
| 72613-95D01 |
TCR1#,2# |
4 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
TCR1#,2# RR |
1 | ||
| 72650-95D01 |
TCR1#,2# FR |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72606-28010 |
TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72606-28010 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72606-28010 |
TCR1#,2# |
1 | ||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72606-28010 |
TCR1#,2# |
1 | ||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
TCR1#,2# RR |
1 | ||
| 72660-95D02 |
TCR1#,2# FR |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
TCR1#,2# RR |
1 | ||
| 72660-95D02 |
TCR1#,2# FR |
1 | ||
| 72750E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 72750-28030 |
TCR1#,2# |
1 | ||
| 72750-95D03 |
TCR1#,2# |
1 | ||
| 72750-95D01 |
TCR1#,2# |
1 | ||
| 72750-95D03 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72750F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 72750-95D04 |
TCR1#,2# |
1 | ||
| 72750-95D04 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72750-95D02 |
TCR1#,2# |
1 | ||
| 72760E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 72760-95D01 |
TCR1#,2# |
1 | ||
| 72760-95D03 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72760-95D03 |
TCR1#,2# |
1 | ||
| 72760F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 72760-95D04 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72760-95D02 |
TCR1#,2# |
1 | ||
| 72760-28040 |
TCR1#,2# |
1 | ||
| 72760-95D04 |
TCR1#,2# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28120B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28300B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28090B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28270B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-95D0003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79023-95D0103 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28080B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28110B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28260B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-95D0003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79024-95D0103 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28060B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28090B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28240B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-28010 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79025-28010 |
TCR1#,2# |
1 | ||
| 79025-95D00 |
TCR1#,2# |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79026-95D00 |
TCR1#,2# |
1 | ||
| 79026-28010 |
TCR1#,2# |
1 | ||
| 79026-28010 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-95D00 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79027-28020 |
TCR1#,2# W(TONNEAU COVER & HEADREST) |
1 | ||
| 79027-95D00 |
TCR11,21..W;TCR10,20..ARL,GEN,W |
1 | ||
| 79027-95D01 |
TCR1#,2# |
1 | ||
| 79027-28010 |
TCR1#,2# W(TONNEAU COVER) |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-95D00 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79028-28010 |
TCR1#,2# W(TONNEAU COVER) |
1 | ||
| 79028-28020 |
TCR1#,2# W(TONNEAU COVER & HEADREST) |
1 | ||
| 79028-95D01 |
TCR1#,2# |
1 | ||
| 79028-95D00 |
TCR11,21..W;TCR10,20..ARL,GEN,W |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28041B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79220-2804003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28310B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-2801003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79230-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28011B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28270B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 79205-95D0001 |
TCR10,20;TCR11,21..ARL BLACK,TRIM1#,4# |
1 | ||
| 79205-95D0001 |
TCR1#,2# BLACK,TRIM1#,4# |
1 | ||
| 79205-95D0001 |
TCR10,20 BLACK,TRIM1# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-2807003 |
TCR10,20 W(TONNEAU COVER & HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79240-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79240-2806003 |
TCR10,20 W(TONNEAU COVER),LIGHT GRAY,TRIM1# |
1 | ||
| 79240-95D0603 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28150B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28150B1 |
TCR10,20..ARL,W GRAY,TRIM1# |
1 | ||
| 79240-28300B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79242 - LEG, REAR NO.2 SEAT, LH | ||||
| 79206-95D00 |
TCR10,20;TCR11,21..ARL |
1 | ||
| 79206-95D00 |
TCR1#,2# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-2805003 |
TCR10,20 W(TONNEAU COVER & HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79250-2804003 |
TCR10,20 W(TONNEAU COVER),LIGHT GRAY,TRIM1# |
1 | ||
| 79250-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79250-95D0603 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28120B0 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28120B1 |
TCR10,20..ARL,W GRAY,TRIM1# |
1 | ||
| 79250-28270B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79319-95D00 |
TCR10,2#;TCR11..ARL RR |
2 | ||
| 79318-95D00 |
TCR10,2#;TCR11..ARL FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79319-95D00 |
TCR10,2#;TCR11..ARL RR |
2 | ||
| 79318-95D00 |
TCR10,2#;TCR11..ARL FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79319-95D00 |
TCR10,2#;TCR11..ARL RR |
2 | ||
| 79318-95D00 |
TCR10,2#;TCR11..ARL FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79319-95D00 |
TCR10,2#;TCR11..ARL RR |
2 | ||
| 79318-95D00 |
TCR10,2#;TCR11..ARL FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79366-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90109-10170 | ||||
| 90119-10650 | ||||
| 90119-10804 | ||||
| 90119-11023 | ||||
| 90149-40012 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90202-08005 | ||||
| 90206-12064 | ||||
| 90506-26018 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 6454 | ||||
ILLUST NO. 2 OF 3(9608- )
CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71843-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0303 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 71844-95D03B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,20;TCR21..W W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,20;TCR21..W W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28790B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28330B0 |
TCR10,20..ARL,W BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28230B1 |
TCR10,20..ARL,W LIGHT GRAY,TRIM1# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D0103 |
TCR1#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 72525-95D01B0 |
TCR1#..RHD GRAY,TRIM1# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-28050 |
TCR1#,2# OUTER |
1 | ||
| 72551-28060 |
TCR1#,2# INNER |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-95D1303 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D1103 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28180B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28270B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28480B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28481B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-95D0703 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-95D0503 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28210B1 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28150B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28360B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-95D0903 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-95D1403 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28390B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J040B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J041B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-95D1103 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-95D1603 |
TCR10..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28330B0 |
TCR10..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28780B0 |
TCR10..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28040 |
TCR1#..RHD |
1 | ||
| 79175-95D05 |
TCR1#..RHD |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-95D07 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL |
1 | ||
| 79180-95D08 |
TCR1#..ARL W(HEADREST) |
1 | ||
| 79180-28210 |
TCR1#..ARL |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-95D03 |
TCR1#..RHD |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-95D08 |
TCR1#..ARL |
1 | ||
| 79190-95D06 |
TCR1#..RHD |
1 | ||
| 79190-95D06 |
TCR1#..RHD W(HEADREST) |
1 | ||
| 79190-28200 |
TCR1#..RHD |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-08766 | ||||
| 90119-10495 | ||||
| 90119-10650 | ||||
| 90149-40015 | ||||
| 90149-50058 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 93240-16025 | ||||
| 93249-54008 | ||||
| 93249-55010 | ||||
| 93315-16016 | ||||
| 93560-54012 | ||||
| 93560-54020 | ||||
| 94180-41000 | ||||
| 94542-01400 | ||||
| 94543-00800 | ||||
ILLUST NO. 1 OF 3(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10824 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90386-35001 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-16025 | ||||
ILLUST NO. 1 OF 3(9001-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
ILLUST NO. 2 OF 3(9001-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10834 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 3(9108-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-10495 | ||||
| 90119-10834 | ||||
| 90149-40015 | ||||
| 90149-50058 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 93240-56025 | ||||
| 93249-54008 | ||||
| 93249-55010 | ||||
| 93560-54012 | ||||
| 94180-41000 | ||||
| 94542-01400 | ||||
| 94543-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(9001-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08095 | ||||
| 90119-10082 | ||||
| 90119-10650 | ||||
| 90119-11023 | ||||
| 90149-40012 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90202-08005 | ||||
| 90206-12064 | ||||
| 90506-26018 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 96160-00600 | ||||
ILLUST NO. 3 OF 3(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08095 | ||||
| 90119-10650 | ||||
| 90119-10804 | ||||
| 90119-11023 | ||||
| 90149-40012 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90202-08005 | ||||
| 90206-12064 | ||||
| 90506-26018 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 6454 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
