TCR10R-RRMDKQ (1990)
Toyota Previa
Production
May 1990
-
Dec 1999
Engine
2TZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

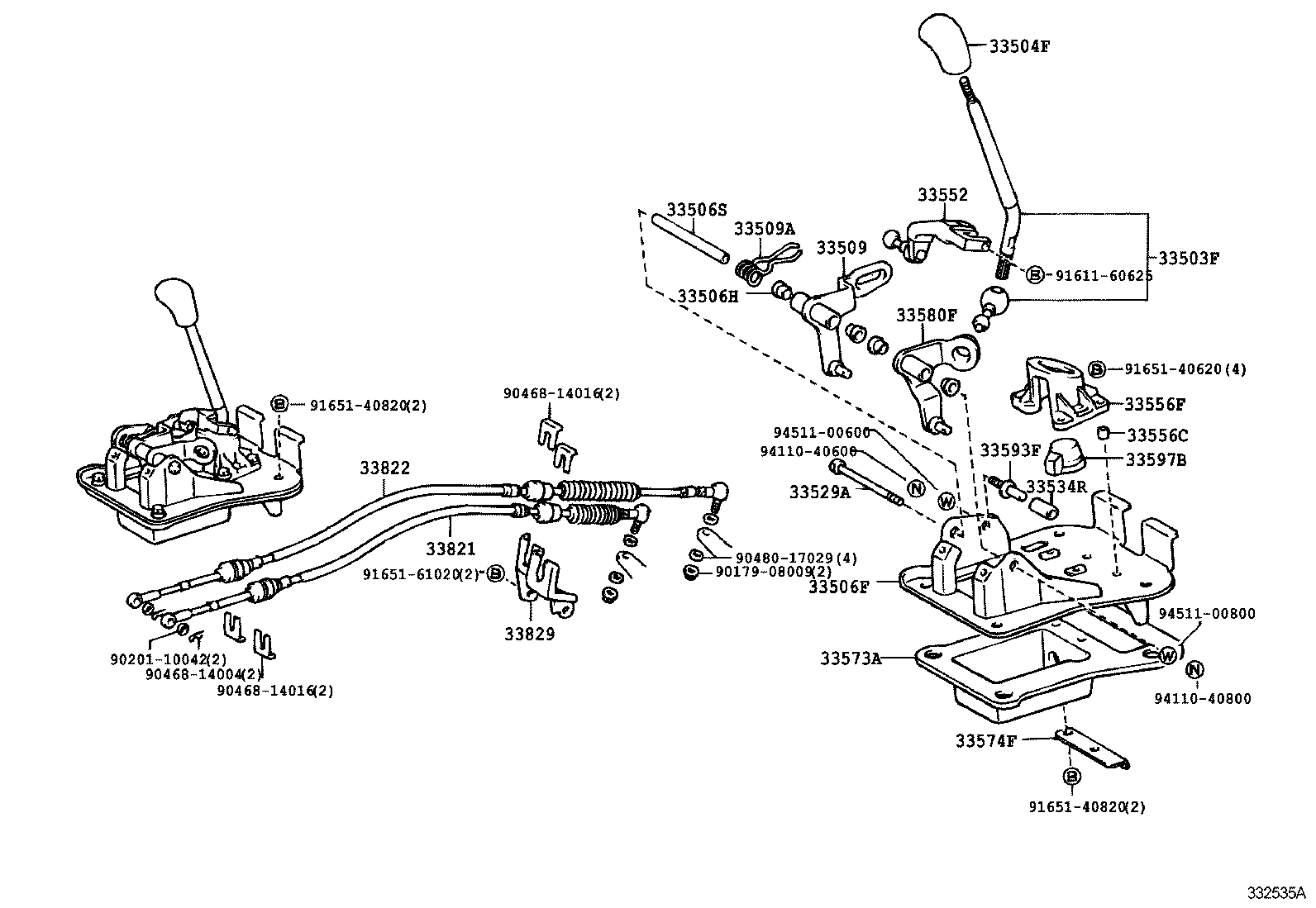

(9005- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-28080 |
TCR1#,2#..MTM |
1 | ||
| 33055-28140 |
TCR1#..RHD..MTM |
1 | ||
| 33055-28140 |
TCR1#..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180P0 |
TCR1#,2#..MTM SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180B1 |
TCR1#,2#..MTM GRAY,TRIM1# |
1 | ||
| 33504-2011013 |
TCR1#,2#..MTM GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-28160 |
TCR1#,2#..MTM |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12034 |
TCR1#,2#..MTM |
4 | ||
| 90386-12013 |
TCR1#,2#..MTM |
4 | ||
| 33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-08113 |
TCR1#,2#..MTM |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-28010 |
TCR1#,2#..MTM |
1 | ||
| 33509A - SPRING, TORSION (FOR SELECTING BELL CRANK) | ||||
| 90508-30008 |
TCR1#,2#..MTM |
1 | ||
| 90949-03014 |
TCR1#,2#..MTM |
1 | ||
| 33529A - PLATE, SHIFT LEVER HOUSING, NO.2 | ||||
| 33529-28090 |
TCR1#,2#..MTM |
4 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-08024 |
TCR1#,2#..MTM |
1 | ||
| 33552 - ARM, SHIFT LEVER | ||||
| 33552-28011 |
TCR1#,2#..MTM |
1 | ||
| 33556C - COLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90387-06054 |
TCR1#,2#..MTM |
4 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-28050 |
TCR1#,2#..MTM |
1 | ||
| 33573A - COVER, CONTROL SHAFT DUST, LWR | ||||
| 33573-28020 |
TCR1#,2#..MTM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-28020 |
TCR1#,2#..MTM |
1 | ||
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-28030 |
TCR1#,2#..MTM |
1 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-28070 |
TCR1#,2#..MTM |
1 | ||
| 33597B - SEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT) | ||||
| 33597-28010 |
TCR1#,2#..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-28090 |
TCR1#,2#..MTM |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-28090 |
TCR1#,2#..MTM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-28021 |
TCR10,2#..MTM;TCR11..RHD..MTM |
1 | ||
| 33829-28020 |
TCR1#,2#..MTM |
1 | ||
| 33829-28021 |
TCR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90179-08009 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90480-17029 | ||||
| 91611-60625 | ||||
| 91651-40620 | ||||
| 91651-40820 | ||||
| 91651-61020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

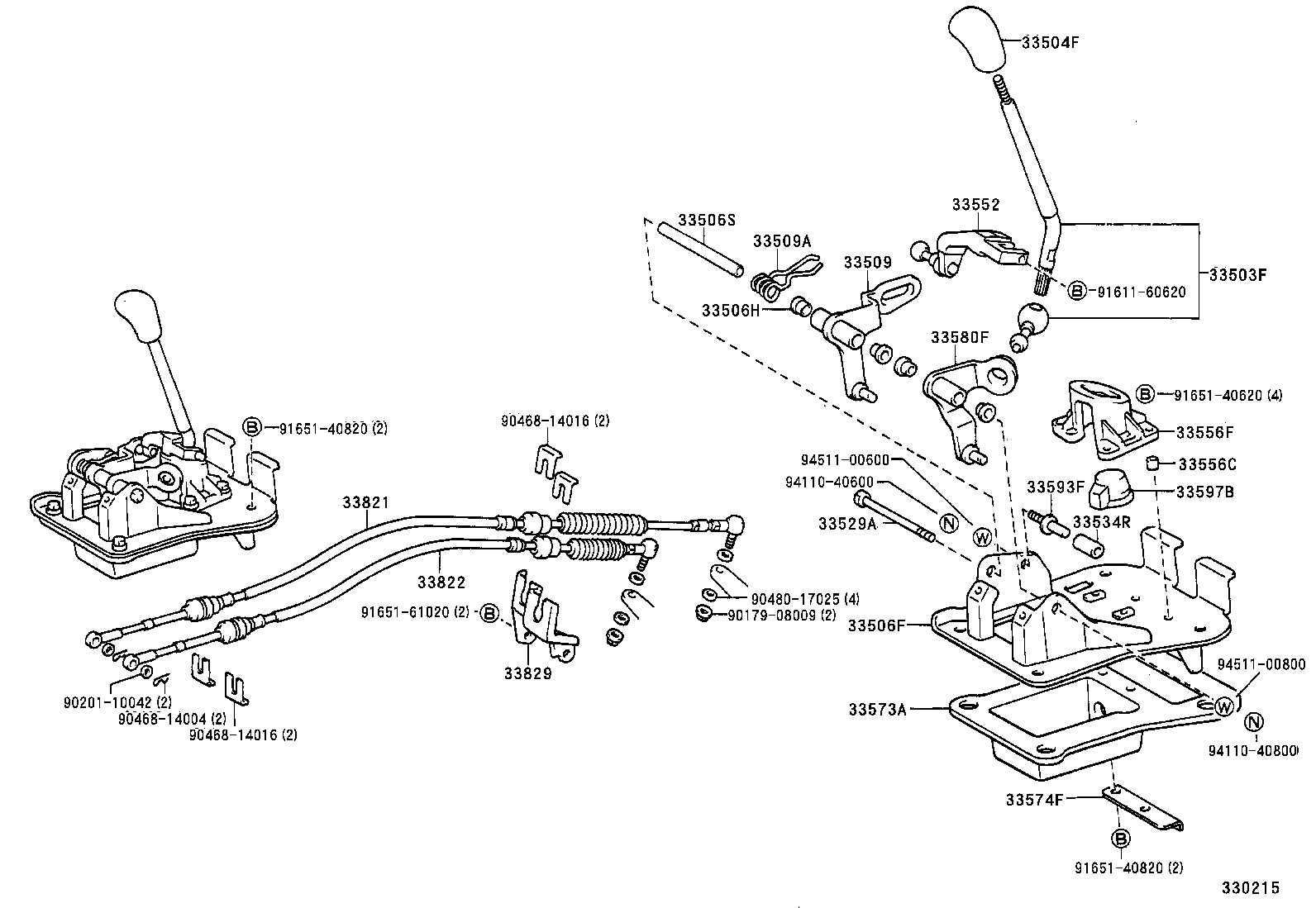

(9001-9308)MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08009 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90480-17025 | ||||
| 91611-60620 | ||||
| 91651-40620 | ||||
| 91651-40820 | ||||
| 91651-61020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
