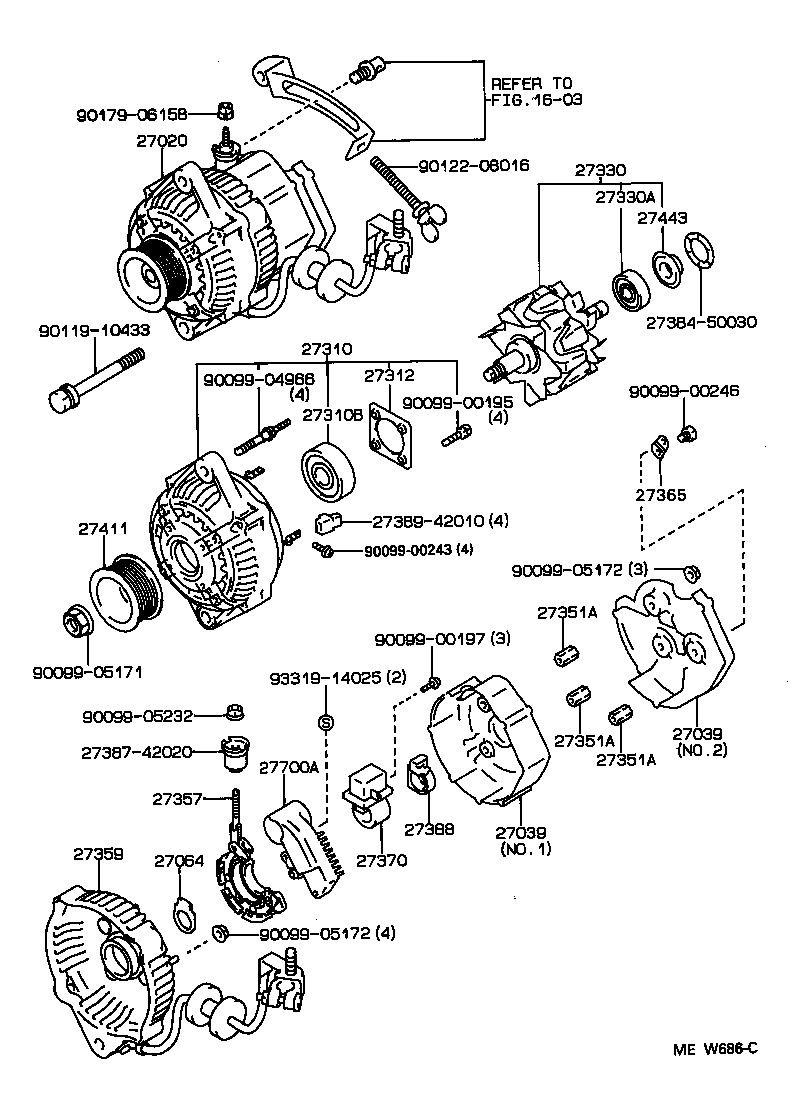

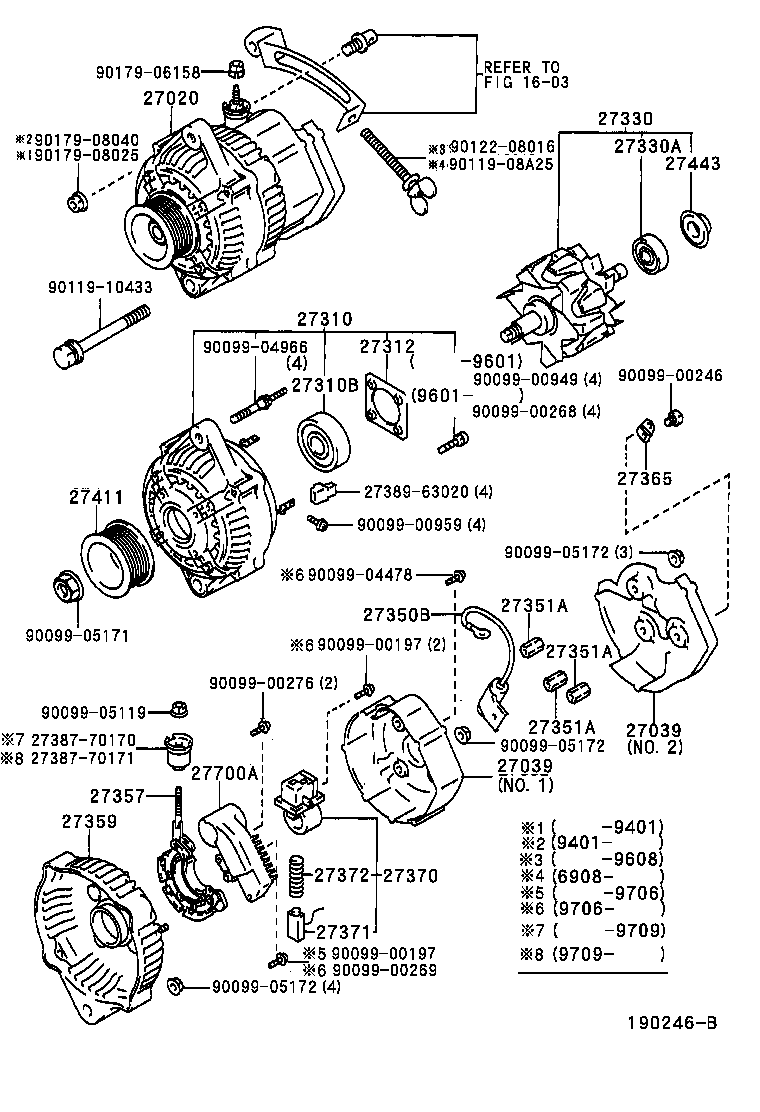

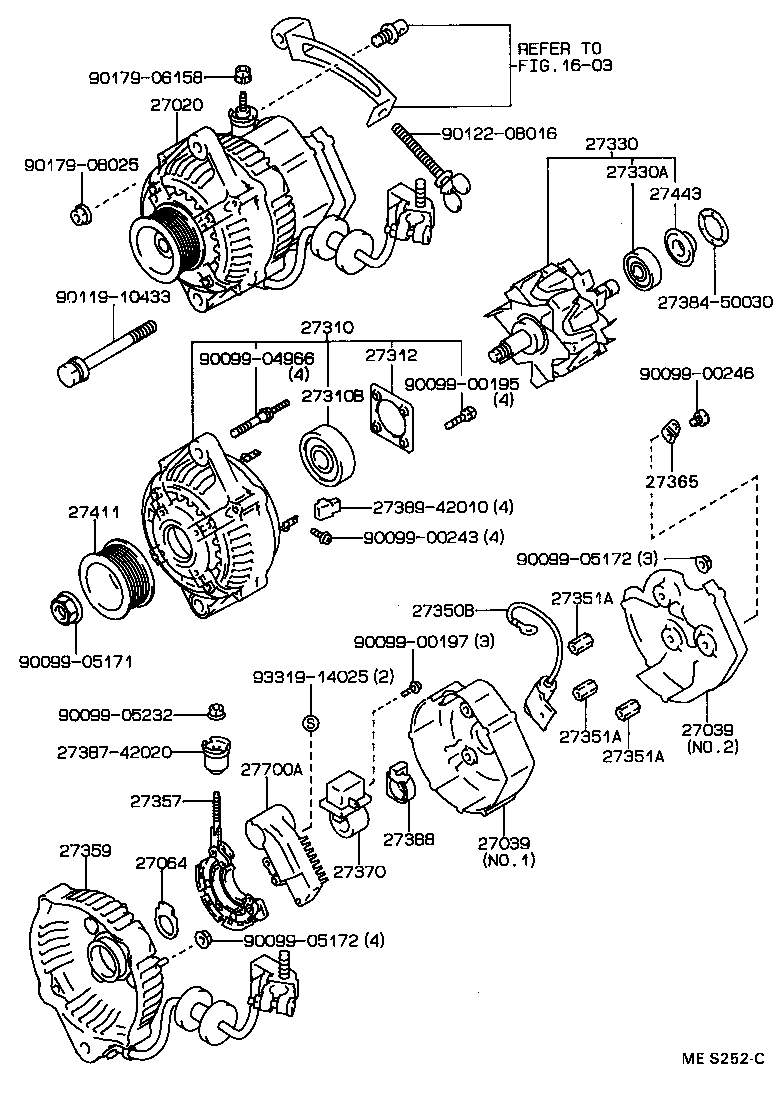

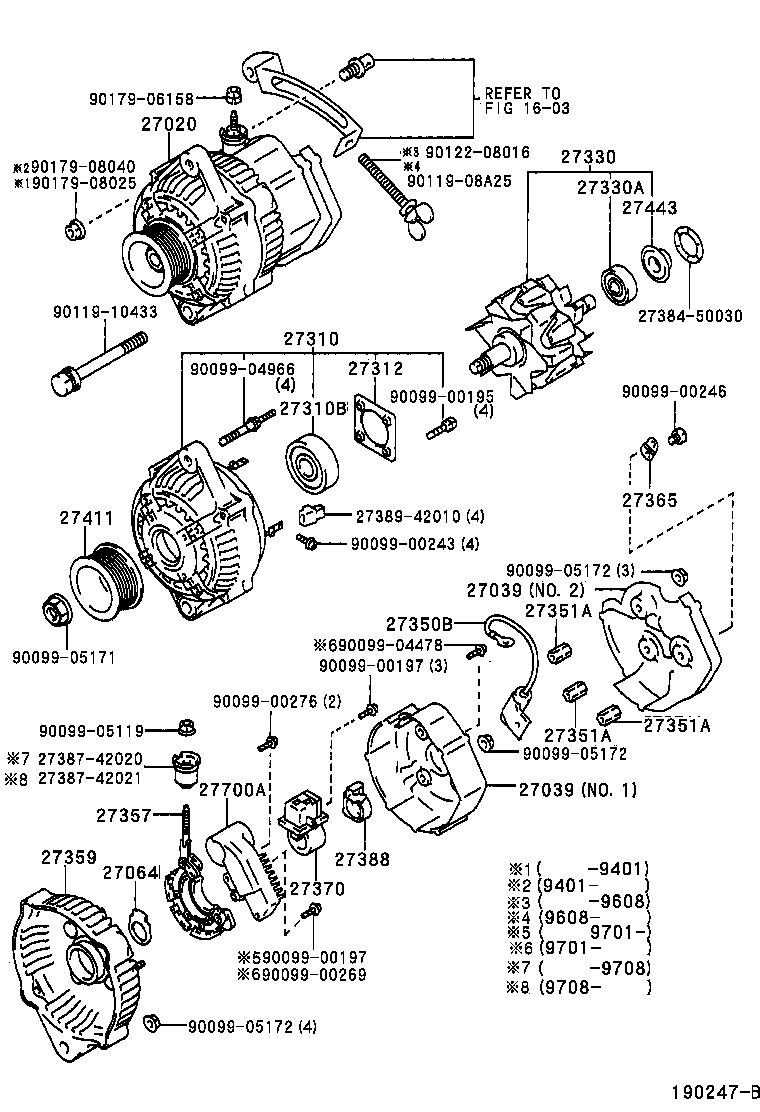

TCR10L-RRMDKW (1990)
Toyota Previa
(9108- )
12V 70A(YELLOWWISH GREEN LABEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-76080 |
2TZFE..TCR1#,2#..LHD..W 12V 70A,PINK LABELE |
1 | ||
| 27060-76030 |
2TZFE..TCR1#,21..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76040 |
2TZFE..TCR1#,2#..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76080 |
2TZFE..TCR1#,21..LHD..W 12V 70A,W(HEATER MIRROR) |
1 | ||
| 27060-76080 |
2TZFE..TCR10,2#..W 12V 70A,W(HEATER *DRC) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27310-72210 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27310-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-43052 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 90099-10160 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 90099-10192 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27312-70200 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27312-70200 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27312-42010 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27330-64570 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-72101 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27330-72101 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27330-76030 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 90099-10140 |
2TZFE..TCR1#,2# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
2TZFE..TCR1#,2# |
1 | ||
| 90099-52106 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27357-74050 |
2TZFE..TCR1#,2#..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16181 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27359-16180 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27350-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27350-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27359-16182 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-16181 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27365-55080 |
2TZFE..TCR1#,2#..LHD..W;2TZFE..TCR1#..ATM..(ARL,GEN,V) |
1 | ||
| 27365-55080 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..W |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27370-35060 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27370-35060 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27370-75060 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
2 | ||
| 27371-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
2 | ||
| 27371-70300 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
2 | ||
| 27372-63020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,2#..LHD..W 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,21..LHD 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27411-22080 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27443-63020 |
2TZFE..TCR1#,2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27700-76020 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27387-70171 | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00246 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08A25 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 90179-08025 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9108- )
12V 70A(PINK LABEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-76080 |
2TZFE..TCR1#,2#..LHD..W 12V 70A,PINK LABELE |
1 | ||
| 27060-76030 |
2TZFE..TCR1#,21..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76040 |
2TZFE..TCR1#,2#..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76080 |
2TZFE..TCR1#,21..LHD..W 12V 70A,W(HEATER MIRROR) |
1 | ||
| 27060-76080 |
2TZFE..TCR10,2#..W 12V 70A,W(HEATER *DRC) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2TZFE..TCR11..LHD;2TZFE..TCR1#..ATM..(ARL,GEN,V);2TZFE..TCR10,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27064-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27064-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..W |
1 | ||
| 27064-42010 |
2TZFE..TCR1#,21..LHD;2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27310-72210 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27310-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-43052 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 90099-10160 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 90099-10192 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27312-70200 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27312-70200 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27312-42010 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27330-64570 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-72101 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27330-72101 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27330-76030 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2TZFE..TCR1#,2# |
1 | ||
| 90099-10140 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
2TZFE..TCR1#,2# |
1 | ||
| 90099-52106 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27357-74050 |
2TZFE..TCR1#,2#..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16181 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27359-16180 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27350-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27350-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27359-16182 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-16181 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27365-55080 |
2TZFE..TCR1#,2#..LHD..W;2TZFE..TCR1#..ATM..(ARL,GEN,V) |
1 | ||
| 27365-55080 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..W |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27370-35060 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27370-35060 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27370-75060 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2TZFE..TCR1#,21..LHD;2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27388-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27388-42010 |
2TZFE..TCR11..LHD;2TZFE..TCR1#..ATM..(ARL,GEN,V);2TZFE..TCR10,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27388-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..W |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,2#..LHD..W 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,21..LHD 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27411-22080 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27443-63020 |
2TZFE..TCR1#,2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27700-76020 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27387-42021 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08A25 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 90179-08025 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9005-9108)
12V 70A(YELLOWWISH GREEN LABEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-76080 |
2TZFE..TCR1#,2#..LHD..W 12V 70A,PINK LABELE |
1 | ||
| 27060-76030 |
2TZFE..TCR1#,21..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76040 |
2TZFE..TCR1#,2#..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76080 |
2TZFE..TCR1#,21..LHD..W 12V 70A,W(HEATER MIRROR) |
1 | ||
| 27060-76080 |
2TZFE..TCR10,2#..W 12V 70A,W(HEATER *DRC) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27310-72210 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27310-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-43052 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 90099-10160 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 90099-10192 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27312-70200 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27312-70200 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27312-42010 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27330-64570 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-72101 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27330-72101 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27330-76030 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 90099-10140 |
2TZFE..TCR1#,2# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
2TZFE..TCR1#,2# |
1 | ||
| 90099-52106 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27357-74050 |
2TZFE..TCR1#,2#..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16181 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27359-16180 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27350-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27350-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27359-16182 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-16181 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27370-35060 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27370-35060 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27370-75060 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
2 | ||
| 27371-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
2 | ||
| 27371-70300 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
2 | ||
| 27372-63020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,2#..LHD..W 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,21..LHD 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27411-22080 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27443-63020 |
2TZFE..TCR1#,2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27700-76020 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9005-9108)
12V 70A(PINK LABEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-76080 |
2TZFE..TCR1#,2#..LHD..W 12V 70A,PINK LABELE |
1 | ||
| 27060-76030 |
2TZFE..TCR1#,21..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL 12V 70A |
1 | ||
| 27060-76070 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM 12V 70A |
1 | ||
| 27060-76040 |
2TZFE..TCR1#,2#..LHD 12V 70A,PINK LABELE |
1 | ||
| 27060-76080 |
2TZFE..TCR1#,21..LHD..W 12V 70A,W(HEATER MIRROR) |
1 | ||
| 27060-76080 |
2TZFE..TCR10,2#..W 12V 70A,W(HEATER *DRC) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-72010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),NO.1 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..LHD PINK LABELE,NO.1 |
1 | ||
| 27039-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE,NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-73020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-76010 |
2TZFE..TCR10,2#;2TZFE..TCR11..W NO.2 |
1 | ||
| 27039-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC),NO.1 |
1 | ||
| 27039-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM NO.1 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2TZFE..TCR11..LHD;2TZFE..TCR1#..ATM..(ARL,GEN,V);2TZFE..TCR10,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27064-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27064-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..W |
1 | ||
| 27064-42010 |
2TZFE..TCR1#,21..LHD;2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27310-72210 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27310-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27310-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-43052 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27310-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 90099-10160 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 90099-10192 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 90099-10192 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 90099-10178 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27312-70200 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27312-70200 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27312-42010 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27312-42010 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27330-64570 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-72101 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27330-72101 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27330-76030 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27330-76030 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 90099-10140 |
2TZFE..TCR1#,2# |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2#..LHD 70A,L=17 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=23 |
2 | ||
| 27351-16130 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR1#,2#..LHD 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=23.0 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL L=28 |
1 | ||
| 27351-76040 |
2TZFE..TCR1#,2#..LHD..W 70A,L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR10..ATM..ARL;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351-16130 |
2TZFE..TCR1#,2#..W;2TZFE..TCR10..ATM..ARL L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR1#,2# L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR),L=22.0 |
1 | ||
| 27351-76050 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR1#..ATM..ARL;2TZFE..TCR1#,2#..LHD..W L=23.0 |
2 | ||
| 27351-16130 |
2TZFE..TCR10..MTM;2TZFE..TCR11,2#..W;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76050 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM L=22.0 |
1 | ||
| 27351-16130 |
2TZFE..TCR11,2#;2TZFE..TCR10..MTM;2TZFE..TCR10..LHD..ATM L=17 |
2 | ||
| 27351-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC),L=22.0 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27357-74050 |
2TZFE..TCR1#,2#..LHD PINK LABELE |
1 | ||
| 27357-55080 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-16380 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27357-55080 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27357-63020 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16181 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27359-16180 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM |
1 | ||
| 27350-76010 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27350-76030 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27359-76040 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27359-16182 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27359-16181 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2TZFE..TCR1#,2#..LHD..W PINK LABELE |
1 | ||
| 27370-35060 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27370-35060 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27370-75060 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27370-75060 |
2TZFE..TCR1#,21..LHD PINK LABELE |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2TZFE..TCR1#,21..LHD;2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27388-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27388-42010 |
2TZFE..TCR11..LHD;2TZFE..TCR1#..ATM..(ARL,GEN,V);2TZFE..TCR10,2#..(GL,XL)..(ARL,W) |
1 | ||
| 27388-42010 |
2TZFE..TCR10..ATM;2TZFE..TCR1#,2#..W |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
2TZFE..TCR1#,21..LHD..W W(HEATER MIRROR) |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,2#..LHD..W 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR1#,21..LHD 12V 80A |
1 | ||
| 27411-50050 |
2TZFE..TCR10,2#..W W(HEATER *DRC) |
1 | ||
| 27411-22080 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..LHD;2TZFE..TCR10,2#..MTM |
1 | ||
| 27411-62011 |
2TZFE..TCR11..W;2TZFE..TCR10,2#..MTM;2TZFE..TCR11..MTM..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27443-63020 |
2TZFE..TCR1#,2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR1#,2# |
1 | ||
| 27700-35040 |
2TZFE..TCR10,2#;2TZFE..TCR11..W |
1 | ||
| 27700-76020 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9001-9108)
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 90179-08025 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9108-9608)2TZFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
