TCR10L-RFSGVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9401- )SPC

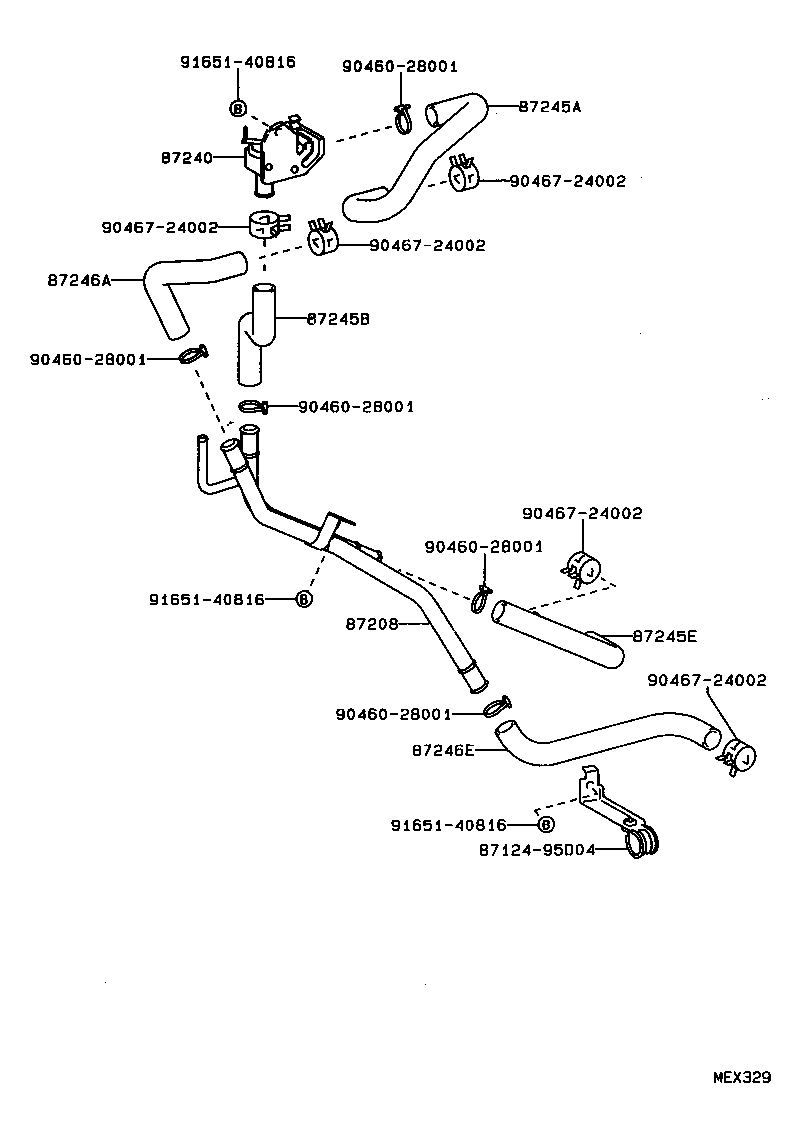

Click highlighted areas on diagram

diagram 8712495D04 87208 87240 87245A 87245B 87245E 87246A 87246E 9046028001 9046028001 9046028001 9046028001 9046028001 9046724002 9046724002 9046724002 9046724002 9046724002 9165140816 9165140816 9165140816
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-28510

TCR10,20..SPC

 1
87240 - VALVE ASSY, HEATER WATER
87240-28060

TCR10,20..SPC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-28430

TCR10,20..SPC

 1
87245B - HOSE, HEATER WATER, INLET B
87245-28400

TCR10,20..SPC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-28420

TCR10,20..SPC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-28410

TCR10,20..SPC

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-28190

TCR10,20..SPC

 1
Common parts
87124-95D04
90460-28001
90467-24002
91651-40816
