TCR10L-RFSGVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 7 OF 7(9407- )

Click highlighted areas on diagram

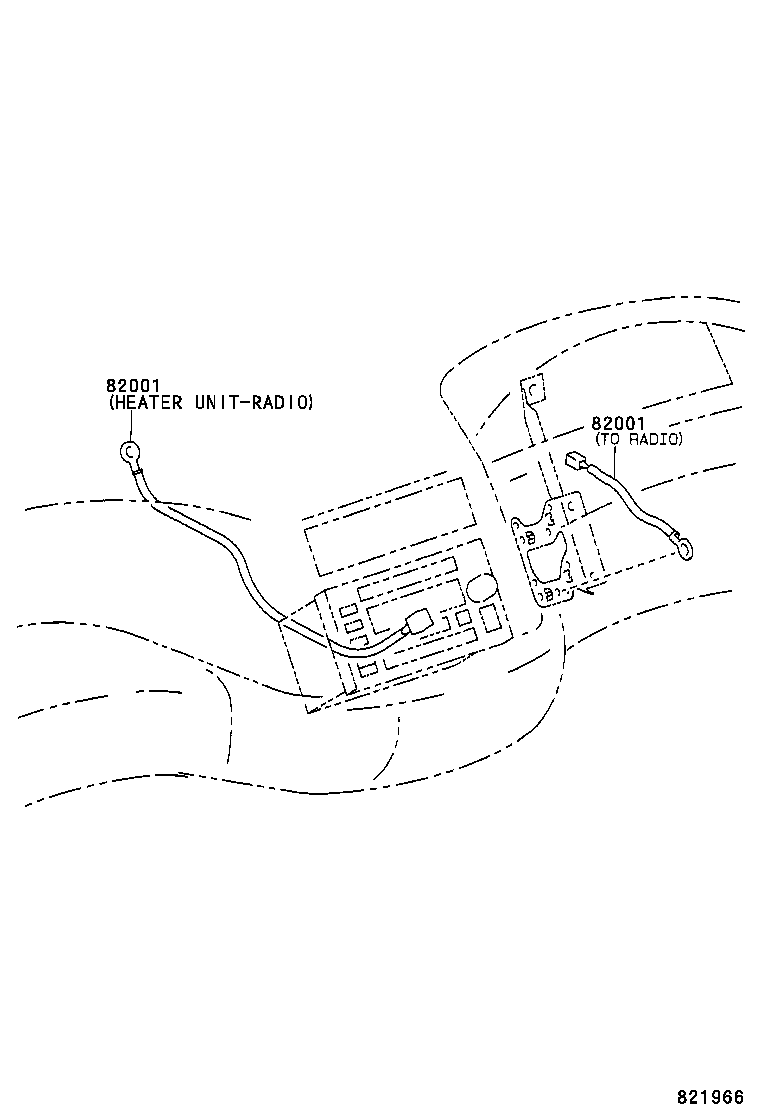

CABLE BOND

diagram 82001 82001
Part # Description Qty Price

ILLUST NO. 3 OF 7(9401- )SPC

Click highlighted areas on diagram

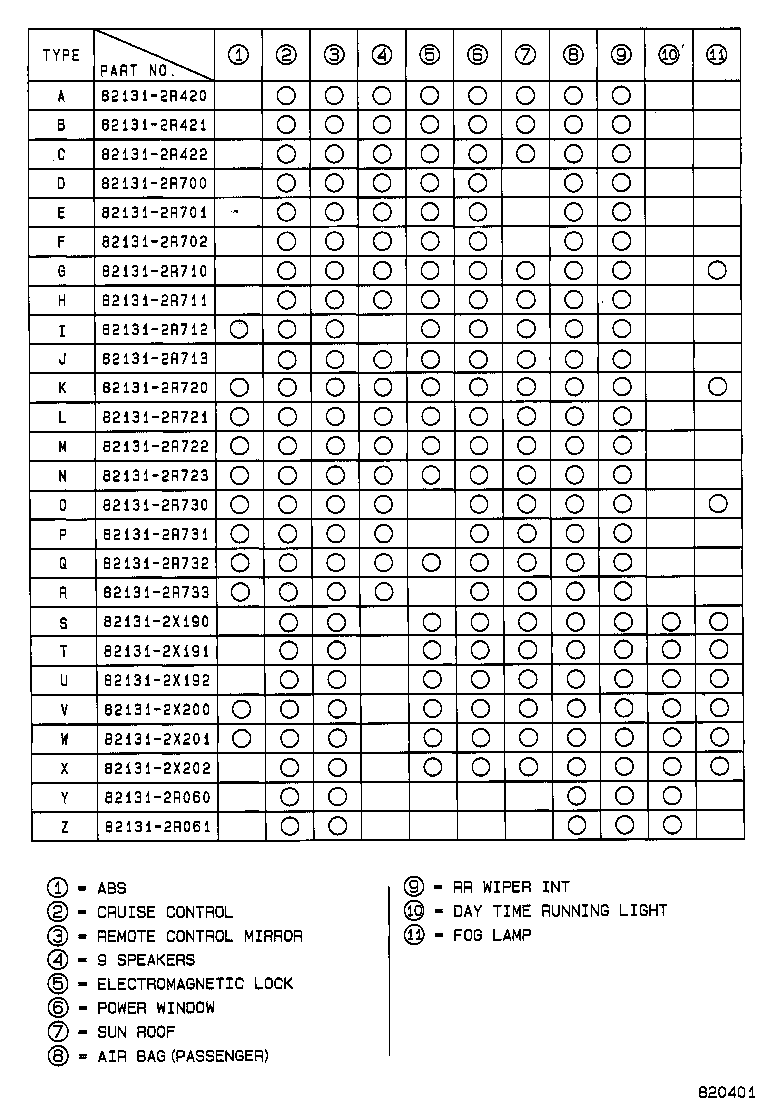

COWL WIRE (PNC 82131) SPEC LIST

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 7(9401- )SPC

Click highlighted areas on diagram

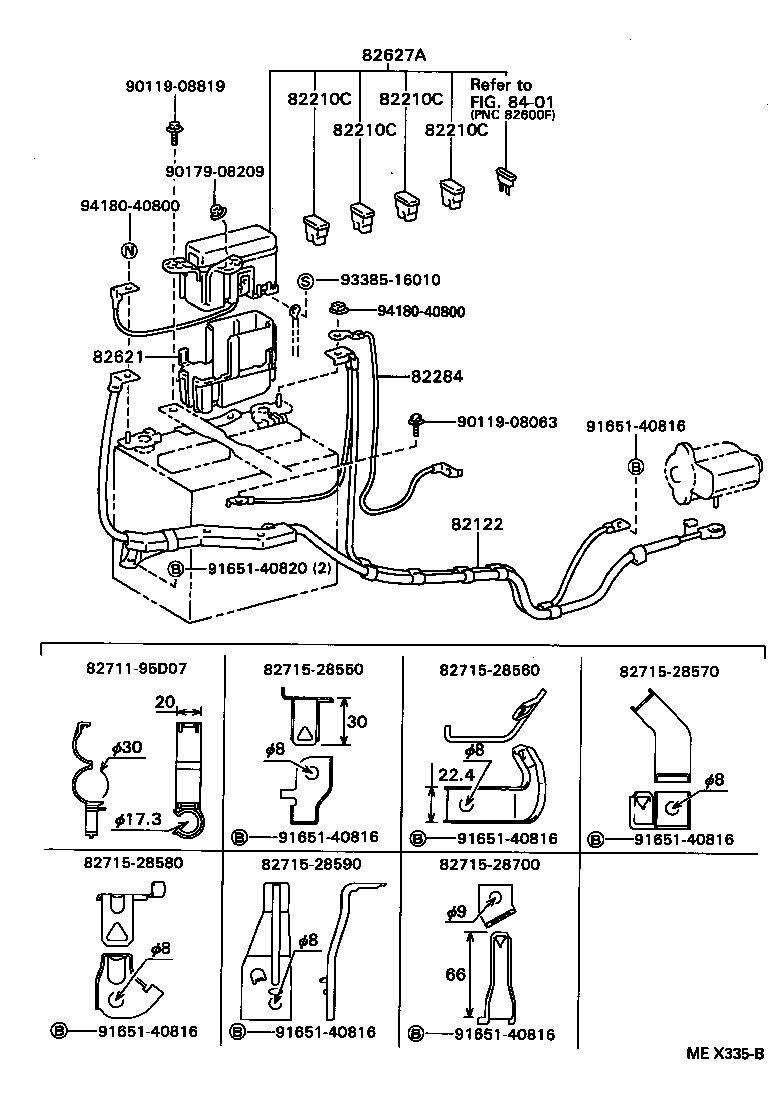

ENGINE WIRE

diagram 82122 82210C 82210C 82210C 82210C 82284 82621 82627A 8271195D07 8271528550 8271528560 8271528570 8271528580 8271528590 8271528700 8401 9011908063 9011908819 9017908209 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140820 9338516010 9418040800 9418040800
Part # Description Qty Price
82122 - WIRE, ENGINE, NO.2
82122-95D07

TCR10,20..USA

 1
82122-95D10

TCR10,20..USA

COLD SPEC

 1
82122-28361

TCR10,20..USA

COLD SPEC

 1
82122-28350

TCR10,20..USA..SPC

 1
82122-28351

TCR10,20..USA

 1
82122-28360

TCR10,20..USA..SPC

COLD SPEC

 1
82210C - FUSIBLE LINK
90982-08246

TCR10,20

100A,TERM.:MALE,BLUE

 1
82627-28010

TCR10,20..USA..SPC

 1
90982-08190

TCR10,20..07S

60A,TERM.:FEMALE,YEL,W(*66)

 1
90982-08227

TCR10,20

50A,TERM.:FEMALE,RED

 2
82627-28020

TCR10,20..USA..SPC

W(*66)

 1
82210C - FUSIBLE LINK
90982-08246

TCR10,20

100A,TERM.:MALE,BLUE

 1
82627-28010

TCR10,20..USA..SPC

 1
90982-08190

TCR10,20..07S

60A,TERM.:FEMALE,YEL,W(*66)

 1
90982-08227

TCR10,20

50A,TERM.:FEMALE,RED

 2
82627-28020

TCR10,20..USA..SPC

W(*66)

 1
82210C - FUSIBLE LINK
90982-08246

TCR10,20

100A,TERM.:MALE,BLUE

 1
82627-28010

TCR10,20..USA..SPC

 1
90982-08190

TCR10,20..07S

60A,TERM.:FEMALE,YEL,W(*66)

 1
90982-08227

TCR10,20

50A,TERM.:FEMALE,RED

 2
82627-28020

TCR10,20..USA..SPC

W(*66)

 1
82210C - FUSIBLE LINK
90982-08246

TCR10,20

100A,TERM.:MALE,BLUE

 1
82627-28010

TCR10,20..USA..SPC

 1
90982-08190

TCR10,20..07S

60A,TERM.:FEMALE,YEL,W(*66)

 1
90982-08227

TCR10,20

50A,TERM.:FEMALE,RED

 2
82627-28020

TCR10,20..USA..SPC

W(*66)

 1
82284 - WIRE, EARTH
82284-95D01

TCR10,20

 1
82621 - COVER, FUSIBLE LINK
82621-28070

TCR10,20..SPC

 1
82627A - WIRE, FUSIBLE LINK
82627-28010

TCR10,20..SPC

 1
82627-28020

TCR10,20..SPC

W(*66)

 1
82627-28011

TCR10,20

 1
82627-28021

TCR10,20

W(*66)

 1
Common parts
82711-95D07
82715-28550
82715-28560
82715-28570
82715-28580
82715-28590
82715-28700
90119-08063
90119-08819
90179-08209
91651-40816
91651-40820
93385-16010
94180-40800
Linked diagrams
8401
