TCR10L-RFSGVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608) ; (9608-9810)ARL,GEN,V ; (9608-9810)TCR11..RHD..MTM ; (9810- )TCR10.

Click highlighted areas on diagram

diagram 58042 58045 58321B 58321B 9162140814 9162140814 9163140814 9163140814 9163140814 9163140814
Part # Description Qty Price
Common parts
91621-40814
91631-40814

(9401- )SPC

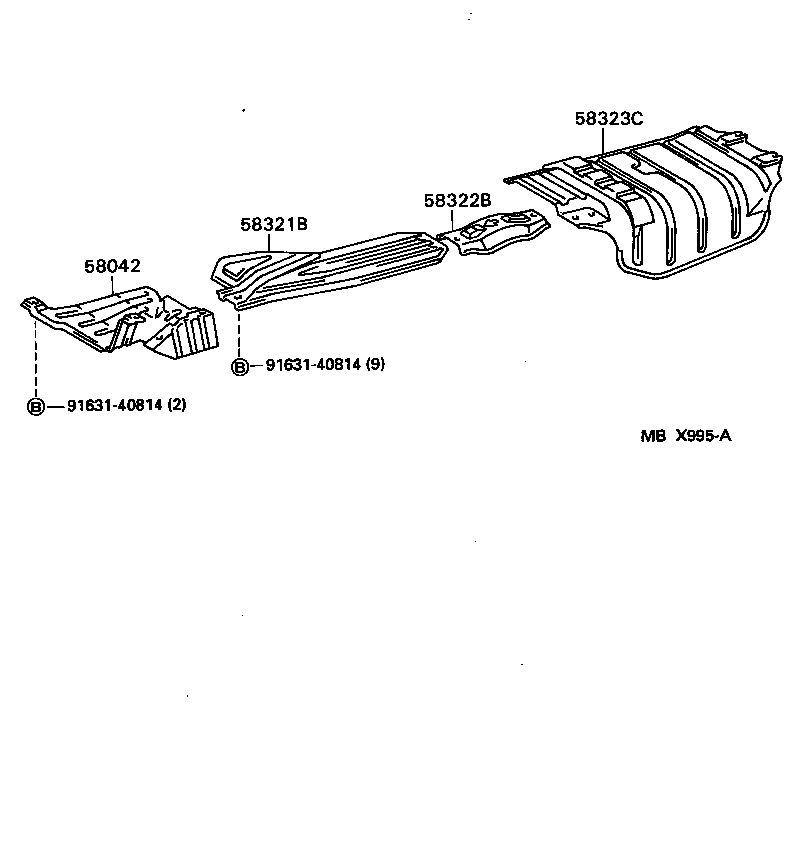

Click highlighted areas on diagram

diagram 58042 58321B 58322B 58323C 9163140814 9163140814
Part # Description Qty Price
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-28010

TCR10,20..SPC

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58041-28020

TCR10,20..SPC

 1
58322B - INSULATOR, REAR FLOOR HEAT, NO.2
58322-28040

TCR10,20..SPC

 1
58323C - INSULATOR, REAR FLOOR HEAT, NO.3
58323-28020

TCR10,20..SPC

 1
Common parts
91631-40814
