TCR10L-RFSGVA (1994)
Toyota Previa

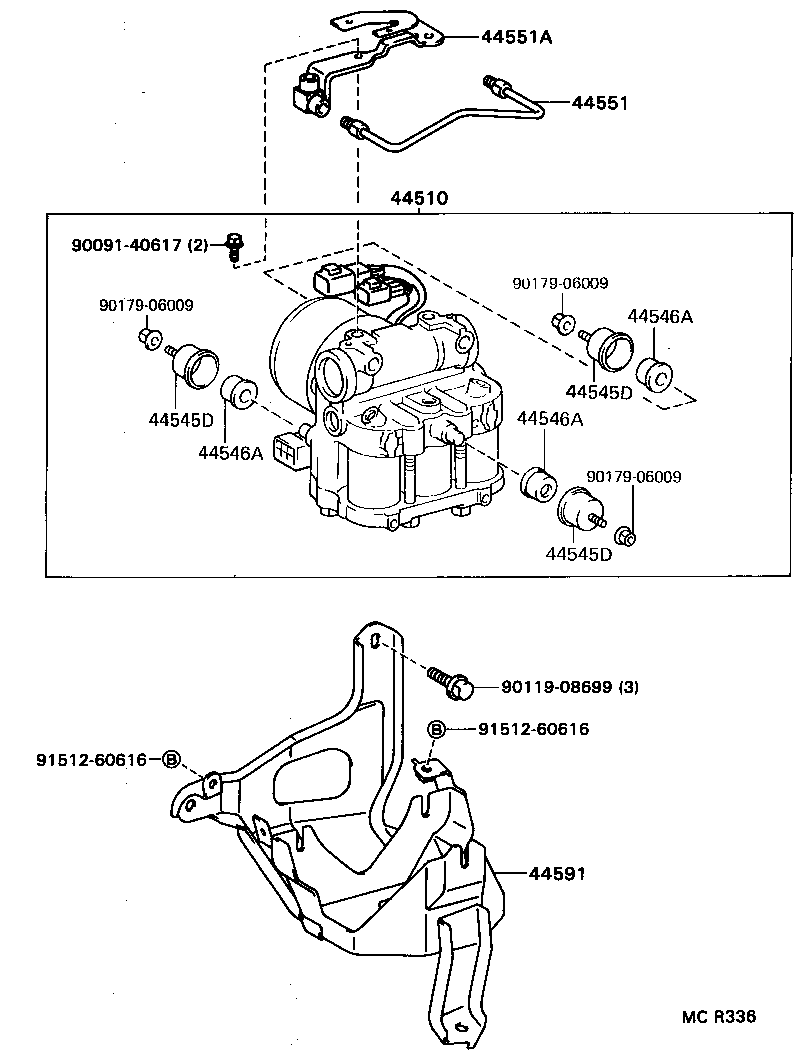

ILLUST NO. 2 OF 2(9501-9608)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44510-28060 |
TCR10,20 |
1 | ||
| 44050-28010 |
TCR10,20 |
1 | ||
| 44510-28010 |
TCR10,20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44590-28010 |
TCR10,20..07S |
1 | ||
| 44590-28080 |
TCR10,20 |
1 | ||
| 44594 - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-28010 |
TCR10,20 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-17020 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90105-06197 | ||||
| 90179-06009 | ||||
| 91651-60816 | ||||
ILLUST NO. 2 OF 2(9608- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44510-28060 |
TCR10,20 |
1 | ||
| 44050-28010 |
TCR10,20 |
1 | ||
| 44510-28010 |
TCR10,20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44590-28010 |
TCR10,20..07S |
1 | ||
| 44590-28080 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91626-60818 | ||||

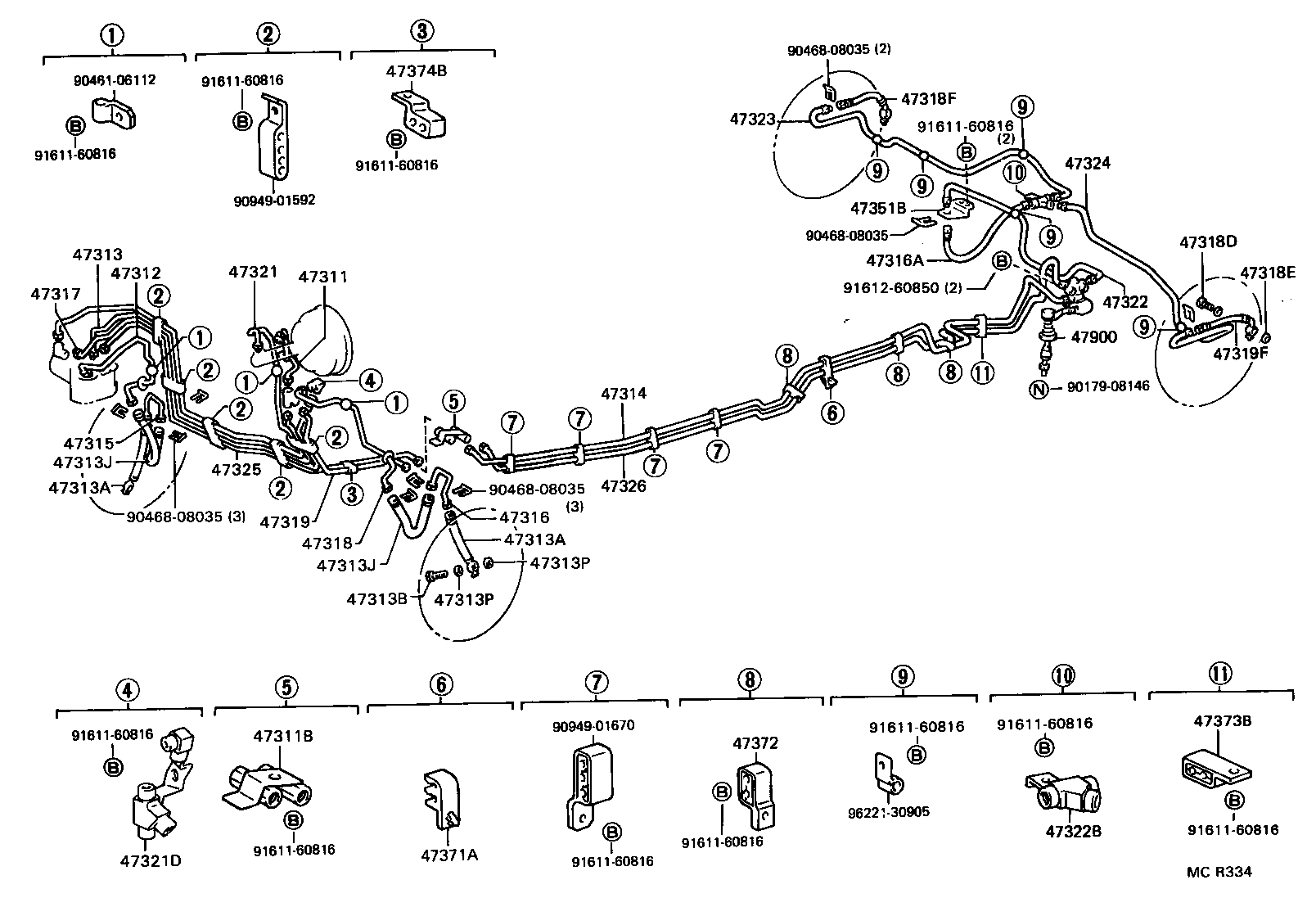

ILLUST NO. 1 OF 2(9608- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28240 |
TCR10,20..07S W(ABS) |
1 | ||
| 47311-28391 |
TCR10,20 W(ABS) |
1 | ||
| 47311-28380 |
TCR10,20..SPC |
1 | ||
| 47311-28390 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12043 |
TCR10,20 W(ABS) |
1 | ||
| 90413-10247 |
TCR10,20..07S W(ABS) |
1 | ||
| 90904-12013 |
TCR10,20..SPC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28140 |
TCR10,20 W(ABS) |
1 | ||
| 47312-28231 |
TCR10,20 W(ABS) |
1 | ||
| 47312-28220 |
TCR10,20..SPC |
1 | ||
| 47312-28230 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28130 |
TCR10,20 W(ABS) |
1 | ||
| 47313-28220 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47313-28221 |
TCR10,20 W(ABS) |
1 | ||
| 47313-28210 |
TCR10,20..SPC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR10,20 |
2 | ||
| 90947-02882 |
TCR10,20 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR10,20 |
2 | ||
| 90947-02882 |
TCR10,20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR10,20 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR10,20 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR10,20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
TCR10,20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
TCR10,20 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02617 |
TCR10,20 |
1 | ||
| 90947-02883 |
TCR10,20 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28050 |
TCR10,20..SPC |
1 | ||
| 47318-28051 |
TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28240 |
TCR10,20 W(ABS) |
1 | ||
| 47321-28390 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47321-28380 |
TCR10,20..SPC |
1 | ||
| 47321-28391 |
TCR10,20 W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13002 |
TCR10,20..SPC W(ABS) |
1 | ||
| 90904-12033 |
TCR10,20 W(ABS) |
1 | ||
| 90904-14001 |
TCR10,20..SPC |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28200 |
TCR10,20 W(REAR DISC BRAKE) |
1 | ||
| 47323-28200 |
TCR10,20..07S..USA |
1 | ||
| 47323-28190 |
TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28120 |
TCR10,20 |
1 | ||
| 47324-28130 |
TCR10,20 W(REAR DISC BRAKE) |
1 | ||
| 47324-28130 |
TCR10,20..07S..USA |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28130 |
TCR10,20 |
1 | ||
| 47325-28190 |
TCR10,20..SPC |
1 | ||
| 47325-28191 |
TCR10,20 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28171 |
TCR10,20 W(ABS) |
1 | ||
| 47326-28160 |
TCR10,20..SPC |
1 | ||
| 47326-28090 |
TCR10,20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
TCR10,20 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-28010 |
TCR10,20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-25010 |
TCR10,20 W(ABS) |
1 | ||
| 47372-25010 |
TCR10,20..SPC |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-10764 | ||||
| 90468-08035 | ||||
| 90949-01536 | ||||
| 90949-01592 | ||||
| 91611-60816 | ||||
| 96221-30905 | ||||

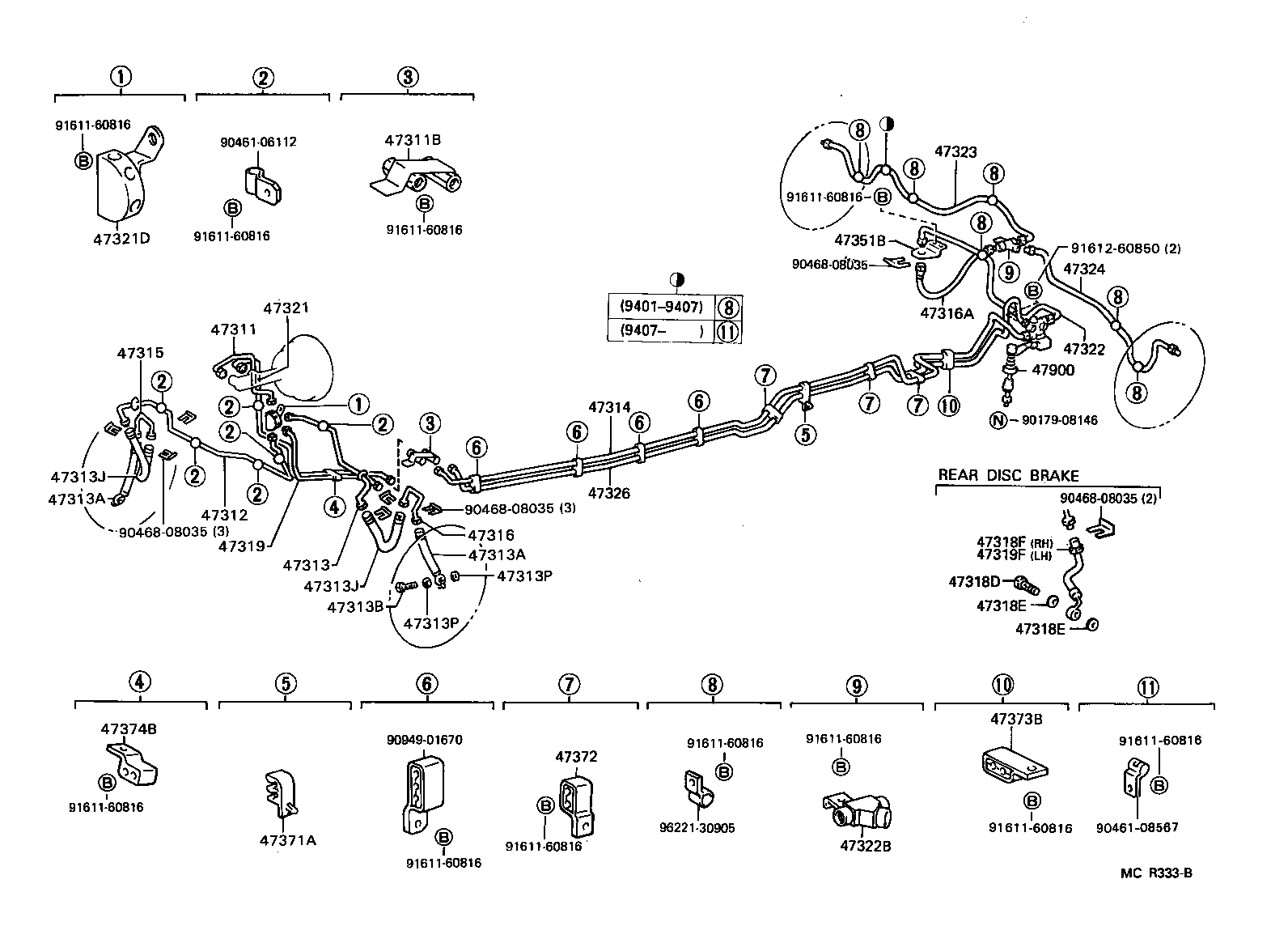

(9401- )SPC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28240 |
TCR10,20..07S W(ABS) |
1 | ||
| 47311-28391 |
TCR10,20 W(ABS) |
1 | ||
| 47311-28380 |
TCR10,20..SPC |
1 | ||
| 47311-28390 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12043 |
TCR10,20 W(ABS) |
1 | ||
| 90413-10247 |
TCR10,20..07S W(ABS) |
1 | ||
| 90904-12013 |
TCR10,20..SPC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28140 |
TCR10,20 W(ABS) |
1 | ||
| 47312-28231 |
TCR10,20 W(ABS) |
1 | ||
| 47312-28220 |
TCR10,20..SPC |
1 | ||
| 47312-28230 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28130 |
TCR10,20 W(ABS) |
1 | ||
| 47313-28220 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47313-28221 |
TCR10,20 W(ABS) |
1 | ||
| 47313-28210 |
TCR10,20..SPC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR10,20 |
2 | ||
| 90947-02882 |
TCR10,20 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR10,20 |
2 | ||
| 90947-02882 |
TCR10,20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR10,20 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR10,20 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR10,20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28140 |
TCR10,20 |
1 | ||
| 47314-28220 |
TCR10,20..SPC |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
TCR10,20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
TCR10,20 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02617 |
TCR10,20 |
1 | ||
| 90947-02883 |
TCR10,20 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02898 |
TCR10,20 |
1 | ||
| 90947-02606 |
TCR10,20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-28020 |
TCR10,20..SPC |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02606 |
TCR10,20 |
1 | ||
| 90947-02898 |
TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28240 |
TCR10,20 W(ABS) |
1 | ||
| 47321-28390 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47321-28380 |
TCR10,20..SPC |
1 | ||
| 47321-28391 |
TCR10,20 W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13002 |
TCR10,20..SPC W(ABS) |
1 | ||
| 90904-12033 |
TCR10,20 W(ABS) |
1 | ||
| 90904-14001 |
TCR10,20..SPC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28151 |
TCR10,20 |
1 | ||
| 47322-28150 |
TCR10,20 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28200 |
TCR10,20 W(REAR DISC BRAKE) |
1 | ||
| 47323-28200 |
TCR10,20..07S..USA |
1 | ||
| 47323-28190 |
TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28120 |
TCR10,20 |
1 | ||
| 47324-28130 |
TCR10,20 W(REAR DISC BRAKE) |
1 | ||
| 47324-28130 |
TCR10,20..07S..USA |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28171 |
TCR10,20 W(ABS) |
1 | ||
| 47326-28160 |
TCR10,20..SPC |
1 | ||
| 47326-28090 |
TCR10,20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
TCR10,20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
TCR10,20 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
TCR10,20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-25010 |
TCR10,20 W(ABS) |
1 | ||
| 47372-25010 |
TCR10,20..SPC |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-28200 |
TCR10,20 |
1 | ||
| 47900-28311 |
TCR10,20..07S..USA |
1 | ||
| 47900-28310 |
TCR10,20..07S W(REAR DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06112 | ||||
| 90461-08567 | ||||
| 90468-08035 | ||||
| 90949-01670 | ||||
| 91611-60816 | ||||
| 91612-60850 | ||||
| 96221-30905 | ||||
ILLUST NO. 1 OF 2(9401-9608)SPC
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28240 |
TCR10,20..07S W(ABS) |
1 | ||
| 47311-28391 |
TCR10,20 W(ABS) |
1 | ||
| 47311-28380 |
TCR10,20..SPC |
1 | ||
| 47311-28390 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12043 |
TCR10,20 W(ABS) |
1 | ||
| 90413-10247 |
TCR10,20..07S W(ABS) |
1 | ||
| 90904-12013 |
TCR10,20..SPC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28140 |
TCR10,20 W(ABS) |
1 | ||
| 47312-28231 |
TCR10,20 W(ABS) |
1 | ||
| 47312-28220 |
TCR10,20..SPC |
1 | ||
| 47312-28230 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28130 |
TCR10,20 W(ABS) |
1 | ||
| 47313-28220 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47313-28221 |
TCR10,20 W(ABS) |
1 | ||
| 47313-28210 |
TCR10,20..SPC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR10,20 |
2 | ||
| 90947-02882 |
TCR10,20 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR10,20 |
2 | ||
| 90947-02882 |
TCR10,20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR10,20 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR10,20 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR10,20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28140 |
TCR10,20 |
1 | ||
| 47314-28220 |
TCR10,20..SPC |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
TCR10,20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
TCR10,20 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02617 |
TCR10,20 |
1 | ||
| 90947-02883 |
TCR10,20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28010 |
TCR10,20 |
1 | ||
| 47317-28060 |
TCR10,20..SPC |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28050 |
TCR10,20..SPC |
1 | ||
| 47318-28051 |
TCR10,20 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR10,20 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02898 |
TCR10,20 |
1 | ||
| 90947-02606 |
TCR10,20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-28020 |
TCR10,20..SPC |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02606 |
TCR10,20 |
1 | ||
| 90947-02898 |
TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28240 |
TCR10,20 W(ABS) |
1 | ||
| 47321-28390 |
TCR10,20..SPC W(ABS) |
1 | ||
| 47321-28380 |
TCR10,20..SPC |
1 | ||
| 47321-28391 |
TCR10,20 W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-13002 |
TCR10,20..SPC W(ABS) |
1 | ||
| 90904-12033 |
TCR10,20 W(ABS) |
1 | ||
| 90904-14001 |
TCR10,20..SPC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28151 |
TCR10,20 |
1 | ||
| 47322-28150 |
TCR10,20 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28200 |
TCR10,20 W(REAR DISC BRAKE) |
1 | ||
| 47323-28200 |
TCR10,20..07S..USA |
1 | ||
| 47323-28190 |
TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28120 |
TCR10,20 |
1 | ||
| 47324-28130 |
TCR10,20 W(REAR DISC BRAKE) |
1 | ||
| 47324-28130 |
TCR10,20..07S..USA |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28130 |
TCR10,20 |
1 | ||
| 47325-28190 |
TCR10,20..SPC |
1 | ||
| 47325-28191 |
TCR10,20 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28171 |
TCR10,20 W(ABS) |
1 | ||
| 47326-28160 |
TCR10,20..SPC |
1 | ||
| 47326-28090 |
TCR10,20 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
TCR10,20 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
TCR10,20 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
TCR10,20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-25010 |
TCR10,20 W(ABS) |
1 | ||
| 47372-25010 |
TCR10,20..SPC |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-28200 |
TCR10,20 |
1 | ||
| 47900-28311 |
TCR10,20..07S..USA |
1 | ||
| 47900-28310 |
TCR10,20..07S W(REAR DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06112 | ||||
| 90468-08035 | ||||
| 90949-01592 | ||||
| 90949-01670 | ||||
| 91611-60816 | ||||
| 91612-60850 | ||||
| 96221-30905 | ||||
ILLUST NO. 2 OF 2(9401-9608)SPC
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44510-28060 |
TCR10,20 |
1 | ||
| 44050-28010 |
TCR10,20 |
1 | ||
| 44510-28010 |
TCR10,20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-28030 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 47391-28010 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44590-28010 |
TCR10,20..07S |
1 | ||
| 44590-28080 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90091-40617 | ||||
| 90119-08699 | ||||
| 90179-06009 | ||||
| 91512-60616 | ||||
ILLUST NO. 2 OF 2(9608- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44510-28060 |
TCR10,20 |
1 | ||
| 44050-28010 |
TCR10,20 |
1 | ||
| 44510-28010 |
TCR10,20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
TCR10,20 |
3 | ||
| 44545-42020 |
TCR10,20 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
TCR10,20..07S |
3 | ||
| 44546-42020 |
TCR10,20 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28050 |
TCR20..SPC;TCR10..USA..SPC |
1 | ||
| 44590-28010 |
TCR10,20..07S |
1 | ||
| 44590-28080 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91626-60818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
