TCR10L-RFSGVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9401-9707)TCR10..SPC

Click highlighted areas on diagram

A340E

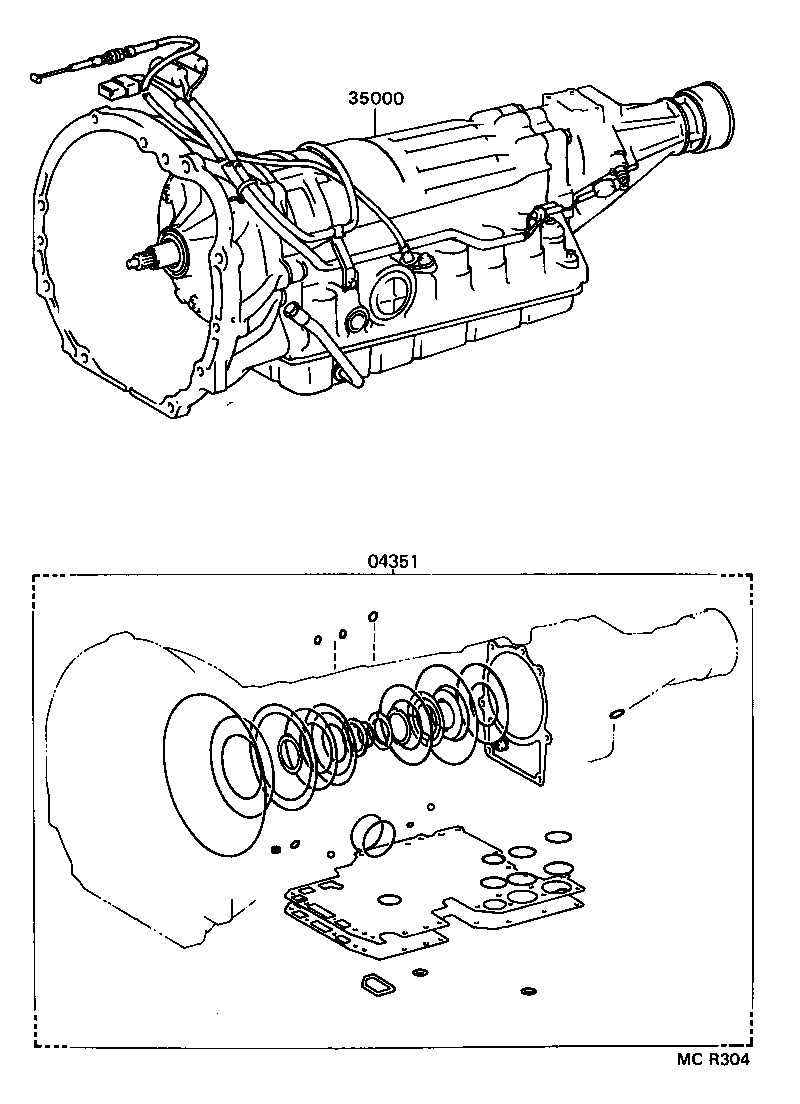

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30170

TCR10,20..SPC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-28280

TCR10..ATM

 1
35000-28510

TCR10..SPC

 1
35000-28760

TCR10..SPC

 1
35000-28761

TCR10..SPC

 1
