TCR10L-RFSGVA (1994)
Toyota Previa

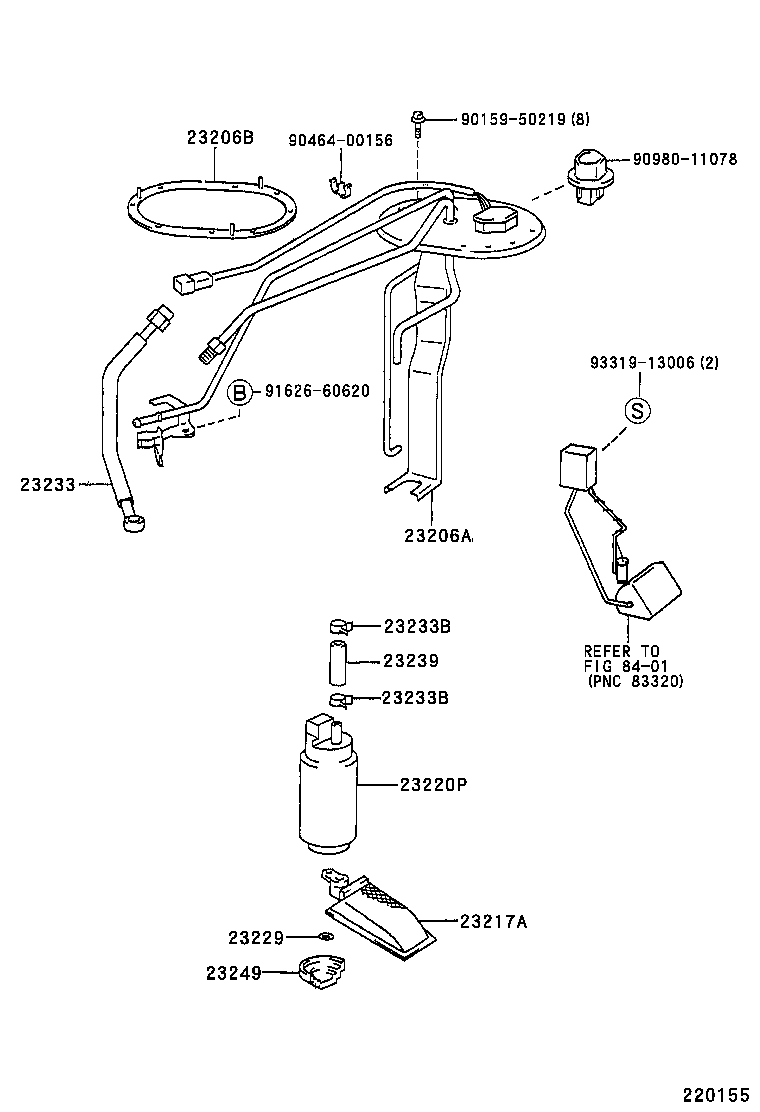

ILLUST NO. 2 OF 2(9401- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50219 | ||||
| 90464-00156 | ||||
| 90980-11078 | ||||
| 91626-60620 | ||||
| 93319-13006 | ||||
| Linked diagrams | ||||
| 8401 | ||||

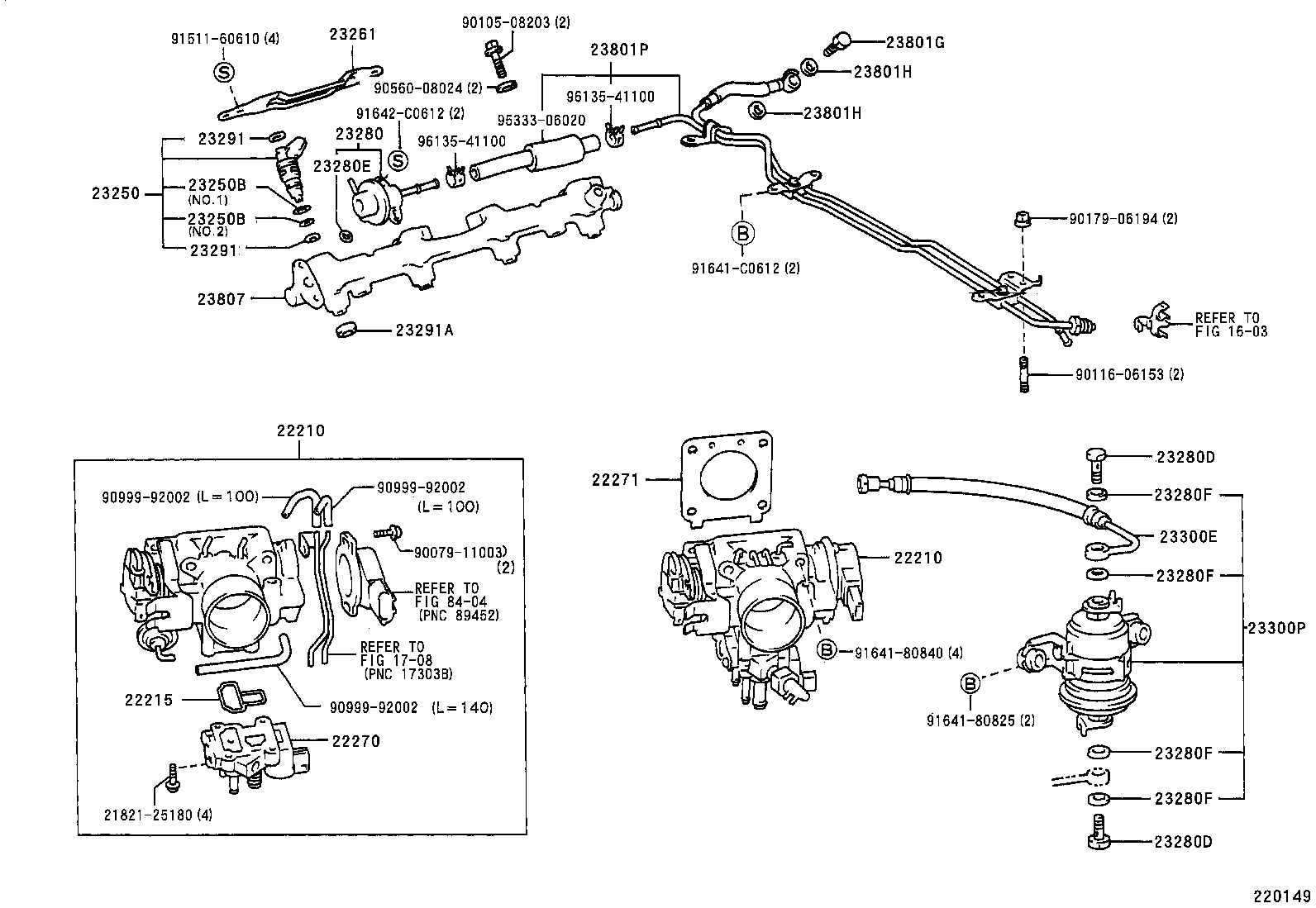

ILLUST NO. 1 OF 2(9401- )2TZFZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-76040 |
2TZFZE..TCR10,20 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-76040 |
2TZFZE..TCR10,20 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-76010 |
2TZ#..TCR10,20 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79055 |
2TZFZE..TCR10,20 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2TZ#..TCR10,20 NO.1 |
4 | ||
| 90301-17007 |
2TZ#..TCR10,20 NO.2 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2TZ#..TCR10,20 NO.1 |
4 | ||
| 90301-17007 |
2TZ#..TCR10,20 NO.2 |
4 | ||
| 23261 - COVER, INJECTOR | ||||
| 23261-76010 |
2TZ#..TCR10,20 |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
2TZ#..TCR10,20 |
1 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2TZ#..TCR10,20 |
4 | ||
| 23300E - HOSE, FUEL | ||||
| 90923-01414 |
2TZ#..TCR10,20 |
1 | ||
| 90923-01370 |
2TZ#..TCR10,20 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79285 |
2TZ#..TCR10,20 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
2TZ#..TCR10,20 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2TZ#..TCR10,20 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
2TZ#..TCR10,20 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-76030 |
2TZFZE..TCR10,20 |
1 | ||
| 23801-76040 |
2TZFZE..TCR10,20 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-76010 |
2TZ#..TCR10,20 |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90105-08203 | ||||
| 90116-06153 | ||||
| 90179-06194 | ||||
| 90560-08024 | ||||
| 90999-92002 | ||||
| 91511-60610 | ||||
| 91641-80825 | ||||
| 91641-80840 | ||||
| 91641-C0612 | ||||
| 91642-C0612 | ||||
| 95333-06020 | ||||
| 96135-41100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1708 | ||||
| 8404 | ||||

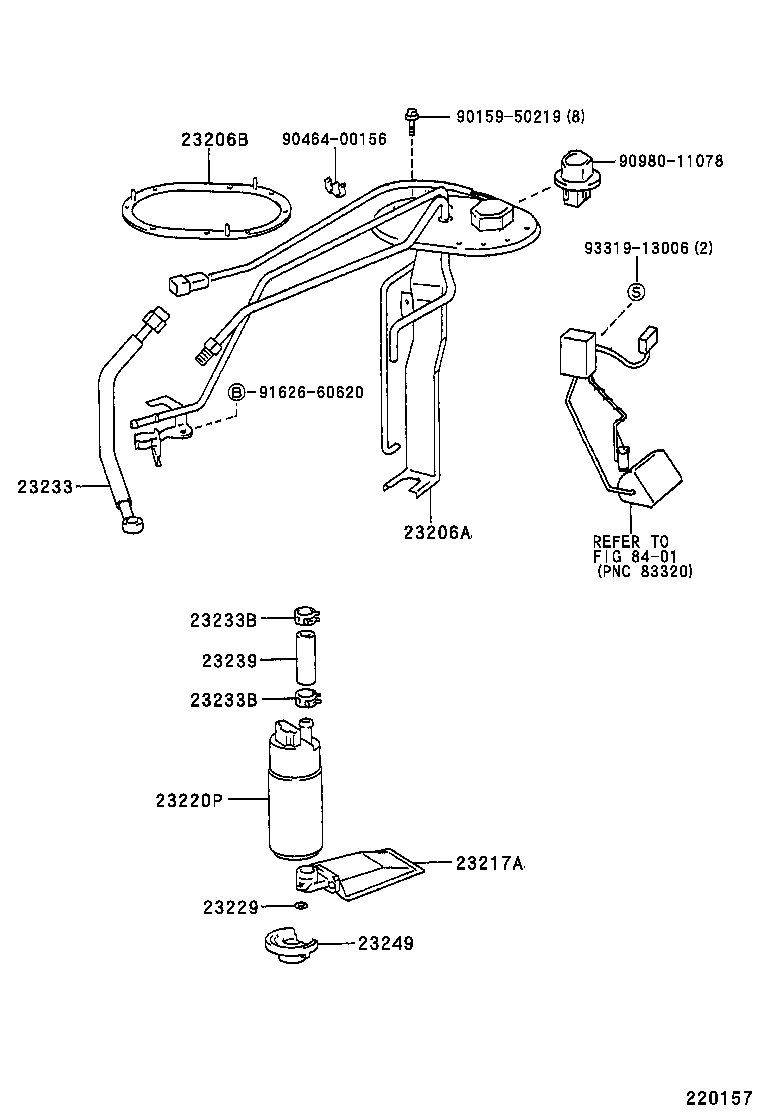

ILLUST NO. 2 OF 2(9401- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-76100 |
2TZFZE..TCR10,20 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-20040 |
2TZ#..TCR10,20 |
1 | ||
| 77169-20040 |
2TZ#..TCR10,20 |
1 | ||
| 77169-20040 |
2TZFZE..TCR10,20 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-76040 |
2TZFZE..TCR10,20 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-50060 |
2TZFZE..TCR10,20 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2TZ#..TCR10,20 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23091-76010 |
2TZ#..TCR10,20 |
1 | ||
| 23091-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 23091-76010 |
2TZ#..TCR10,20 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-12067 |
2TZ#..TCR10,20 |
2 | ||
| 90467-12067 |
2TZ#..TCR10,20 NO.2 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-12067 |
2TZ#..TCR10,20 |
2 | ||
| 90467-12067 |
2TZ#..TCR10,20 NO.2 |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
2TZ#..TCR10,20 |
1 | ||
| 23239-11010 |
2TZ#..TCR10,20 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
2TZ#..TCR10,20 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90464-00156 | ||||
| 90980-11078 | ||||
| 91626-60620 | ||||
| 93319-13006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
