TCR10L-RFSGVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

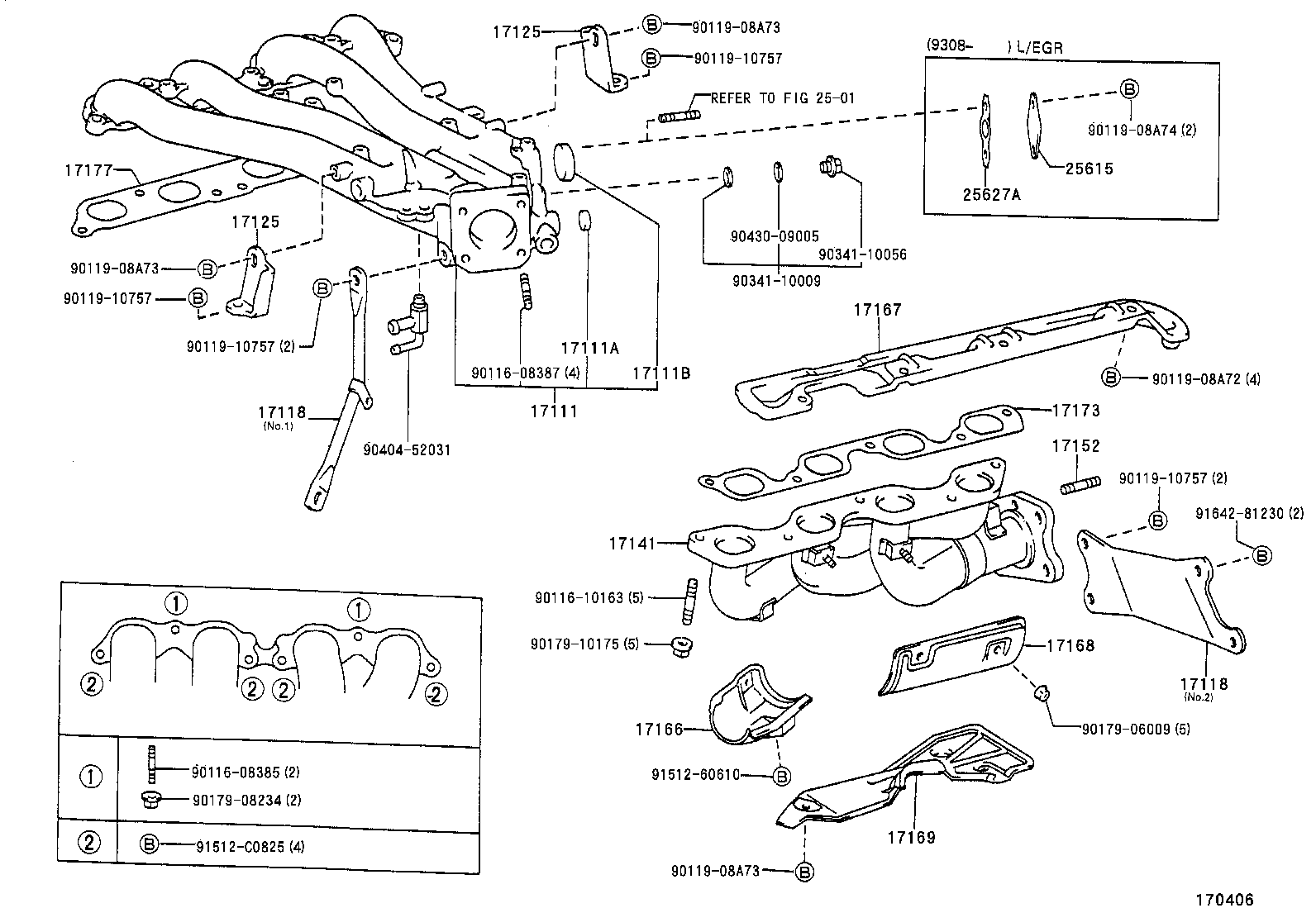

Click highlighted areas on diagram

diagram 17111 17111B 17118 17118 17125 17125 17141 17152 17166 17167 17168 17169 17173 17177 2501 9011608385 9011608387 9011610163 9011908A72 9011908A73 9011908A73 9011908A73 9011910757 9011910757 9011910757 9011910757 9017906009 9017906009 9017906009 9017908234 9017910175 9040452035 9151160610 91511C0825 9164281230
Part # Description Qty Price
Common parts
90116-08385
90116-08387
90116-10163
90119-08A72
90119-08A73
90119-10757
90179-06009
90179-08234
90179-10175
90404-52035
91511-60610
91511-C0825
91642-81230
Linked diagrams
2501

(9401-9608)

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17118 17118 17125 17125 17141 17152 17166 17167 17168 17169 17173 17177 2501 25615 25627A 9011608385 9011608387 9011610163 9011908A72 9011908A73 9011908A73 9011908A73 9011908A74 9011910757 9011910757 9011910757 9011910757 9017906009 9017908234 9017910175 9034110009 9034110056 9040452031 9043009005 9151260610 91512C0825 9164281230
Part # Description Qty Price
Common parts
90116-08385
90116-08387
90116-10163
90119-08A72
90119-08A73
90119-08A74
90119-10757
90179-06009
90179-08234
90179-10175
90341-10009
90341-10056
90404-52031
90430-09005
91512-60610
91512-C0825
91642-81230
Linked diagrams
2501

ILLUST NO. 1 OF 2(9401- )2TZFZE

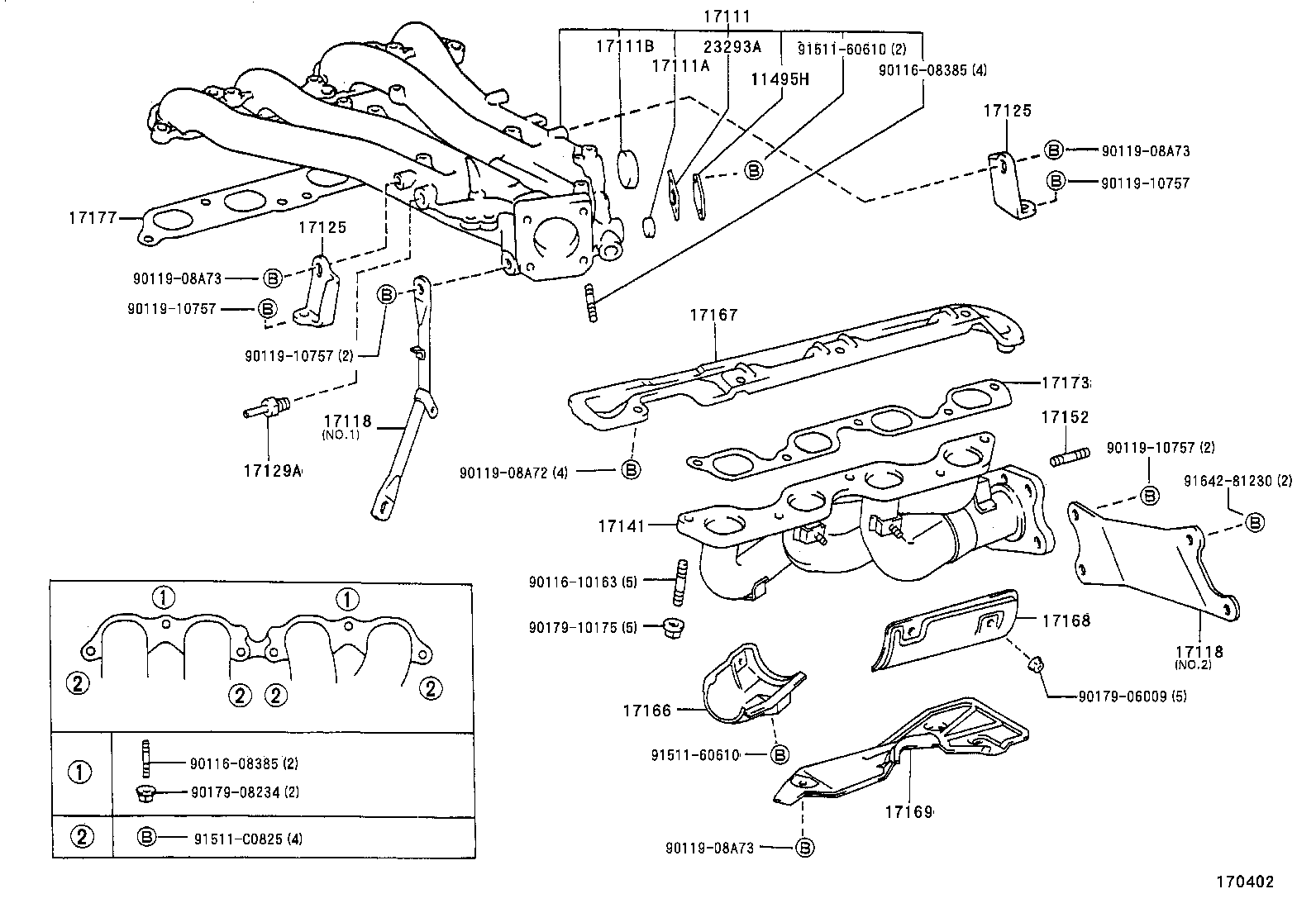

Click highlighted areas on diagram

diagram 11495H 17111 17111A 17111B 17118 17118 17125 17125 17129A 17141 17152 17166 17167 17168 17169 17173 17177 23293A 9011608385 9011608385 9011610163 9011908A72 9011908A73 9011908A73 9011908A73 9011910757 9011910757 9011910757 9011910757 9017906009 9017908234 9017910175 9151160610 9151160610 91511C0825 9164281230
Part # Description Qty Price
11495H - PLUG, PLATE(FOR INTAKE MANIFOLD)
11495-76020

2TZFZE..TCR10,20

 1
17111 - MANIFOLD, INTAKE
17101-76020

2TZFZE..TCR10,20

 1
17111A - PLUG, NO.1
90331-16001

2TZ#..TCR10,20

 2
17111B - PLUG, NO.2
96411-43500

2TZ#..TCR10,20

 1
17118 - STAY, MANIFOLD
17118-76020

2TZFZE..TCR10,20

NO.2

 1
17118-76010

2TZFZE..TCR10,20

NO.1

 1
17118 - STAY, MANIFOLD
17118-76020

2TZFZE..TCR10,20

NO.2

 1
17118-76010

2TZFZE..TCR10,20

NO.1

 1
17125 - STAY, SURGE TANK, NO.1
17125-76010

2TZ#..TCR10,20

 2
17125 - STAY, SURGE TANK, NO.1
17125-76010

2TZ#..TCR10,20

 2
17129A - UNION, NO.1
90404-51010

2TZFZE..TCR10,20

 1
17141 - MANIFOLD, EXHAUST
17141-76050

2TZFZE..TCR10,20

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2TZ#..TCR10,20

 3
17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17166-76010

2TZFZE..TCR10,20

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-76010

2TZ#..TCR10,20

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-76010

2TZFZE..TCR10,20

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-76010

2TZFZE..TCR10,20

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-76010

2TZ#..TCR10,20

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-76020

2TZ#..TCR10,20

 1
23293A - GASKET, COLD START FUEL INJECTOR
23293-75010

2TZFZE..TCR10,20

 1
Common parts
90116-08385
90116-10163
90119-08A72
90119-08A73
90119-10757
90179-06009
90179-08234
90179-10175
91511-60610
91511-C0825
91642-81230

ILLUST NO. 2 OF 2(9401- )2TZFZE

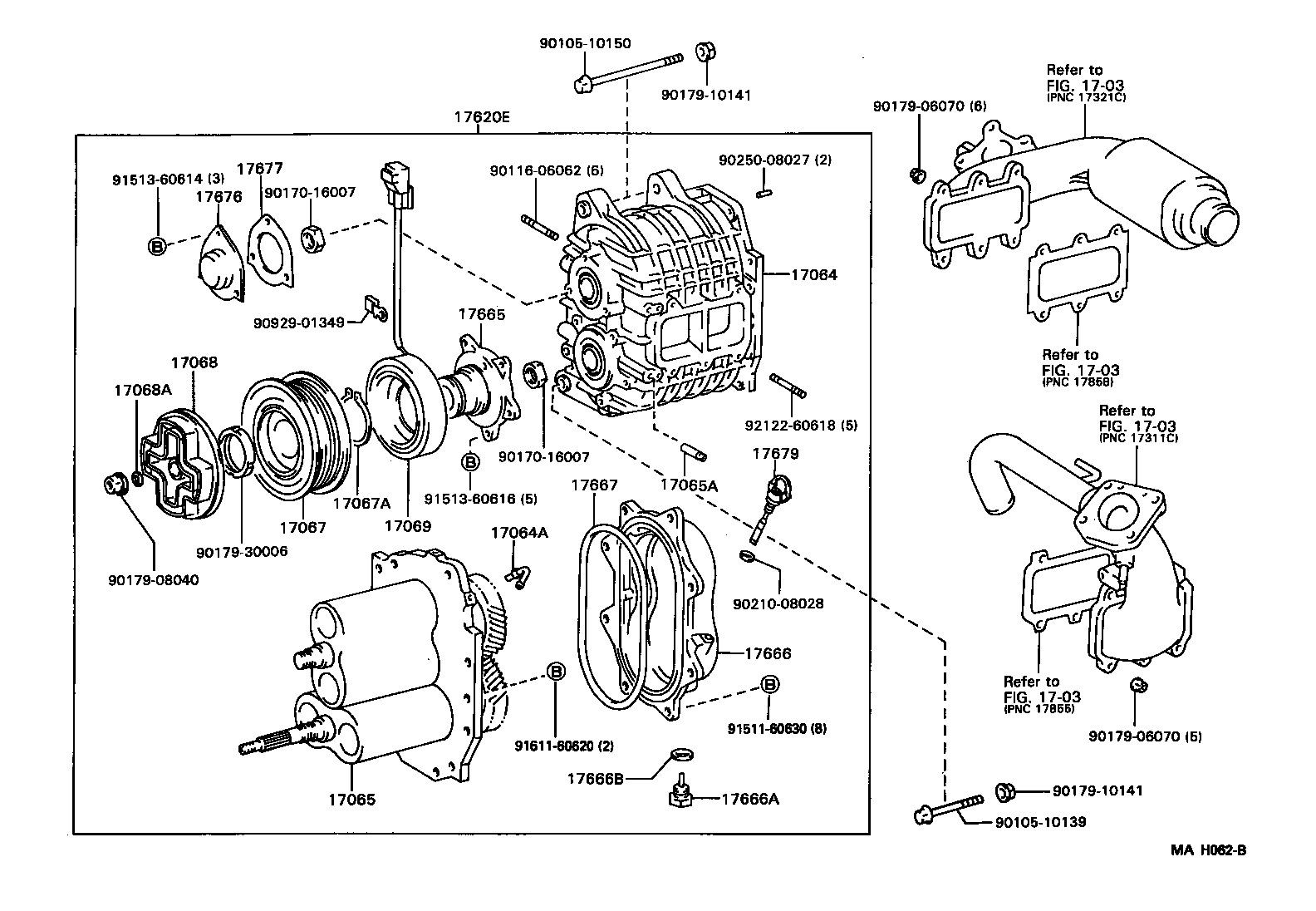

Click highlighted areas on diagram

diagram 1703 1703 1703 1703 17064 17064A 17065 17065A 17067 17067A 17068 17068A 17069 17620E 17665 17666 17666A 17666B 17667 17676 17677 17679 9010510139 9010510150 9011606062 9017016007 9017016007 9017906070 9017906070 9017908040 9017910141 9017910141 9017930006 9021008028 9025008027 9092901349 9151160630 9151360614 9151360616 9161160620 9212260618
Part # Description Qty Price
17064 - HOUSING SUB-ASSY, ROTOR
17064-76010

2TZFZE..TCR10,20

 1
17064A - ELBOW(FOR SUPERCHARGER)
90407-06004

2TZFZE..TCR10,20

 1
17065 - PLATE SUB-ASSY, ROTOR HOUSING, RR
17065-76010

2TZFZE..TCR10,20

 1
17065A - UNION(FOR SUPERCHARGER)
90406-06002

2TZFZE..TCR10,20

 2
17067 - PULLEY SUB-ASSY, CLUTCH
17067-76010

2TZFZE..TCR10,20

 1
17067A - RING, SHAFT SNAP(FOR CLUTCH PULLEY SUB-ASSY)
90520-37003

2TZFZE..TCR10,20

 1
17068 - HUB SUB-ASSY, CLUTCH
17068-76010

2TZFZE..TCR10,20

 1
17068A - SHIM(FOR SUPERCHARGER)
90564-08001

2TZFZE..TCR10,20

T=0.1,MARK 1

 1
90564-08007

2TZFZE..TCR10,20

T=1.3,MARK 7

 1
90564-08002

2TZFZE..TCR10,20

T=0.3,MARK 2

 1
90564-08006

2TZFZE..TCR10,20

T=1.1,MARK 6

 1
90564-08003

2TZFZE..TCR10,20

T=0.5,MARK 3

 1
90564-08008

2TZFZE..TCR10,20

T=1.5,MARK 8

 1
90564-08005

2TZFZE..TCR10,20

T=0.9,MARK 5

 1
90564-08009

2TZFZE..TCR10,20

T=1.7,MARK 9

 1
90564-08004

2TZFZE..TCR10,20

T=0.7,MARK 4

 1
17069 - STATOR SUB-ASSY, CLUTCH
17069-76010

2TZFZE..TCR10,20

 1
17620E - SUPERCHARGER ASSY
17620-76010

2TZFZE..TCR10,20

 1
17665 - FLANGE, CLUTCH
17665-16020

2TZFZE..TCR10,20

 1
17666 - COVER, REAR(FOR SUPERCHARGER)
17666-76010

2TZFZE..TCR10,20

 1
17666A - PLUG SUB-ASSY, W/HEAD STRAIGHT SCREW(FOR SUPERCHARGER)
90341-12019

2TZFZE..TCR10,20

 1
17666B - GASKET, SEAT(FOR SUPERCHARGER)
90430-12005

2TZFZE..TCR10,20

 1
17667 - GASKET, REAR COVER(FOR SUPERCHARGER)
17667-70010

2TZFZE..TCR10,20

 1
17676 - COVER, HOUSING, FRONT
17676-16011

2TZFZE..TCR10,20

 1
17677 - GASKET, HOUSING FRONT COVER
17677-70010

2TZFZE..TCR10,20

 1
17679 - GAGE, SUPERCHARGER OIL LEVEL
17679-76010

2TZFZE..TCR10,20

 1
Common parts
90105-10139
90105-10150
90116-06062
90170-16007
90179-06070
90179-08040
90179-10141
90179-30006
90210-08028
90250-08027
90929-01349
91511-60630
91513-60614
91513-60616
91611-60620
92122-60618
Linked diagrams
1703
