TCR10L-RFSGVA (1994)
Toyota Previa
ILLUST NO. 1 OF 3(9005-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17341-76010 | ||||
| 17344-76010 | ||||
| 17810-61010 | ||||
| 90119-08344 | ||||
| 90159-60008 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90179-10015 | ||||
| 90179-10033 | ||||
| 90179-10114 | ||||
| 90201-10180 | ||||
| 90201-10320 | ||||
| 90445-16041 | ||||
| 90445-16042 | ||||
| 90447-16002 | ||||
| 90464-00299 | ||||
| 90464-00311 | ||||
| 90464-00503 | ||||
| 90464-00584 | ||||
| 90464-00609 | ||||
| 90464-00613 | ||||
| 90467-15022 | ||||
| 90480-25025 | ||||
| 90480-40007 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91641-80814 | ||||
| 91641-80816 | ||||
| 91642-80820 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
| 91651-60820 | ||||
| 96135-41100 | ||||
| 96135-41300 | ||||
| Linked diagrams | ||||
| 1601 | ||||
ILLUST NO. 1 OF 3(9601-9707) ; (9707- )2TZFE..GEN,W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17344-76010 | ||||
| 17810-61010 | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-35025 | ||||
| 90119-08344 | ||||
| 90159-60008 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90179-10015 | ||||
| 90179-10033 | ||||
| 90179-10040 | ||||
| 90179-10114 | ||||
| 90179-10220 | ||||
| 90201-10180 | ||||
| 90201-10320 | ||||
| 90445-16041 | ||||
| 90447-16002 | ||||
| 90464-00299 | ||||
| 90464-00311 | ||||
| 90464-00584 | ||||
| 90464-00609 | ||||
| 90467-15022 | ||||
| 90480-25025 | ||||
| 90480-40007 | ||||
| 91511-60814 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91631-60816 | ||||
| 91641-80814 | ||||
| 91641-80816 | ||||
| 91642-80820 | ||||
| 96135-41100 | ||||
| 96135-41300 | ||||
| Linked diagrams | ||||
| 1601 | ||||
ILLUST NO. 2 OF 3(9401- )2TZFZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

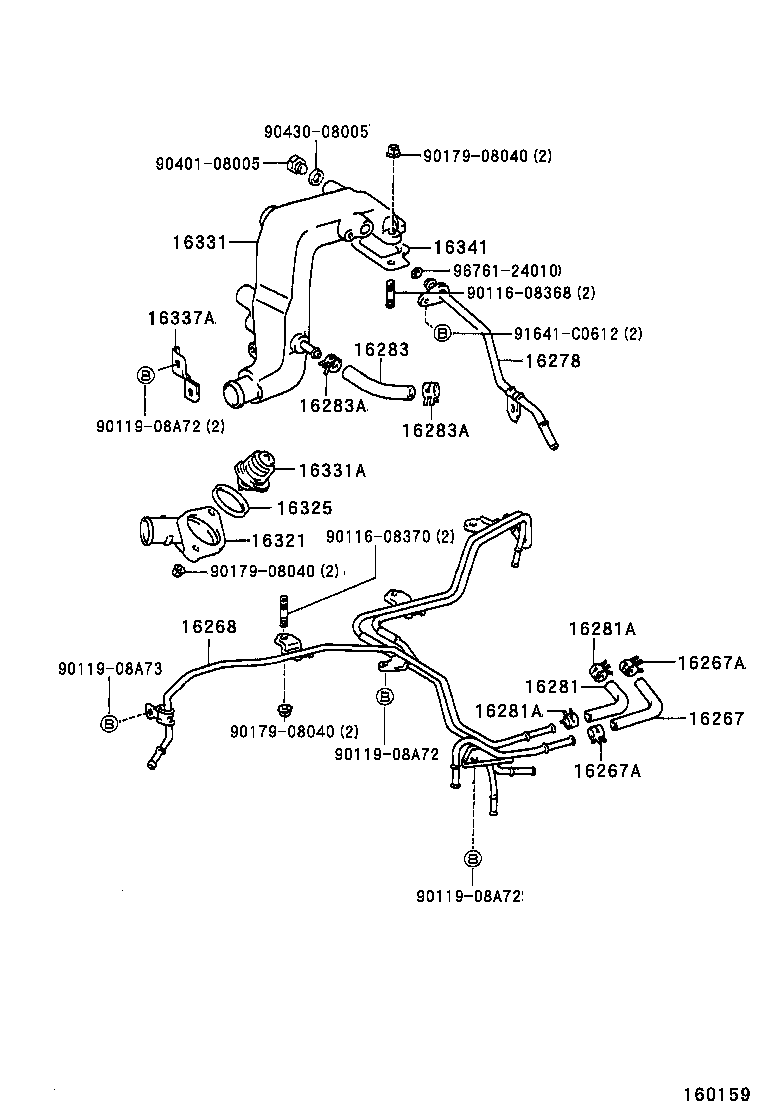

| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-76050 |
2TZFZE..TCR10,20 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 99555-10100 |
2TZFZE..TCR10,20 L=100 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16325-62010 |
2TZ#..TCR10,20 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-76050 |
2TZFZE..TCR10,20 |
1 | ||
| 16337A - STAY, WATER OUTLET | ||||
| 16337-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-76010 |
2TZ#..TCR10,20 |
1 | ||
| Common parts | ||||
| 90116-08368 | ||||
| 90116-08370 | ||||
| 90119-08A72 | ||||
| 90119-08A73 | ||||
| 90179-08040 | ||||
| 90401-08005 | ||||
| 90430-08005 | ||||
| 91641-C0612 | ||||
| 96761-24010 | ||||

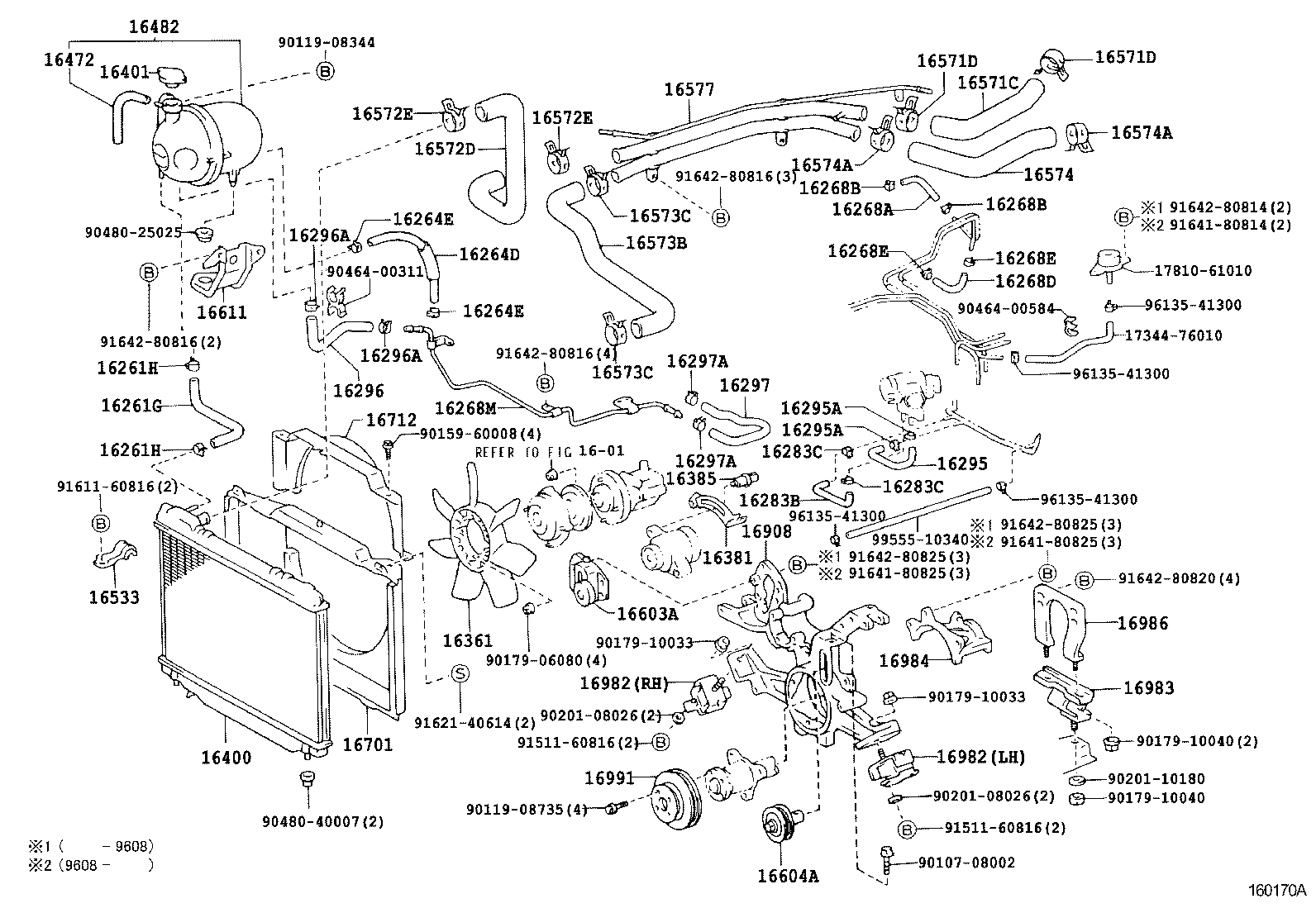

ILLUST NO. 1 OF 3(9401-9601)2TZFZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-76050 |
2TZ#..TCR10,20 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 90445-16053 |
2TZFZE..TCR10,20 |
1 | ||
| 90445-16020 |
2TZFZE..TCR10,20 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 17342-76010 |
2TZ#..TCR10,20 H=120 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41100 |
2TZ#..TCR10,20 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41100 |
2TZ#..TCR10,20 |
2 | ||
| 16268D - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 17343-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16268M - PIPE, WATER BY-PASS, NO.3 | ||||
| 16268-76060 |
2TZFZE..TCR10,20 |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16283-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||

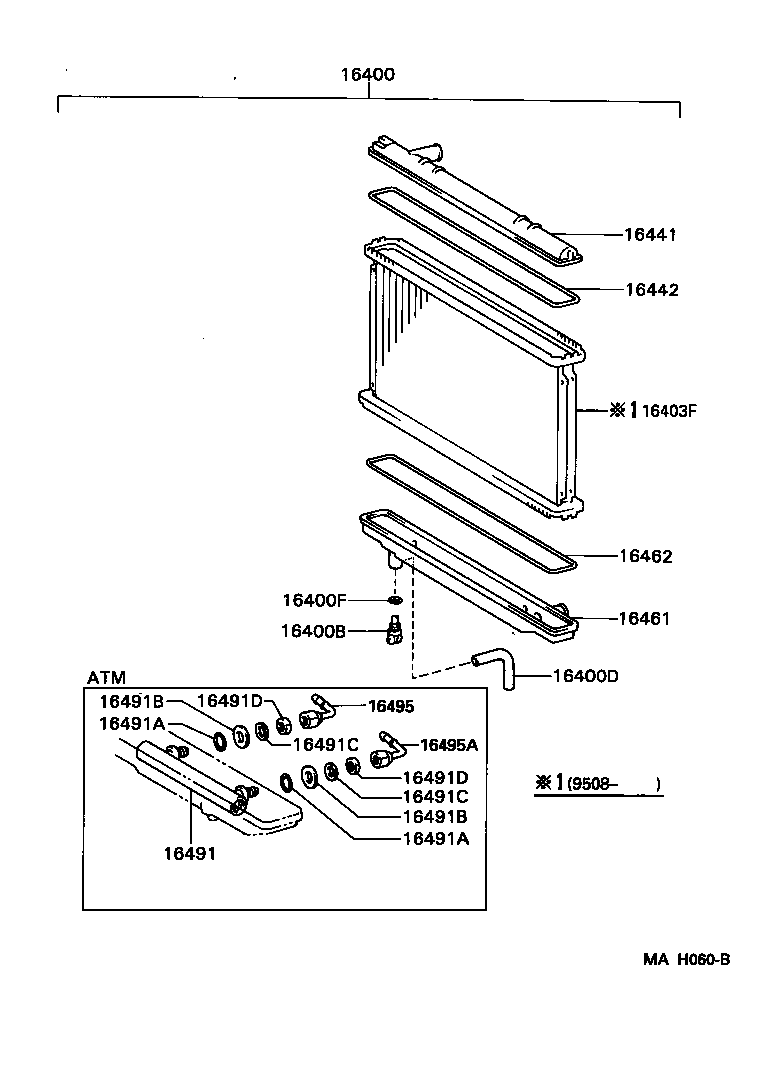

| 16400 - RADIATOR ASSY | ||||
| 16400-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16400-76131 |
2TZFZE..TCR10,20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76021 |
2TZ#..TCR10,20 |
1 | ||
| 16401-76020 |
2TZ#..TCR10,20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76021 |
2TZ#..TCR10,20 |
1 | ||
| 16401-76020 |
2TZ#..TCR10,20 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
2TZ#..TCR10,20 *H,L=150 |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-76012 |
2TZ#..TCR10,20 |
1 | ||
| 16480-76011 |
2TZ#..TCR10,20 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41009 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41001 |
2TZ#..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-42001 |
2TZ#..TCR10,20 PIPE SIDE |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41009 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41001 |
2TZ#..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-42001 |
2TZ#..TCR10,20 PIPE SIDE |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-76022 |
2TZ#..TCR10,20 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-76022 |
2TZFZE..TCR10,20 |
1 | ||
| 16573-76021 |
2TZ#..TCR10,20 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41007 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41007 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-76052 |
2TZ#..TCR10,20 |
1 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16604A - SPRING(FOR IDLER PULLEY TENSION) | ||||
| 16604-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16611-76011 |
2TZ#..TCR10,20 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-76100 |
2TZFZE..TCR10,20 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-76050 |
2TZFZE..TCR10,20 |
1 | ||
| 16908 - HOUSING SUB-ASSY, EQUIPMENT DRIVE | ||||
| 16908-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16982-76030 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76031 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76040 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16982-76041 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16982-76030 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76031 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76040 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16982-76041 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16983 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2 | ||||
| 16983-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 16984 - STAY, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16984-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 16986 - STAY, EQUIPMENT DRIVE HOUSING, NO.3 | ||||
| 16986-76040 |
2TZFZE..TCR10,20 |
1 | ||
| 16991 - PULLEY, EQUIPMENT DRIVE | ||||
| 16991-76030 |
2TZFZE..TCR10,20 |
1 | ||
| 16991-76031 |
2TZFZE..TCR10,20 |
1 | ||
| Common parts | ||||
| 17344-76010 | ||||
| 17810-61010 | ||||
| 90107-08002 | ||||
| 90119-08344 | ||||
| 90119-08735 | ||||
| 90159-60008 | ||||
| 90179-06080 | ||||
| 90179-10015 | ||||
| 90179-10033 | ||||
| 90201-08026 | ||||
| 90201-10180 | ||||
| 90464-00311 | ||||
| 90464-00584 | ||||
| 90469-12008 | ||||
| 90480-25025 | ||||
| 90480-40007 | ||||
| 91511-60816 | ||||
| 91621-40614 | ||||
| 91642-80814 | ||||
| 91642-80816 | ||||
| 91642-80820 | ||||
| 91642-80825 | ||||
| 93385-16014 | ||||
| 96135-41300 | ||||
| 99555-10340 | ||||
| Linked diagrams | ||||
| 1601 | ||||
ILLUST NO. 1 OF 3(9601- )2TZFZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-76050 |
2TZ#..TCR10,20 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 90445-16053 |
2TZFZE..TCR10,20 |
1 | ||
| 90445-16020 |
2TZFZE..TCR10,20 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2TZ#..TCR10,20 |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 17342-76010 |
2TZ#..TCR10,20 H=120 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41100 |
2TZ#..TCR10,20 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41100 |
2TZ#..TCR10,20 |
2 | ||
| 16268D - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 17343-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96135-41300 |
2TZ#..TCR10,20 |
2 | ||
| 16268M - PIPE, WATER BY-PASS, NO.3 | ||||
| 16268-76060 |
2TZFZE..TCR10,20 |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16283-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96135-41300 |
2TZFZE..TCR10,20 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96135-41400 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-15022 |
2TZFZE..TCR10,20 |
2 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16400-76131 |
2TZFZE..TCR10,20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-76021 |
2TZ#..TCR10,20 |
1 | ||
| 16401-76020 |
2TZ#..TCR10,20 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
2TZ#..TCR10,20 *H,L=150 |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-76012 |
2TZ#..TCR10,20 |
1 | ||
| 16480-76011 |
2TZ#..TCR10,20 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41009 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41001 |
2TZ#..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-42001 |
2TZ#..TCR10,20 PIPE SIDE |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41009 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41001 |
2TZ#..TCR10,20 ENGINE SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-42001 |
2TZ#..TCR10,20 PIPE SIDE |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-76022 |
2TZ#..TCR10,20 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-76022 |
2TZFZE..TCR10,20 |
1 | ||
| 16573-76021 |
2TZ#..TCR10,20 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41007 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41001 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90467-41009 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 90467-41007 |
2TZFZE..TCR10,20 RADIATOR SIDE |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-41002 |
2TZFZE..TCR10,20 PIPE SIDE |
1 | ||
| 90466-41001 |
2TZFZE..TCR10,20 ENGINE SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-76052 |
2TZ#..TCR10,20 |
1 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16604A - SPRING(FOR IDLER PULLEY TENSION) | ||||
| 16604-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-76010 |
2TZ#..TCR10,20 |
1 | ||
| 16611-76011 |
2TZ#..TCR10,20 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-76100 |
2TZFZE..TCR10,20 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-76050 |
2TZFZE..TCR10,20 |
1 | ||
| 16908 - HOUSING SUB-ASSY, EQUIPMENT DRIVE | ||||
| 16908-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16982-76030 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76031 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76040 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16982-76041 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16982-76030 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76031 |
2TZFZE..TCR10,20 RH |
1 | ||
| 16982-76040 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16982-76041 |
2TZFZE..TCR10,20 LH |
1 | ||
| 16983 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2 | ||||
| 16983-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 16984 - STAY, EQUIPMENT DRIVE HOUSING, NO.1 | ||||
| 16984-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 16986 - STAY, EQUIPMENT DRIVE HOUSING, NO.3 | ||||
| 16986-76040 |
2TZFZE..TCR10,20 |
1 | ||
| 16991 - PULLEY, EQUIPMENT DRIVE | ||||
| 16991-76030 |
2TZFZE..TCR10,20 |
1 | ||
| 16991-76031 |
2TZFZE..TCR10,20 |
1 | ||
| Common parts | ||||
| 17344-76010 | ||||
| 17810-61010 | ||||
| 90107-08002 | ||||
| 90119-08344 | ||||
| 90119-08735 | ||||
| 90159-60008 | ||||
| 90179-06080 | ||||
| 90179-10033 | ||||
| 90179-10040 | ||||
| 90201-08026 | ||||
| 90201-10180 | ||||
| 90464-00311 | ||||
| 90464-00584 | ||||
| 90480-25025 | ||||
| 90480-40007 | ||||
| 91511-60816 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91641-80814 | ||||
| 91641-80825 | ||||
| 91642-80814 | ||||
| 91642-80816 | ||||
| 91642-80820 | ||||
| 91642-80825 | ||||
| 96135-41300 | ||||
| 99555-10340 | ||||
| Linked diagrams | ||||
| 1601 | ||||
ILLUST NO. 3 OF 3(9401- )2TZFZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16400-76131 |
2TZFZE..TCR10,20 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
2TZFZE..TCR10,20 |
1 | ||
| 16400D - HOSE(FOR RADIATOR DRAIN COCK) | ||||
| 16419-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2TZFZE..TCR10,20 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-76131 |
2TZFZE..TCR10,20 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-64680 |
2TZFZE..TCR10,20 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-64680 |
2TZFZE..TCR10,20 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-64690 |
2TZFZE..TCR10,20 |
1 | ||
| 16491-76131 |
2TZFZE..TCR10,20 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-64690 |
2TZFZE..TCR10,20 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-64690 |
2TZFZE..TCR10,20 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
2TZFZE..TCR10,20 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
2TZFZE..TCR10,20 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
2TZFZE..TCR10,20 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
2TZFZE..TCR10,20 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
2TZFZE..TCR10,20 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
2TZFZE..TCR10,20 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-76130 |
2TZFZE..TCR10,20 |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
2TZFZE..TCR10,20 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
