TCR10L-RFSGKV (1994)

Toyota Previa

Production Aug 1994 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

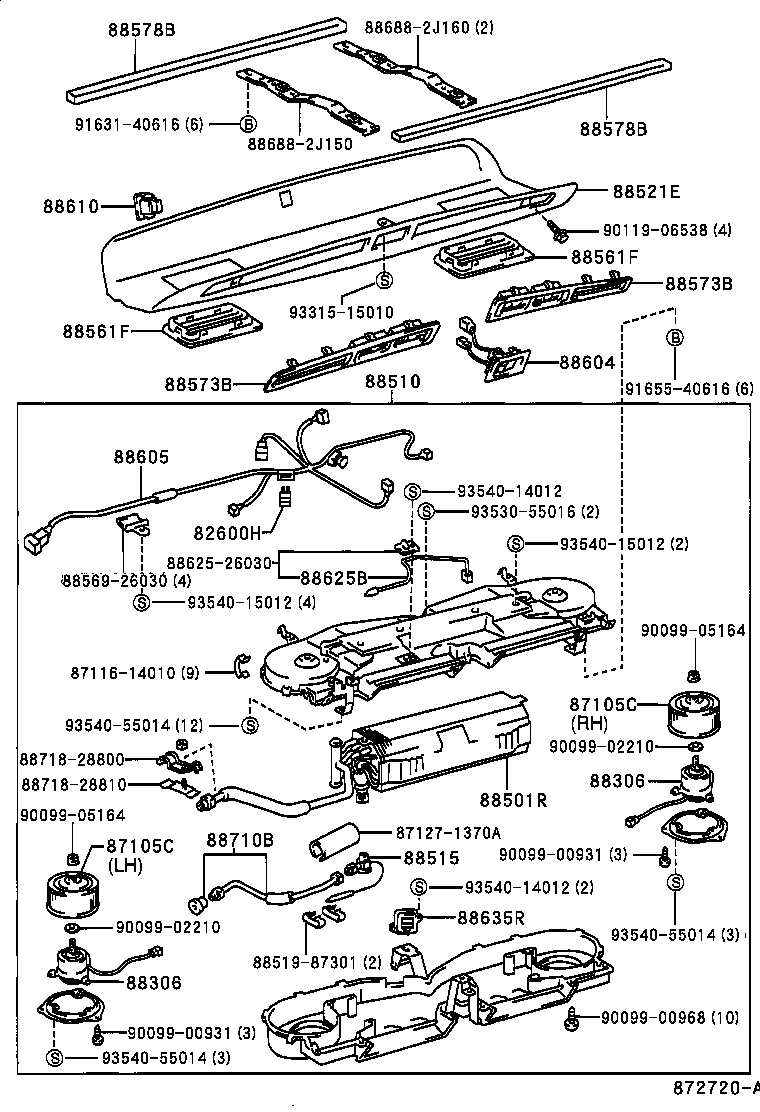

ILLUST NO. 3 OF 4(9408- )V

Click highlighted areas on diagram

REAR

diagram 82600H 87105C 87105C 8711614010 871271370A 88306 88306 88501R 88510 88515 8851987301 88521E 88561F 88561F 8856926030 88573B 88573B 88578B 88578B 88604 88605 88610 8862526030 88625B 88635R 886882J150 886882J160 88710B 8871828800 8871828810 9009900931 9009900931 9009900968 9009902210 9009902210 9009905164 9009905164 9011906538 9163140616 9165540616 9331515010 9353055016 9354014012 9354014012 9354015012 9354015012 9354055014 9354055014 9354055014
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

TCR10..V

7.5A

 2
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-95J00

TCR10..V

LH

 1
88541-95J00

TCR10..V

RH

 1
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-95J00

TCR10..V

LH

 1
88541-95J00

TCR10..V

RH

 1
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-95J00

TCR10..V

 2
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-95J00

TCR10..V

 2
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-28250

TCR10..V

 1
88510 - UNIT ASSY, COOLER
87030-28010

TCR10..V

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

TCR10..V

FRONT

 1
88515-26020

TCR10..V

REAR

 1
88521E - CASE SUB-ASSY, COOLING UNIT
60369-28010B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
60369-28010B1

TCR10..V

LT. BLUISH GRAY,TRIM1#

 1
88561F - GRILLE, AIR INLET
88561-95J05B1

TCR10..V

LI. GRAY,TRIM1#

 2
88561-95J05B3

TCR10..V

LT.GRAY,TRIM1#

 2
88561F - GRILLE, AIR INLET
88561-95J05B1

TCR10..V

LI. GRAY,TRIM1#

 2
88561-95J05B3

TCR10..V

LT.GRAY,TRIM1#

 2
88573B - BASE, GRILLE
88573-95J01B0

TCR10..V

LIGHT GRAY,TRIM1#,LH

 1
88573-95J01B2

TCR10..V

LT.GRAY,TRIM1#,LH

 1
88573-95J00B0

TCR10..V

LIGHT GRAY,TRIM1#,RH

 1
88573-95J00B2

TCR10..V

LT.GRAY,TRIM1#,RH

 1
88573B - BASE, GRILLE
88573-95J01B0

TCR10..V

LIGHT GRAY,TRIM1#,LH

 1
88573-95J01B2

TCR10..V

LT.GRAY,TRIM1#,LH

 1
88573-95J00B0

TCR10..V

LIGHT GRAY,TRIM1#,RH

 1
88573-95J00B2

TCR10..V

LT.GRAY,TRIM1#,RH

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-28180

TCR10..V

 1
88578-28180

TCR10..V

REAR

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-28180

TCR10..V

 1
88578-28180

TCR10..V

REAR

 1
88604 - PANEL SUB-ASSY, COOLER CONTROL
88604-95J03B2

TCR10..V

LT.GRAY,TRIM1#

 1
88604-95J03B0

TCR10..V

GRAY,TRIM1#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-28190

TCR1#,2#..LHD

 1
88605-2R160

TCR10..V

 1
88610 - SWITCH ASSY, COOLER CONTROL
88610-28150

TCR10..V

W(SMALL COOL BOX),NO.1

 1
88610-95J02B0

TCR10..V

LI. GRAY,TRIM1#

 1
88610-95713

TCR10..V

W(SMALL COOL BOX),NO.2

 1
88610-95J02B2

TCR10..V

LT.GRAY,TRIM1#

 1
88625B - THERMISTOR, COOLER NO.3
88625-26020

TCR10..V

 1
88635R - RESISTOR, BLOWER
88635-95J00

TCR10..V

 1
88710B - TUBE ASSY, AIR CONDITIONER
88716-2R330

TCR10..V

 1
Common parts
87116-14010
87127-1370A
88519-87301
88569-26030
88625-26030
88688-2J150
88688-2J160
88718-28800
88718-28810
90099-00931
90099-00968
90099-02210
90099-05164
90119-06538
91631-40616
91655-40616
93315-15010
93530-55016
93540-14012
93540-15012
93540-55014
