TCR10L-RFSGKV (1994)

Toyota Previa

Production Aug 1994 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408-9608)

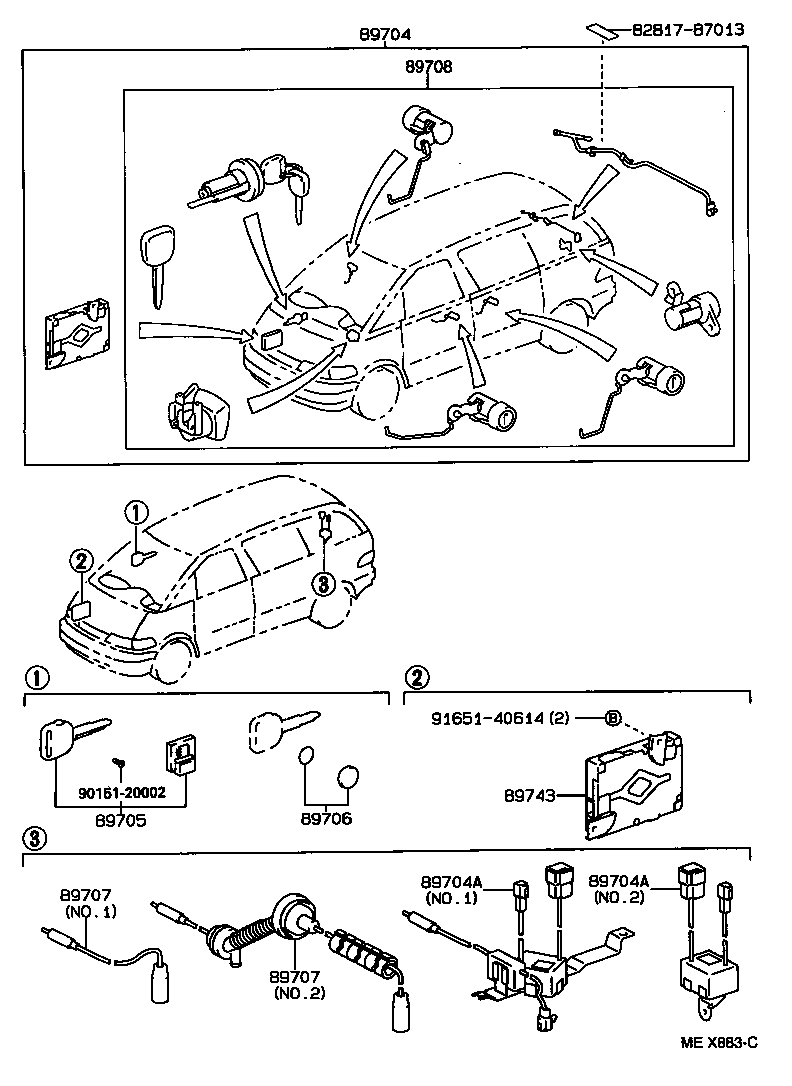

Click highlighted areas on diagram

diagram 8281787013 89704 89704A 89704A 89705 89706 89707 89707 89708 89743 9015120002 9165140614
Part # Description Qty Price
Common parts
82817-87013
90151-20002
91651-40614
