TCR10L-RFSGKV (1994)

Toyota Previa

Production Aug 1994 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

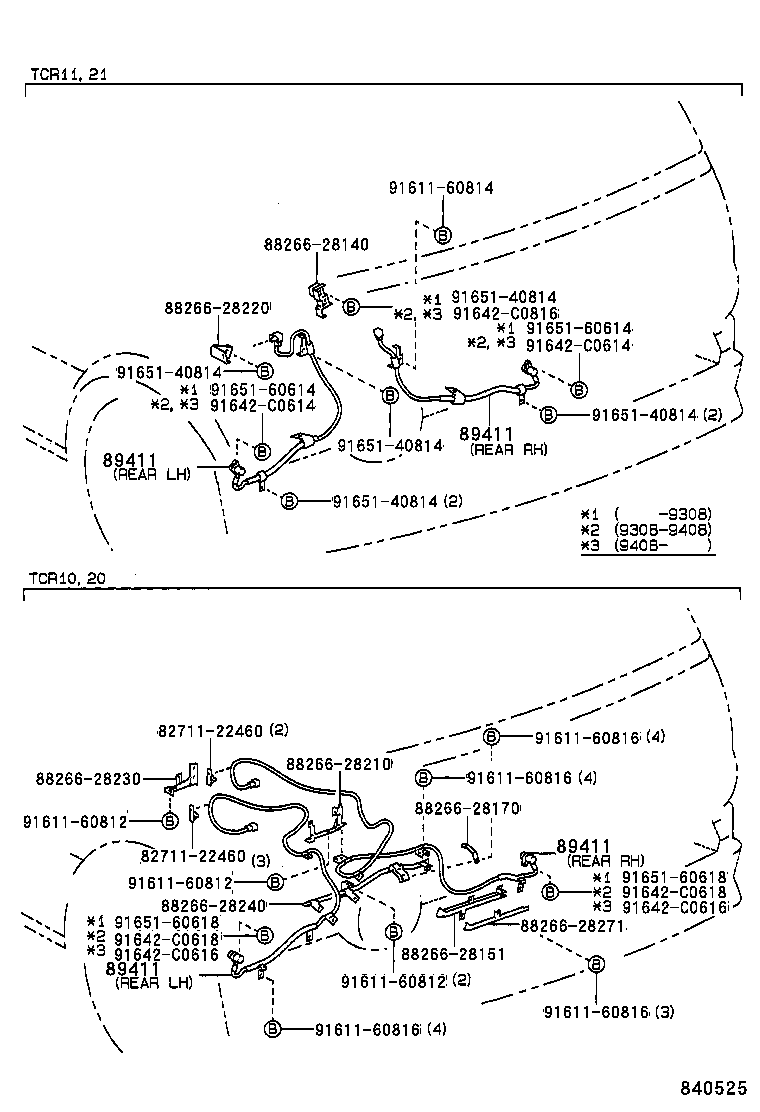

ILLUST NO. 2 OF 2(9505-9608)

Click highlighted areas on diagram

diagram 8271122460 8271122460 8826628140 8826628151 8826628170 8826628210 8826628220 8826628230 8826628240 8826628271 89411 89411 89411 89411 9161160812 9161160812 9161160812 9161160814 9161160816 9161160816 9161160816 9161160816 91642C0614 91642C0614 91642C0616 91642C0616 91642C0618 91642C0618 91642C0816 9165140814 9165140814 9165140814 9165140814 9165140814 9165160614 9165160614 9165160618 9165160618
Part # Description Qty Price
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
Common parts
82711-22460
88266-28140
88266-28151
88266-28170
88266-28210
88266-28220
88266-28230
88266-28240
88266-28271
91611-60812
91611-60814
91611-60816
91642-C0614
91642-C0616
91642-C0618
91642-C0816
91651-40814
91651-60614
91651-60618

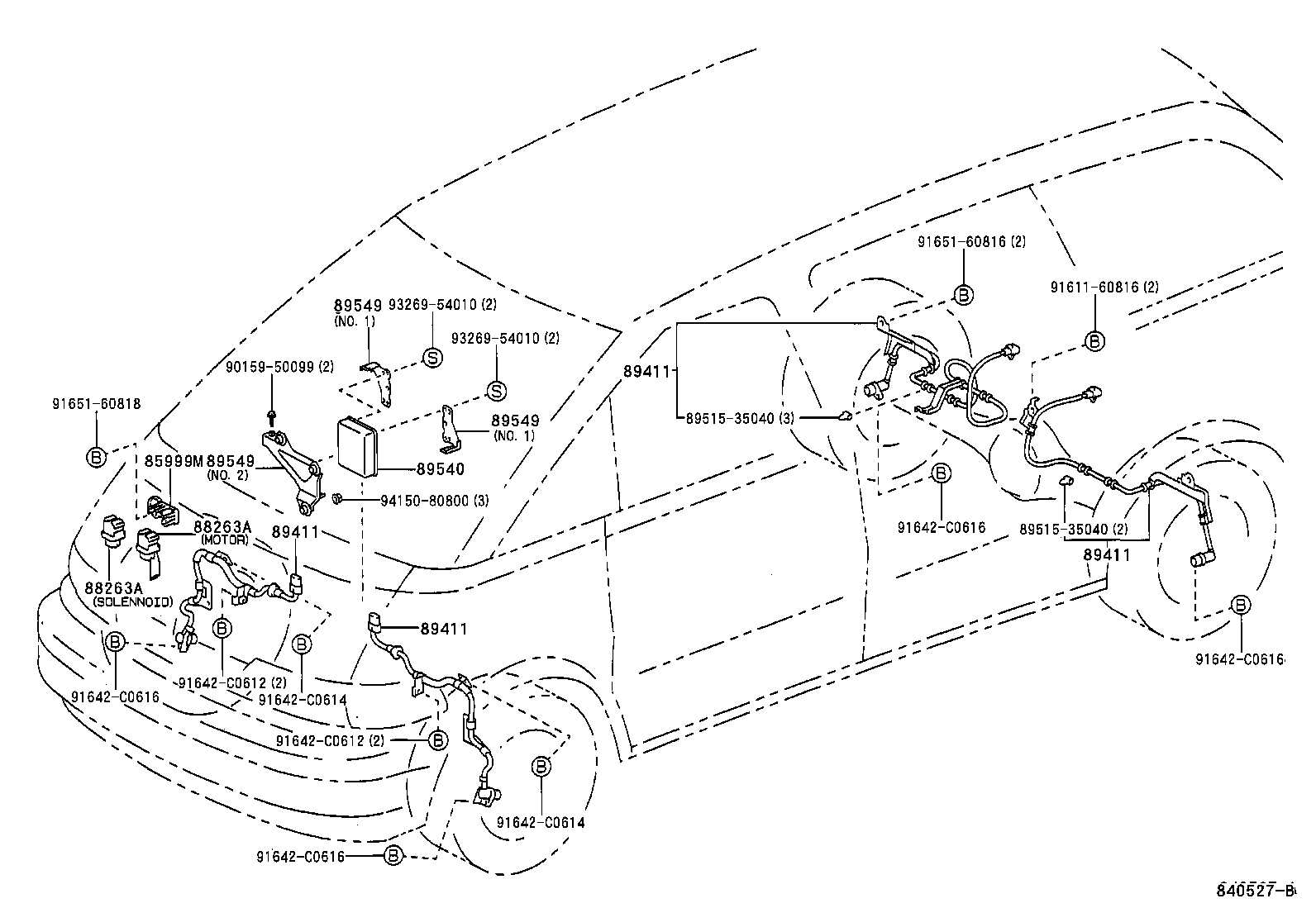

(9608- )LHD

Click highlighted areas on diagram

diagram 85999M 88263A 88263A 89411 89411 89411 89411 8951535040 8951535040 89540 89549 89549 89549 9015950099 9161160816 91642C0612 91642C0612 91642C0614 91642C0614 91642C0616 91642C0616 91642C0616 91642C0616 9165160816 9165160818 9326954010 9326954010 9415080800
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-28510

TCR1#,2#

 1
88263A - RELAY, SKID CONTROL
88263-12110

TCR1#,2#

MOTOR

 1
88263-35070

TCR1#,2#

SOLENOID

 1
88263A - RELAY, SKID CONTROL
88263-12110

TCR1#,2#

MOTOR

 1
88263-35070

TCR1#,2#

SOLENOID

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-28080

TCR11;TCR10..ARL,GEN,V

 1
89541-28150

TCR11..LHD;TCR10..LHD..ATM

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
Common parts
89515-35040
90159-50099
91611-60816
91642-C0612
91642-C0614
91642-C0616
91651-60816
91651-60818
93269-54010
94150-80800

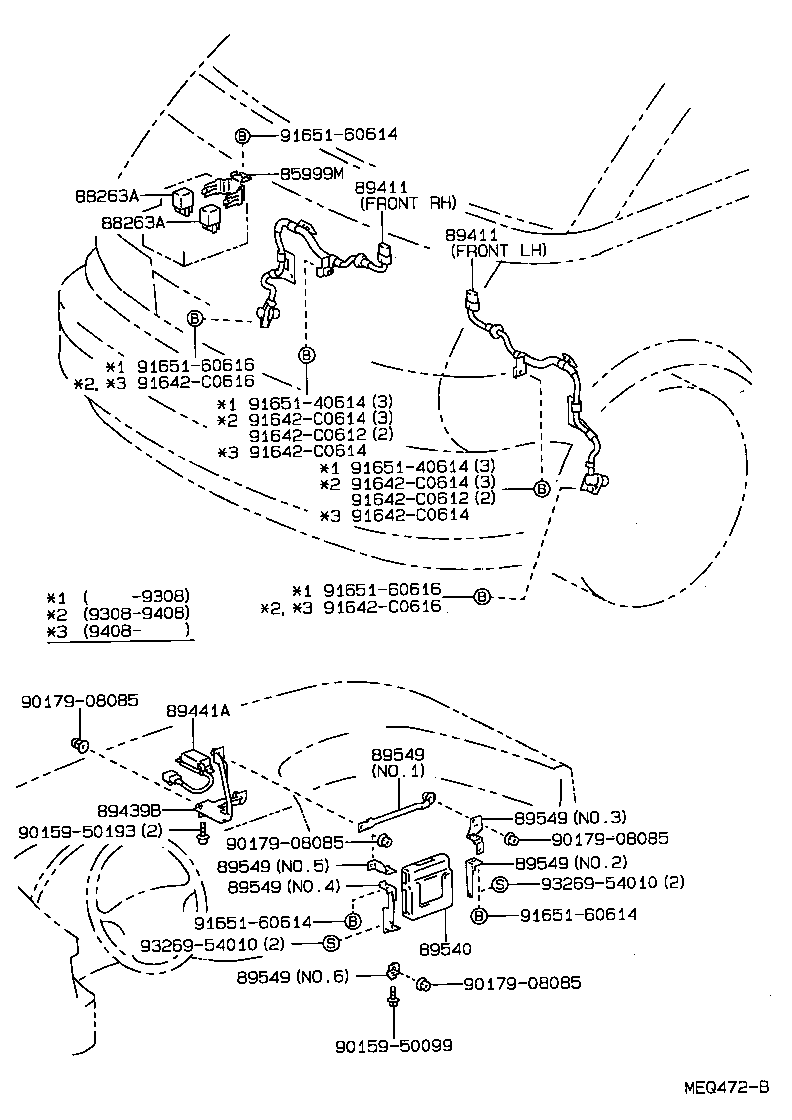

ILLUST NO. 1 OF 2(9005-9608)LHD

Click highlighted areas on diagram

diagram 85999M 88263A 88263A 89411 89411 89439B 89441A 89540 89549 89549 89549 89549 89549 89549 9015950099 9015950193 9017908085 9017908085 9017908085 9017908085 91642C0612 91642C0612 91642C0614 91642C0614 91642C0614 91642C0614 91642C0616 91642C0616 9165140614 9165140614 9165160614 9165160614 9165160614 9165160616 9165160616 9326954010 9326954010
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-28510

TCR1#,2#

 1
88263A - RELAY, SKID CONTROL
88263-12110

TCR1#,2#

MOTOR

 1
88263-35070

TCR1#,2#

SOLENOID

 1
88263A - RELAY, SKID CONTROL
88263-12110

TCR1#,2#

MOTOR

 1
88263-35070

TCR1#,2#

SOLENOID

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-28050

TCR1#,2#

FRONT LH

 1
89545-28090

TCR10,20

REAR RH

 1
89546-28090

TCR10,20

REAR LH

 1
89542-28050

TCR1#,2#

FRONT RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-28080

TCR11;TCR10..ARL,GEN,V

 1
89541-28150

TCR11..LHD;TCR10..LHD..ATM

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88267-28140

TCR11,2#..LHD;TCR10..LHD..ATM

NO.1

 2
89549-28080

TCR11,2#..LHD;TCR10..LHD..ATM

NO.2

 1
Common parts
90159-50099
90159-50193
90179-08085
91642-C0612
91642-C0614
91642-C0616
91651-40614
91651-60614
91651-60616
93269-54010

ILLUST NO. 2 OF 2(9001-9608)

Click highlighted areas on diagram

diagram 8271122460 8271122460 8826628151 8826628170 8826628210 8826628230 8826628240 8826628271 89411 89411 9161160812 9161160812 9161160812 9161160816 9161160816 9161160816 9161160816 91642C0618 91642C0618 9165160618 9165160618
Part # Description Qty Price
Common parts
82711-22460
88266-28151
88266-28170
88266-28210
88266-28230
88266-28240
88266-28271
91611-60812
91611-60816
91642-C0618
91651-60618

ILLUST NO. 1 OF 2(9001-9608)

Click highlighted areas on diagram

diagram 85999M 88263A 88263A 88265 89411 89411 89439B 89441A 89540 89549 89549 89549 89549 89549 89549 9015950099 9015950193 9017908085 9017908085 9017908085 9017908085 91642C0612 91642C0612 91642C0612 91642C0612 91642C0614 91642C0614 91642C0616 91642C0616 9165140614 9165140614 9165160614 9165160614 9165160614 9165160616 9165160616 9326954010 9326954010
Part # Description Qty Price
Common parts
90159-50099
90159-50193
90179-08085
91642-C0612
91642-C0614
91642-C0616
91651-40614
91651-60614
91651-60616
93269-54010

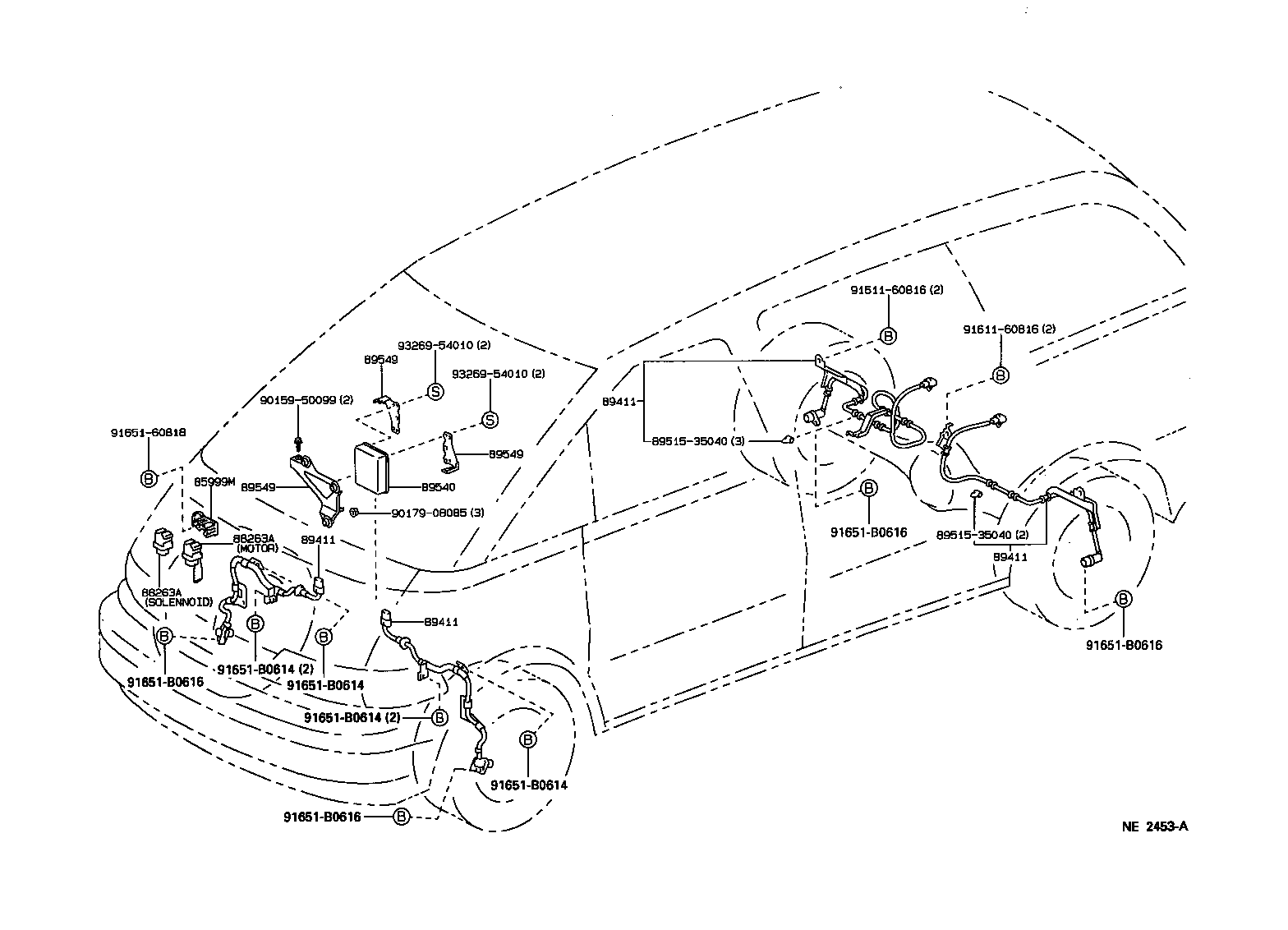

(9608- )

Click highlighted areas on diagram

diagram 85999M 88263A 88263A 89411 89411 89411 89411 8951535040 8951535040 89540 89549 89549 89549 9015950099 9017908085 9161160816 9161160816 9165160818 91651B0614 91651B0614 91651B0614 91651B0614 91651B0616 91651B0616 91651B0616 91651B0616 9326954010 9326954010
Part # Description Qty Price
Common parts
89515-35040
90159-50099
90179-08085
91611-60816
91651-60818
91651-B0614
91651-B0616
93269-54010
