TCR10L-RFSGKV (1994)

Toyota Previa

Production Aug 1994 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

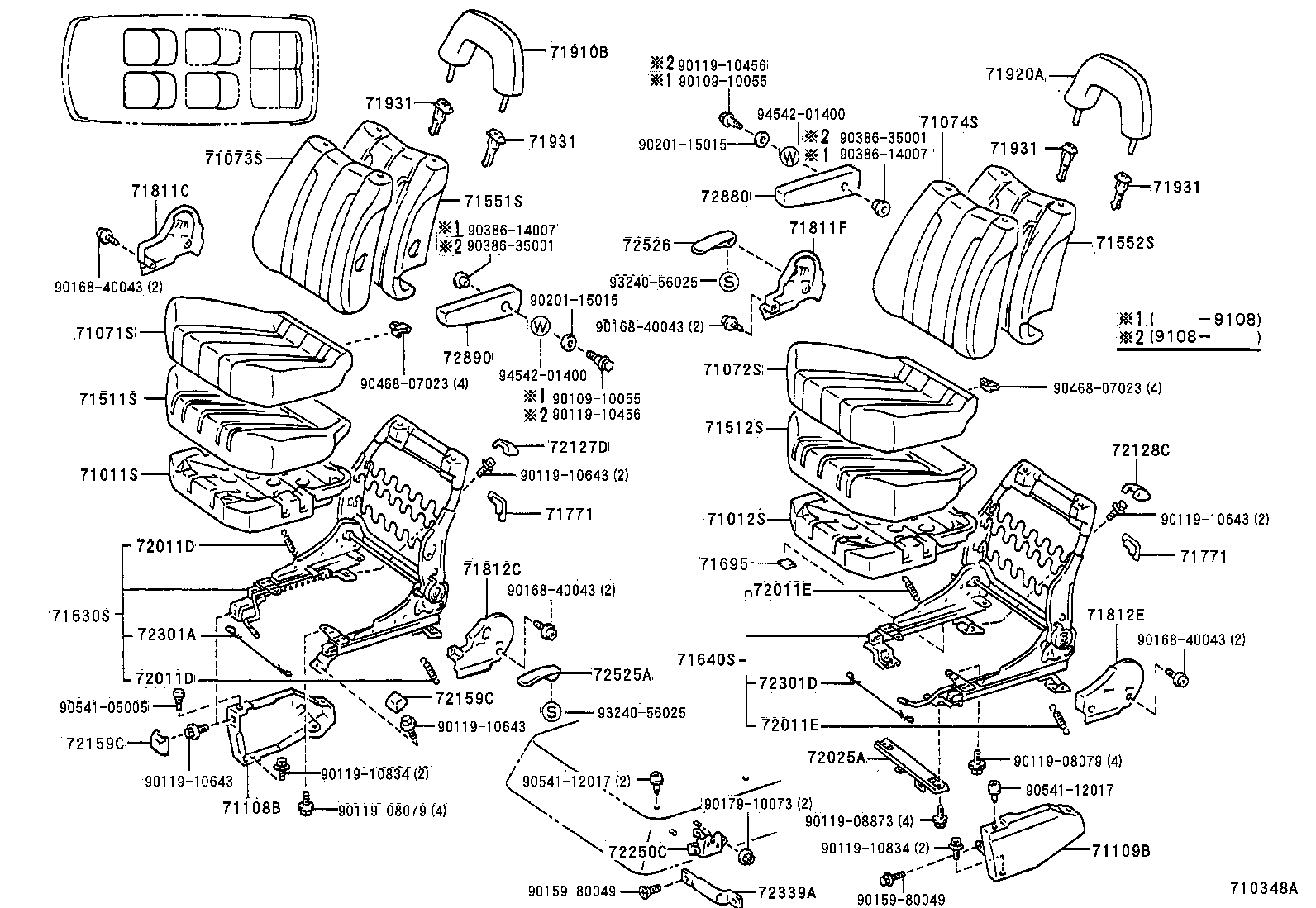

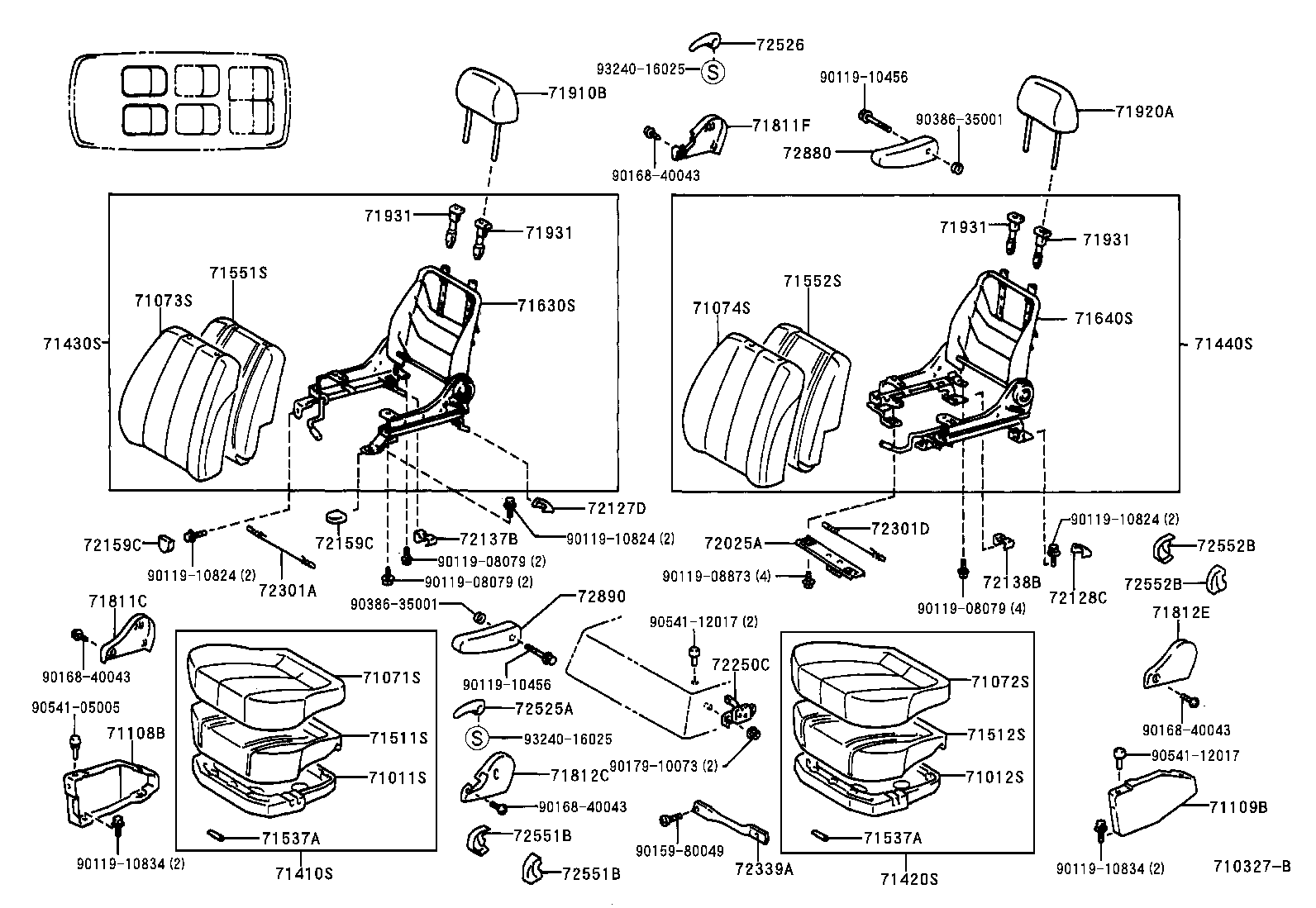

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71108B 71109B 71410S 71420S 71430S 71440S 71511S 71512S 71537A 71537A 71551S 71552S 71630S 71640S 71811C 71811F 71812C 71812E 71910B 71920A 71931 71931 71931 71931 72025A 72127D 72128C 72137B 72138B 72159C 72159C 72210B 72210C 72250C 72301A 72301D 72339A 72525A 72526 72551B 72551B 72552B 72552B 72848 72848 72849 72849 72880 72890 9011908079 9011908079 9011908079 9011908873 9011910456 9011910456 9011910824 9011910824 9011910824 9011910834 9011910834 9015980049 9016840043 9016840043 9016840043 9016840043 9017910073 9038635001 9038635001 9054105005 9054112017 9054112017 9324016025 9324016025
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95D03

TCR1#,2#

 1
71011-28160

TCR1#,2#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-28130

TCR1#,2#

 1
71012-95D00

TCR1#,2#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95D0903

TCR10,20

LIGHT GRAY,TRIM1#

 1
71071-28840B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71071-28890B2

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71071-28841B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71071-28891B3

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95D0903

TCR10,20

LIGHT GRAY,TRIM1#

 1
71072-28830B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71072-28880B2

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71071-28891B3

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71072-28831B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-95D0703

TCR10,20

LIGHT GRAY,TRIM1#

 1
71073-28430B1

TCR10..V

LIGHT GRAY,TRIM1#

 1
71073-2J030B0

TCR10..V

GRAY,TRIM1#

 1
71073-28710B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71073-28750B1

TCR10..V

BLUISH GRAY,TRIM1#

 1
71073-28751B2

TCR10..V

BLUISH GRAY,TRIM1#

 1
71073-28711B2

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-95D0703

TCR10,20

LIGHT GRAY,TRIM1#

 1
71074-28490B1

TCR10..V

LIGHT GRAY,TRIM1#

 1
71074-2J140B0

TCR10..V

GRAY,TRIM1#

 1
71074-28800B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71074-2J230B1

TCR10..V

BLUISH GRAY,TRIM1#

 1
71074-28801B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71074-2J231B2

TCR10..V

BLUISH GRAY,TRIM1#

 1
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-95D0003

TCR1#,2#..LHD

GRAY,TRIM1#

 1
71109B - LEG SUB-ASSY, FRONT SEAT, LH
71109-95D0003

TCR1#,2#..LHD

GRAY,TRIM1#

 1
71109-28070B0

TCR1#,2#..LHD

BLUISH GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-95D0303

TCR10,20

LIGHT GRAY,TRIM1#

 1
71410-28841B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71410-28840B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71410-28870B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71410-28871B2

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95D0403

TCR10,20

LIGHT GRAY,TRIM1#

 1
71420-28810B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71420-28781B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71420-28780B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71420-28811B2

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-28540E0

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#

 1
71430-28540B0

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#

 1
71430-2J170B0

TCR10..V

GRAY,TRIM1#

 1
71430-2J300B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71430-2J410B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
71430-2J411B1

TCR10..V

BLUISH GRAY,TRIM1#

 1
71430-2J301B1

TCR10..V

W(SPLIT TYPE REAR SEAT),BLUISH GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-28370B0

TCR10..V

LIGHT GRAY,TRIM1#

 1
71440-2J130B0

TCR10..V

GRAY,TRIM1#

 1
71440-2J390B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71440-2J290B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
71440-2J291B1

TCR10..V

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71440-2J391B1

TCR10..V

BLUISH GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95D00

TCR1#,2#

 1
71511-28160

TCR1#,2#

 1
71511-28160

TCR1#,2#..ARL,V,W

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95D00

TCR1#,2#

 1
71511-28160

TCR1#,2#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

TCR1#,2#

 8
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

TCR1#,2#

 8
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95D00

TCR1#,2#

 1
71551-28200

TCR11,21;TCR10..LHD..ATM

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95D00

TCR1#,2#

 1
71551-28200

TCR11,21;TCR10..LHD..ATM

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-95D02

TCR1#,2#

 1
71630-28340

TCR11,21;TCR10..LHD..ATM

 1
71630-28320

TCR11,21;TCR10..LHD..ATM

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-95D04

TCR1#,2#

 1
71640-95D02

TCR1#,21..LHD

W(SEAT HEATER)

 1
71640-28260

TCR10..V

 1
71640-28370

TCR10..V

 1
71640-28370

TCR11,21;TCR10..LHD..ATM

 1
71640-28390

TCR11..LHD;TCR10,21..07S

W(CAPTAIN SEAT & SEAT HEATER)

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
71811-28090B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
71811F - COVER, RECLINING ADJUSTER, RH
71811-95D0203

TCR1#,2#

GRAY,TRIM1#

 1
71811-28100B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
71812-28130B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
71812E - COVER, RECLINING ADJUSTER, LH
71812-28100B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
71812-95D0303

TCR1#,2#

GRAY,TRIM1#

 1
71910B - HEADREST ASSY, FRONT SEAT
71910-28690B0

TCR11,21;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71910-28691B1

TCR11,21;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
71920A - HEADREST ASSY, FRONT SEAT, LH
71920-28200B0

TCR11,21;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-1205013

TCR1#,2#

W(LOCK),LIGHT GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-1205013

TCR1#,2#

W(LOCK),LIGHT GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-1205013

TCR1#,2#

W(LOCK),LIGHT GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-1205013

TCR1#,2#

W(LOCK),LIGHT GRAY,TRIM1#

 2
72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK
72025-95D00

TCR1#,21..LHD

W(SEAT HEATER)

 1
72025-28040

TCR1#,2#..LHD

 1
72025-95D00

TCR10..V

 1
72127D - COVER, SEAT TRACK BRACKET, FRONT, RH
72127-95D0103

TCR1#,2#

GRAY,TRIM1#

 2
72127-28020B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 2
72128C - COVER, SEAT TRACK BRACKET, FRONT, LH
72128-28020B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 2
72128-95D0003

TCR1#,2#

GRAY,TRIM1#

 2
72137B - COVER, SEAT TRACK, RH
72137-28060

TCR1#,2#

 2
72138B - COVER, SEAT TRACK, LH
72137-28060

TCR1#,2#

 2
72159C - COVER, FRONT SEAT TRACK BRACKET
72159-95D0003

TCR1#,2#

GRAY,TRIM1#

 2
72159-95D00C0

TCR10..V

BLACK,TRIM11

 2
71139-28020B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
72159C - COVER, FRONT SEAT TRACK BRACKET
72159-95D0003

TCR1#,2#

GRAY,TRIM1#

 2
72159-95D00C0

TCR10..V

BLACK,TRIM11

 2
71139-28020B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
72210B - CABLE ASSY, SEAT TRACK CONTROL, RH
72210-28040

TCR1#,2#

 1
72210C - CABLE ASSY, SEAT TRACK CONTROL, LH
72210-28040

TCR1#,2#

 1
72250C - LOCK ASSY, FRONT SEAT
72250-95D00

TCR1#,2#

 1
72250-28010

TCR1#,2#

 1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-95D00

TCR1#,2#

 1
72301-28050

TCR1#,2#

 1
72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
72301-28050

TCR1#,2#

 1
72301-95D00

TCR1#,2#

 1
72339A - FRAME, FRONT SEAT LEG SUPPORT
72339-28010

TCR1#,2#..LHD

 1
72339-28030

TCR1#,2#..LHD

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
72525-28040B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
72526-28030B0

TCR1#,2#

BLUISH GRAY,TRIM1#

 1
72551B - COVER, RECLINING HINGE, RH
72551-28050

TCR1#,2#

INNER

 1
72551-28060

TCR1#,2#

OUTER

 1
72551B - COVER, RECLINING HINGE, RH
72551-28050

TCR1#,2#

INNER

 1
72551-28060

TCR1#,2#

OUTER

 1
72552B - COVER, RECLINING HINGE, LH
72551-28050

TCR1#,2#

OUTER

 1
72551-28060

TCR1#,2#

INNER

 1
72552B - COVER, RECLINING HINGE, LH
72551-28050

TCR1#,2#

OUTER

 1
72551-28060

TCR1#,2#

INNER

 1
72848 - CAP, NO.3 SEAT ARMREST
72848-28020B2

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 2
72848-28020B0

TCR11;TCR10..LHD..ATM

LT.BLUISH GRAY,TRIM1#

 2
72848 - CAP, NO.3 SEAT ARMREST
72848-28020B2

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 2
72848-28020B0

TCR11;TCR10..LHD..ATM

LT.BLUISH GRAY,TRIM1#

 2
72849 - CAP, SEAT ARMREST, NO.2
72849-28010B2

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 2
72849-28010B0

TCR11;TCR10..LHD..ATM

LT.BLUISH GRAY,TRIM1#

 2
72849 - CAP, SEAT ARMREST, NO.2
72849-28010B2

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 2
72849-28010B0

TCR11;TCR10..LHD..ATM

LT.BLUISH GRAY,TRIM1#

 2
72880 - ARMREST ASSY, SEAT, C RH
72890-28280B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72890-28430B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
72890-28440B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72890-28500B0

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
72890-28510B0

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
72890-28380B0

TCR10..LHD..ATM

GRAY,TRIM1#

 1
72890 - ARMREST ASSY, SEAT, C LH
72880-28280B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72880-28410B0

TCR10..LHD..ATM

GRAY,TRIM1#

 1
72880-28500B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72880-28610B0

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
72880-28490B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
72880-28620B0

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
Common parts
90119-08079
90119-08873
90119-10456
90119-10824
90119-10834
90159-80049
90168-40043
90179-10073
90386-35001
90541-05005
90541-12017
93240-16025

ILLUST NO. 2 OF 3(9408- )V

Click highlighted areas on diagram

diagram 7152 71537B 71537B 71843A 71843C 71844A 71844B 71931B 71931B 71931B 71931B 71940C 71950E 72137D 72138A 72159A 72159A 72159A 72159A 72210G 72210H 72301E 72301F 72525B 72526A 72551C 72551C 72552 72552 72830J 72830J 72840 72840 79011 79012 79013 79014 79105 79106 79120 79130 79135A 79136B 79140 79150 79160A 79170A 79175E 79180A 79185 79190A 9010910055 9010910055 9010910055 9010910055 9011908079 9011908079 9011910834 9011910834 9011910834 9011910834 9011910834 9011910834 9016840043 9016840043 9016840043 9016840043 9020115015 9020115015 9020115015 9020115015 9038614007 9038614007 9038614007 9038614007 9046807023 9046807023 9324016025 9324016025 9454201400 9454201400 9454201400 9454201400
Part # Description Qty Price
71537B - PROTECTOR, REAR SEAT CUSHION
71537-26010

TCR10..V;TCR11..ARL

 8
71537B - PROTECTOR, REAR SEAT CUSHION
71537-26010

TCR10..V;TCR11..ARL

 8
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-95D0103

TCR1#,2#..LHD

GRAY,TRIM1#

 1
71811-28090B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71843-95D01B0

TCR1#,2#..LHD..(V,W)

W(SEPARATE SEAT),GRAY,TRIM1#

 1
71843C - COVER, RECLINING ADJUSTER, RH
71811-28100B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-95D0103

TCR1#,2#..LHD

LIGHT GRAY,TRIM1#

 1
71844-95D01B0

TCR1#,2#..LHD..(V,W)

GRAY,TRIM1#

 1
71812-28130B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71844B - COVER, RECLINING ADJUSTER, LH
71812-28100B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71940C - HEADREST ASSY, REAR NO.1 SEAT, RH
71940-95D0203

TCR10,20

LIGHT GRAY,TRIM1#

 1
71910-28690B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71940-28800B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71910-28691B1

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71940-28801B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71950E - HEADREST ASSY, REAR NO.1 SEAT, LH
71940-95D0203

TCR10,20

LIGHT GRAY,TRIM1#

 1
71950-28340B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71920-28200B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71940-28801B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
72137D - COVER, REAR SEAT TRACK, RH
72137-28060

TCR10..V;TCR11..ARL

 2
72138A - COVER, REAR SEAT TRACK, LH
72137-28060

TCR10..V;TCR11..ARL

 2
72159A - COVER, REAR SEAT TRACK BRACKET
72159-95D0003

TCR1#;TCR2#..W

GRAY,TRIM1#

 4
72159-95D00C0

TCR11;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR11..W;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR10..V

BLACK,TRIM11

 8
72159-95D00B0

TCR10..V

GRAY,TRIM1#

 8
72159A - COVER, REAR SEAT TRACK BRACKET
72159-95D0003

TCR1#;TCR2#..W

GRAY,TRIM1#

 4
72159-95D00C0

TCR11;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR11..W;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR10..V

BLACK,TRIM11

 8
72159-95D00B0

TCR10..V

GRAY,TRIM1#

 8
72159A - COVER, REAR SEAT TRACK BRACKET
72159-95D0003

TCR1#;TCR2#..W

GRAY,TRIM1#

 4
72159-95D00C0

TCR11;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR11..W;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR10..V

BLACK,TRIM11

 8
72159-95D00B0

TCR10..V

GRAY,TRIM1#

 8
72159A - COVER, REAR SEAT TRACK BRACKET
72159-95D0003

TCR1#;TCR2#..W

GRAY,TRIM1#

 4
72159-95D00C0

TCR11;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR11..W;TCR10,21..07S

BLACK,TRIM1#

 4
72159-95D00C0

TCR10..V

BLACK,TRIM11

 8
72159-95D00B0

TCR10..V

GRAY,TRIM1#

 8
72210G - CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH
72210-28040

TCR10..V;TCR11..ARL

 1
72210H - CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, LH
72210-28040

TCR10..V;TCR11..ARL

 1
72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH
72301-95D02

TCR1#

 1
72301-95D02

TCR10..V

W(SPLIT SEAT)

 1
72301-28050

TCR10..V

 1
72301F - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, LH
72301-28050

TCR10..V;TCR11..ARL

 1
72301-95D00

TCR11..ARL;TCR10,21..07S..(ARL,V)

 1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-28040B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-95D0103

TCR1#,2#..LHD

LIGHT GRAY,TRIM1#

 1
72526-28030B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72526-95D01B0

TCR1#,2#..LHD..(V,W)

GRAY,TRIM1#

 1
72551C - COVER, RECLINING HINGE, NO.2
72551-28050

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28060

TCR11;TCR10..LHD..ATM

OUTER

 1
72551C - COVER, RECLINING HINGE, NO.2
72551-28050

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28060

TCR11;TCR10..LHD..ATM

OUTER

 1
72552 - COVER, RECLINING HINGE, NO.2
72551-28060

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28050

TCR11;TCR10..LHD..ATM

OUTER

 1
72552 - COVER, RECLINING HINGE, NO.2
72551-28060

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28050

TCR11;TCR10..LHD..ATM

OUTER

 1
72830J - ARMREST ASSY, REAR NO.1 SEAT, RH
72830-28330B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72830-28340B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
72830-28331B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72830J - ARMREST ASSY, REAR NO.1 SEAT, RH
72830-28330B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72830-28340B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
72830-28331B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72840 - ARMREST ASSY, REAR NO.1 SEAT, LH
72840-28280B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72840-28030B2

TCR10..V

LIGHT GRAY,TRIM1#,RH SEAT

 1
72840-28281B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72840-28270B1

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
72840 - ARMREST ASSY, REAR NO.1 SEAT, LH
72840-28280B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72840-28030B2

TCR10..V

LIGHT GRAY,TRIM1#,RH SEAT

 1
72840-28281B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72840-28270B1

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
71071-28890B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71071-28891B3

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
71072-28880B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71071-28891B3

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-28490B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79013-28531B2

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79013-28491B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79013-28530B1

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-28370B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79014-28400B1

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
79013-28531B2

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79014-28371B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79105 - LEG SUB-ASSY, NO.1 SEAT, RH
79105-95D0103

TCR10..V

LIGHT GRAY,TRIM1#

 1
79105-95D01B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
79106 - LEG SUB ASSY, NO.1 SEAT, LH
79106-95D0003

TCR10..V

LIGHT GRAY,TRIM1#

 1
79106-95D00B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
79120 - CUSHION ASSY, NO.1 SEAT, RH
71410-28870B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71410-28871B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79130 - CUSHION ASSY, NO.1 SEAT, LH
71420-2J050B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71410-28871B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79135A - PAD, NO.1 SEAT CUSHION, RH
71511-28160

TCR10..V;TCR11..ARL

 1
79136B - PAD, NO.1 SEAT CUSHION, LH
71511-28160

TCR10..V;TCR11..ARL

 1
79140 - BACK ASSY, NO.1 SEAT, RH
79140-28410B0

TCR10..V

LIGHT GRAY,TRIM1#

 1
79140-28890B0

TCR11..LHD;TCR10,21..07S

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79140-2J061B1

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79140-2J060B0

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79140-28891B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79150 - BACK ASSY, NO.1 SEAT, LH
79150-28740B0

TCR11..LHD;TCR10,21..07S

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79150-28790B0

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79150-28741B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79150-28791B1

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH
71011-28160

TCR10..V;TCR11..ARL

 1
71011-28060

TCR11..ARL;TCR10,21..07S..(ARL,V)

 1
79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH
71011-28160

TCR10..V;TCR11..ARL

 1
71012-95D00

TCR11..ARL;TCR10,21..07S..(ARL,V)

 1
79175E - PAD, NO.1 SEAT BACK, RH
79175-95D03

TCR10..V

W(SPLIT SEAT)

 1
71551-28200

TCR10..LHD..ATM

 1
79180A - SPRING ASSY, NO.1 SEAT BACK, RH
79180-95D06

TCR1#..LHD

W(HEADREST)

 1
79180-95D05

TCR1#..LHD

 1
79180-28220

TCR10..V

 1
79180-28320

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT)

 1
79180-28180

TCR10..V

W(SPLIT SEAT)

 1
79180-28390

TCR10..V

 1
79185 - PAD, NO.1 SEAT BACK, LH
79185-95D00

TCR1#,2#..LHD

 1
71551-28200

TCR10..LHD..ATM

 1
79185-28020

TCR10..V

W(SPLIT SEAT)

 1
79190A - SPRING ASSY, NO.1 SEAT BACK, LH
79190-95D02

TCR1#..LHD

W(HEADREST)

 1
79190-95D01

TCR1#..LHD

 1
79190-28210

TCR10..V

 1
79190-28300

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT)

 1
79190-28180

TCR10..V

W(SPLIT SEAT)

 1
79190-28380

TCR10..V

 1
Common parts
90109-10055
90119-08079
90119-10834
90168-40043
90201-15015
90386-14007
90468-07023
93240-16025
94542-01400
Linked diagrams
7152

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

CAPTAIN SEAT

diagram 66990 71319B 71319B 71843A 71843C 71844A 71844B 71931B 71931B 71931B 71931B 71940C 71950E 72213 72213 72302C 72302D 72525B 72526A 72551C 72551C 72552 72552B 72830J 72830J 72840 72840 72960B 72969 72969 72970 72973A 72973A 72973A 72973A 79011 79012 79013 79014 79105 79106 79120 79130 79135A 79136B 79140 79150 79160A 79170A 79175E 79180A 79185 79190A 79477 79477 79937 79937 79937 79937 79956C 79956C 79956C 79956C 9010910055 9010910055 9010910055 9010910055 9011908079 9011908079 9011908766 9011908766 9011910495 9011910495 9011910650 9011910650 9014940015 9014940015 9014950058 9014950058 9016840043 9016840043 9016840043 9016840043 9020115015 9020115015 9020115015 9020115015 9038614007 9038614007 9038614007 9038614007 9324016025 9324016025 9324954008 9324954008 9324955010 9331516016 9331516016 9356054012 9356054012 9356054012 9356054012 9356054020 9356054020 9418041000 9418041000 9454201400 9454201400 9454201400 9454201400 9454300800 9454300800
Part # Description Qty Price
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-95D0103

TCR1#,2#..LHD

GRAY,TRIM1#

 1
71811-28090B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71843-95D01B0

TCR1#,2#..LHD..(V,W)

W(SEPARATE SEAT),GRAY,TRIM1#

 1
71843C - COVER, RECLINING ADJUSTER, RH
71811-28100B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-95D0103

TCR1#,2#..LHD

LIGHT GRAY,TRIM1#

 1
71844-95D01B0

TCR1#,2#..LHD..(V,W)

GRAY,TRIM1#

 1
71812-28130B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71844B - COVER, RECLINING ADJUSTER, LH
71812-28100B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-1007013

TCR1#,2#

W(LOCK),GRAY,TRIM1#

 2
71931-1002013

TCR1#,2#

W/O(LOCK),GRAY,TRIM1#

 2
71940C - HEADREST ASSY, REAR NO.1 SEAT, RH
71940-95D0203

TCR10,20

LIGHT GRAY,TRIM1#

 1
71910-28690B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71940-28800B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71910-28691B1

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
71940-28801B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
71950E - HEADREST ASSY, REAR NO.1 SEAT, LH
71940-95D0203

TCR10,20

LIGHT GRAY,TRIM1#

 1
71950-28340B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
71920-28200B0

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
71940-28801B1

TCR11;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-28040B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-95D0103

TCR1#,2#..LHD

LIGHT GRAY,TRIM1#

 1
72526-28030B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
72526-95D01B0

TCR1#,2#..LHD..(V,W)

GRAY,TRIM1#

 1
72551C - COVER, RECLINING HINGE, NO.2
72551-28050

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28060

TCR11;TCR10..LHD..ATM

OUTER

 1
72551C - COVER, RECLINING HINGE, NO.2
72551-28050

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28060

TCR11;TCR10..LHD..ATM

OUTER

 1
72552 - COVER, RECLINING HINGE, NO.2
72551-28060

TCR11;TCR10..LHD..ATM

INNER

 1
72551-28050

TCR11;TCR10..LHD..ATM

OUTER

 1
72552B - COVER, RECLINING HINGE, LH
72551-28050

TCR1#,2#

OUTER

 1
72551-28060

TCR1#,2#

INNER

 1
72830J - ARMREST ASSY, REAR NO.1 SEAT, RH
72830-28330B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72830-28340B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
72830-28331B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72830J - ARMREST ASSY, REAR NO.1 SEAT, RH
72830-28330B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72830-28340B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
72830-28331B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72840 - ARMREST ASSY, REAR NO.1 SEAT, LH
72840-28280B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72840-28030B2

TCR10..V

LIGHT GRAY,TRIM1#,RH SEAT

 1
72840-28281B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72840-28270B1

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
72840 - ARMREST ASSY, REAR NO.1 SEAT, LH
72840-28280B0

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,RH SEAT

 1
72840-28030B2

TCR10..V

LIGHT GRAY,TRIM1#,RH SEAT

 1
72840-28281B3

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 2
72840-28270B1

TCR11;TCR10..LHD..ATM

BLUISH GRAY,TRIM1#,LH SEAT

 1
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
71071-28890B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71071-28891B3

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
71072-28880B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71071-28891B3

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-28490B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79013-28531B2

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79013-28491B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79013-28530B1

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-28370B0

TCR10..V

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79014-28400B1

TCR10..LHD..ATM

BLUISH GRAY,TRIM1#

 1
79013-28531B2

TCR11;TCR10..LHD..ATM

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79014-28371B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79105 - LEG SUB-ASSY, NO.1 SEAT, RH
79105-95D0103

TCR10..V

LIGHT GRAY,TRIM1#

 1
79105-95D01B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
79106 - LEG SUB ASSY, NO.1 SEAT, LH
79106-95D0003

TCR10..V

LIGHT GRAY,TRIM1#

 1
79106-95D00B0

TCR10..V

BLUISH GRAY,TRIM1#

 1
79120 - CUSHION ASSY, NO.1 SEAT, RH
71410-28870B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71410-28871B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79130 - CUSHION ASSY, NO.1 SEAT, LH
71420-2J050B0

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
71410-28871B2

TCR10..V;TCR11..ARL

BLUISH GRAY,TRIM1#

 1
79135A - PAD, NO.1 SEAT CUSHION, RH
71511-28160

TCR10..V;TCR11..ARL

 1
79136B - PAD, NO.1 SEAT CUSHION, LH
71511-28160

TCR10..V;TCR11..ARL

 1
79140 - BACK ASSY, NO.1 SEAT, RH
79140-28410B0

TCR10..V

LIGHT GRAY,TRIM1#

 1
79140-28890B0

TCR11..LHD;TCR10,21..07S

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79140-2J061B1

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79140-2J060B0

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79140-28891B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79150 - BACK ASSY, NO.1 SEAT, LH
79150-28740B0

TCR11..LHD;TCR10,21..07S

W(SPLIT SEAT),BLUISH GRAY,TRIM1#

 1
79150-28790B0

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79150-28741B1

TCR11..LHD;TCR10,21..07S

BLUISH GRAY,TRIM1#

 1
79150-28791B1

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#

 1
79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH
71011-28160

TCR10..V;TCR11..ARL

 1
71011-28060

TCR11..ARL;TCR10,21..07S..(ARL,V)

 1
79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH
71011-28160

TCR10..V;TCR11..ARL

 1
71012-95D00

TCR11..ARL;TCR10,21..07S..(ARL,V)

 1
79175E - PAD, NO.1 SEAT BACK, RH
79175-95D03

TCR10..V

W(SPLIT SEAT)

 1
71551-28200

TCR10..LHD..ATM

 1
79180A - SPRING ASSY, NO.1 SEAT BACK, RH
79180-95D06

TCR1#..LHD

W(HEADREST)

 1
79180-95D05

TCR1#..LHD

 1
79180-28220

TCR10..V

 1
79180-28320

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT)

 1
79180-28180

TCR10..V

W(SPLIT SEAT)

 1
79180-28390

TCR10..V

 1
79185 - PAD, NO.1 SEAT BACK, LH
79185-95D00

TCR1#,2#..LHD

 1
71551-28200

TCR10..LHD..ATM

 1
79185-28020

TCR10..V

W(SPLIT SEAT)

 1
79190A - SPRING ASSY, NO.1 SEAT BACK, LH
79190-95D02

TCR1#..LHD

W(HEADREST)

 1
79190-95D01

TCR1#..LHD

 1
79190-28210

TCR10..V

 1
79190-28300

TCR10..V;TCR11..ARL

W(CAPTAIN SEAT)

 1
79190-28180

TCR10..V

W(SPLIT SEAT)

 1
79190-28380

TCR10..V

 1
Common parts
90109-10055
90119-08079
90119-08766
90119-10495
90119-10650
90149-40015
90149-50058
90168-40043
90201-15015
90386-14007
93240-16025
93249-54008
93249-55010
93315-16016
93560-54012
93560-54020
94180-41000
94542-01400
94543-00800

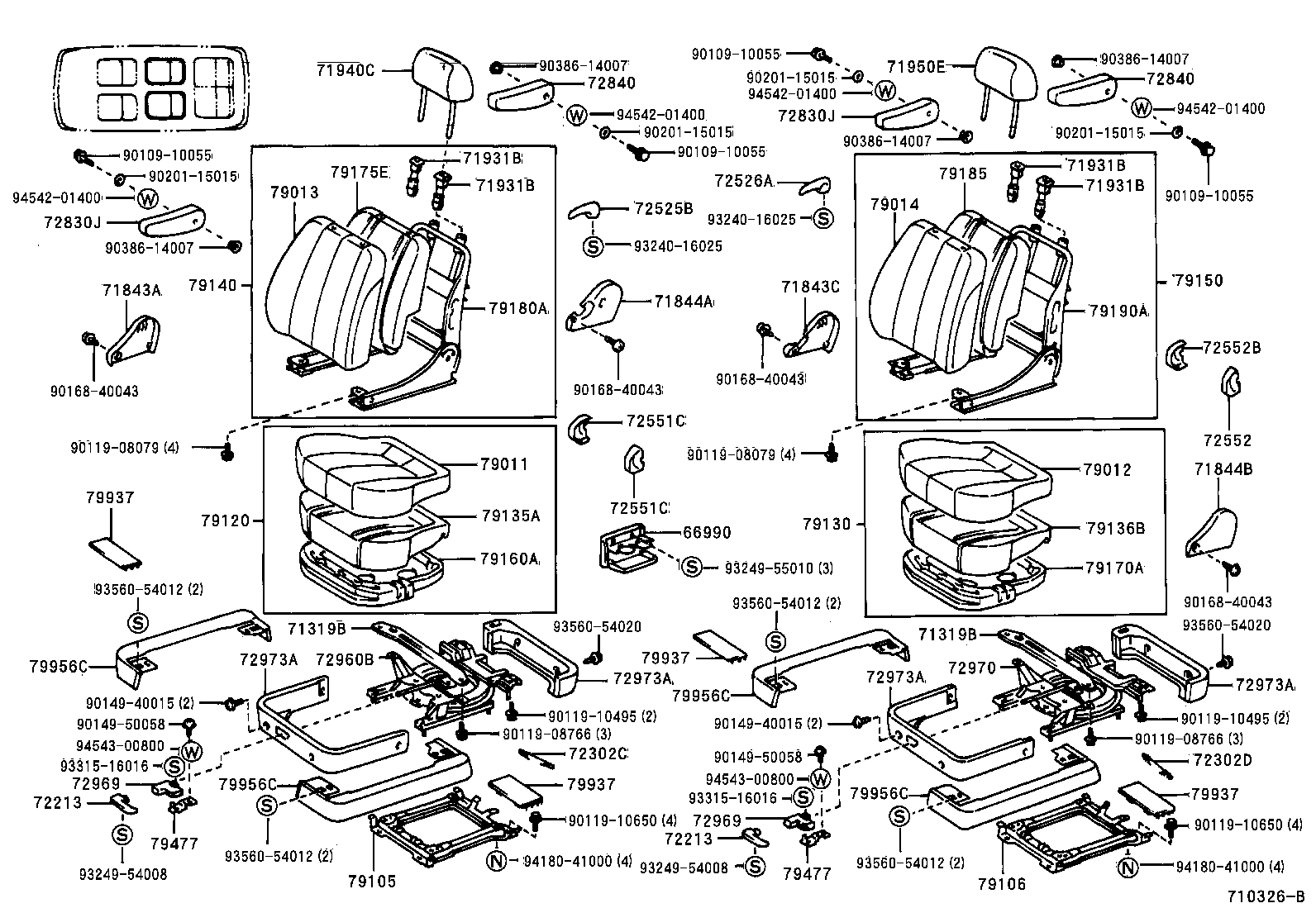

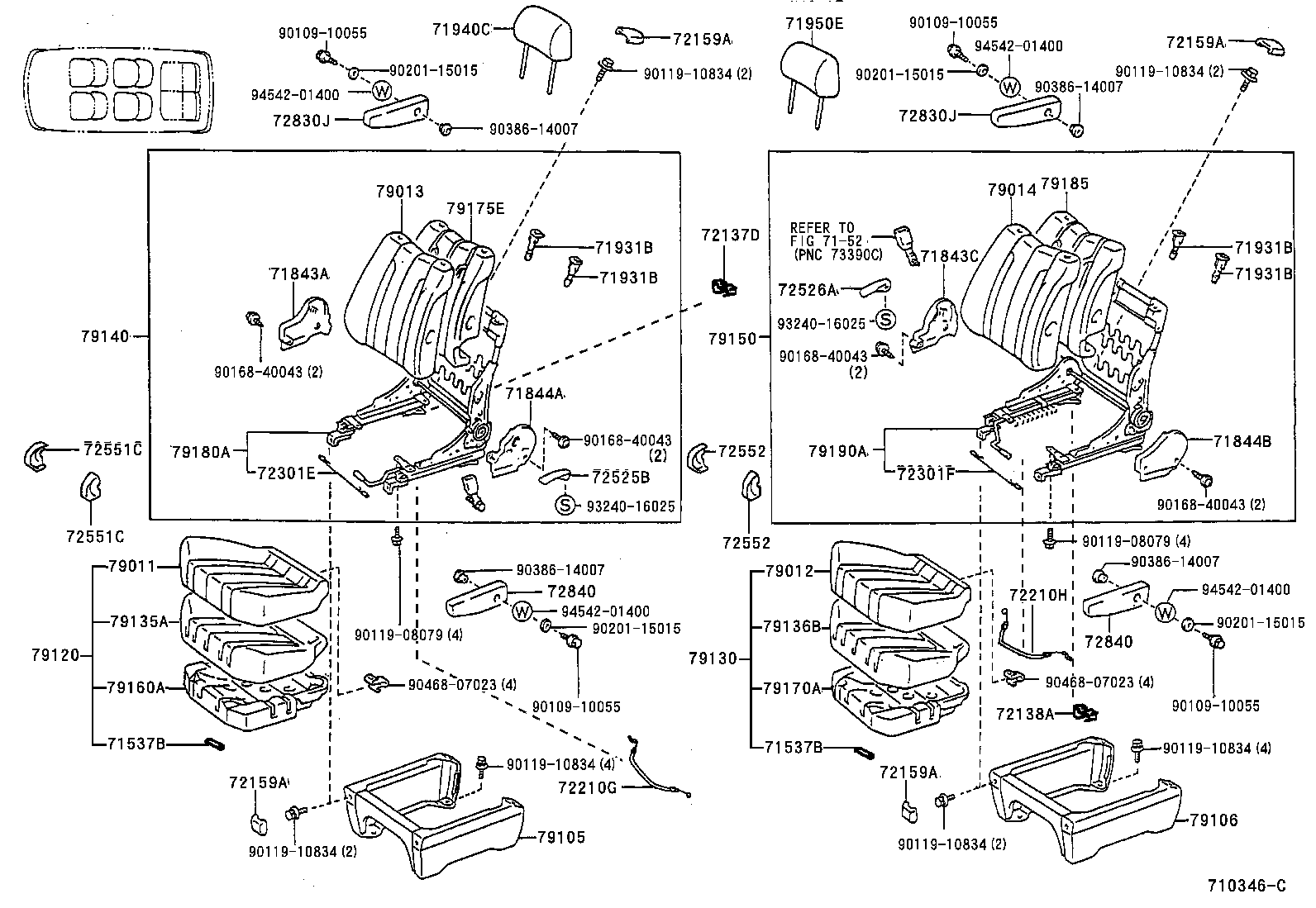

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71108B 71109B 71410S 71420S 71430S 71440S 71511S 71512S 71537A 71537A 71551S 71552S 71630S 71640S 71811C 71811F 71812C 71812E 71910B 71920A 71931 71931 71931 71931 72025A 72127D 72128C 72137B 72138B 72159C 72159C 72250C 72301A 72301D 72339A 72525A 72526 72551B 72551B 72552B 72552B 72880 72890 9011908079 9011908079 9011908079 9011908873 9011910456 9011910456 9011910824 9011910824 9011910824 9011910834 9011910834 9015980049 9016840043 9016840043 9016840043 9016840043 9017910073 9038635001 9038635001 9054105005 9054112017 9054112017 9324016025 9324016025
Part # Description Qty Price
Common parts
90119-08079
90119-08873
90119-10456
90119-10824
90119-10834
90159-80049
90168-40043
90179-10073
90386-35001
90541-05005
90541-12017
93240-16025

ILLUST NO. 1 OF 3(9001-9608)

Click highlighted areas on diagram

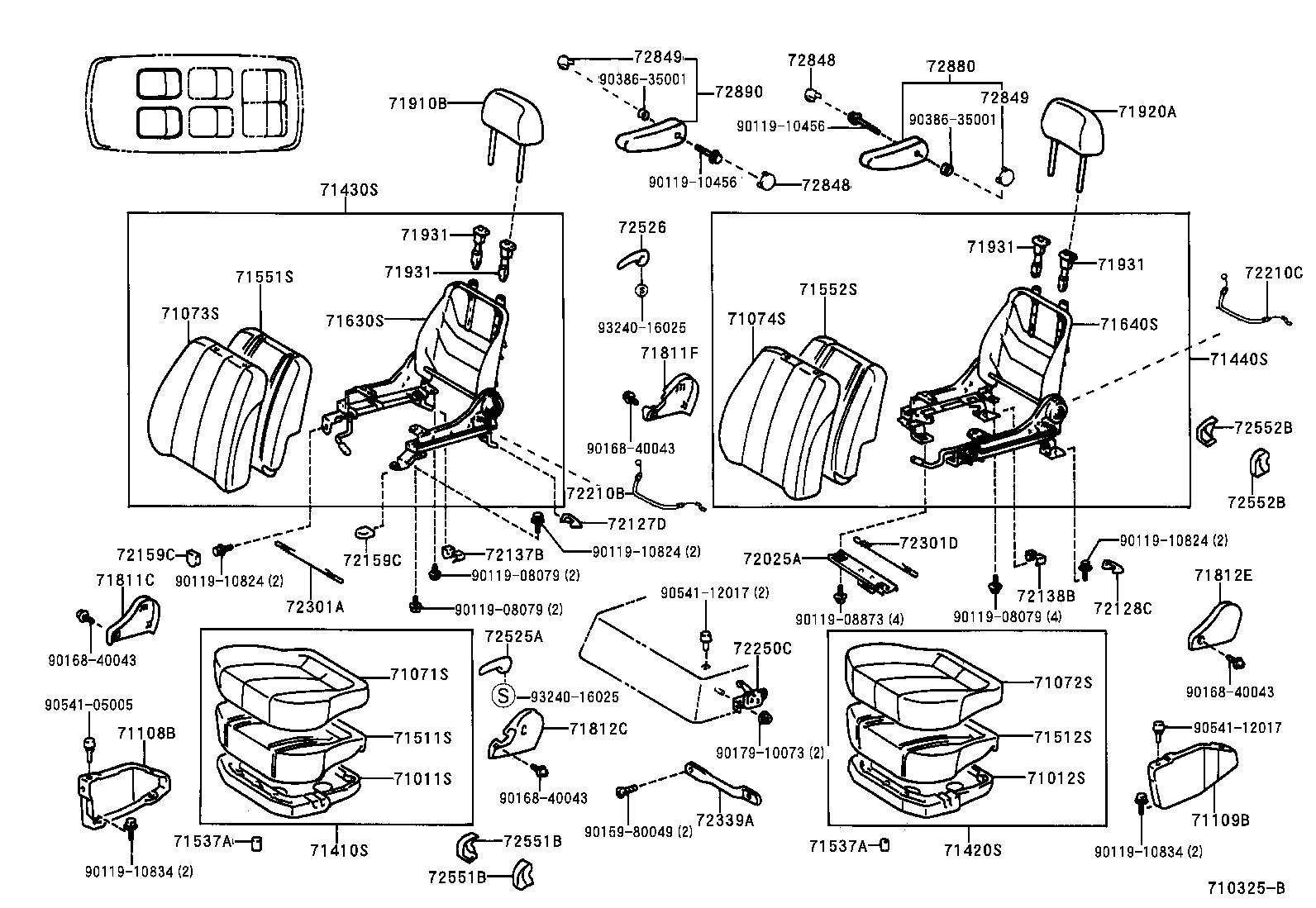

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71108B 71109B 71511S 71512S 71551S 71552S 71630S 71640S 71695 71771 71771 71811C 71811F 71812C 71812E 71910B 71920A 71931 71931 71931 71931 72011D 72011D 72011E 72011E 72025A 72127D 72128C 72159C 72159C 72250C 72301A 72301D 72339A 72525A 72526 72880 72890 9010910055 9010910055 9011908079 9011908079 9011908873 9011910456 9011910456 9011910643 9011910643 9011910643 9011910643 9011910834 9011910834 9015980049 9015980049 9016840043 9016840043 9016840043 9016840043 9017910073 9020115015 9020115015 9038614007 9038614007 9038635001 9038635001 9046807023 9046807023 9054105005 9054112017 9054112017 9324056025 9324056025 9454201400 9454201400
Part # Description Qty Price
Common parts
90109-10055
90119-08079
90119-08873
90119-10456
90119-10643
90119-10834
90159-80049
90168-40043
90179-10073
90201-15015
90386-14007
90386-35001
90468-07023
90541-05005
90541-12017
93240-56025
94542-01400

ILLUST NO. 2 OF 3(9001-9608)

Click highlighted areas on diagram

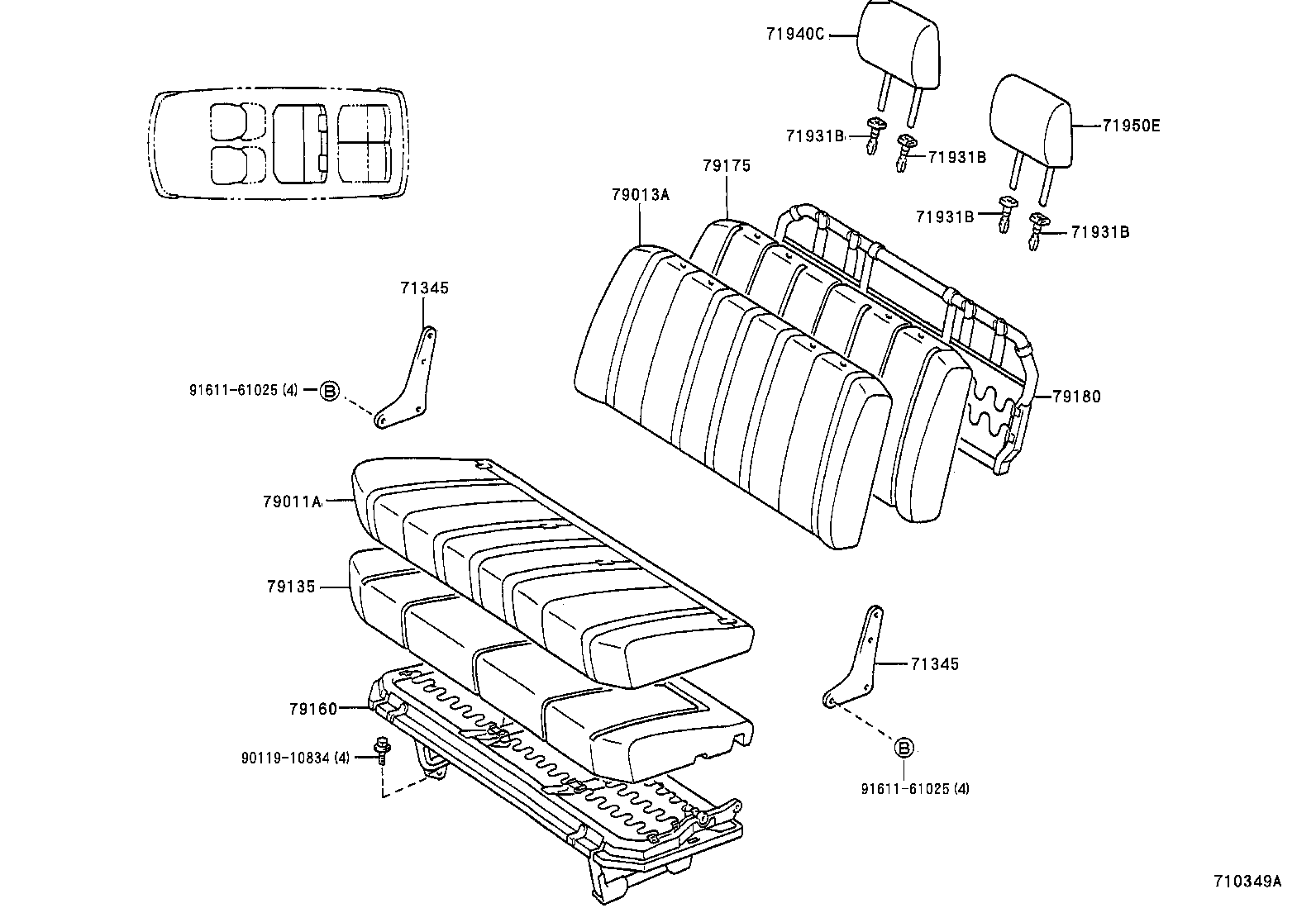

diagram 71345 71345 71931B 71931B 71931B 71931B 71940C 71950E 79011A 79013A 79135 79160 79175 79180 9011910834 9161161025 9161161025
Part # Description Qty Price
Common parts
90119-10834
91611-61025

ILLUST NO. 3 OF 3(9001-9608)

Click highlighted areas on diagram

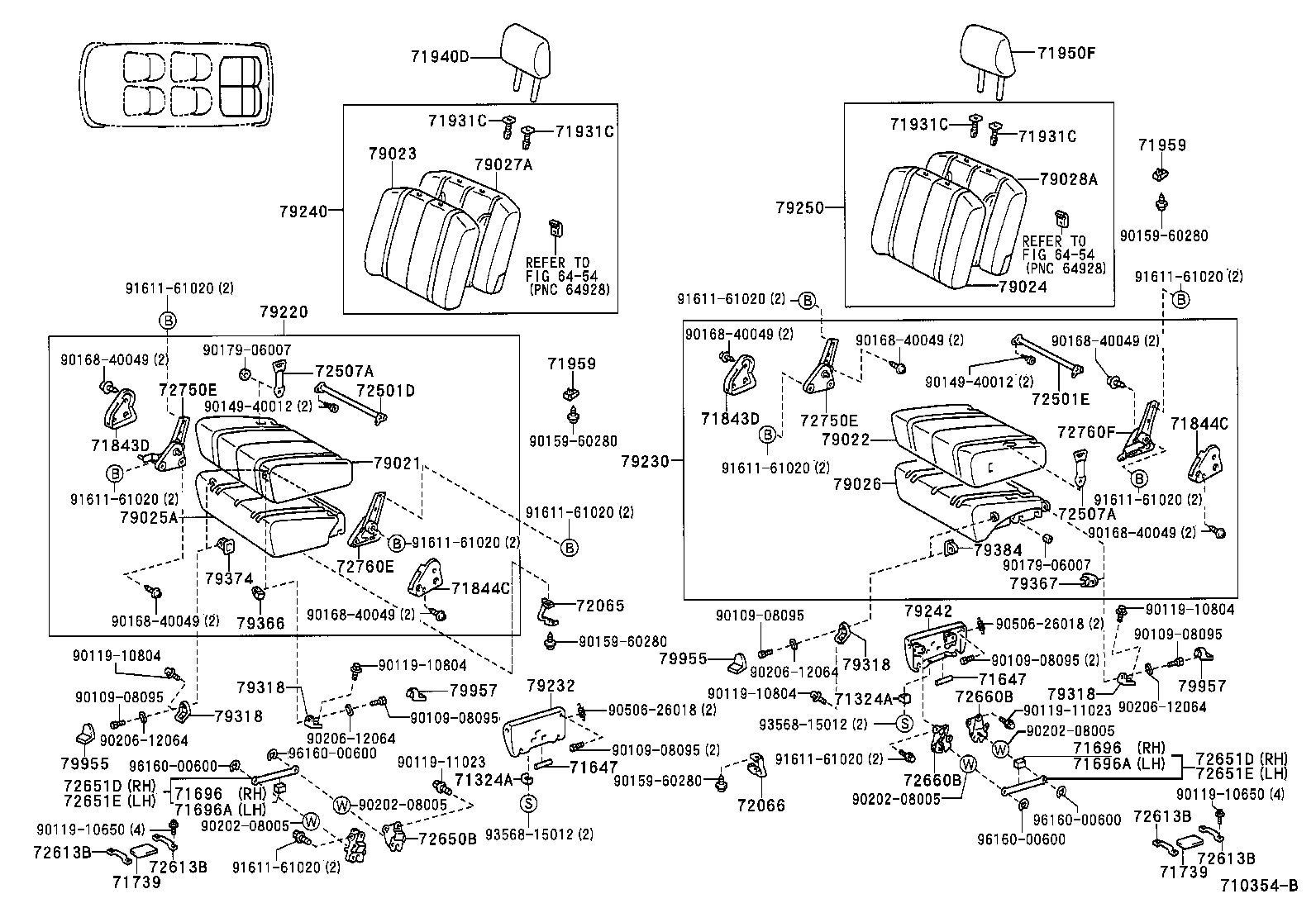

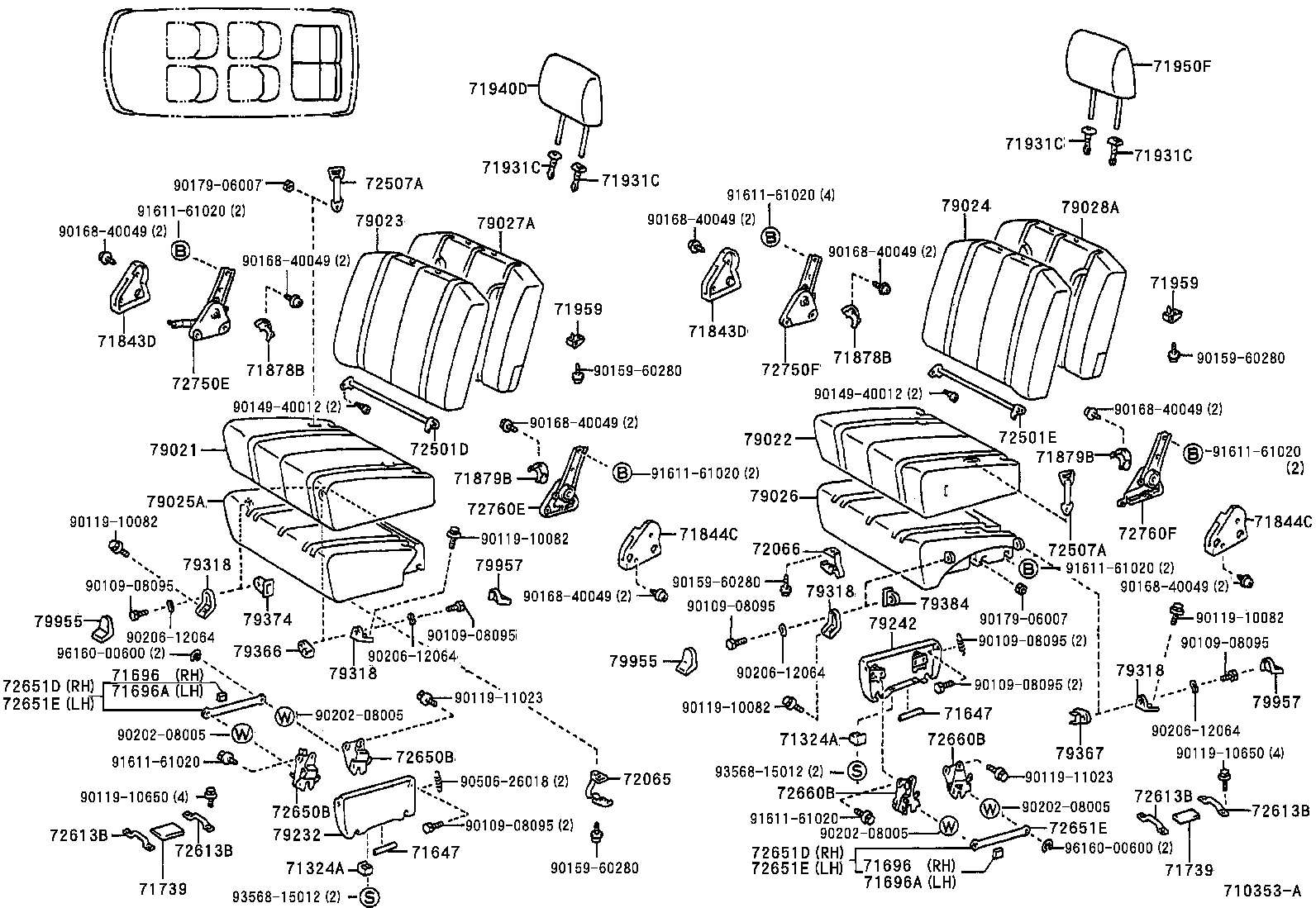

diagram 71324A 71324A 71647 71647 71696 71696 71696A 71696A 71739 71739 71843D 71843D 71844C 71844C 71878B 71878B 71879B 71879B 71931C 71931C 71931C 71931C 71940D 71950F 71959 71959 72065 72066 72501D 72501E 72507A 72507A 72613B 72613B 72613B 72613B 72650B 72650B 72651D 72651D 72651E 72651E 72651E 72660B 72660B 72750E 72750F 72760E 72760F 79021 79022 79023 79024 79025A 79026 79027A 79028A 79232 79242 79318 79318 79318 79318 79366 79367 79374 79384 79955 79955 79957 79957 9010908095 9010908095 9010908095 9010908095 9010908095 9010908095 9010908095 9011910082 9011910082 9011910082 9011910082 9011910650 9011910650 9011911023 9011911023 9014940012 9014940012 9015960280 9015960280 9015960280 9015960280 9016840049 9016840049 9016840049 9016840049 9016840049 9016840049 9016840049 9016840049 9017906007 9017906007 9020208005 9020208005 9020208005 9020208005 9020612064 9020612064 9020612064 9020612064 9050626018 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9356815012 9356815012 9616000600 9616000600
Part # Description Qty Price
Common parts
90109-08095
90119-10082
90119-10650
90119-11023
90149-40012
90159-60280
90168-40049
90179-06007
90202-08005
90206-12064
90506-26018
91611-61020
93568-15012
96160-00600

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

diagram 6454 6454 71324A 71324A 71647 71647 71696 71696 71696A 71696A 71739 71739 71843D 71843D 71844C 71844C 71931C 71931C 71931C 71931C 71940D 71950F 71959 71959 72065 72066 72501D 72501E 72507A 72507A 72613B 72613B 72613B 72613B 72650B 72651D 72651D 72651E 72651E 72660B 72660B 72750E 72750E 72760E 72760F 79021 79022 79023 79024 79025A 79026 79027A 79028A 79220 79230 79232 79240 79242 79250 79318 79318 79318 79318 79366 79367 79374 79384 79955 79955 79957 79957 9010908095 9010908095 9010908095 9010908095 9010908095 9010908095 9011910650 9011910650 9011910804 9011910804 9011910804 9011910804 9011911023 9011911023 9014940012 9014940012 9015960280 9015960280 9015960280 9015960280 9016840049 9016840049 9016840049 9016840049 9016840049 9016840049 9016840049 9017906007 9017906007 9020208005 9020208005 9020208005 9020208005 9020612064 9020612064 9020612064 9020612064 9050626018 9050626018 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9356815012 9356815012 9616000600 9616000600 9616000600 9616000600
Part # Description Qty Price
Common parts
90109-08095
90119-10650
90119-10804
90119-11023
90149-40012
90159-60280
90168-40049
90179-06007
90202-08005
90206-12064
90506-26018
91611-61020
93568-15012
96160-00600
Linked diagrams
6454
