TCR10L-RFSGKV (1994)
Toyota Previa
Production
Aug 1994
-
Dec 1999
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

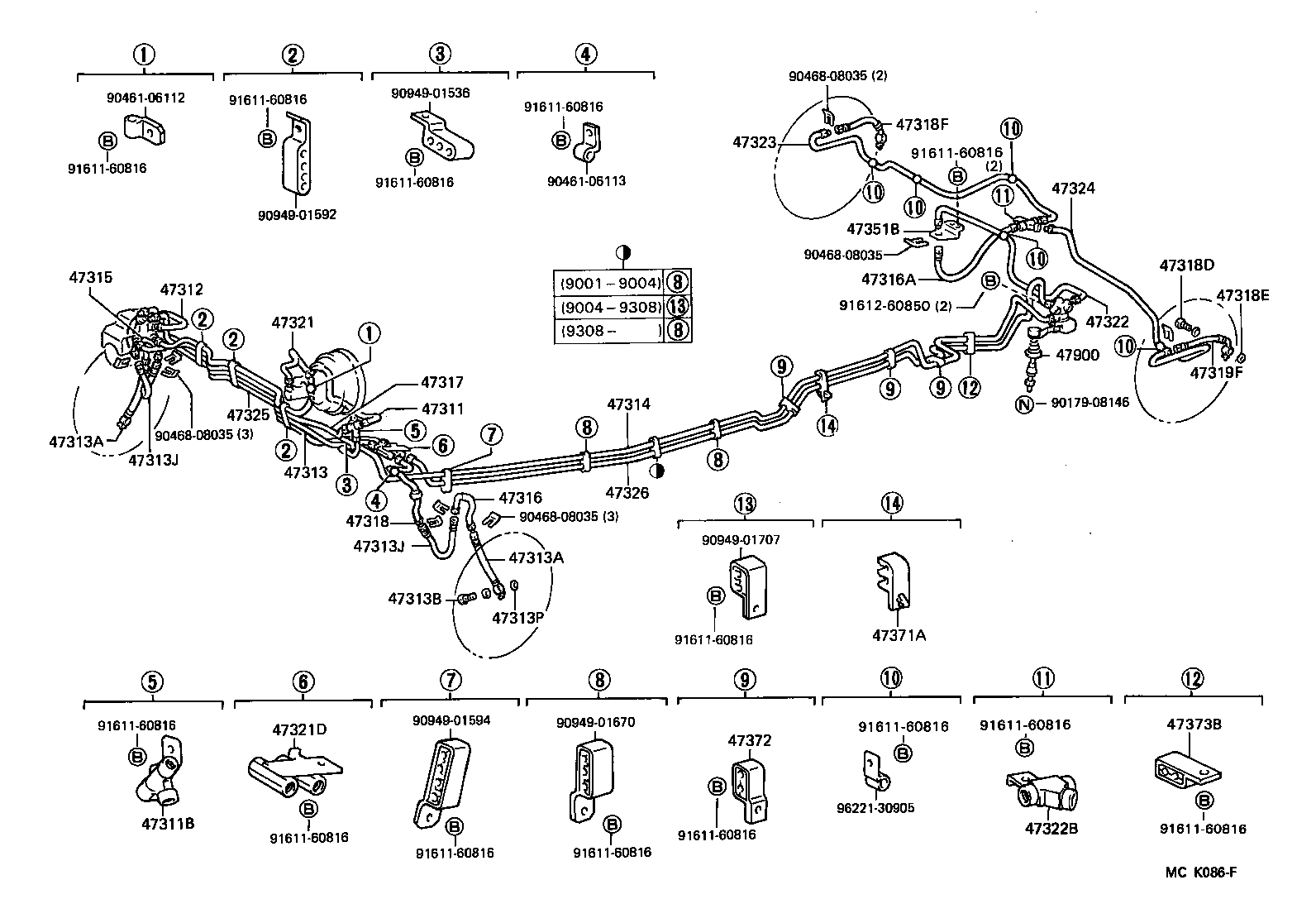

ILLUST NO. 1 OF 2(9608- )TCR10,20..LHD
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28241 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 47311-28230 |
TCR1#,2#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28130 |
TCR1#,2#..LHD |
1 | ||
| 47312-28251 |
TCR1#,2# W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28120 |
TCR1#,2#..LHD |
1 | ||
| 47313-28132 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR1#,2# |
2 | ||
| 90947-02882 |
TCR1#,2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR1#,2# |
2 | ||
| 90947-02882 |
TCR1#,2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR1#,2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR1#,2# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR1#,2# |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
TCR1#,2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
TCR1#,2# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02883 |
TCR10,20 |
1 | ||
| 90947-02617 |
TCR10,20 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28010 |
TCR1#,2#..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
TCR10,20 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
TCR10,20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02898 |
TCR10,20 |
1 | ||
| 90947-02A39 |
TCR10,20 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02898 |
TCR10,20 |
1 | ||
| 90947-02A40 |
TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28230 |
TCR1#,2#..LHD |
1 | ||
| 47321-28242 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10178 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 90412-10006 |
TCR1#,2#..LHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28190 |
TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28120 |
TCR10,20 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28132 |
TCR1#,2#..LHD |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28091 |
TCR10,20 |
1 | ||
| 47326-28200 |
TCR10,20 W(ABS) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
TCR1#,2# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47373-25010 |
TCR1#,2#..LHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
TCR1#,2# |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-25010 |
TCR1#,2#..LHD |
1 | ||
| Common parts | ||||
| 90461-06113 | ||||
| 90461-10764 | ||||
| 90468-08035 | ||||
| 90949-01592 | ||||
| 90949-01594 | ||||
| 90949-01670 | ||||
| 91611-60816 | ||||
| 96221-30905 | ||||

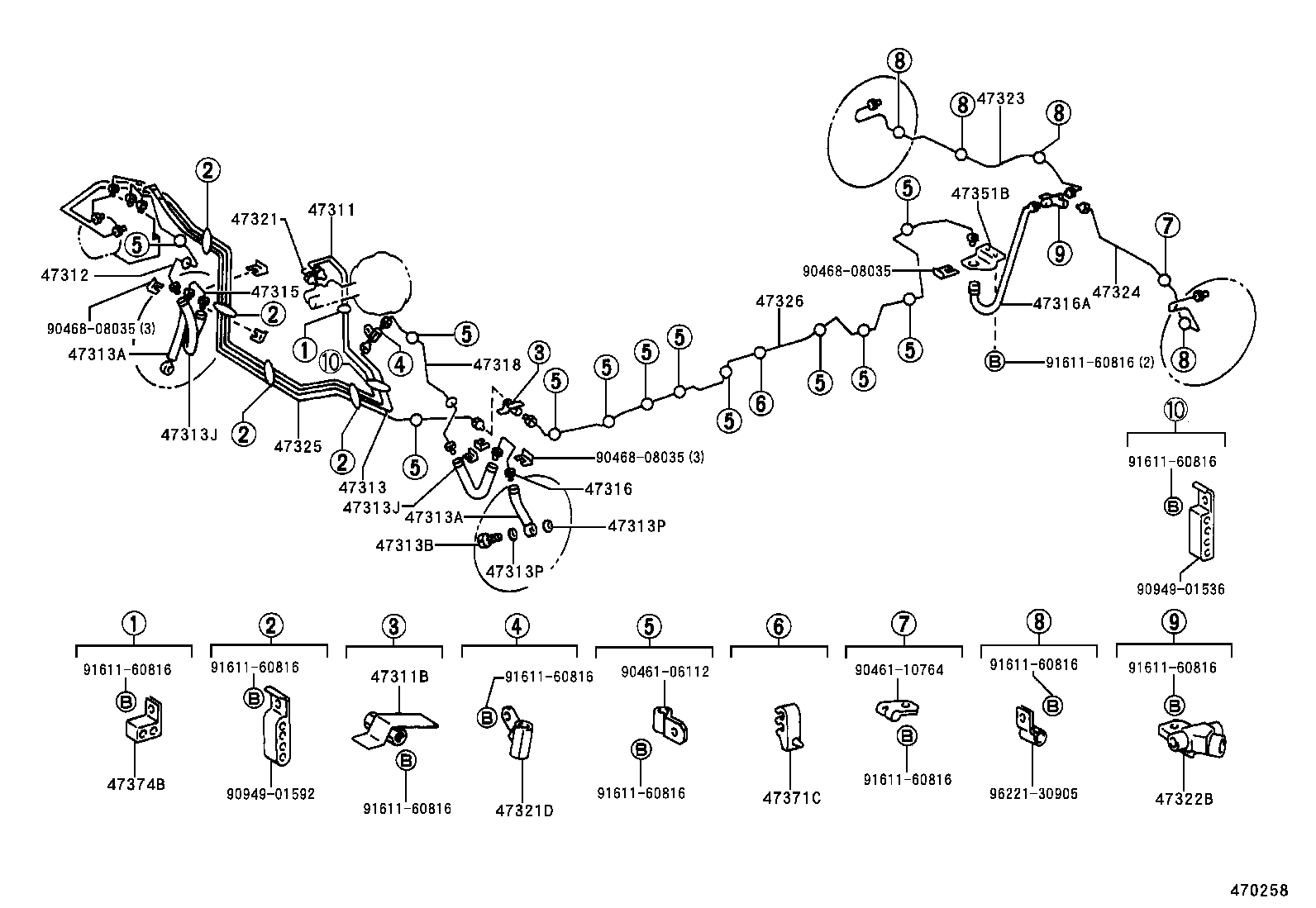

ILLUST NO. 1 OF 2(9005-9608)TCR10,20..LHD
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28241 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 47311-28230 |
TCR1#,2#..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10039 |
TCR1#,2#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28130 |
TCR1#,2#..LHD |
1 | ||
| 47312-28251 |
TCR1#,2# W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28120 |
TCR1#,2#..LHD |
1 | ||
| 47313-28132 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR1#,2# |
2 | ||
| 90947-02882 |
TCR1#,2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02604 |
TCR1#,2# |
2 | ||
| 90947-02882 |
TCR1#,2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR1#,2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02618 |
TCR1#,2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
TCR1#,2# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28141 |
TCR10,20..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28110 |
TCR1#,2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28030 |
TCR1#,2# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02883 |
TCR10,20 |
1 | ||
| 90947-02617 |
TCR10,20 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28010 |
TCR1#,2#..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
TCR10,20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
TCR10,20 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02898 |
TCR10,20 |
1 | ||
| 90947-02A39 |
TCR10,20 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02898 |
TCR10,20 |
1 | ||
| 90947-02A40 |
TCR10,20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28230 |
TCR1#,2#..LHD |
1 | ||
| 47321-28242 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10178 |
TCR1#,2#..LHD W(ABS) |
1 | ||
| 90412-10006 |
TCR1#,2#..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28150 |
TCR10,20 |
1 | ||
| 47322-28151 |
TCR10,20 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10245 |
TCR10,20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28190 |
TCR10,20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28120 |
TCR10,20 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28132 |
TCR1#,2#..LHD |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28091 |
TCR10,20 |
1 | ||
| 47326-28200 |
TCR10,20 W(ABS) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-28060 |
TCR10,20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28010 |
TCR1#,2# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
TCR1#,2# |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
TCR1#,2# |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-28280 |
TCR10,20 |
1 | ||
| 47900-28460 |
TCR10..V |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90468-08035 | ||||
| 90949-01536 | ||||
| 90949-01592 | ||||
| 90949-01594 | ||||
| 90949-01670 | ||||
| 90949-01707 | ||||
| 91611-60816 | ||||
| 91612-60850 | ||||
| 96221-30905 | ||||

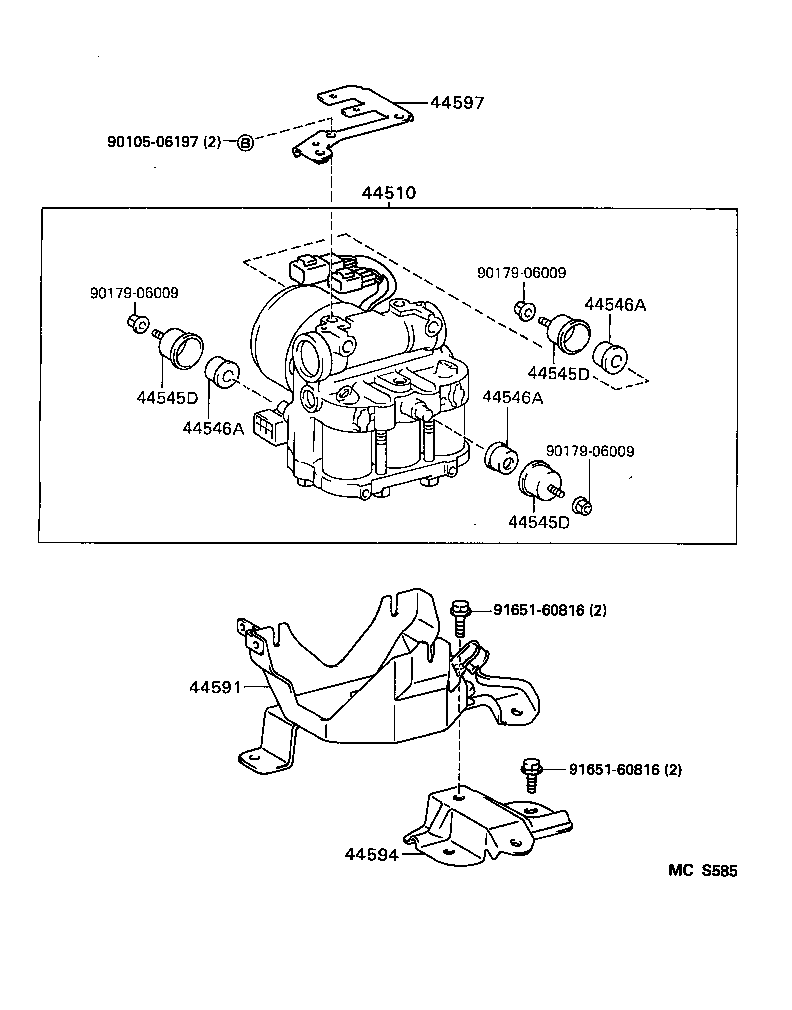

ILLUST NO. 2 OF 2(9501-9608)
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-28010 |
TCR1#,2# |
1 | ||
| 44510-28060 |
TCR1#,2# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28070 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90105-06197 | ||||
| 90179-06009 | ||||
| 91651-60816 | ||||

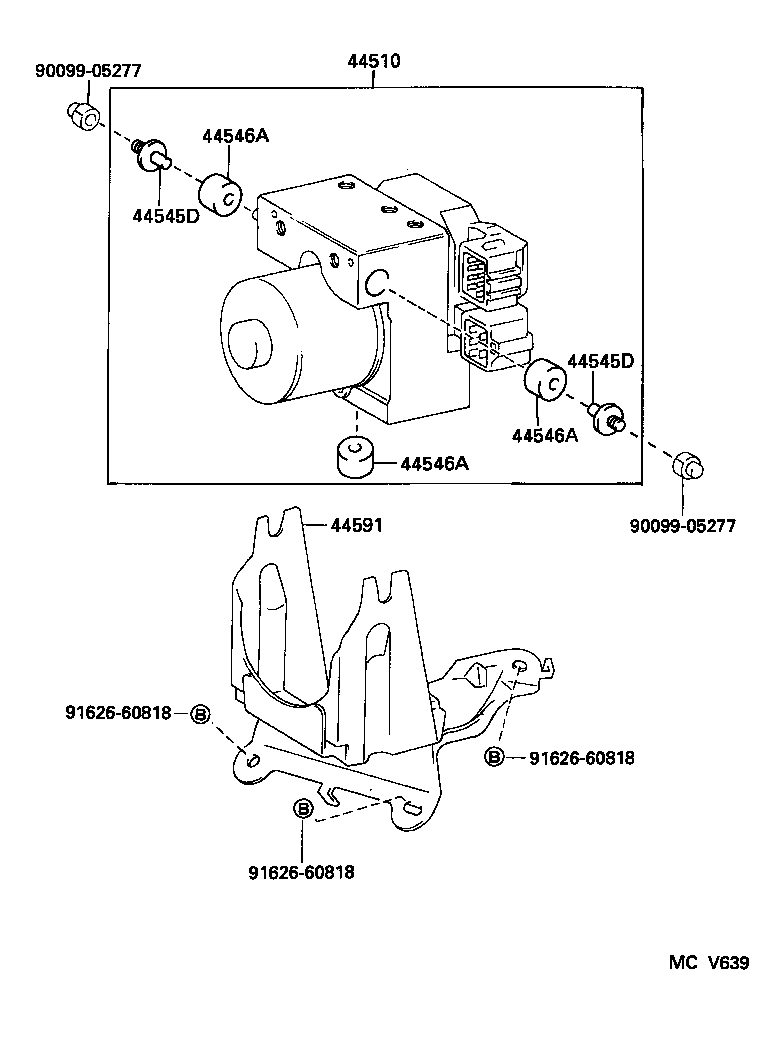

ILLUST NO. 2 OF 2(9608- )
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-28010 |
TCR1#,2# |
1 | ||
| 44510-28060 |
TCR1#,2# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28070 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91626-60818 | ||||

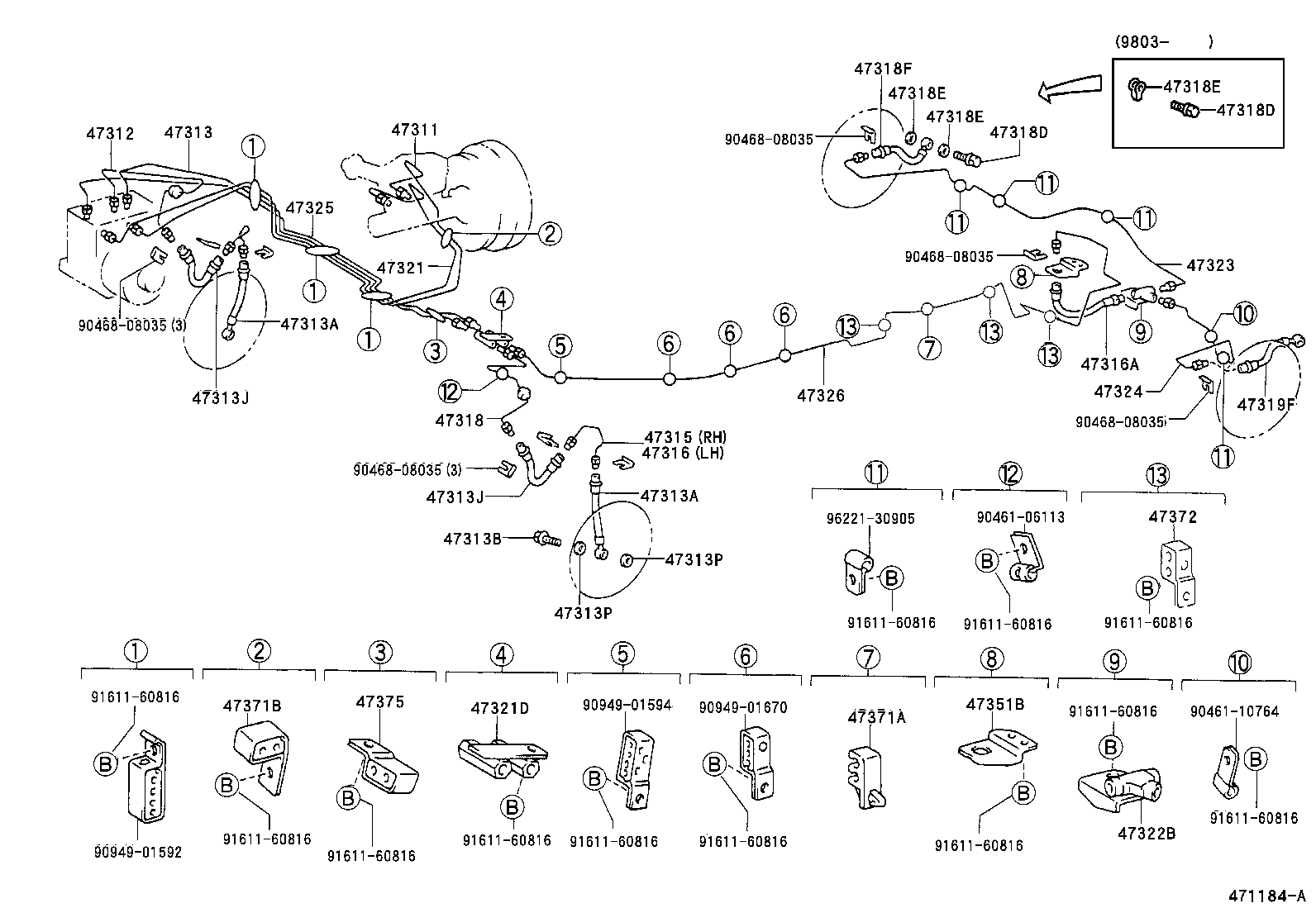

ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06112 | ||||
| 90461-10764 | ||||
| 90468-08035 | ||||
| 90949-01536 | ||||
| 90949-01592 | ||||
| 91611-60816 | ||||
| 96221-30905 | ||||
ILLUST NO. 2 OF 2(9608- )
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-28010 |
TCR1#,2# |
1 | ||
| 44510-28060 |
TCR1#,2# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
TCR1#,2# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
TCR1#,2# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-28070 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91626-60818 | ||||
