TCR10L-RFSGKV (1994)

Toyota Previa

Production Aug 1994 - Dec 1999
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

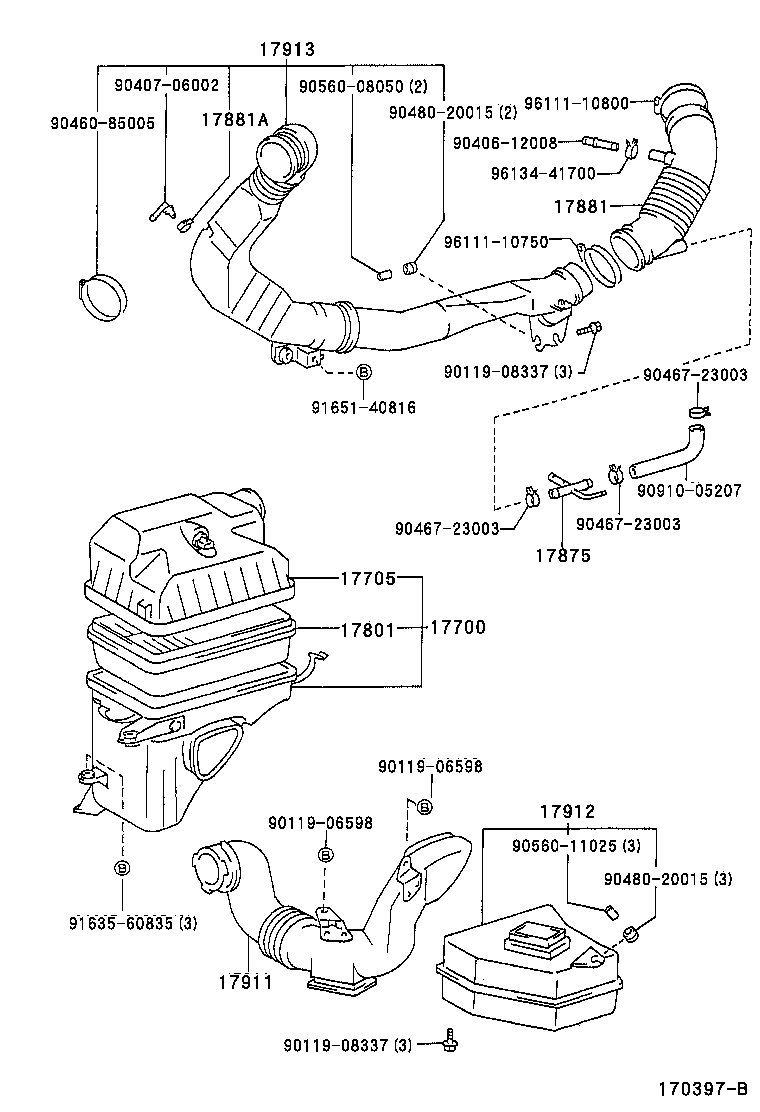

Click highlighted areas on diagram

diagram 17700 17705 17801 17875 17881 17881A 17911 17912 17913 9011906598 9011906598 9011908337 9011908337 9040612008 9040706002 9046085005 9046723003 9046723003 9046723003 9048020015 9048020015 9056008050 9056011025 9091005207 9163560835 9165140816 9611110750 9611110800 9613441700
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-76150

2TZFE..TCR1#,2#

 1
17700-76120

2TZFE..TCR1#,2#

 1
17700-76151

2TZFE..TCR1#,2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-76050

2TZFE..TCR1#,2#

 1
17705-76030

2TZFE..TCR1#,2#

 1
17705-76051

2TZFE..TCR1#,2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35020

2TZFE..TCR1#,2#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-76020

2TZFE..TCR1#,2#

 1
17875-76040

2TZFE..TCR1#,2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-76050

2TZFE..TCR1#,2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-10088

2TZFE..TCR1#,2#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95D01

2TZFE..TCR1#,2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-95D03

2TZFE..TCR1#,2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-95D00

2TZFE..TCR1#,2#

 1
Common parts
90119-06598
90119-08337
90406-12008
90407-06002
90460-85005
90467-23003
90480-20015
90560-08050
90560-11025
90910-05207
91635-60835
91651-40816
96111-10750
96111-10800
96134-41700

(9005-9608)

Click highlighted areas on diagram

diagram 1603 17700 17705 17801 17875 17881 17881A 17911 17912 17913 22250 22275 8717 9011906042 9011906598 9011906598 9011908337 9011908337 9017906158 9040612003 9040706002 9046717011 9046723003 9046723003 9046723003 9048020015 9048020015 9056008050 9056011025 9091005207 9163560835 9165140816 9165540835 9166160835 9461210601 9611110750 9611110830 9611110850
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-76150

2TZFE..TCR1#,2#

 1
17700-76120

2TZFE..TCR1#,2#

 1
17700-76151

2TZFE..TCR1#,2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-76050

2TZFE..TCR1#,2#

 1
17705-76030

2TZFE..TCR1#,2#

 1
17705-76051

2TZFE..TCR1#,2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35020

2TZFE..TCR1#,2#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-76020

2TZFE..TCR1#,2#

 1
17875-76040

2TZFE..TCR1#,2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-76050

2TZFE..TCR1#,2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-10088

2TZFE..TCR1#,2#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95D01

2TZFE..TCR1#,2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-95D03

2TZFE..TCR1#,2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-95D00

2TZFE..TCR1#,2#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-76030

2TZFE..TCR10..V

 1
Common parts
90119-06042
90119-06598
90119-08337
90179-06158
90406-12003
90407-06002
90467-17011
90467-23003
90480-20015
90560-08050
90560-11025
90910-05207
91635-60835
91651-40816
91655-40835
91661-60835
94612-10601
96111-10750
96111-10830
96111-10850
Linked diagrams
1603
8717

(9001-9608)2TZFE

Click highlighted areas on diagram

diagram 1603 17700 17705 17801 17875 17881 17881A 17911 17912 17913 22250 22275 8717 9011906042 9011906598 9011906598 9011908337 9011908337 9017906158 9040612003 9040706002 9046717011 9046723003 9046723003 9046723003 9048020015 9048020015 9056008050 9056011025 9091005207 9163560835 9165140816 9165540835 9166160835 9461210601 9611110750 9611110830 9611110850
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-76150

2TZFE..TCR1#,2#

 1
17700-76120

2TZFE..TCR1#,2#

 1
17700-76151

2TZFE..TCR1#,2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-76050

2TZFE..TCR1#,2#

 1
17705-76030

2TZFE..TCR1#,2#

 1
17705-76051

2TZFE..TCR1#,2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35020

2TZFE..TCR1#,2#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-76020

2TZFE..TCR1#,2#

 1
17875-76040

2TZFE..TCR1#,2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-76050

2TZFE..TCR1#,2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-10088

2TZFE..TCR1#,2#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95D01

2TZFE..TCR1#,2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-95D03

2TZFE..TCR1#,2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-95D00

2TZFE..TCR1#,2#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-76030

2TZFE..TCR10..V

 1
Common parts
90119-06042
90119-06598
90119-08337
90179-06158
90406-12003
90407-06002
90467-17011
90467-23003
90480-20015
90560-08050
90560-11025
90910-05207
91635-60835
91651-40816
91655-40835
91661-60835
94612-10601
96111-10750
96111-10830
96111-10850
Linked diagrams
1603
8717
