TCR10L-RFSGKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )EFI

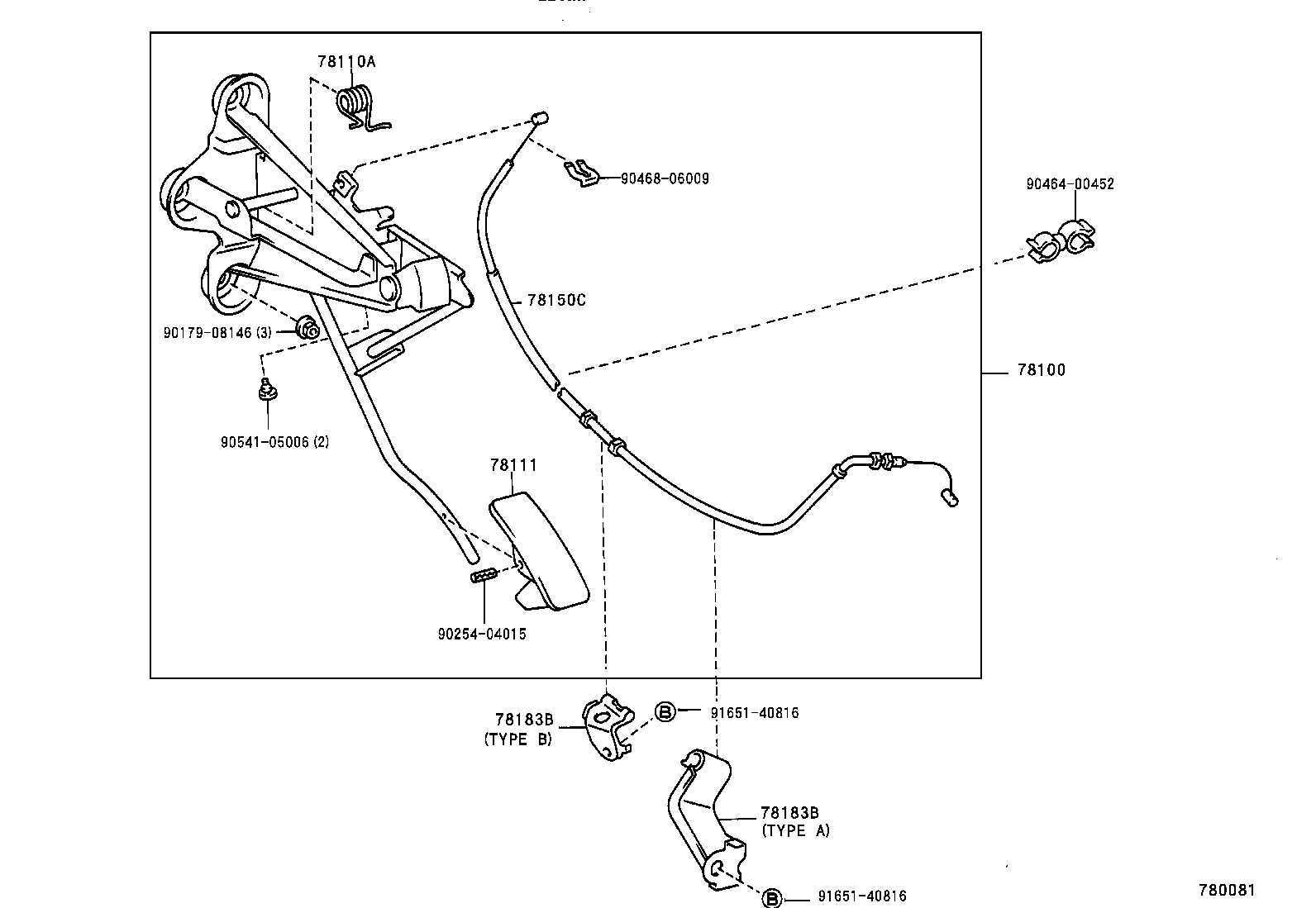

Click highlighted areas on diagram

diagram 78100 78110A 78111 78150C 78183B 78183B 9017908146 9025404015 9046400452 9046806009 9054105006 9165140816 9165140816
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-95D01

TCR10,20

 1
78100-28070

TCR10,20..ATM

 1
78100-95D00

TCR10,20

W(CRUISE CONTROL)

 1
78100-28090

TCR10,20..ATM

W(CRUISE CONTROL)

 1
78100-28090

TCR10,20..07S

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-40009

TCR10,20

 1
78111 - PEDAL, ACCELERATOR
78111-95D00

TCR10,20

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95D02

TCR10,20

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28010

TCR10,20

TYPE A

 1
78183-95D01

TCR10,20

TYPE B

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28010

TCR10,20

TYPE A

 1
78183-95D01

TCR10,20

TYPE B

 1
Common parts
90179-08146
90254-04015
90464-00452
90468-06009
90541-05006
91651-40816
