TCR10L-RFSGKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1996
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

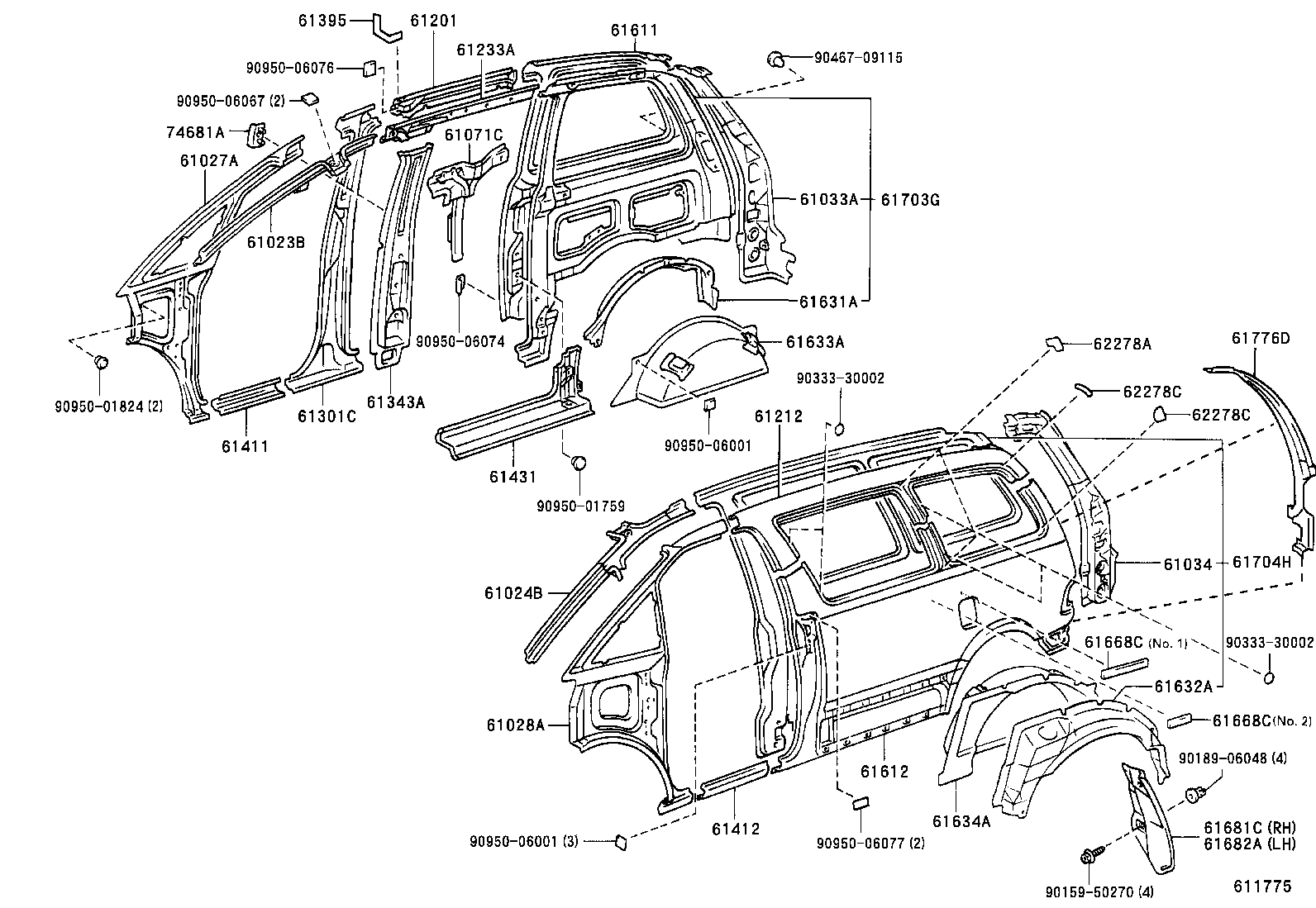

Click highlighted areas on diagram

diagram 61023B 61024B 61027A 61028A 61033A 61034 61071C 61201 61212 61233A 61301C 61343A 61395 61411 61412 61431 61611 61612 61631A 61632A 61633A 61634A 61668C 61668C 61681C 61682A 61703G 61704H 61776D 62278A 62278C 62278C 74681A 9015950270 9018906048 9033330002 9033330002 9046709115 9095001759 9095001824 9095006001 9095006001 9095006067 9095006074 9095006076 9095006077
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95D03

TCR10,20

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95D03

TCR10,20

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-28040

TCR10,20

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-28080

TCR10,20

 1
61071C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
61071-95D01

TCR10,20

 1
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-28030

TCR10,20

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61202-28060

TCR10,20

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-95D00

TCR10,20

 1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-28080

TCR10,20

 1
61301-28090

TCR10,20..USA;TCR20..CND..SPC

W(SECURITY SYSTEM)

 1
61301-28090

TCR10,20..07S..USA

W(SECURITY SYSTEM)

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-95D00

TCR10,20

 1
61395 - SEAL, CENTER BODY PILLAR, RH
61395-95D00

TCR10,20

 1
61411 - PANEL, ROCKER, OUTER RH
61411-28010

TCR10,20

 1
61412 - PANEL, ROCKER, OUTER LH
61412-28010

TCR10,20

 1
61431 - PANEL, ROCKER, OUTER REAR RH
61431-95D00

TCR10,20

 1
61611 - PANEL, QUARTER, RH
61601-2J100

TCR10..07S..USA

CHINA SPEC

 1
61601-28280

TCR10,20

 1
61612 - PANEL, QUARTER, LH
61602-28820

TCR10,20

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-95D00

TCR10,20..07S

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-95D01

TCR10,20..07S

 1
61668C - SEAL, QUARTER PANEL, NO.2
61668-28010

TCR20;TCR10..ATM;TCR10..MTM..USA

 1
61668-28010

TCR10,20

280 X 60

 1
61668-28010

TCR10,20

 1
61668C - SEAL, QUARTER PANEL, NO.2
61668-28010

TCR20;TCR10..ATM;TCR10..MTM..USA

 1
61668-28010

TCR10,20

280 X 60

 1
61668-28010

TCR10,20

 1
61681C - EXTENSION, REAR WHEEL OPENING, RH
61681-95D00

TCR10,20

 1
61682A - EXTENSION, REAR WHEEL OPENING, LH
61682-95D00

TCR10,20

 1
61703G - PANEL SUB-ASSY, QUARTER, INNER RH
61703-28180

TCR10,20..07S

 1
61703-28150

TCR10,20..07S

W(CAPTAIN SEAT)

 1
61703-28150

TCR10,20..07S

W(CAPTAIN SEAT & RETRCTOR)

 1
61704H - PANEL SUB-ASSY, QUARTER, INNER LH
61704-28210

TCR10,20..07S

W(TONNEAU COVER)

 1
61704-28230

TCR10,20

 1
61704-28210

TCR10,20

W(TONNEAU COVER)

 1
61704-28290

TCR10..07S..USA

CHINA SPEC

 1
61704-95D04

TCR10,20..07S

 1
61704-28230

TCR10,20..07S

 1
61776D - FRAME, BACK DOOR OPENING SIDE, LH
61706-95D00

TCR10,20

 1
Common parts
90159-50270
90189-06048
90333-30002
90467-09115
90950-01759
90950-01824
90950-06001
90950-06067
90950-06074
90950-06076
90950-06077
