TCR10L-RFSGKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1996
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

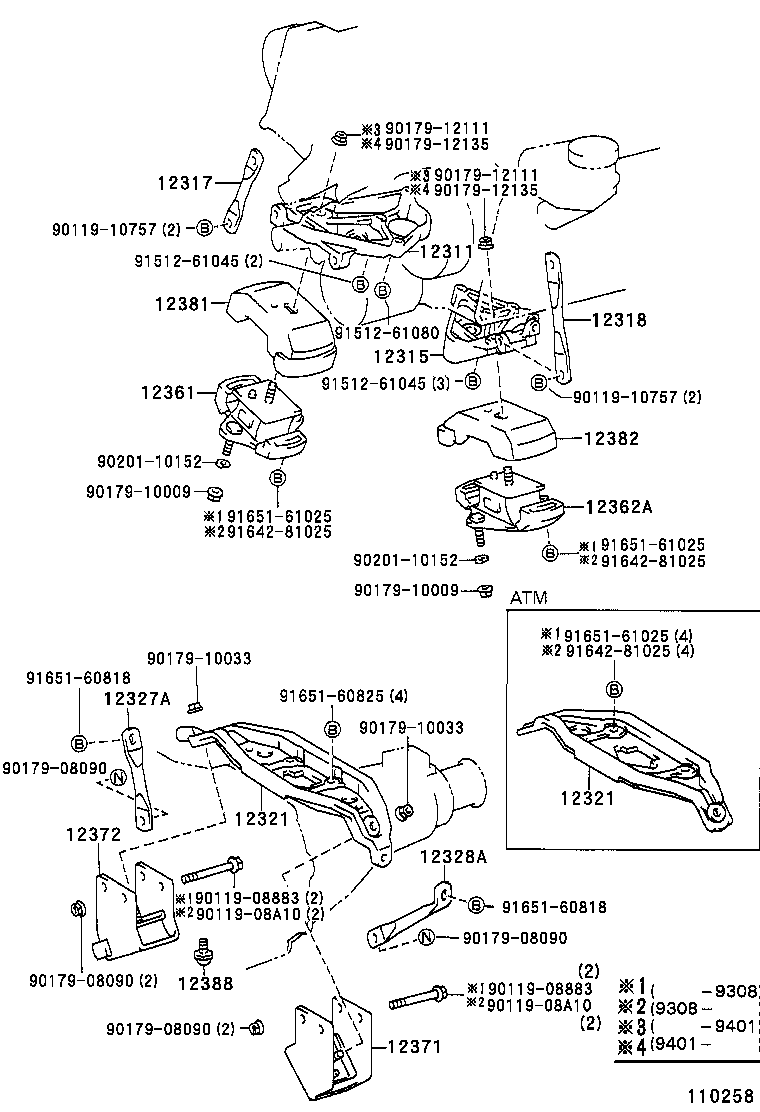

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08883 | ||||
| 90119-08A10 | ||||
| 90119-10757 | ||||
| 90179-08090 | ||||
| 90179-10009 | ||||
| 90179-10016 | ||||
| 90179-12111 | ||||
| 90179-12135 | ||||
| 90201-10152 | ||||
| 91512-61045 | ||||
| 91512-61080 | ||||
| 91631-60816 | ||||
| 91641-80825 | ||||
| 91642-81025 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 91651-61025 | ||||
(9001-9608)2TZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-76040 |
2TZ#..TCR10,20 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-76040 |
2TZ#..TCR10,20 |
1 | ||
| 12315-76041 |
2TZ#..TCR10,20 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-76010 |
2TZ#..TCR10,20 |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-76010 |
2TZ#..TCR10,20 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-76040 |
2TZFE..TCR10,20..ATM |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-76040 |
2TZFE..TCR10,20..ATM |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-76041 |
2TZ#..TCR10,20 |
1 | ||
| 12361-76040 |
2TZFE..TCR10,20 |
1 | ||
| 12361-76042 |
2TZ#..TCR10,20 |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12362-76010 |
2TZFE..TCR10,20 |
1 | ||
| 12362-76011 |
2TZ#..TCR10,20 |
1 | ||
| 12362-76012 |
2TZ#..TCR10,20 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-76040 |
2TZFE..TCR10,20 |
1 | ||
| 12371-76042 |
2TZFE..TCR10 |
1 | ||
| 12371-76041 |
2TZFE..TCR10,20 |
1 | ||
| 12372 - INSULATOR, ENGINE MOUNTING, REAR NO.2 | ||||
| 12372-76010 |
2TZFE..TCR10,20 |
1 | ||
| 12372-76011 |
2TZFE..TCR10,20 |
1 | ||
| 12372-76012 |
2TZFE..TCR10 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-76020 |
2TZ#..TCR10,20 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12382-76010 |
2TZ#..TCR10,20 |
1 | ||
| 12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR | ||||
| 12388-76010 |
2TZFE..TCR10,20 |
2 | ||
| Common parts | ||||
| 90119-08883 | ||||
| 90119-08A10 | ||||
| 90119-10757 | ||||
| 90179-08090 | ||||
| 90179-10009 | ||||
| 90179-10033 | ||||
| 90179-12111 | ||||
| 90179-12135 | ||||
| 90201-10152 | ||||
| 91512-61045 | ||||
| 91512-61080 | ||||
| 91642-81025 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 91651-61025 | ||||
