TCR10L-RESDVA (1994)
Toyota Previa
Production
Jan 1994
-
Jul 1997
Engine
2TZFZE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9401-9707)SPC

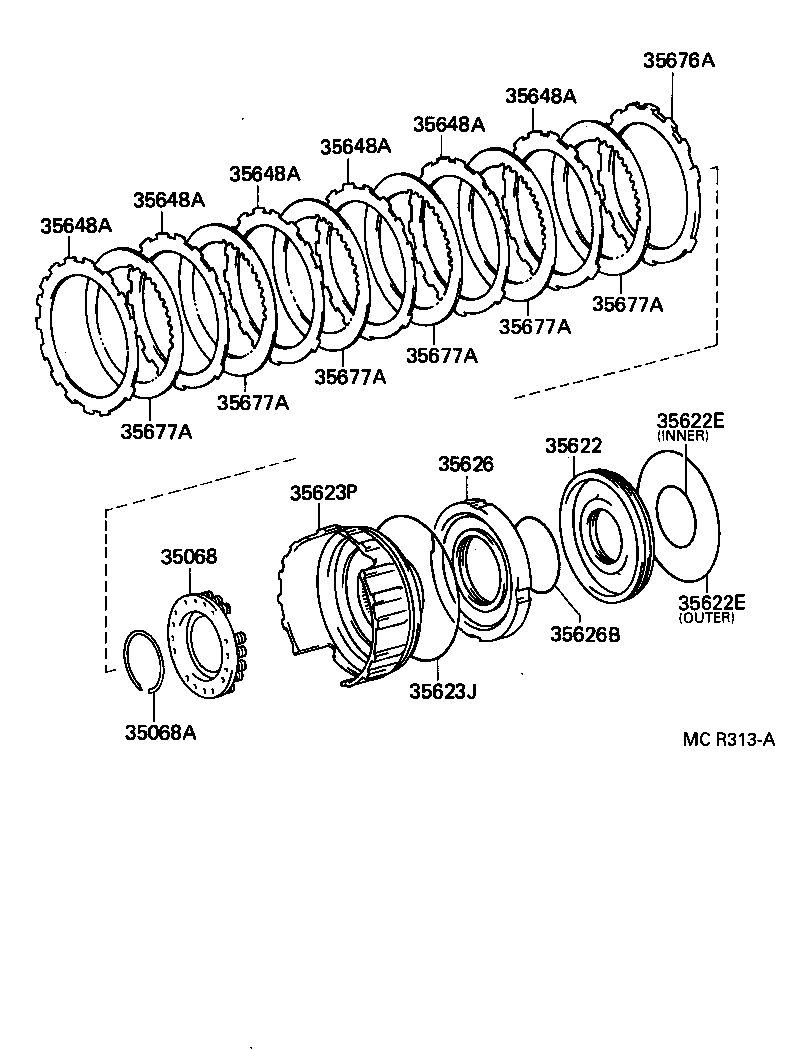

Click highlighted areas on diagram
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-30011 |
TCR10,20..SPC |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
TCR10,20..SPC |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
TCR10,20..SPC |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-57188 |
TCR10,20..ATM INNER |
1 | ||
| 90301-99193 |
TCR10,20..ATM OUTER |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-57188 |
TCR10,20..ATM INNER |
1 | ||
| 90301-99193 |
TCR10,20..ATM OUTER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99192 |
TCR10,20..SPC |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-30012 |
TCR10,20..SPC |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
TCR10,20..SPC |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
TCR10,20..ATM |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
TCR10..SPC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
TCR10..SPC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
TCR10..SPC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
TCR10..SPC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
TCR10..SPC |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
TCR10..SPC |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-30100 |
TCR10,20 T=5.2 |
1 | ||
| 35676-50020 |
TCR10,20..SPC T=4.8 |
1 | ||
| 35676-30110 |
TCR10,20 T=5.4 |
1 | ||
| 35676-50060 |
TCR10,20..SPC T=4.0 |
1 | ||
| 35676-50010 |
TCR10,20..SPC T=5.0 |
1 | ||
| 35676-50040 |
TCR10,20..SPC T=4.4 |
1 | ||
| 35676-50050 |
TCR10,20..SPC T=4.2 |
1 | ||
| 35676-50030 |
TCR10,20..SPC T=4.6 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
TCR10,20..SPC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
TCR10,20..SPC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
TCR10,20..SPC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
TCR10,20..SPC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
TCR10,20..SPC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
TCR10,20..SPC |
6 | ||
