TCR10L-RESDVA (1994)
Toyota Previa
Production
Jan 1994
-
Jul 1997
Engine
2TZFZE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005-9608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-03002 | ||||
| 90445-08279 | ||||
| 90445-10058 | ||||
| 90445-10059 | ||||
| 90447-04123 | ||||
| 90447-04133 | ||||
| 90447-10021 | ||||
| 90464-00020 | ||||
| 90464-00299 | ||||
| 90464-00504 | ||||
| 90464-00514 | ||||
| 90464-00567 | ||||
| 90464-00608 | ||||
| 90464-00612 | ||||
| 90467-10088 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91642-80610 | ||||
| 91642-80816 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||
(9401- )2TZFZE

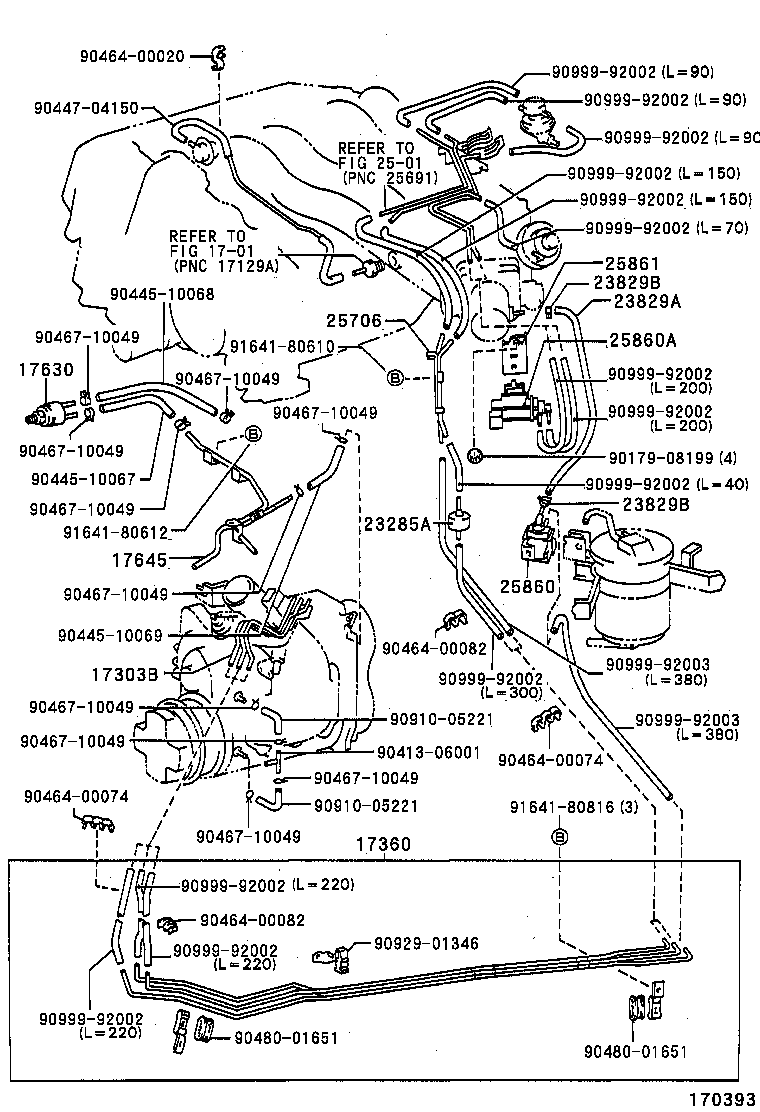

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 17360 - TUBE ASSY, AIR | ||||
| 17360-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15060 |
2TZFZE..TCR10,20 |
1 | ||
| 17645 - PIPE, IDLE UP | ||||
| 17645-76020 |
2TZFZE..TCR10,20 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2TZFZE..TCR10,20 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-76010 |
2TZFZE..TCR10,20 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-09173 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-09174 |
2TZFZE..TCR10,20 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-09173 |
2TZFZE..TCR10,20 |
2 | ||
| 90467-09174 |
2TZFZE..TCR10,20 |
2 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-76030 |
2TZFZE..TCR10,20 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75070 |
2TZFZE..TCR10,20 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12093 |
2TZFZE..TCR10,20 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-76010 |
2TZFZE..TCR10,20 |
1 | ||
| Common parts | ||||
| 90179-08199 | ||||
| 90413-06001 | ||||
| 90445-10067 | ||||
| 90445-10068 | ||||
| 90445-10069 | ||||
| 90447-04150 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90467-10049 | ||||
| 90480-01651 | ||||
| 90910-05221 | ||||
| 90929-01346 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91641-80610 | ||||
| 91641-80612 | ||||
| 91641-80816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2501 | ||||
