TCR10L-RESDKK (1990)
Toyota Previa
ILLUST NO. 1 OF 2(9308- )
NOZZLE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90469-07004 | ||||
ILLUST NO. 1 OF 2(9005-9308)
NOZZLE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR10,20 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-28020 |
TCR10,20 LH |
1 | ||
| 85382-28011 |
TCR10,20 RH |
1 | ||
| 85382-28010 |
TCR10,20 RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-28020 |
TCR10,20 LH |
1 | ||
| 85382-28011 |
TCR10,20 RH |
1 | ||
| 85382-28010 |
TCR10,20 RH |
1 | ||
| 85035A - NOZZLE, FR WASHER, RH | ||||
| 85381-28020 |
TCR10,20 LH |
1 | ||
| 85381-28010 |
TCR10,20 RH |
1 | ||
| 85381-28021 |
TCR10,20 LH |
1 | ||
| 85035A - NOZZLE, FR WASHER, RH | ||||
| 85381-28020 |
TCR10,20 LH |
1 | ||
| 85381-28010 |
TCR10,20 RH |
1 | ||
| 85381-28021 |
TCR10,20 LH |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-95D07 |
TCR10,20 LH |
1 | ||
| 85370-95D06 |
TCR10,20 RH |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-95D07 |
TCR10,20 LH |
1 | ||
| 85370-95D06 |
TCR10,20 RH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
TCR10,20 *H,L=40,NO.1 |
1 | ||
| 90099-33382 |
TCR10,20 *H,L=1080,NO.3 |
1 | ||
| 90099-33299 |
TCR10,20 *H,L=370,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
TCR10,20 *H,L=40,NO.1 |
1 | ||
| 90099-33382 |
TCR10,20 *H,L=1080,NO.3 |
1 | ||
| 90099-33299 |
TCR10,20 *H,L=370,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
TCR10,20..ATM L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
TCR10,20..ATM L=1450 |
1 | ||
| 85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE) | ||||
| 85374-28010 |
TCR10,20 RH |
1 | ||
| 85374-28020 |
TCR10,20 LH |
1 | ||
| 85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE) | ||||
| 85374-28010 |
TCR10,20 RH |
1 | ||
| 85374-28020 |
TCR10,20 LH |
1 | ||
| Common parts | ||||
| 90469-07004 | ||||
ILLUST NO. 2 OF 2(9005- )
JAR & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 85336-95D00 | ||||
| 90119-08A83 | ||||
| 91661-60816 | ||||
| 91666-40820 | ||||
| Linked diagrams | ||||
| 8504 | ||||

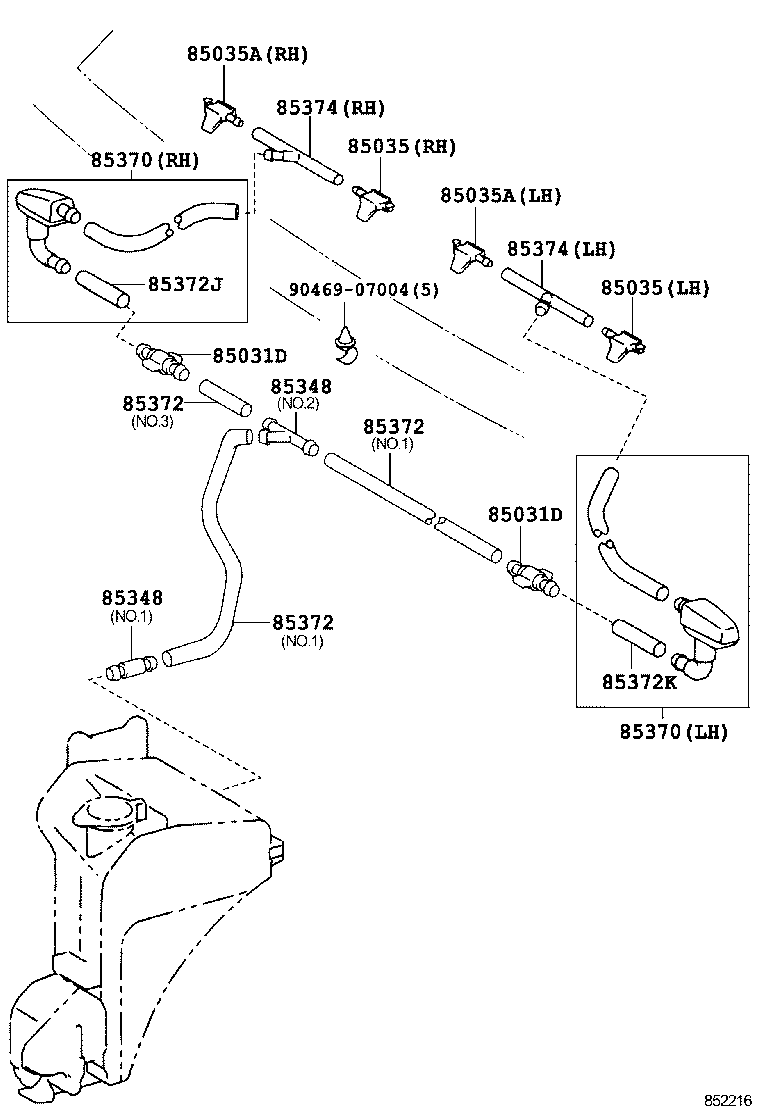

ILLUST NO. 1 OF 2(9308- )
NOZZLE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR10,20 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-28020 |
TCR10,20 LH |
1 | ||
| 85382-28011 |
TCR10,20 RH |
1 | ||
| 85382-28010 |
TCR10,20 RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-28020 |
TCR10,20 LH |
1 | ||
| 85382-28011 |
TCR10,20 RH |
1 | ||
| 85382-28010 |
TCR10,20 RH |
1 | ||
| 85035A - NOZZLE, FR WASHER, RH | ||||
| 85381-28020 |
TCR10,20 LH |
1 | ||
| 85381-28010 |
TCR10,20 RH |
1 | ||
| 85381-28021 |
TCR10,20 LH |
1 | ||
| 85035A - NOZZLE, FR WASHER, RH | ||||
| 85381-28020 |
TCR10,20 LH |
1 | ||
| 85381-28010 |
TCR10,20 RH |
1 | ||
| 85381-28021 |
TCR10,20 LH |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-95D07 |
TCR10,20 LH |
1 | ||
| 85370-95D06 |
TCR10,20 RH |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-95D07 |
TCR10,20 LH |
1 | ||
| 85370-95D06 |
TCR10,20 RH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
TCR10,20 *H,L=40,NO.1 |
1 | ||
| 90099-33382 |
TCR10,20 *H,L=1080,NO.3 |
1 | ||
| 90099-33299 |
TCR10,20 *H,L=370,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
TCR10,20 *H,L=40,NO.1 |
1 | ||
| 90099-33382 |
TCR10,20 *H,L=1080,NO.3 |
1 | ||
| 90099-33299 |
TCR10,20 *H,L=370,NO.2 |
1 | ||
| 85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE) | ||||
| 85374-28010 |
TCR10,20 RH |
1 | ||
| 85374-28020 |
TCR10,20 LH |
1 | ||
| 85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE) | ||||
| 85374-28010 |
TCR10,20 RH |
1 | ||
| 85374-28020 |
TCR10,20 LH |
1 | ||
| Common parts | ||||
| 90469-07004 | ||||

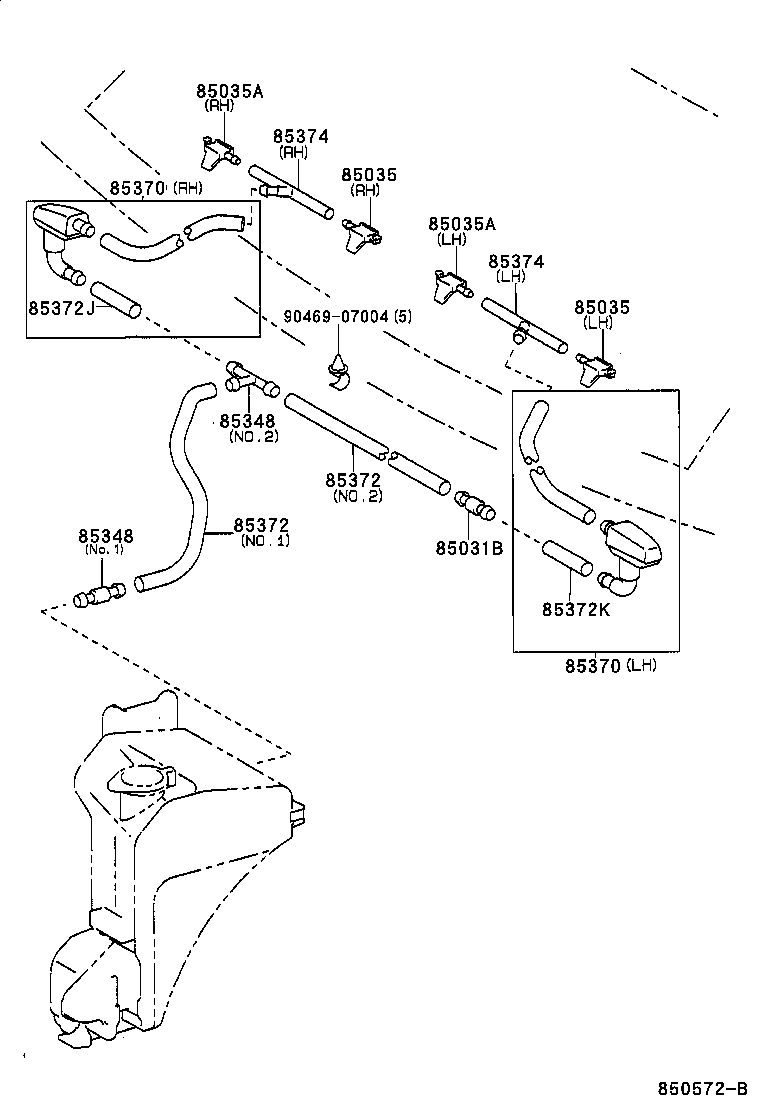

ILLUST NO. 1 OF 2(9001-9308)
NOZZLE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR10,20 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-28020 |
TCR10,20 LH |
1 | ||
| 85382-28011 |
TCR10,20 RH |
1 | ||
| 85382-28010 |
TCR10,20 RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-28020 |
TCR10,20 LH |
1 | ||
| 85382-28011 |
TCR10,20 RH |
1 | ||
| 85382-28010 |
TCR10,20 RH |
1 | ||
| 85035A - NOZZLE, FR WASHER, RH | ||||
| 85381-28020 |
TCR10,20 LH |
1 | ||
| 85381-28010 |
TCR10,20 RH |
1 | ||
| 85381-28021 |
TCR10,20 LH |
1 | ||
| 85035A - NOZZLE, FR WASHER, RH | ||||
| 85381-28020 |
TCR10,20 LH |
1 | ||
| 85381-28010 |
TCR10,20 RH |
1 | ||
| 85381-28021 |
TCR10,20 LH |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-95D07 |
TCR10,20 LH |
1 | ||
| 85370-95D06 |
TCR10,20 RH |
1 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-95D07 |
TCR10,20 LH |
1 | ||
| 85370-95D06 |
TCR10,20 RH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
TCR10,20 *H,L=40,NO.1 |
1 | ||
| 90099-33382 |
TCR10,20 *H,L=1080,NO.3 |
1 | ||
| 90099-33299 |
TCR10,20 *H,L=370,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
TCR10,20 *H,L=40,NO.1 |
1 | ||
| 90099-33382 |
TCR10,20 *H,L=1080,NO.3 |
1 | ||
| 90099-33299 |
TCR10,20 *H,L=370,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
TCR10,20..ATM L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
TCR10,20..ATM L=1450 |
1 | ||
| 85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE) | ||||
| 85374-28010 |
TCR10,20 RH |
1 | ||
| 85374-28020 |
TCR10,20 LH |
1 | ||
| 85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE) | ||||
| 85374-28010 |
TCR10,20 RH |
1 | ||
| 85374-28020 |
TCR10,20 LH |
1 | ||
| Common parts | ||||
| 90469-07004 | ||||

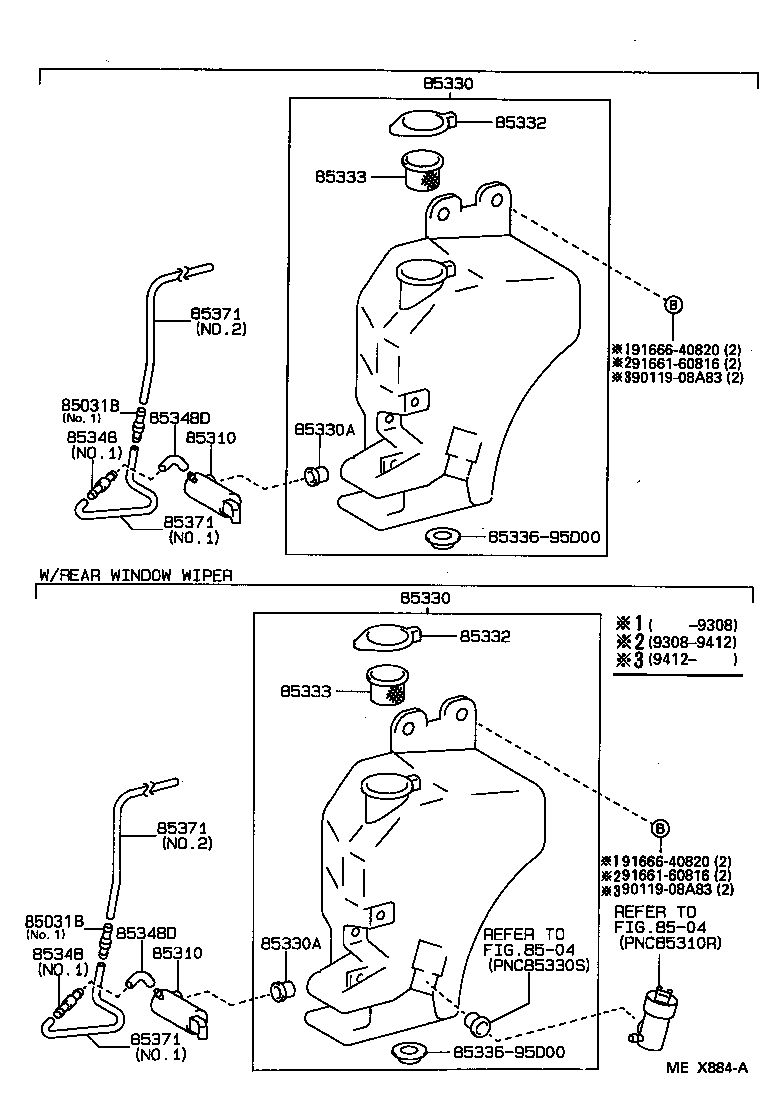

ILLUST NO. 2 OF 2(9001- )EFI
JAR & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR10,20 |
2 | ||
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR10,20 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-28040 |
TCR10,20..EFI |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-28040 |
TCR10,20..EFI |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-95D02 |
TCR10,20 |
1 | ||
| 85330-95D03 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| 85330-95D03 |
TCR10,20 W(REAR WINDOW WIPER) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-95D02 |
TCR10,20 |
1 | ||
| 85330-95D03 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| 85330-95D03 |
TCR10,20 W(REAR WINDOW WIPER) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
TCR10,20 W(REAR WINDOW WIPER),FRONT |
1 | ||
| 90099-32103 |
TCR10,20 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
TCR10,20 W(REAR WINDOW WIPER),FRONT |
1 | ||
| 90099-32103 |
TCR10,20 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12660 |
TCR10,20 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12660 |
TCR10,20 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
TCR10,20..EFI |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
TCR10,20..EFI |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
TCR10,20..EFI NO.1 |
1 | ||
| 85355-20200 |
TCR10,20 W(*RW),NO.3 |
1 | ||
| 85355-20200 |
TCR10,20..CND;TCR10,20..07S..USA NO.3 |
1 | ||
| 85348-12250 |
TCR10,20 NO.2 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-16192 |
TCR10,20 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-16192 |
TCR10,20 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
TCR10,20..EFI *H,L=640 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
TCR10,20..EFI *H,L=640 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
TCR10,20..EFI *H,L=640 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
TCR10,20..EFI *H,L=640 |
1 | ||
| Common parts | ||||
| 85336-95D00 | ||||
| 90119-08A83 | ||||
| 91661-60816 | ||||
| 91666-40820 | ||||
| Linked diagrams | ||||
| 8504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
