TCR10L-RESDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9005- )

Click highlighted areas on diagram

diagram 44610 44785 9017908038 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28730

TCR10,20

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

TCR10,20

 1
Common parts
90179-08038
90179-08057

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 44610 44785 9017908038 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28730

TCR10,20

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

TCR10,20

 1
Common parts
90179-08038
90179-08057

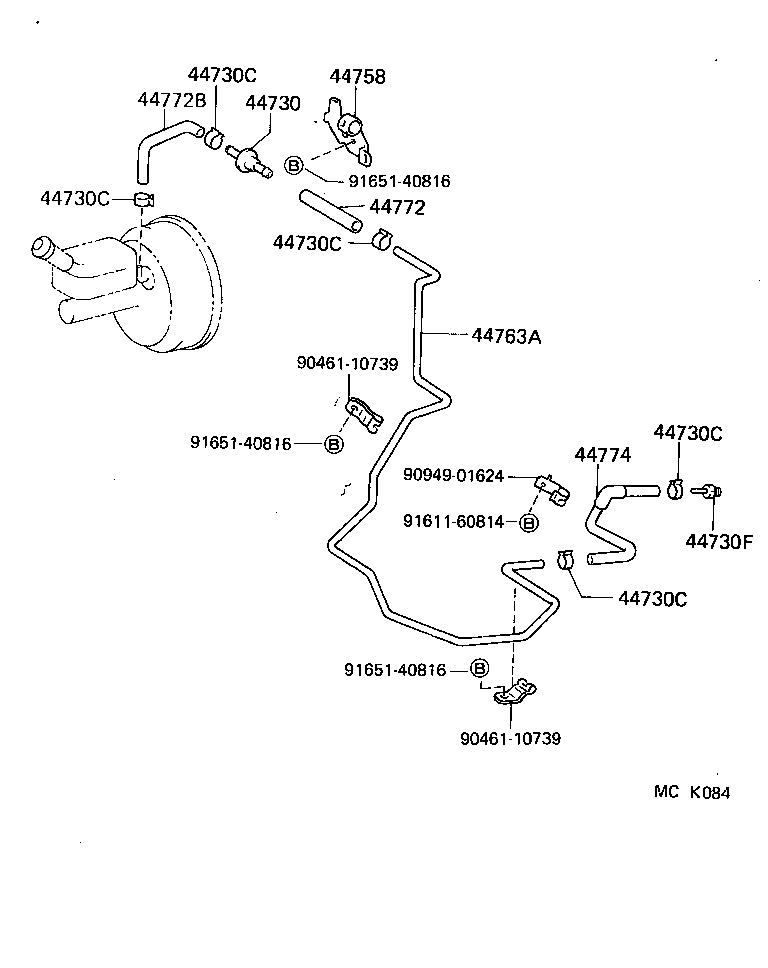

ILLUST NO. 2 OF 2(9001- )EFI

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730C 44730F 44758 44763A 44772 44772B 44774 9046110739 9046110739 9094901624 9161160814 9165140816 9165140816 9165140816
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

TCR10,20

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR10,20

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR10,20

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR10,20

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR10,20

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR10,20

 5
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

TCR10,20

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28100

TCR10,20

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-28010

TCR10,20..EFI

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

TCR10,20..EFI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-28060

TCR10,20

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28120

TCR10,20..EFI

 1
Common parts
90461-10739
90949-01624
91611-60814
91651-40816
