TCR10L-RESDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9608)EFI

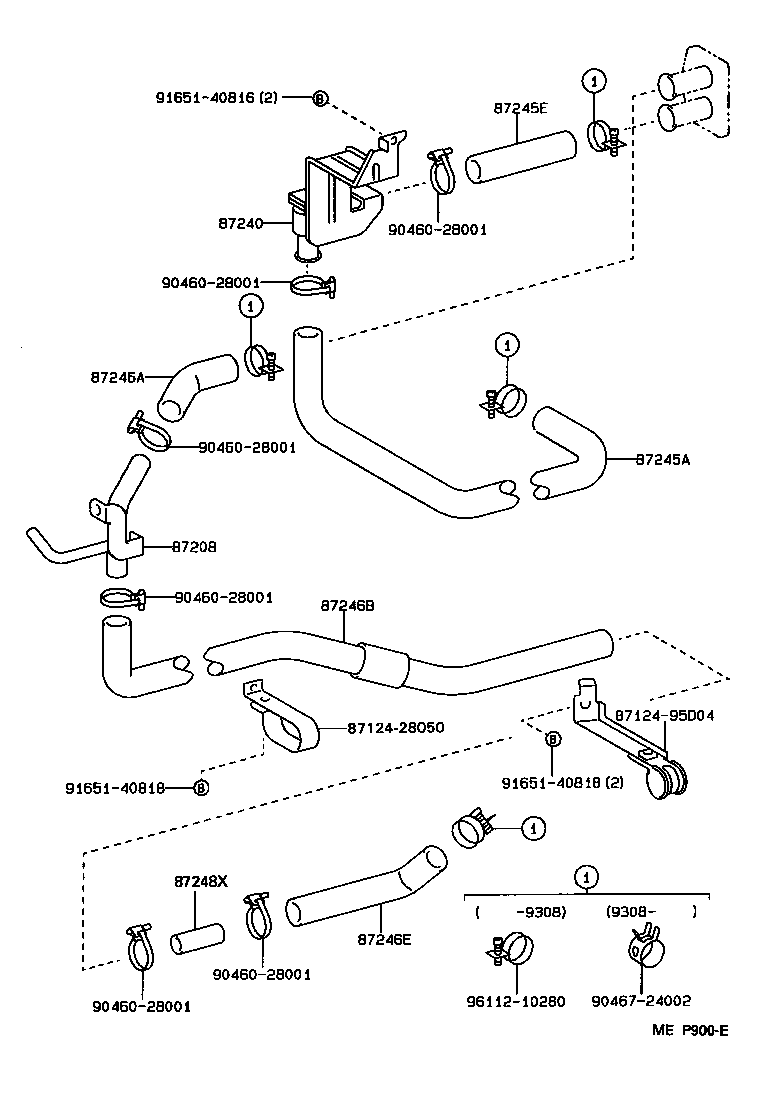

Click highlighted areas on diagram

diagram 8712428050 8712495D04 87208 87240 87245A 87245E 87246A 87246B 87246E 87248X 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046724002 9165140816 9165140818 9165140818 9611210280
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95D27

TCR10,20..EFI

 1
87240 - VALVE ASSY, HEATER WATER
87240-95D01

TCR10,20..EFI

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95D18

TCR10,20..EFI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95D17

TCR10,20..EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95D20

TCR10,20..EFI

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95D22

TCR10,20..EFI

L=710

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95D31

TCR10,20..EFI

 1
87248X - PIPE, HEATER WATER
87248-28020

TCR10,20..EFI

 1
Common parts
87124-28050
87124-95D04
90460-28001
90467-24002
91651-40816
91651-40818
96112-10280
