TCR10L-RESDKA (1990)
Toyota Previa
(9005- )ATM
A46DE,A46DF
| Part # | Description | Qty | Price |
|---|
(9001-9608)ATM..EFI
A46DE,A46DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

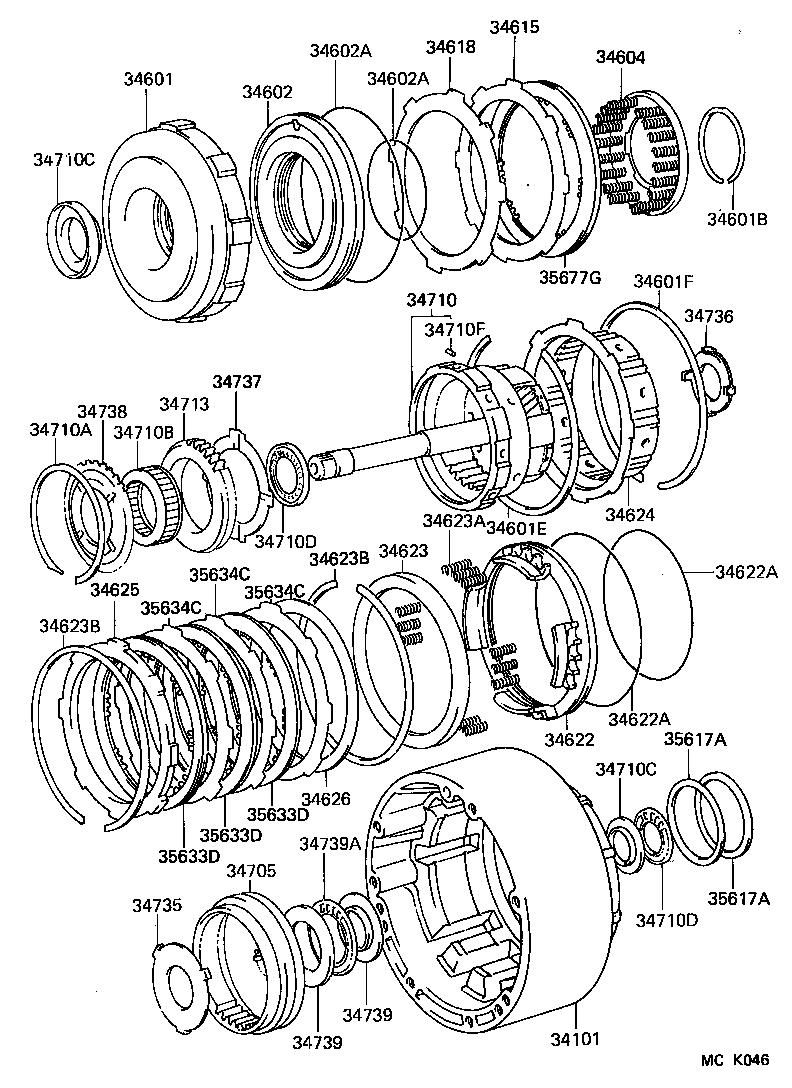

| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-30062 |
TCR10,20..ATM..EFI |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-28010 |
TCR10,20..ATM..EFI |
1 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
TCR10,20..ATM..EFI |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
TCR10,20..ATM..EFI |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
TCR10,20..ATM..EFI |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30030 |
TCR10,20..ATM..EFI |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
TCR10,20..ATM..EFI OUTER |
1 | ||
| 90301-57188 |
TCR10,20..ATM..EFI INNER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
TCR10,20..ATM..EFI OUTER |
1 | ||
| 90301-57188 |
TCR10,20..ATM..EFI INNER |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-22010 |
TCR10,20..ATM..EFI |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 35675-22010 |
TCR10,20..ATM..EFI T=4.0 |
1 | ||
| 34618 - PLATE, OVERDRIVE DIRECT CLUTCH CUSHION | ||||
| 34618-30010 |
TCR10,20..ATM..EFI |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30040 |
TCR10,20..ATM..EFI |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99009 |
TCR10,20..ATM..EFI OUTER |
1 | ||
| 90301-99008 |
TCR10,20..ATM..EFI INNER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99009 |
TCR10,20..ATM..EFI OUTER |
1 | ||
| 90301-99008 |
TCR10,20..ATM..EFI INNER |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
TCR10,20..ATM..EFI |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-11023 |
TCR10,20..ATM..EFI |
12 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
TCR10,20..ATM..EFI |
2 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
TCR10,20..ATM..EFI |
2 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-32010 |
TCR10,20..ATM |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-26010 |
TCR10,20..ATM..EFI T=4.0 |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
TCR10,20..ATM..EFI |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30021 |
TCR10,20..ATM..EFI |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-28030 |
TCR10,20..ATM..EFI |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
TCR10,20..ATM..EFI |
1 | ||
| 34710B - CLUTCH, 1WAY, NO.1(FOR OVERDRIVE) | ||||
| 35791-28010 |
TCR10,20..ATM..EFI |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
TCR10,20..ATM..EFI REAR |
1 | ||
| 35789-22010 |
TCR10,20..ATM..EFI FRONT |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30041 |
TCR10,20..ATM..EFI REAR |
1 | ||
| 35789-22010 |
TCR10,20..ATM..EFI FRONT |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
TCR10,20..ATM..EFI REAR |
1 | ||
| 90374-37003 |
TCR10,20..ATM..EFI FRONT |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
TCR10,20..ATM..EFI REAR |
1 | ||
| 90374-37003 |
TCR10,20..ATM..EFI FRONT |
1 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
TCR10,20..ATM..EFI |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-28010 |
TCR10,20..ATM..EFI |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30020 |
TCR10,20..ATM..EFI |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
TCR10,20..ATM..EFI |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-28010 |
TCR10,20..ATM..EFI |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-28010 |
TCR10,20..ATM..EFI |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
TCR10,20..ATM..EFI REAR |
1 | ||
| 34739-30020 |
TCR10,20..ATM..EFI FRONT |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 35789-22030 |
TCR10,20..ATM..EFI REAR |
1 | ||
| 34739-30020 |
TCR10,20..ATM..EFI FRONT |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
TCR10,20..ATM..EFI |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
TCR10,20..ATM..EFI |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
TCR10,20..ATM..EFI |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35677-30040 |
TCR10,20..ATM..EFI |
3 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35677-30040 |
TCR10,20..ATM..EFI |
3 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35677-30040 |
TCR10,20..ATM..EFI |
3 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34634-30010 |
TCR10,20..ATM..EFI T=2.25-2.35,T=2.25-2.35 |
1 | ||
| 35634-30080 |
TCR10,20..ATM..EFI T=1.95-2.05,T=1.95-2.05 |
1 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34634-30010 |
TCR10,20..ATM..EFI T=2.25-2.35,T=2.25-2.35 |
1 | ||
| 35634-30080 |
TCR10,20..ATM..EFI T=1.95-2.05,T=1.95-2.05 |
1 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34634-30010 |
TCR10,20..ATM..EFI T=2.25-2.35,T=2.25-2.35 |
1 | ||
| 35634-30080 |
TCR10,20..ATM..EFI T=1.95-2.05,T=1.95-2.05 |
1 | ||
| 35677G - DISC, CLUTCH, NO.3 (FOR OVERDRIVE) | ||||
| 35677-30120 |
TCR10,20..ATM |
1 | ||
