TCR10L-REMDKK (1990)
Toyota Previa
ILLUST NO. 1 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14560 | ||||
| 90119-08063 | ||||
| 90119-10718 | ||||
| 90167-20001 | ||||
| 90179-08059 | ||||
| 90463-12014 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 8 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06214 | ||||
| 90119-06390 | ||||
| 90119-06548 | ||||
| 90164-25001 | ||||
| 90189-05019 | ||||
| 93520-55016 | ||||
ILLUST NO. 7 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90094-90402 | ||||
| 90189-05037 | ||||
| 91651-40614 | ||||
| 93315-14014 | ||||
| 93319-13006 | ||||
| 93319-14006 | ||||
| 93510-14010 | ||||
| 93510-14012 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 6153 | ||||
ILLUST NO. 2 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90430-18008 | ||||
| 90430-36005 | ||||
| 91651-60614 | ||||
| 93385-16025 | ||||

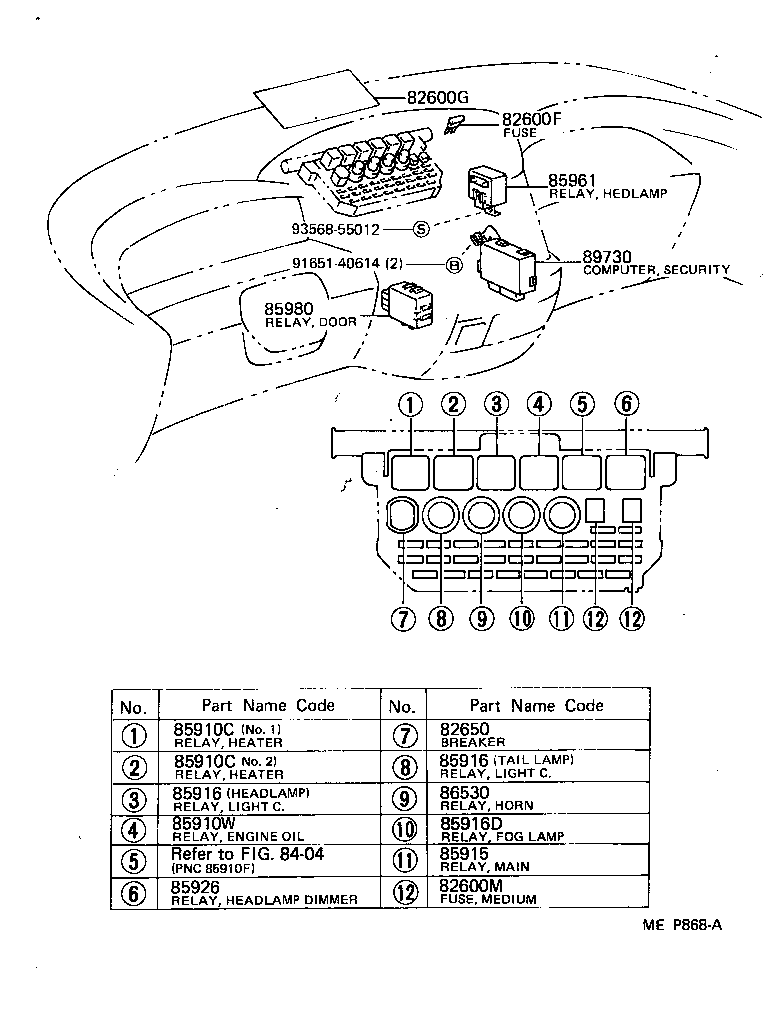

ILLUST NO. 1 OF 7(9001- )EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
TCR10,20 30A,GREEN |
1 | ||
| 90982-09002 |
TCR10,20 10A |
1 | ||
| 90982-09005 |
TCR10,20 7.5A |
1 | ||
| 90982-09004 |
TCR10,20 20A,YELLOW |
1 | ||
| 90982-09003 |
TCR10,20 15A |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-95D03 |
TCR20;TCR10..CND;TCR10..05S..USA DIAG |
1 | ||
| 82666-28020 |
TCR10,20..05S FRONT DOOR RH |
1 | ||
| 82666-95D03 |
TCR10,20 DIAG |
1 | ||
| 82666-28030 |
TCR10,20..05S FRONT FOOR LH |
1 | ||
| 82666-95D03 |
TCR10,20 DIAG |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-95D03 |
TCR20;TCR10..CND;TCR10..05S..USA DIAG |
1 | ||
| 82666-28020 |
TCR10,20..05S FRONT DOOR RH |
1 | ||
| 82666-95D03 |
TCR10,20 DIAG |
1 | ||
| 82666-28030 |
TCR10,20..05S FRONT FOOR LH |
1 | ||
| 82666-95D03 |
TCR10,20 DIAG |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28070 |
TCR10,20 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29415 |
TCR10,20..EFI RR(SUB, 2WIRE) |
1 | ||
| 89465-29495 |
TCR10,20..EFI FR(MAIN, 4WIRE) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29415 |
TCR10,20..EFI RR(SUB, 2WIRE) |
1 | ||
| 89465-29495 |
TCR10,20..EFI FR(MAIN, 4WIRE) |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
TCR10,20..EFI |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
TCR10,20..EFI |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
TCR10,20 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-28020 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 88276-28060 | ||||
| 90119-06029 | ||||
| 90119-08063 | ||||
| 90119-10718 | ||||
| 90167-20001 | ||||
| 90179-08059 | ||||
| 90463-12014 | ||||
| 91641-80812 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8202 | ||||

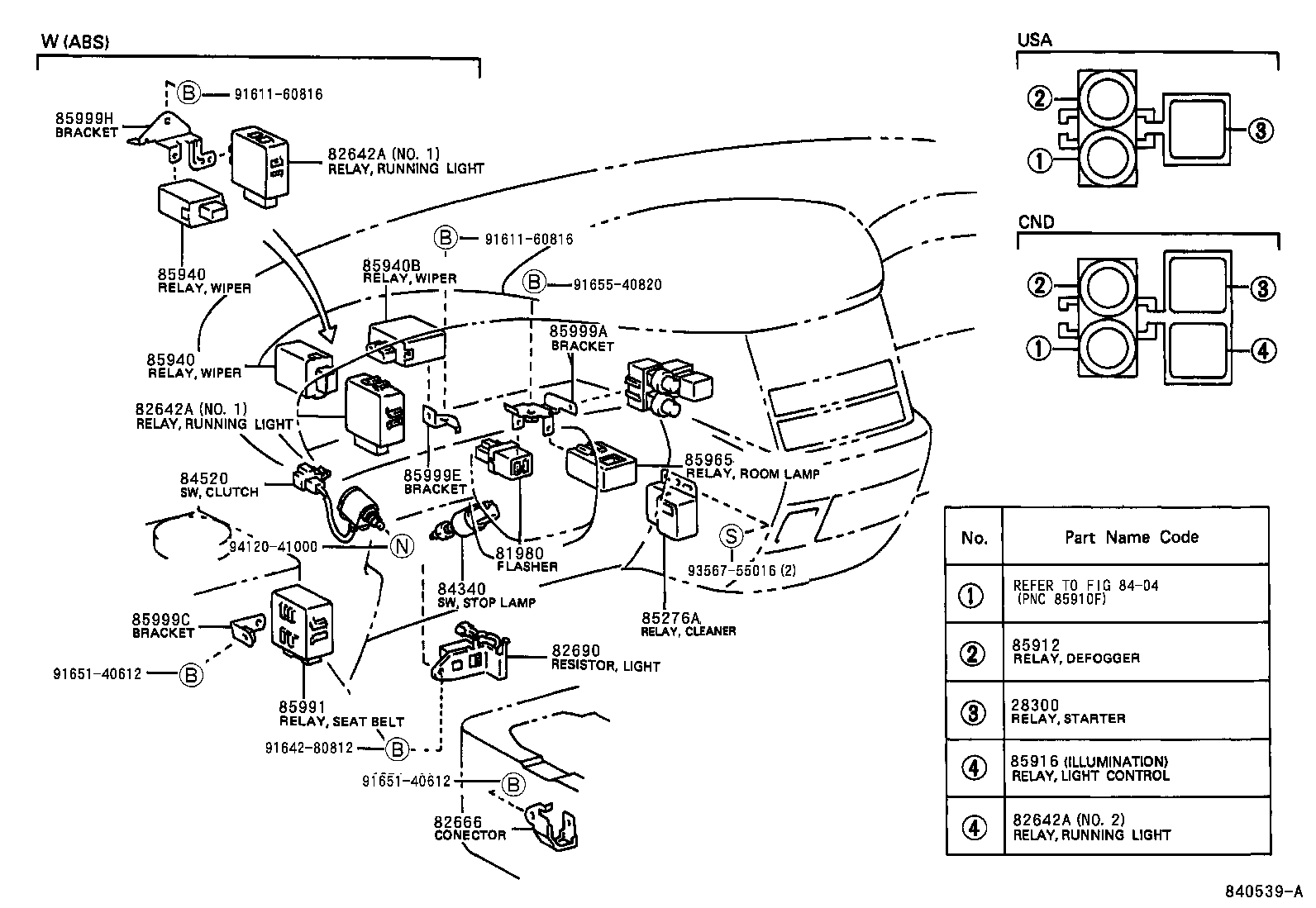

ILLUST NO. 6 OF 7(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
2TZFE..TCR10,20..MTM |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
TCR10,20 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-13020 |
TCR10,20..CND |
1 | ||
| 90987-02004 |
TCR10,20..CND NO.2 |
1 | ||
| 82642-12010 |
TCR10,20..CND |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-13020 |
TCR10,20..CND |
1 | ||
| 90987-02004 |
TCR10,20..CND NO.2 |
1 | ||
| 82642-12010 |
TCR10,20..CND |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-13020 |
TCR10,20..CND |
1 | ||
| 90987-02004 |
TCR10,20..CND NO.2 |
1 | ||
| 82642-12010 |
TCR10,20..CND |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-95D03 |
TCR20;TCR10..CND;TCR10..05S..USA DIAG |
1 | ||
| 82666-28020 |
TCR10,20..05S FRONT DOOR RH |
1 | ||
| 82666-95D03 |
TCR10,20 DIAG |
1 | ||
| 82666-28030 |
TCR10,20..05S FRONT FOOR LH |
1 | ||
| 82666-95D03 |
TCR10,20 DIAG |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-28010 |
TCR10,20 |
1 | ||
| 84340-28030 |
TCR10,20 W(CRUISE CONTROL) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-20020 |
TCR10,20..MTM |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
TCR10,20 |
1 | ||
| 90987-02004 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
TCR10,20 TAIL LAMP |
1 | ||
| 90987-04002 |
TCR10,20..CND ILLUMINATION |
1 | ||
| 90987-02006 |
TCR10,20 HEADLAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95D00 |
TCR10,20 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95D00 |
TCR10,20 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-95D01 |
TCR10,20 |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-28010 |
TCR10,20 |
1 | ||
| 85991-28020 |
TCR10,20 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-95D06 |
TCR10,20 |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-95D10 |
TCR10,20..MTM |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-95D11 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91642-80812 | ||||
| 91651-40612 | ||||
| 91655-40820 | ||||
| 93567-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8404 | ||||

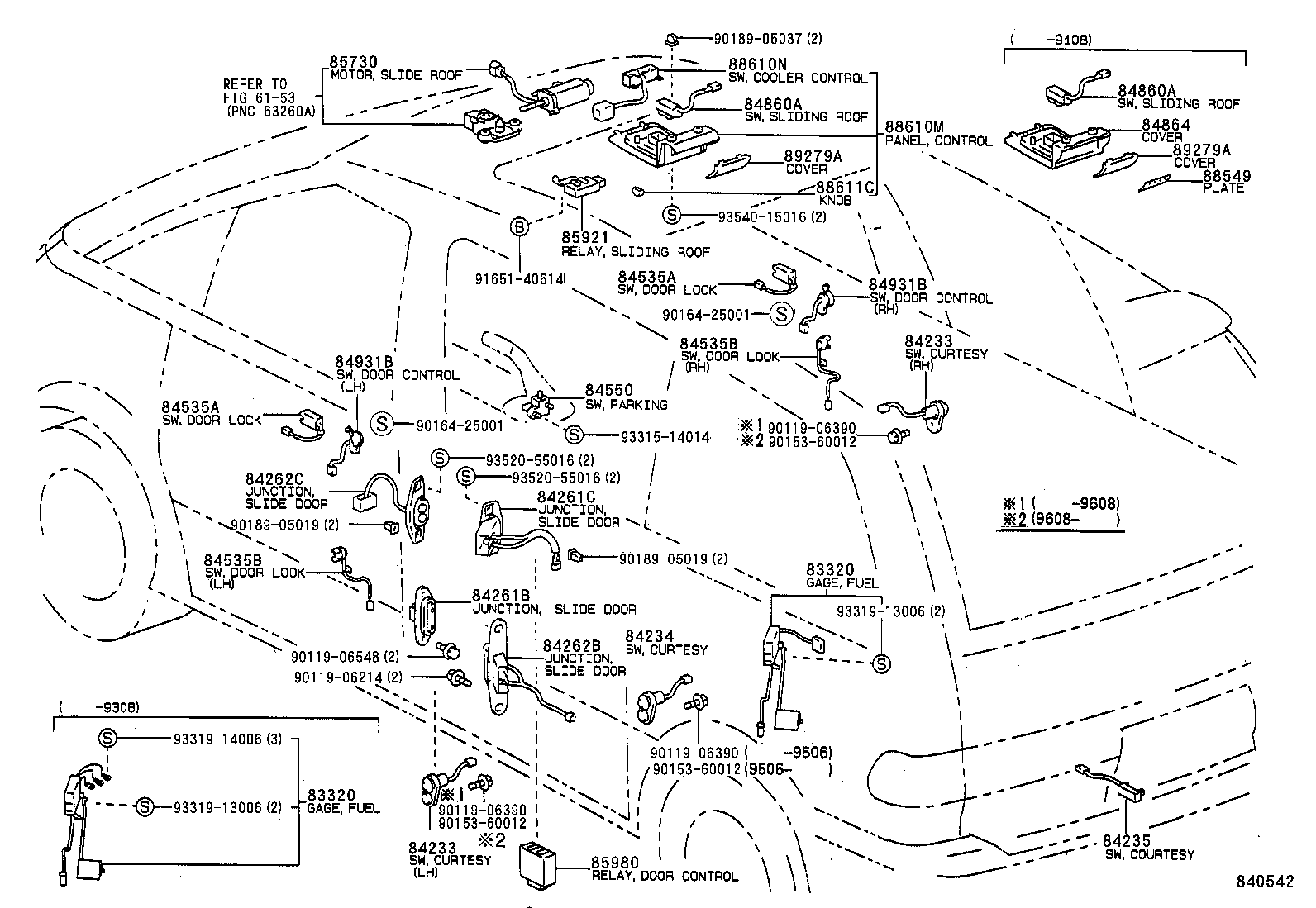

ILLUST NO. 7 OF 7(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80180 |
TCR10,20 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80180 |
TCR10,20 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95D03 |
TCR10,20 PASENGER SIDE |
1 | ||
| 84230-95D00 |
TCR10,20 DRIVER SID |
1 | ||
| 84230-95D00 |
TCR10,20 DRIVER SIDE |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95D03 |
TCR10,20 PASENGER SIDE |
1 | ||
| 84230-95D00 |
TCR10,20 DRIVER SID |
1 | ||
| 84230-95D00 |
TCR10,20 DRIVER SIDE |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95D01 |
TCR10,20 |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-95D02 |
TCR10,20 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-95D02 |
TCR10,20 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95D02 |
TCR10,20 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
TCR10,20 |
2 | ||
| 84550-12060 |
TCR10,20 |
1 | ||
| 84864 - COVER, SLIDE ROOF MOTOR SWITCH | ||||
| 84864-95D00 |
TCR20;TCR10..05S |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-95D01 |
TCR10,20 RH |
1 | ||
| 84931-95D00 |
TCR10,20 LH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-95D01 |
TCR10,20 RH |
1 | ||
| 84931-95D00 |
TCR10,20 LH |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-95D00 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| 85980-95D00 |
TCR10;TCR20..CND;TCR20..07S..USA;TCR20..MTM..USA |
1 | ||
| 88549 - PLATE, CAUTION | ||||
| 74588-28010 |
TCR10,20 |
1 | ||
| 88610M - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28120 |
TCR10..05S;TCR20..07S;TCR10..07S..USA;TCR20..05S..USA |
1 | ||
| 88610N - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28140 |
TCR10;TCR20..07S;TCR20..05S..USA |
1 | ||
| 88611C - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-28020C0 |
TCR10;TCR20..07S;TCR20..05S..USA BLACK |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-95D00 |
TCR10,20 |
1 | ||
| 89279-28020 |
TCR10;TCR20..07S;TCR20..05S..USA |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-95D00 |
TCR10,20 |
1 | ||
| 89279-28020 |
TCR10;TCR20..07S;TCR20..05S..USA |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-06390 | ||||
| 90119-06548 | ||||
| 90153-60012 | ||||
| 90164-25001 | ||||
| 90189-05019 | ||||
| 90189-05037 | ||||
| 91651-40614 | ||||
| 93315-14014 | ||||
| 93319-13006 | ||||
| 93319-14006 | ||||
| 93520-55016 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 6153 | ||||

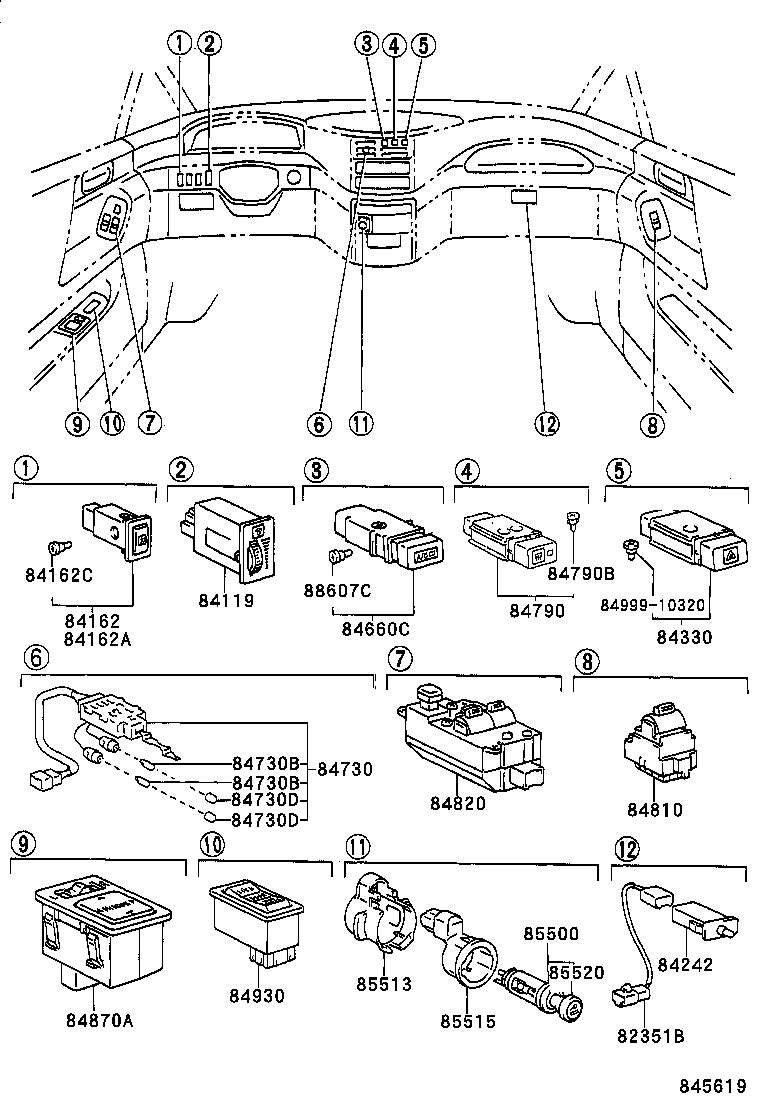

ILLUST NO. 3 OF 7(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-95D00 |
TCR10,20 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95D00 |
TCR10,20 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95D00 |
TCR10,20 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95D00 |
TCR10,20 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
TCR10,20 14V 1.4W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
TCR10,20 14V 1.4W |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10390 |
TCR10,20 |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10390 |
TCR10,20 |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95D00 |
TCR10,20 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
TCR10,20 14V 0.84W |
1 | ||
| 84999-10470 |
TCR10,20 14V 1.12W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
TCR10,20 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-95D00 |
TCR10,20 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
TCR10,20 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28010 |
TCR10,20 |
1 | ||
| 84930-28011 |
TCR10,20 |
1 | ||
| 84930-28030 |
TCR10,20..CND |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
TCR10,20 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
TCR10,20 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
TCR10,20 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 84999-10320 | ||||

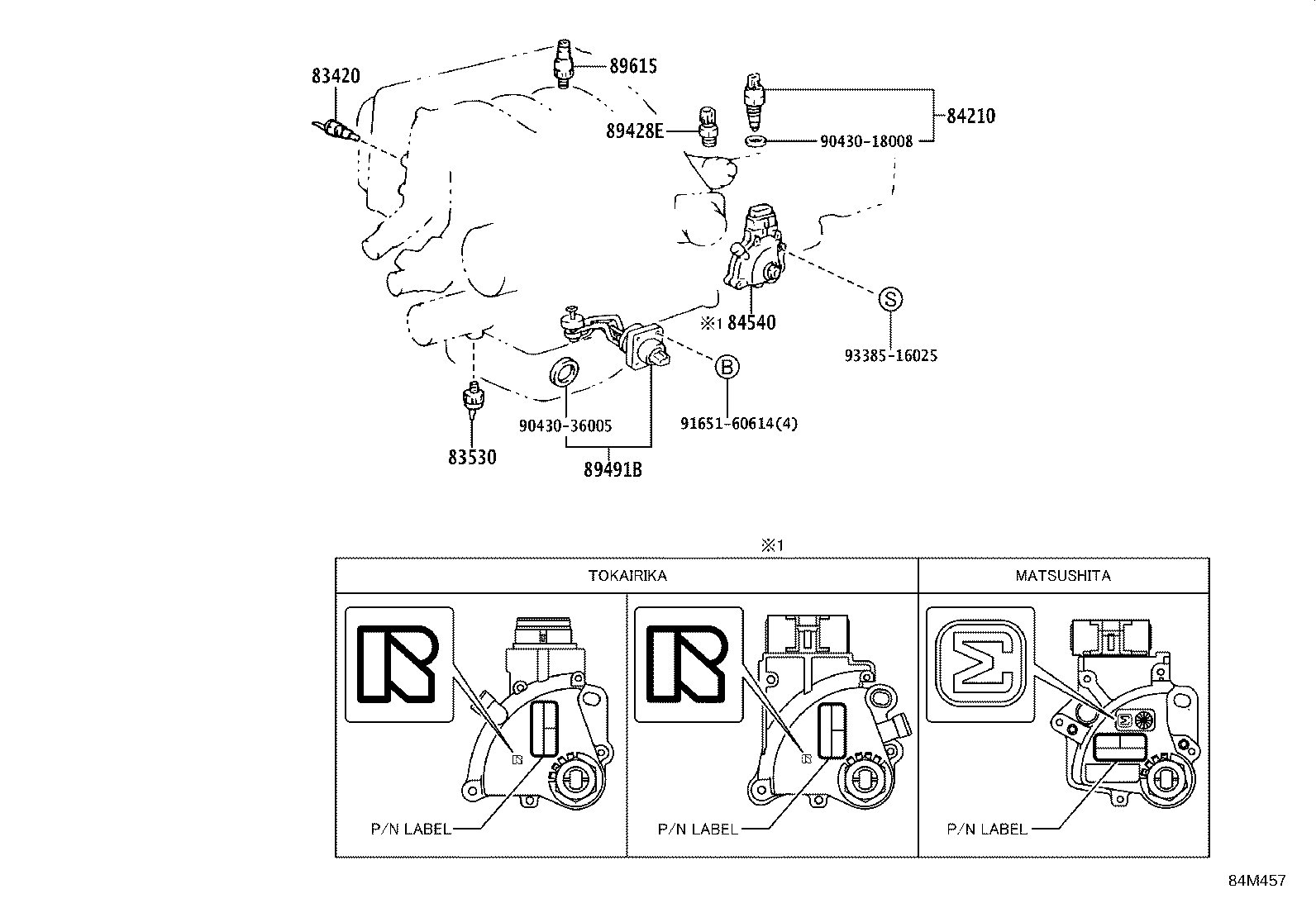

ILLUST NO. 2 OF 7(9001- )EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20030 |
TCR10,20 |
1 | ||
| 83420-20020 |
TCR10,20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14060 |
TCR10,20 |
1 | ||
| 83530-14040 |
TCR10,20 |
1 | ||
| 83530-30080 |
TCR10,20 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
TCR10,20..MTM |
1 | ||
| 89491B - SENSOR, ENGINE OIL LEVEL(FOR AUTO FEEDER) | ||||
| 89491-28030 |
TCR10,20..CND |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
TCR10,20 MATUSITA |
1 | ||
| 89615-12020 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 90430-36005 | ||||
| 91651-60614 | ||||
| 93385-16025 | ||||

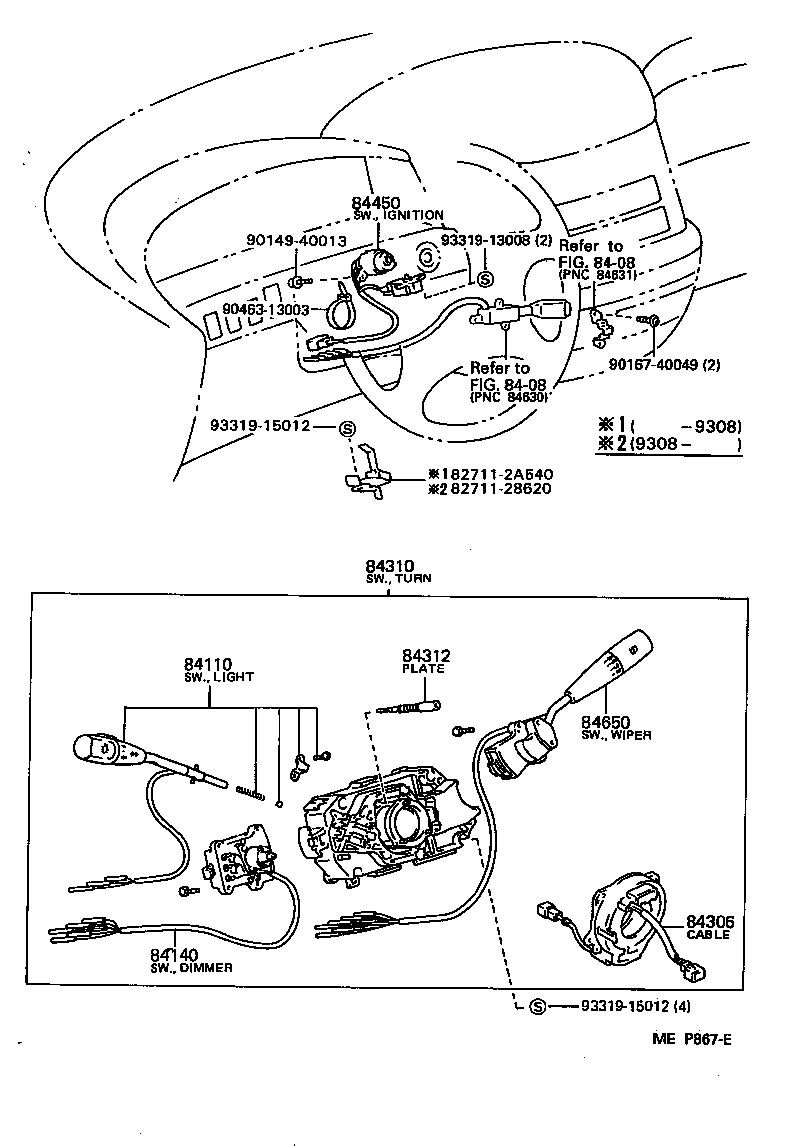

ILLUST NO. 4 OF 7(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80057 |
TCR10,20 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22070 |
TCR10,20 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33020 |
TCR10,20 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28350 |
TCR10,20..05S |
1 | ||
| 84310-28360 |
TCR10,20..05S W(INTERMITTENT WIPER) |
1 | ||
| 84310-28370 |
TCR10,20..05S W(INTERMITTENT WIPER & CRUISE CONTROL) |
1 | ||
| 84310-28380 |
TCR10,20 W(REAR WINDOW WIPER) |
1 | ||
| 84310-28630 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| 84310-28390 |
TCR10,20 W(REAR WINDOW WIPER & CRUISE CONTROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
TCR10,20 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-28070 |
TCR10,20 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-28270 |
TCR10,20..05S W(INTERMITTENT WIPER) |
1 | ||
| 84652-28260 |
TCR10,20..05S |
1 | ||
| 84652-28280 |
TCR10,20 W(REAR WINDOW WIPER) |
1 | ||
| 84652-28440 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| Common parts | ||||
| 82711-28620 | ||||
| 82711-2A540 | ||||
| 90149-40013 | ||||
| 90167-40049 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8408 | ||||
ILLUST NO. 5 OF 7(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
TCR10,20 30A,GREEN |
1 | ||
| 90982-09002 |
TCR10,20 10A |
1 | ||
| 90982-09005 |
TCR10,20 7.5A |
1 | ||
| 90982-09004 |
TCR10,20 20A,YELLOW |
1 | ||
| 90982-09003 |
TCR10,20 15A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-95D00 |
TCR10,20 |
1 | ||
| 82683-28150 |
TCR10,20..CND |
1 | ||
| 82683-28180 |
TCR10,20..CND |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
TCR10,20 30A,PINK |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
TCR10,20 40A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02006 |
TCR10,20 NO.2 |
1 | ||
| 90987-04002 |
TCR10,20 NO.1 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02006 |
TCR10,20 NO.2 |
1 | ||
| 90987-04002 |
TCR10,20 NO.1 |
1 | ||
| 85910W - RELAY, OIL LEVEL | ||||
| 90987-02004 |
TCR10,20 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
TCR10,20 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
TCR10,20 TAIL LAMP |
1 | ||
| 90987-04002 |
TCR10,20..CND ILLUMINATION |
1 | ||
| 90987-02006 |
TCR10,20 HEADLAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
TCR10,20 TAIL LAMP |
1 | ||
| 90987-04002 |
TCR10,20..CND ILLUMINATION |
1 | ||
| 90987-02006 |
TCR10,20 HEADLAMP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
TCR10,20..CND |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-95D00 |
TCR10,20 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-95D00 |
TCR10,20..CND;TCR10,20..07S..USA |
1 | ||
| 85980-95D00 |
TCR10;TCR20..CND;TCR20..07S..USA;TCR20..MTM..USA |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01003 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
