TCR10L-REMDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1993
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )EFI

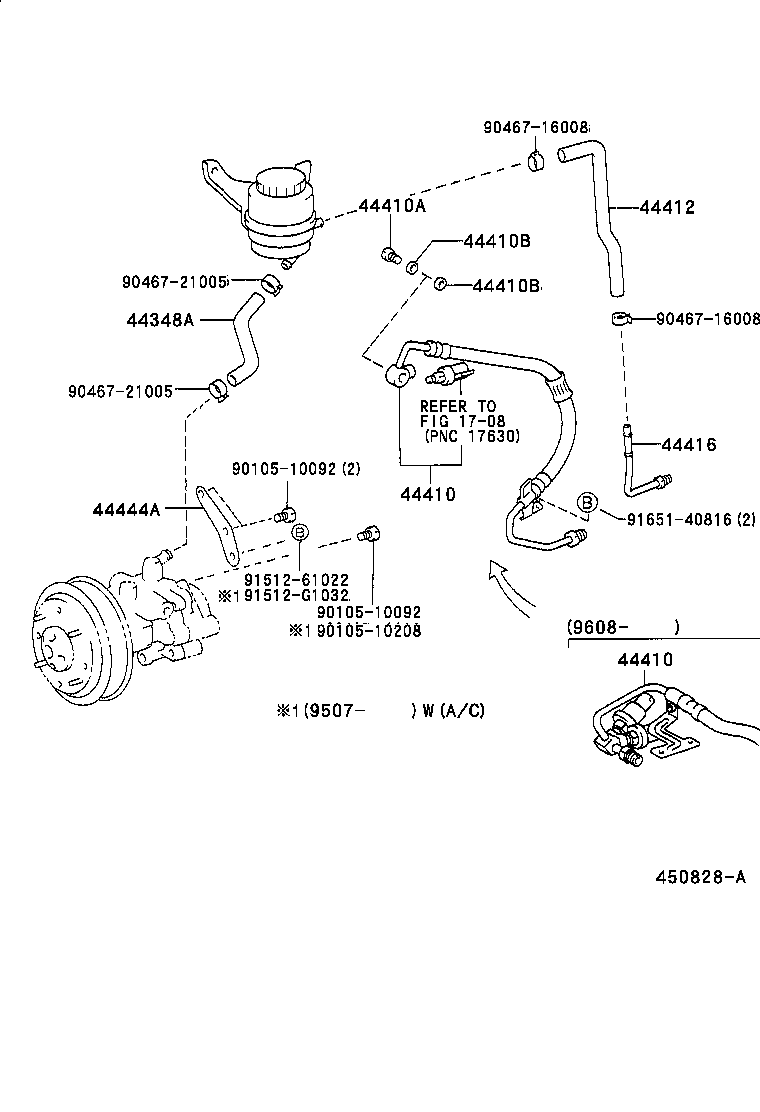

Click highlighted areas on diagram

diagram 1708 44348A 44410 44410 44410A 44410B 44410B 44412 44416 44444A 9010510092 9010510092 9010510208 9046716008 9046716008 9046721005 9046721005 9151261022 91512G1032 9165140816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28100

TCR10,20..EFI

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28150

TCR10,20..EFI

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28150

TCR10,20..EFI

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

TCR10,20

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

TCR10,20

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

TCR10,20

 2
44412 - HOSE, RETURN
44412-28160

TCR10,20..EFI

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-28140

TCR10,20..EFI

 1
44444A - STAY, PUMP, REAR NO.1
44444-28010

TCR10,20..EFI

 1
Common parts
90105-10092
90105-10208
90467-16008
90467-21005
91512-61022
91512-G1032
91651-40816
Linked diagrams
1708
