CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

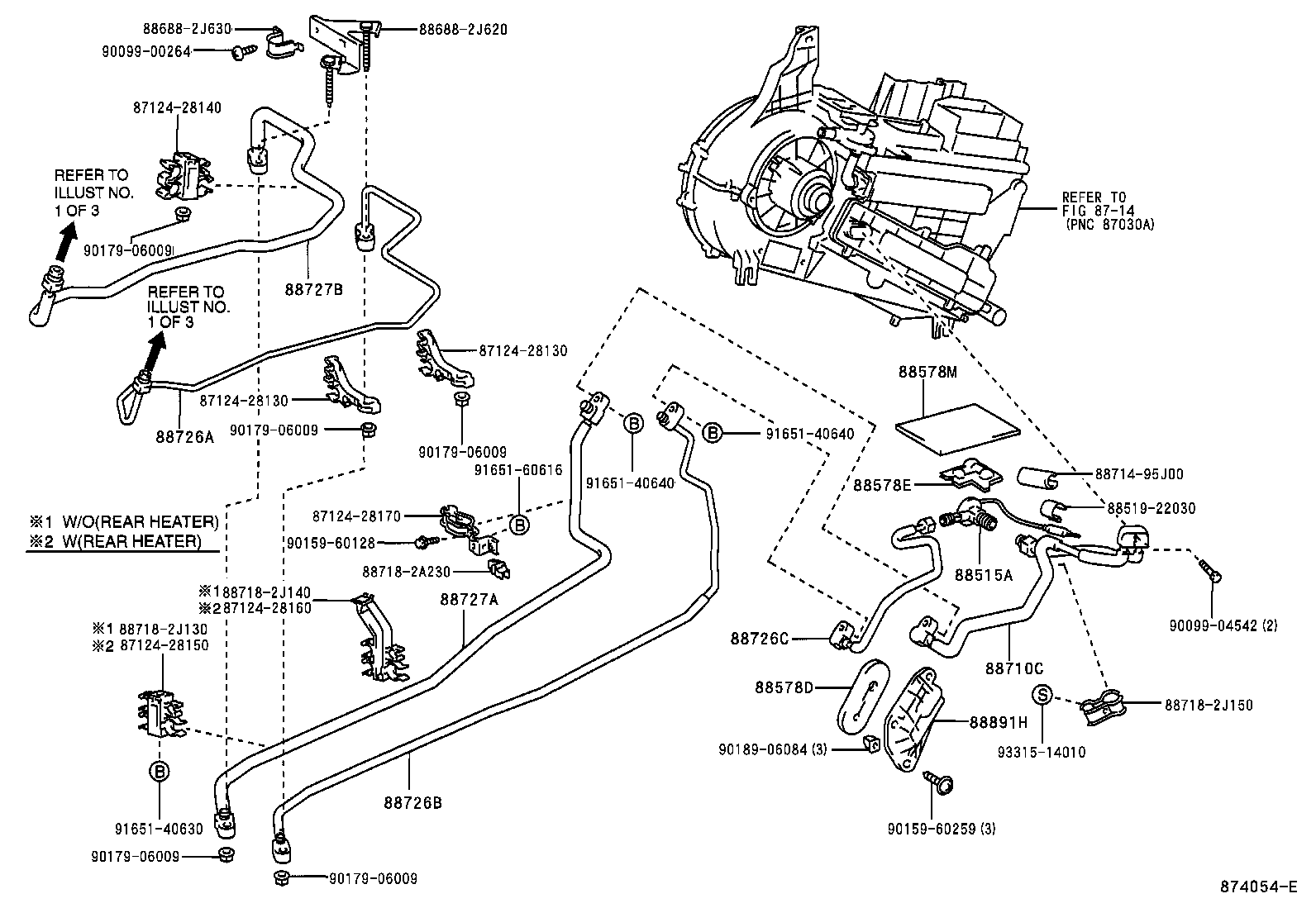

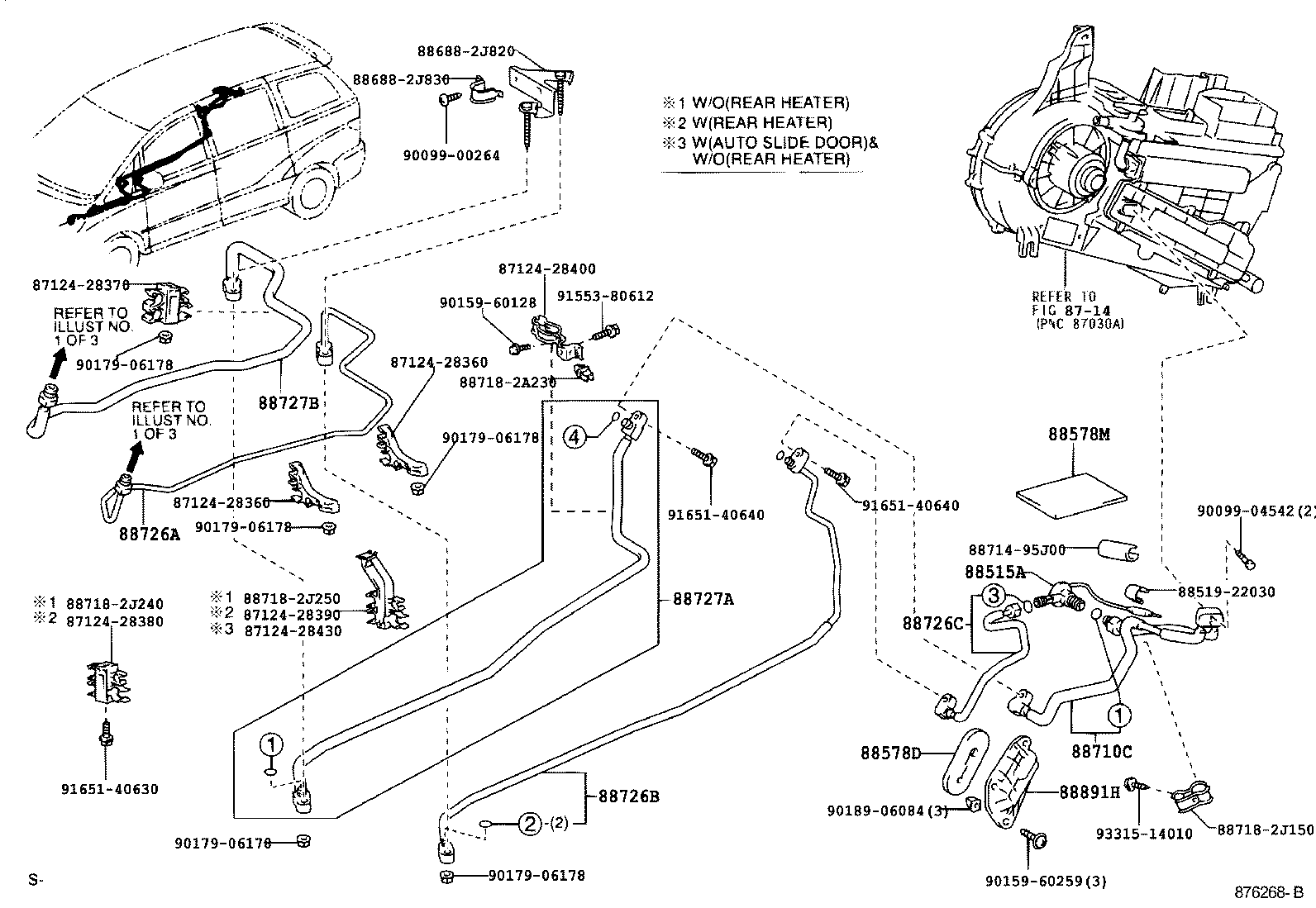

ILLUST NO. 2 OF 3(0002-0304)RHD

Click highlighted areas on diagram

REAR

diagram 8712428130 8712428130 8712428140 8712428150 8712428160 8712428170 8714 88515A 8851922030 88578D 88578E 88578M 886882J620 886882J630 88710C 8871495J00 887182A230 887182J130 887182J140 887182J150 88726A 88726B 88726C 88727A 88727B 88891H 9009900264 9009904542 9015960128 9015960259 9017906009 9017906009 9017906009 9017906009 9017906009 9018906084 9165140630 9165140640 9165140640 9165160616 9331514010
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-08030

ACR30,CLR30

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-28300

ACR30,CLR30

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-28310

ACR30,CLR30

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-28340

ACR30,CLR30

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-2R620

ACR30,CLR30

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X150

ACR30,CLR30..RHD

 1
88716-2X150

ACR30,CLR30..RHD

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X160

CLR30..RHD

 1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X090

ACR30,CLR30

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R190

ACR30,CLR30..RHD

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2R180

ACR30,CLR30..RHD

 1
88717-2R180

ACR30,CLR30..RHD

 1
88891H - COVER, COOLER, NO.1
88891-28050

ACR30,CLR30

 1
Common parts
87124-28130
87124-28140
87124-28150
87124-28160
87124-28170
88519-22030
88688-2J620
88688-2J630
88714-95J00
88718-2A230
88718-2J130
88718-2J140
88718-2J150
90099-00264
90099-04542
90159-60128
90159-60259
90179-06009
90189-06084
91651-40630
91651-40640
91651-60616
93315-14010
Linked diagrams
8714

ILLUST NO. 1 OF 3(0102-0304)CLR30..RHD

Click highlighted areas on diagram

FRONT--MAKER OPTION--W(REAR COOLER)

diagram 1603 1603 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 8846712030 88467A 88467A 88474 88645H 886882J610 886882J660 886882J670 886882J680 886882J700 886882J710 88711 88712 88716A 88716B 88716C 88717A 887182D140 887182D150 887182J040 887182J050 887182J070 887182J110 887182J160 887182J170 887182J180 88891B 88891B 8889712240 9009120512 9009120609 9009120609 9009120609 9009900264 9009900264 9011906619 9011906619 9017906032 9017906032 9017906032 9017906242 9017906242 9151160625 9151160625 9165140625 9165160616 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ACR30,CLR30

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ACR30,CLR30

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

ACR30,CLR30

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

ACR30,CLR30

 1
88460 - CONDENSER ASSY, COOLER
88460-28550

ACR30,CLR30

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88474 - DRYER, COOLER
88474-47010

ACR30,CLR30

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ACR30,CLR30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J150

CLR30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28730

CLR30..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860

ACR30,CLR30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870

ACR30,CLR30..RHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X240

CLR30..RHD

MAKER OPTION

 1
88716-2X290

CLR30..RHD

DEALER OPTION

 1
88716-2X230

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R320

CLR30..RHD

DEALER OPTION

 1
88717-2R280

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717-2R290

CLR30..RHD

MAKER OPTION

 1
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
Common parts
88467-12030
88688-2J610
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-2D140
88718-2D150
88718-2J040
88718-2J050
88718-2J070
88718-2J110
88718-2J160
88718-2J170
88718-2J180
88897-12240
90091-20512
90091-20609
90099-00264
90119-06619
90179-06032
90179-06242
91511-60625
91651-40625
91651-60616
93385-56025
Linked diagrams
1603
8714
8719

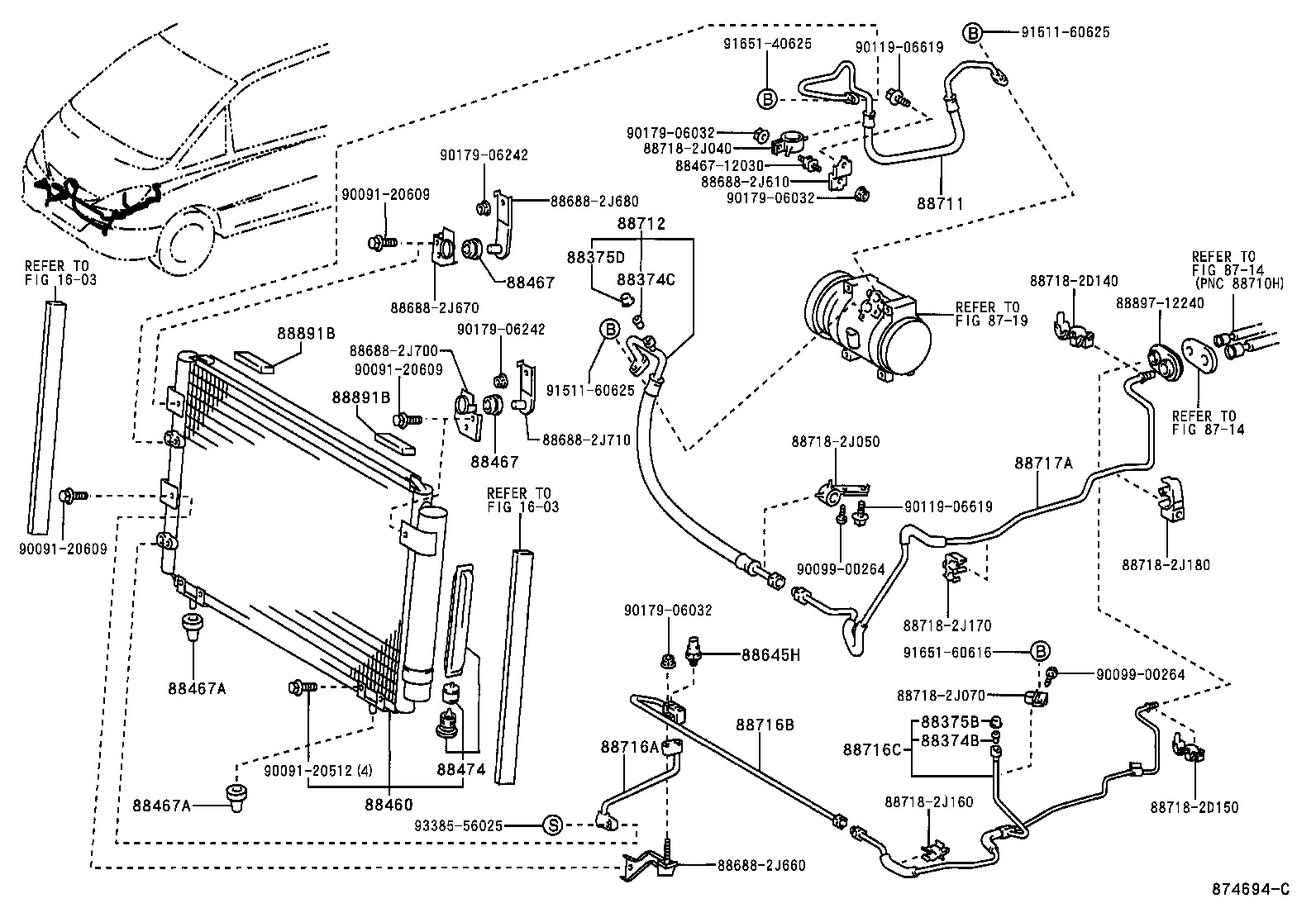

ILLUST NO. 1 OF 3(0102-0304)CLR30..RHD

Click highlighted areas on diagram

FRONT--MAKER OPTION

diagram 1603 1603 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 8846712030 88467A 88467A 88474 88645H 886882J610 886882J660 886882J670 886882J680 886882J700 886882J710 88711 88712 88716A 88716B 88716C 88717A 887182D140 887182D150 887182J040 887182J050 887182J070 887182J160 887182J170 887182J180 88891B 88891B 8889712240 9009120512 9009120609 9009120609 9009120609 9009900264 9009900264 9011906619 9011906619 9017906032 9017906032 9017906032 9017906242 9017906242 9151160625 9151160625 9165140625 9165160616 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ACR30,CLR30

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ACR30,CLR30

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

ACR30,CLR30

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

ACR30,CLR30

 1
88460 - CONDENSER ASSY, COOLER
88460-28550

ACR30,CLR30

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88474 - DRYER, COOLER
88474-47010

ACR30,CLR30

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ACR30,CLR30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J150

CLR30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28730

CLR30..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860

ACR30,CLR30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870

ACR30,CLR30..RHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X240

CLR30..RHD

MAKER OPTION

 1
88716-2X290

CLR30..RHD

DEALER OPTION

 1
88716-2X230

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R320

CLR30..RHD

DEALER OPTION

 1
88717-2R280

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717-2R290

CLR30..RHD

MAKER OPTION

 1
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
Common parts
88467-12030
88688-2J610
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-2D140
88718-2D150
88718-2J040
88718-2J050
88718-2J070
88718-2J160
88718-2J170
88718-2J180
88897-12240
90091-20512
90091-20609
90099-00264
90119-06619
90179-06032
90179-06242
91511-60625
91651-40625
91651-60616
93385-56025
Linked diagrams
1603
8714
8719

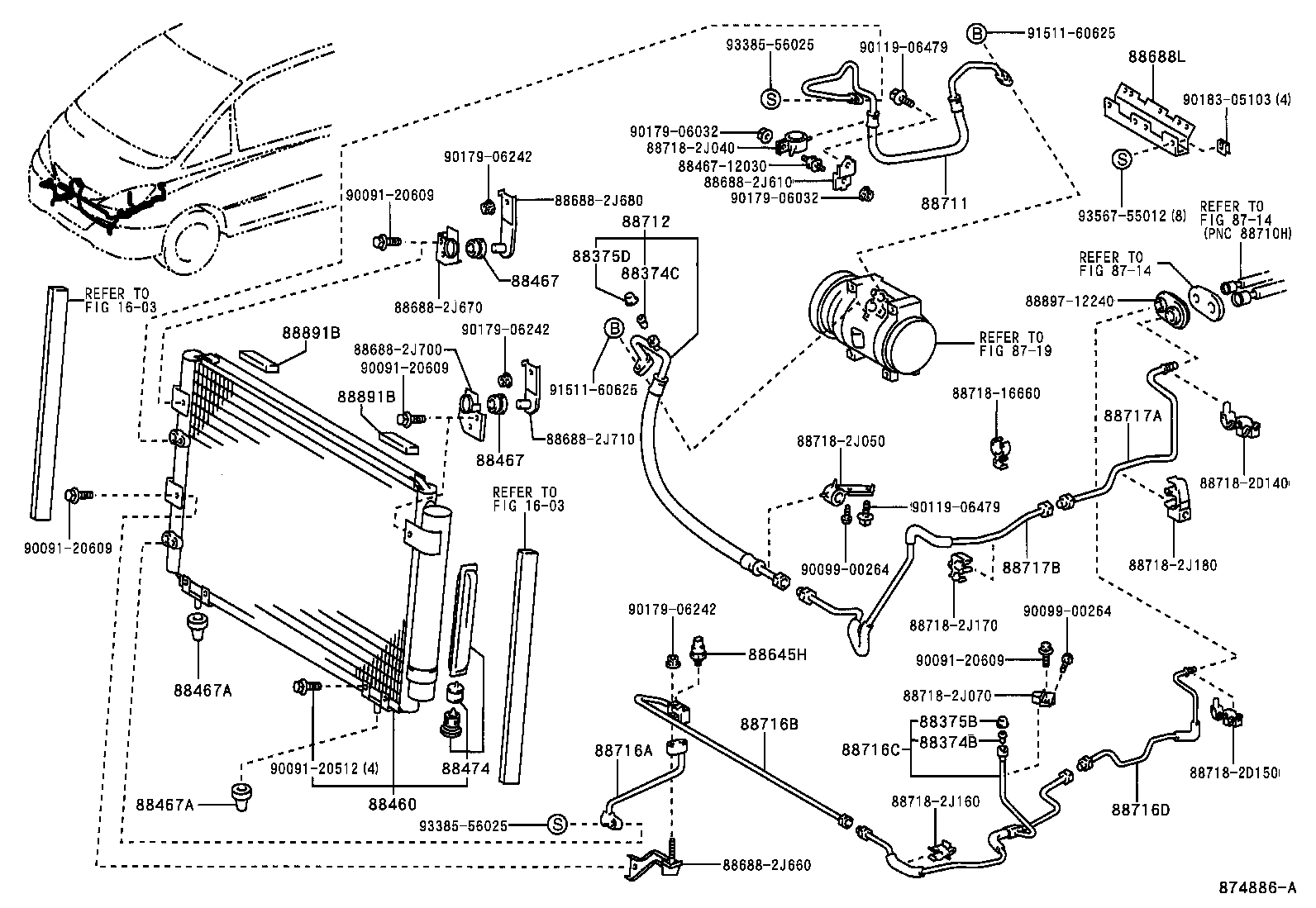

ILLUST NO. 1 OF 3(0102-0304)CLR30..RHD

Click highlighted areas on diagram

FRONT--DEALER OPTION

diagram 1603 1603 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 8846712030 88467A 88467A 88474 88645H 886882J610 886882J660 886882J670 886882J680 886882J700 886882J710 88688L 88711 88712 88716A 88716B 88716C 88716D 88717A 88717B 8871816660 887182D140 887182D150 887182J040 887182J050 887182J070 887182J160 887182J170 887182J180 88891B 88891B 8889712240 9009120512 9009120609 9009120609 9009120609 9009120609 9009900264 9009900264 9011906479 9011906479 9017906032 9017906032 9017906242 9017906242 9017906242 9018305103 9151160625 9151160625 9338556025 9338556025 9356755012
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ACR30,CLR30

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ACR30,CLR30

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

ACR30,CLR30

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

ACR30,CLR30

 1
88460 - CONDENSER ASSY, COOLER
88460-28550

ACR30,CLR30

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88474 - DRYER, COOLER
88474-47010

ACR30,CLR30

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ACR30,CLR30

 1
88688L - BRACKET, CONDENSER PACKING
88688-2J770

CLR30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J150

CLR30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28730

CLR30..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860

ACR30,CLR30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870

ACR30,CLR30..RHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X240

CLR30..RHD

MAKER OPTION

 1
88716-2X290

CLR30..RHD

DEALER OPTION

 1
88716-2X230

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2X300

CLR30..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R320

CLR30..RHD

DEALER OPTION

 1
88717-2R280

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717-2R290

CLR30..RHD

MAKER OPTION

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2R330

CLR30..RHD

 1
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
Common parts
88467-12030
88688-2J610
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-16660
88718-2D140
88718-2D150
88718-2J040
88718-2J050
88718-2J070
88718-2J160
88718-2J170
88718-2J180
88897-12240
90091-20512
90091-20609
90099-00264
90119-06479
90179-06032
90179-06242
90183-05103
91511-60625
93385-56025
93567-55012
Linked diagrams
1603
8714
8719

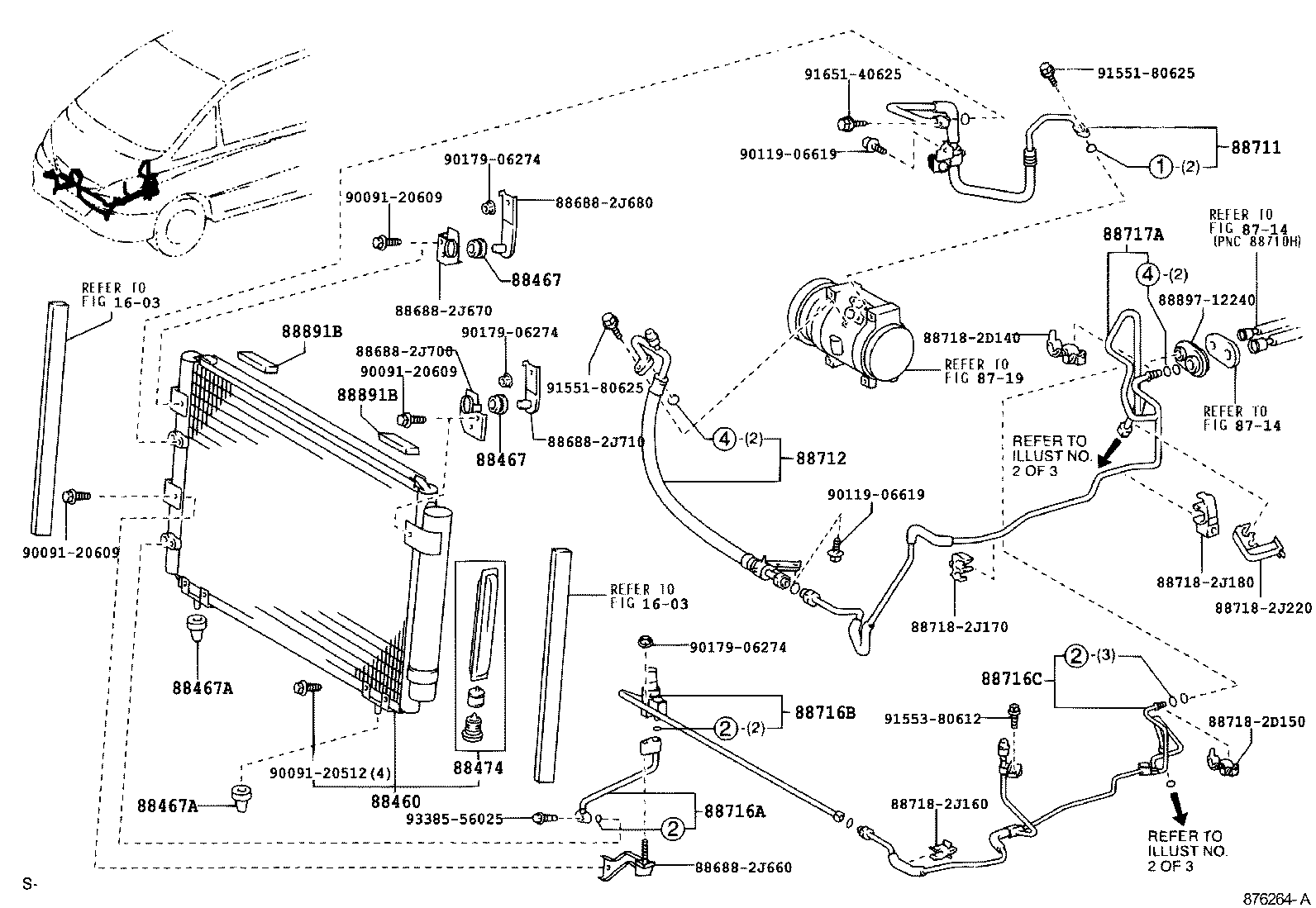

ILLUST NO. 1 OF 3(0304- )CLR30..RHD

Click highlighted areas on diagram

FRONT--W(REAR COOLER)

diagram 1603 1603 8714 8714 8719 88460 88467 88467 88467A 88467A 88474 886882J660 886882J670 886882J680 886882J700 886882J710 88711 88712 88716A 88716B 88716C 88717A 887182D140 887182D150 887182J160 887182J170 887182J180 887182J220 88891B 88891B 8889712240 9009120512 9009120609 9009120609 9009120609 9011906619 9011906619 9017906274 9017906274 9017906274 9155180625 9155180625 9155380612 9165140625 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28550

ACR30,CLR30

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88474 - DRYER, COOLER
88474-47010

ACR30,CLR30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J150

CLR30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28730

CLR30..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860

ACR30,CLR30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870

ACR30,CLR30..RHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X240

CLR30..RHD

MAKER OPTION

 1
88716-2X290

CLR30..RHD

DEALER OPTION

 1
88716-2X230

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R320

CLR30..RHD

DEALER OPTION

 1
88717-2R280

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717-2R290

CLR30..RHD

MAKER OPTION

 1
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
Common parts
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-2D140
88718-2D150
88718-2J160
88718-2J170
88718-2J180
88718-2J220
88897-12240
90091-20512
90091-20609
90119-06619
90179-06274
91551-80625
91553-80612
91651-40625
93385-56025
Linked diagrams
1603
8714
8719

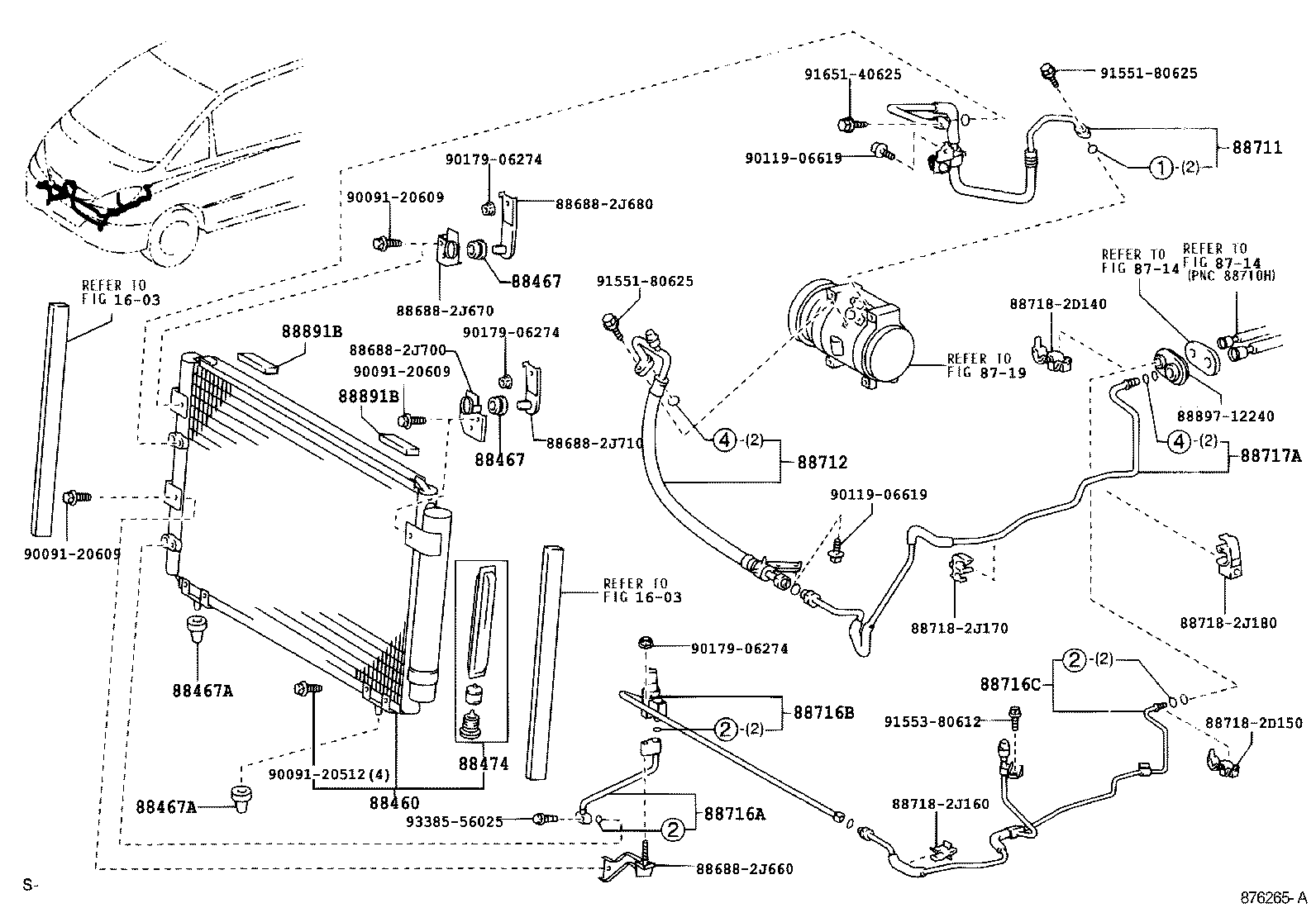

ILLUST NO. 1 OF 3(0304- )CLR30..RHD

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8714 8714 8719 88460 88467 88467 88467A 88467A 88474 886882J660 886882J670 886882J680 886882J700 886882J710 88711 88712 88716A 88716B 88716C 88717A 887182D140 887182D150 887182J160 887182J170 887182J180 88891B 88891B 8889712240 9009120512 9009120609 9009120609 9009120609 9011906619 9011906619 9017906274 9017906274 9017906274 9155180625 9155180625 9155380612 9165140625 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28550

ACR30,CLR30

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

ACR30,CLR30

 2
88474 - DRYER, COOLER
88474-47010

ACR30,CLR30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J150

CLR30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28730

CLR30..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860

ACR30,CLR30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870

ACR30,CLR30..RHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X240

CLR30..RHD

MAKER OPTION

 1
88716-2X290

CLR30..RHD

DEALER OPTION

 1
88716-2X230

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R320

CLR30..RHD

DEALER OPTION

 1
88717-2R280

CLR30..RHD

MAKER OPTION,W(REAR COOLER)

 1
88717-2R290

CLR30..RHD

MAKER OPTION

 1
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
88891B - PACKING B (FOR COOLER)
88578-28350

ACR30,CLR30

 2
Common parts
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-2D140
88718-2D150
88718-2J160
88718-2J170
88718-2J180
88897-12240
90091-20512
90091-20609
90119-06619
90179-06274
91551-80625
91553-80612
91651-40625
93385-56025
Linked diagrams
1603
8714
8719

ILLUST NO. 2 OF 3(0304- )RHD

Click highlighted areas on diagram

REAR

diagram 8712428360 8712428360 8712428370 8712428380 8712428390 8712428400 8712428430 8714 88515A 8851922030 88578D 88578M 886882J820 886882J830 88710C 8871495J00 887182A230 887182J150 887182J240 887182J250 88726A 88726B 88726C 88727A 88727B 88891H 9009900264 9009904542 9015960128 9015960259 9017906178 9017906178 9017906178 9017906178 9017906178 9018906084 9155380612 9165140630 9165140640 9165140640 9331514010
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-08030

ACR30,CLR30

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-28300

ACR30,CLR30

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-28340

ACR30,CLR30

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-2R620

ACR30,CLR30

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X150

ACR30,CLR30..RHD

 1
88716-2X150

ACR30,CLR30..RHD

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X160

CLR30..RHD

 1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X090

ACR30,CLR30

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R190

ACR30,CLR30..RHD

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2R180

ACR30,CLR30..RHD

 1
88717-2R180

ACR30,CLR30..RHD

 1
88891H - COVER, COOLER, NO.1
88891-28050

ACR30,CLR30

 1
Common parts
87124-28360
87124-28370
87124-28380
87124-28390
87124-28400
87124-28430
88519-22030
88688-2J820
88688-2J830
88714-95J00
88718-2A230
88718-2J150
88718-2J240
88718-2J250
90099-00264
90099-04542
90159-60128
90159-60259
90179-06178
90189-06084
91553-80612
91651-40630
91651-40640
93315-14010
Linked diagrams
8714
