CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

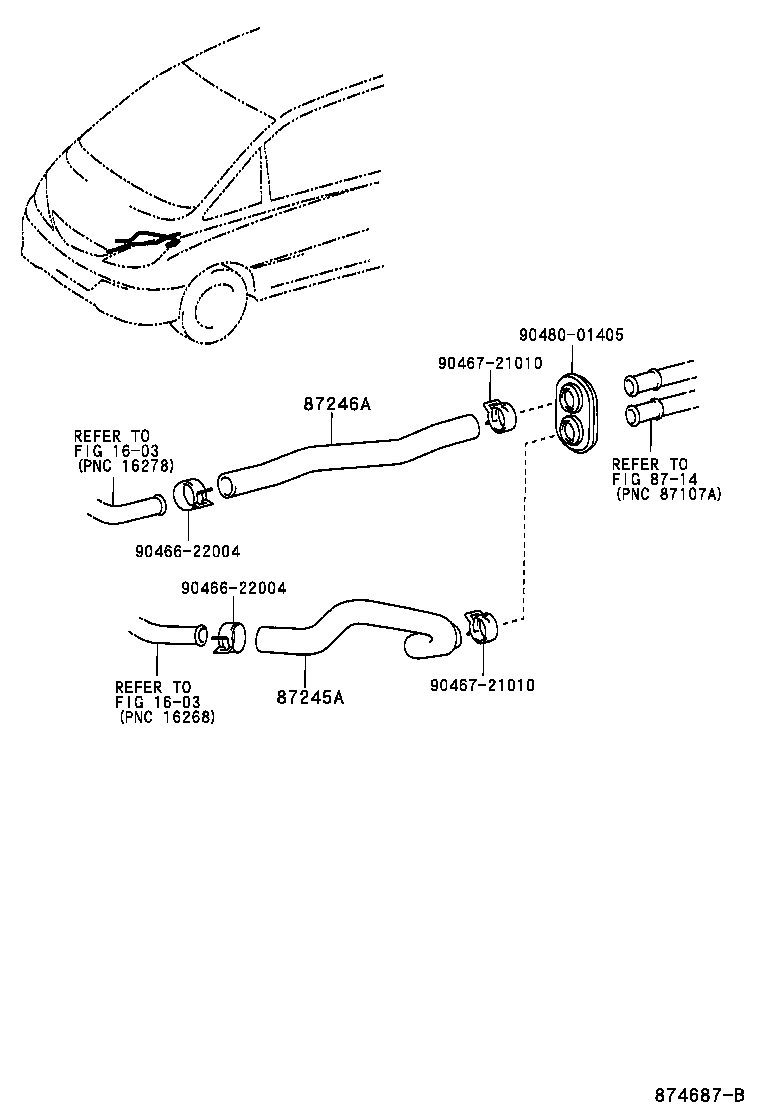

ILLUST NO. 1 OF 2(0102- )CLR30..RHD
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2J450 |
CLR30 W(REAR HEATER) |
1 | ||
| 87245-2J510 |
CLR30..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2J520 |
CLR30..RHD |
1 | ||
| 87245-2J490 |
CLR30..RHD W(REAR HEATER) |
1 | ||
| Common parts | ||||
| 90466-22004 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

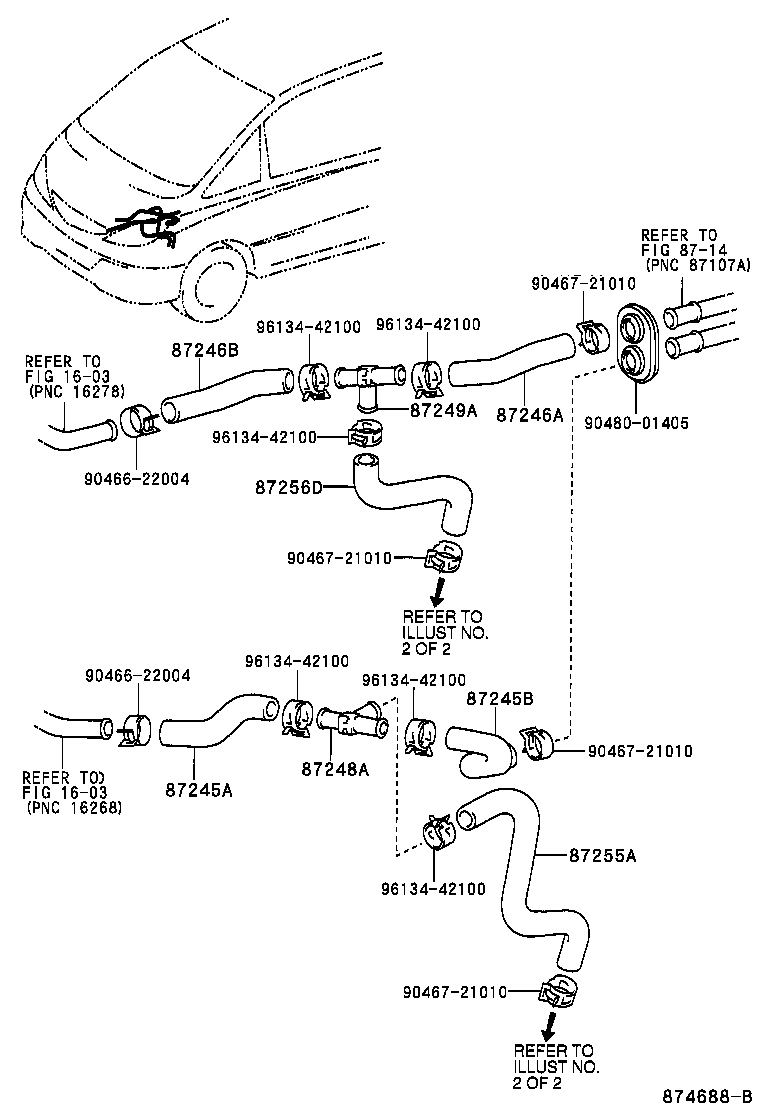

ILLUST NO. 1 OF 2(0102- )CLR30..RHD
Click highlighted areas on diagram
FRONT--W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2J450 |
CLR30 W(REAR HEATER) |
1 | ||
| 87245-2J510 |
CLR30..RHD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-2J460 |
CLR30..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2J520 |
CLR30..RHD |
1 | ||
| 87245-2J490 |
CLR30..RHD W(REAR HEATER) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-2J480 |
CLR30 W(REAR HEATER) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-08030 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-08030 |
CLR30 |
1 | ||
| 87248-08030 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-2J470 |
CLR30 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-2J500 |
CLR30 |
1 | ||
| Common parts | ||||
| 90466-22004 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
