CLR30R-MRMDTW (2001)
Toyota Previa/Tarago

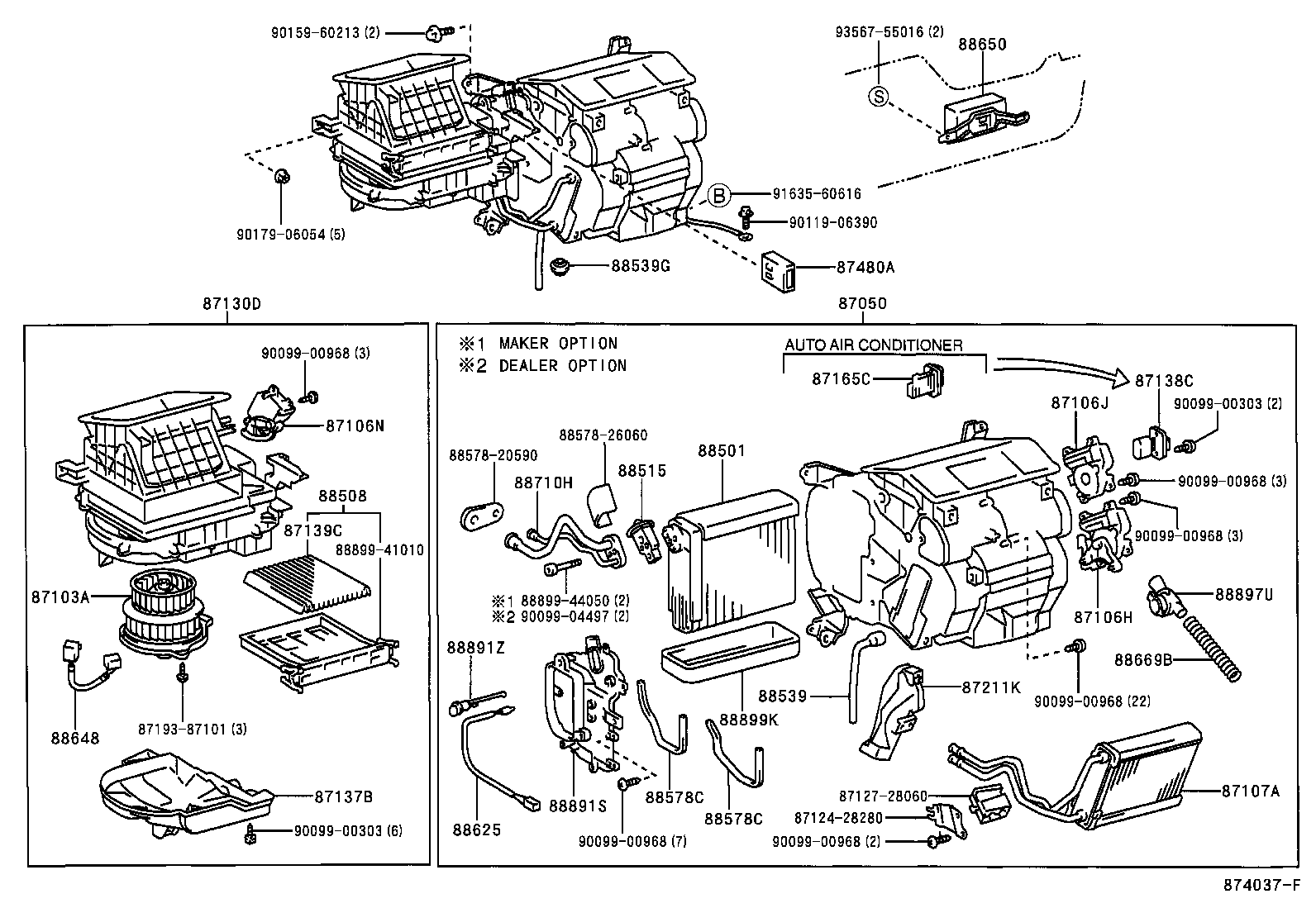

ILLUST NO. 1 OF 3(0002-0304)RHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28390 |
CLR30..RHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-28400 |
CLR30..RHD |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-28070 |
ACR30,CLR30..RHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-28120 |
ACR30,CLR30..RHD |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-28110 |
ACR30,CLR30..RHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-28150 |
ACR30,CLR30..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28200 |
CLR30..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-28430 |
ACR30,CLR30..RHD |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-28010 |
ACR30,CLR30..RHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-28210 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
ACR30,CLR30 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
ACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87211-28190 |
ACR30,CLR30..RHD |
1 | ||
| 87480A - AMPLIFIER ASSY, HEATER | ||||
| 87480-28020 |
CLR30 W(REAR HEATER) |
1 | ||
| 87480-28010 |
ACR30,CLR30..ARL,EUR |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
ACR30,CLR30..RHD |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20120 |
ACR30,CLR30 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28160 |
ACR30,CLR30 MAKER OPTION |
1 | ||
| 88515-28150 |
ACR30,CLR30 |
1 | ||
| 88515-28150 |
ACR30,CLR30..ARL,EUR,GEN DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28240 |
ACR30,CLR30..RHD |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26022 |
ACR30,CLR30 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-32110 |
CLR30;ACR30..LHD |
2 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-32110 |
CLR30;ACR30..LHD |
2 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28280 |
ACR30,CLR30..RHD |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28790 |
CLR30 DEALER OPTION |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-28030 |
ACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2R500 |
ACR30,CLR30..RHD |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-28070 |
ACR30,CLR30..RHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-50060 |
CLR30 |
1 | ||
| 88891-44100 |
ACR30,CLR30..RHD MAKER OPTION |
1 | ||
| 88891-50060 |
ACR30,CLR30 DEALER OPTION |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
CLR30;ACR30..LHD |
1 | ||
| Common parts | ||||
| 87124-28280 | ||||
| 87127-28060 | ||||
| 87193-87101 | ||||
| 88578-20590 | ||||
| 88578-26060 | ||||
| 88899-41010 | ||||
| 88899-44050 | ||||
| 90099-00303 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90119-06390 | ||||
| 90159-60213 | ||||
| 90179-06054 | ||||
| 91635-60616 | ||||
| 93567-55016 | ||||

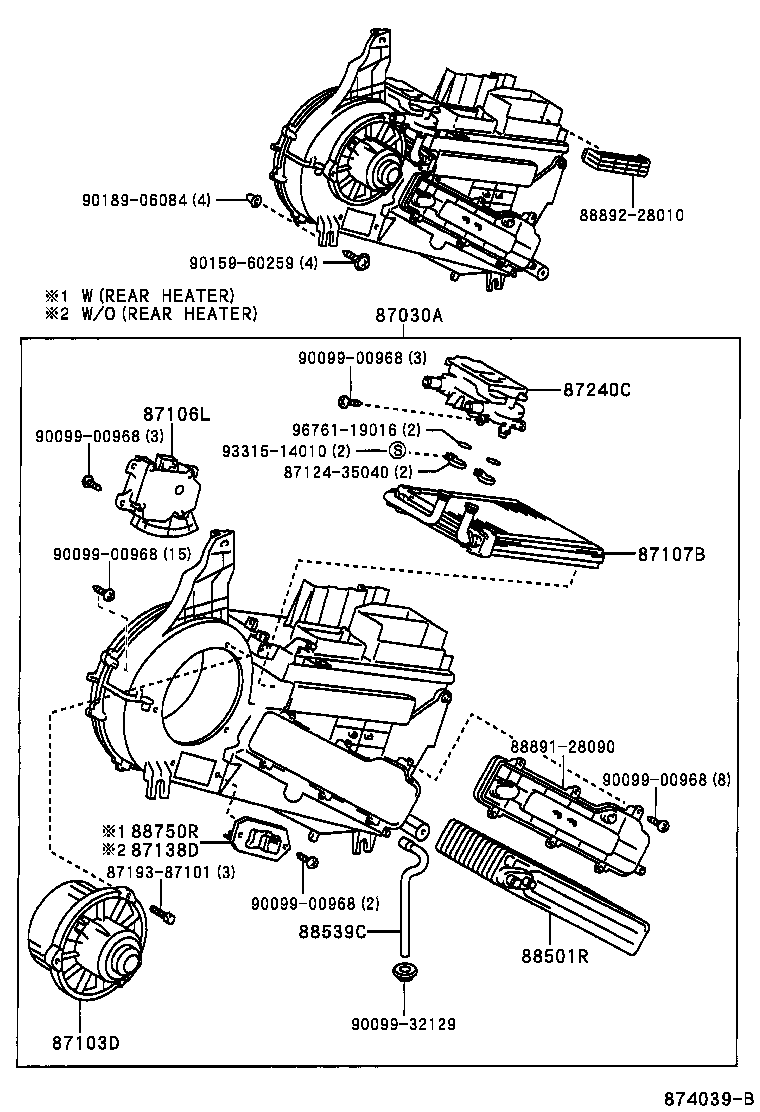

ILLUST NO. 2 OF 3(0002-0304)
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-28160 |
ACR30,CLR30..EUR,GEN W(REAR AIR CONDITIONER) |
1 | ||
| 87030-28170 |
ACR30,CLR30..EUR,GEN W(REAR HEATER) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28090 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87103-28090 |
ACR30,CLR30 |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-28100 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28210 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87240C - VALVE ASSY, HEATER WATER | ||||
| 87240-28100 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28330 |
ACR30,CLR30 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-28230 |
ACR30,CLR30 |
1 | ||
| 88750R - TRANSISTOR ASSY, BLOWER RESISTOR(REAR) | ||||
| 88750-28050 |
ACR30,CLR30..EUR,GEN |
1 | ||
| Common parts | ||||
| 87124-35040 | ||||
| 87193-87101 | ||||
| 88891-28090 | ||||
| 88892-28010 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90159-60259 | ||||
| 90189-06084 | ||||
| 93315-14010 | ||||
| 96761-19016 | ||||

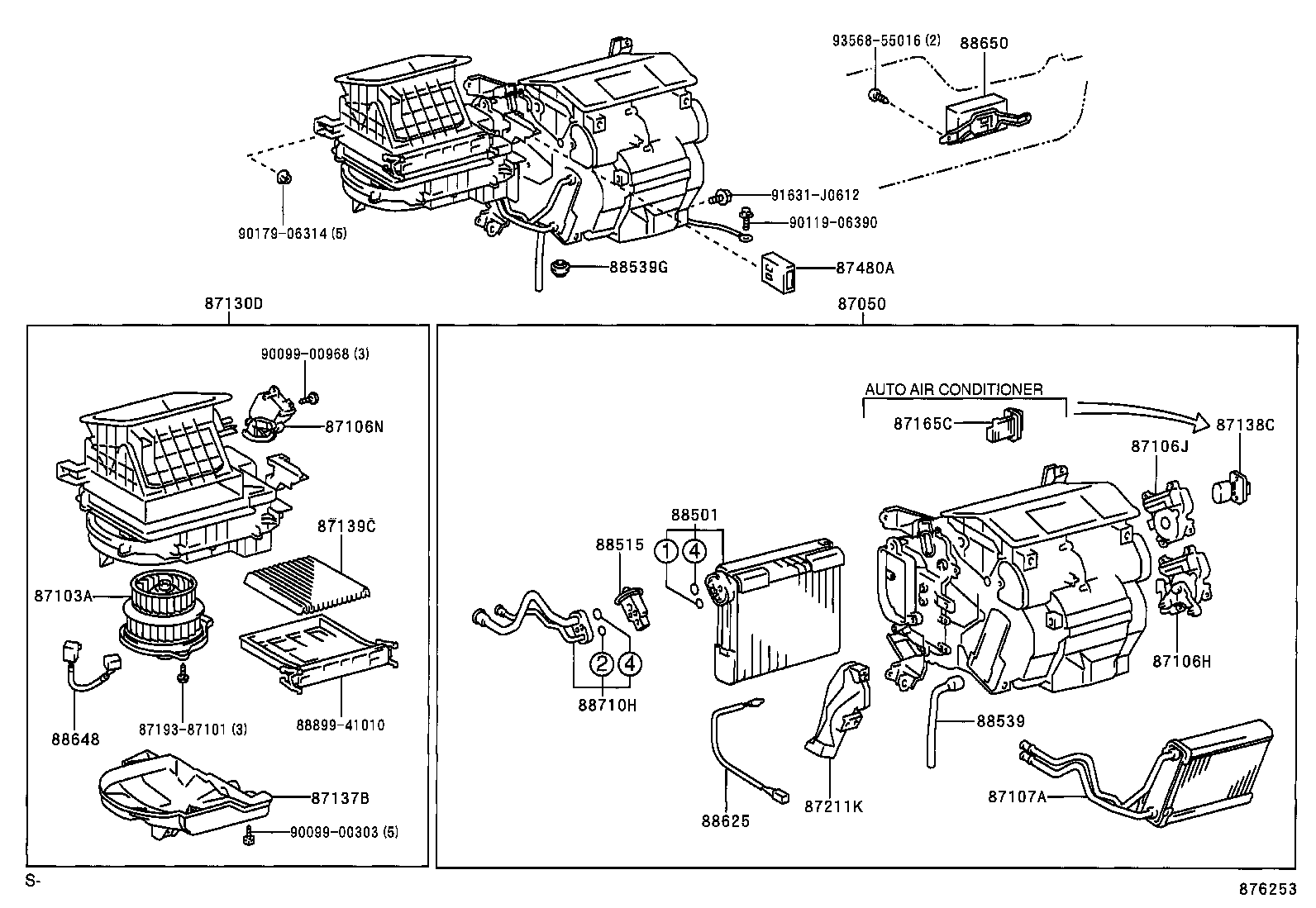

ILLUST NO. 1 OF 3(0304- )RHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28390 |
CLR30..RHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-28400 |
CLR30..RHD |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-28070 |
ACR30,CLR30..RHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-28120 |
ACR30,CLR30..RHD |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-28110 |
ACR30,CLR30..RHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-28150 |
ACR30,CLR30..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28200 |
CLR30..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-28430 |
ACR30,CLR30..RHD |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-28010 |
ACR30,CLR30..RHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-28210 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
ACR30,CLR30 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
ACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87211-28190 |
ACR30,CLR30..RHD |
1 | ||
| 87480A - AMPLIFIER ASSY, HEATER | ||||
| 87480-28020 |
CLR30 W(REAR HEATER) |
1 | ||
| 87480-28010 |
ACR30,CLR30..ARL,EUR |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
ACR30,CLR30..RHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28160 |
ACR30,CLR30 MAKER OPTION |
1 | ||
| 88515-28150 |
ACR30,CLR30 |
1 | ||
| 88515-28150 |
ACR30,CLR30..ARL,EUR,GEN DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28240 |
ACR30,CLR30..RHD |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26022 |
ACR30,CLR30 |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28280 |
ACR30,CLR30..RHD |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28790 |
CLR30 DEALER OPTION |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2R500 |
ACR30,CLR30..RHD |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-41010 | ||||
| 90099-00303 | ||||
| 90099-00968 | ||||
| 90119-06390 | ||||
| 90179-06314 | ||||
| 91631-J0612 | ||||
| 93568-55016 | ||||

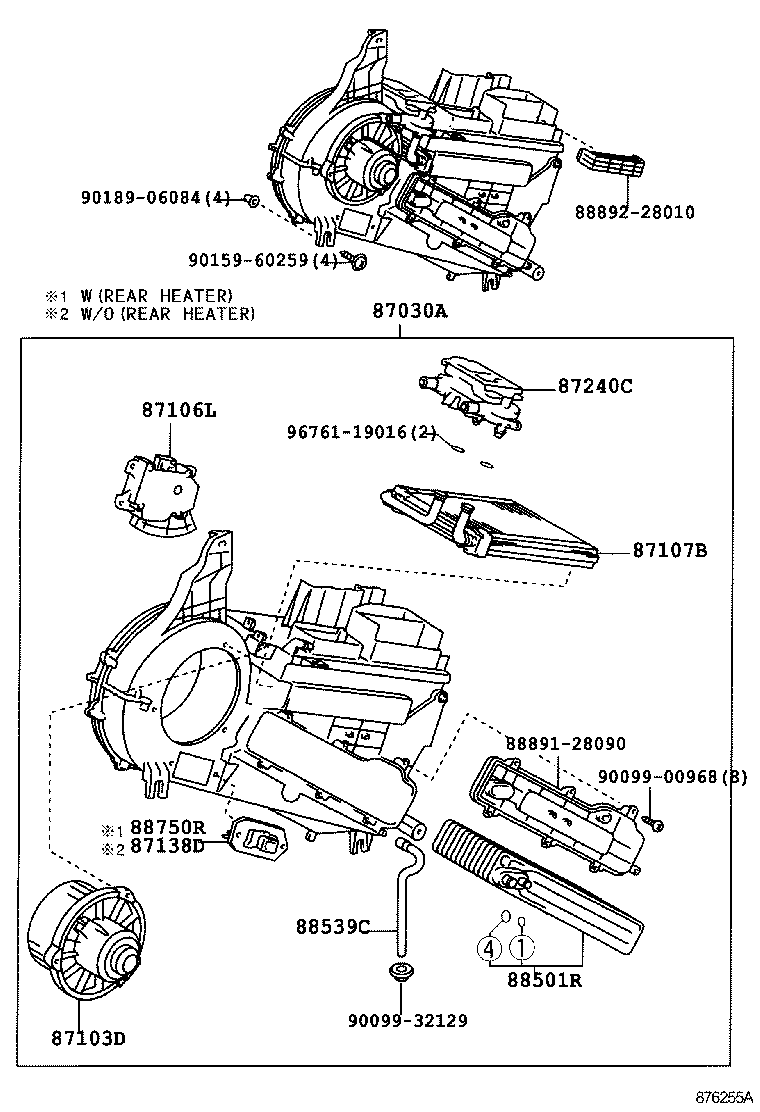

ILLUST NO. 2 OF 3(0304- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-28160 |
ACR30,CLR30..EUR,GEN W(REAR AIR CONDITIONER) |
1 | ||
| 87030-28170 |
ACR30,CLR30..EUR,GEN W(REAR HEATER) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28090 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87103-28090 |
ACR30,CLR30 |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-28100 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28210 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87240C - VALVE ASSY, HEATER WATER | ||||
| 87240-28100 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28330 |
ACR30,CLR30 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-28230 |
ACR30,CLR30 |
1 | ||
| 88750R - TRANSISTOR ASSY, BLOWER RESISTOR(REAR) | ||||
| 88750-28050 |
ACR30,CLR30..EUR,GEN |
1 | ||
| Common parts | ||||
| 88891-28090 | ||||
| 88892-28010 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90159-60259 | ||||
| 90189-06084 | ||||
| 96761-19016 | ||||
