CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

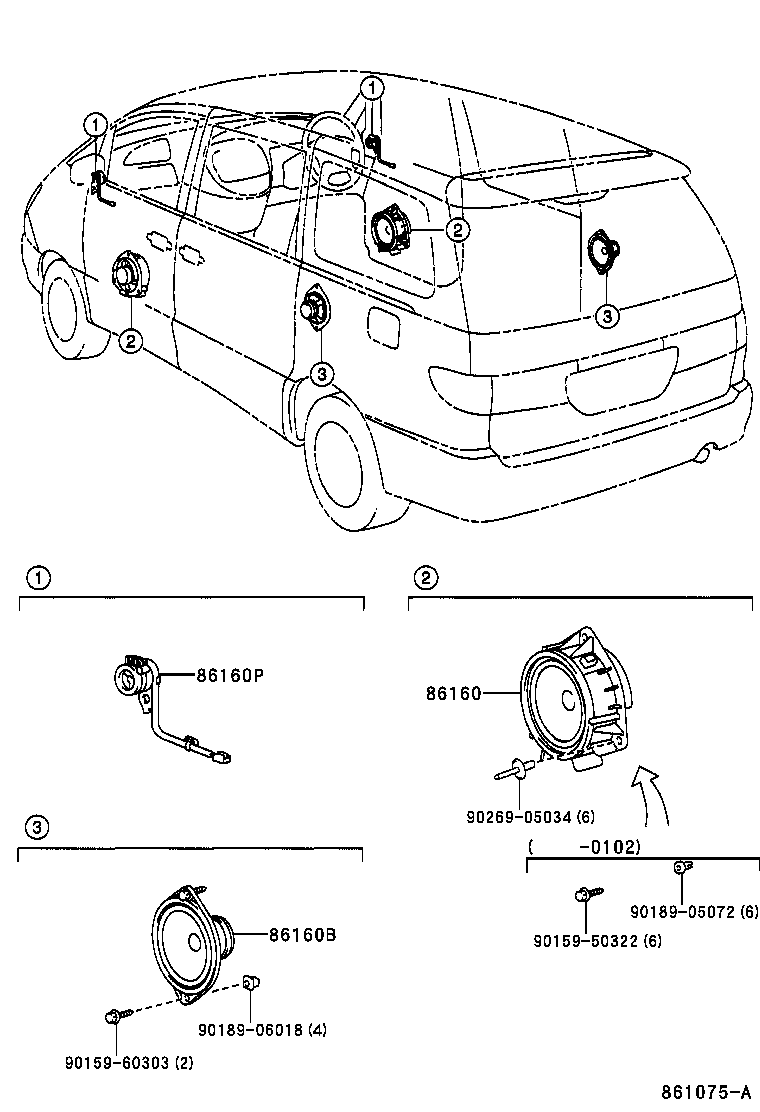

(0002-0304)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-28511 |
ACR30,CLR30..08S..MTM 17.5W |
2 | ||
| 86160-28600 |
ACR30,CLR30..08S..MTM 20W |
2 | ||
| 86160-28510 |
ACR30,CLR30 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28610 |
ACR30,CLR30..08S..MTM 20W |
2 | ||
| 86160-28530 |
ACR30,CLR30 |
2 | ||
| 86160-28531 |
ACR30,CLR30..08S..MTM 17.5W |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-28640 |
ACR30,CLR30..08S..MTM RH |
1 | ||
| 86160-28420 |
ACR30,CLR30 RH |
1 | ||
| 86160-28650 |
ACR30,CLR30..08S..MTM LH |
1 | ||
| 86160-28500 |
ACR30,CLR30 LH |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-60303 | ||||
| 90189-05072 | ||||
| 90189-06018 | ||||
| 90269-05034 | ||||

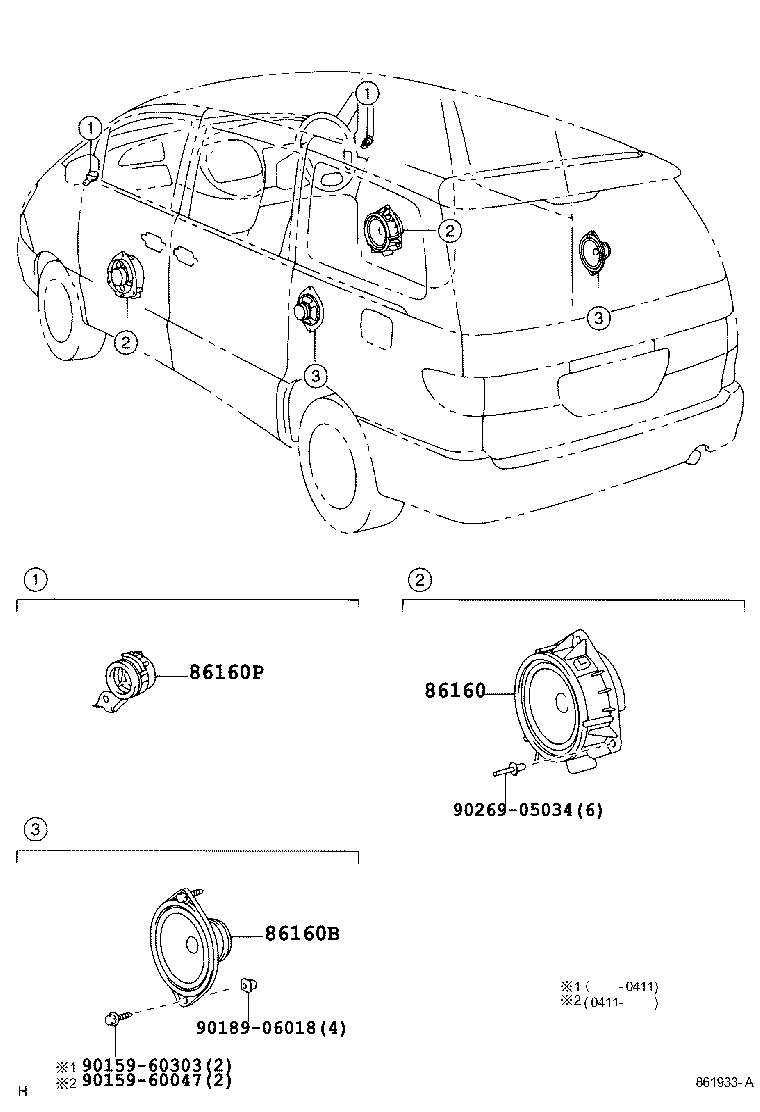

(0304- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-28511 |
ACR30,CLR30..08S..MTM 17.5W |
2 | ||
| 86160-28600 |
ACR30,CLR30..08S..MTM 20W |
2 | ||
| 86160-28510 |
ACR30,CLR30 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28610 |
ACR30,CLR30..08S..MTM 20W |
2 | ||
| 86160-28530 |
ACR30,CLR30 |
2 | ||
| 86160-28531 |
ACR30,CLR30..08S..MTM 17.5W |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-28420 |
ACR30,CLR30 RH |
1 | ||
| 86160-28640 |
ACR30,CLR30..08S..MTM RH |
1 | ||
| 86160-28650 |
ACR30,CLR30..08S..MTM LH |
1 | ||
| 86160-28500 |
ACR30,CLR30 LH |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90269-05034 | ||||
