CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0002-0304)ARL,EUR,GCC

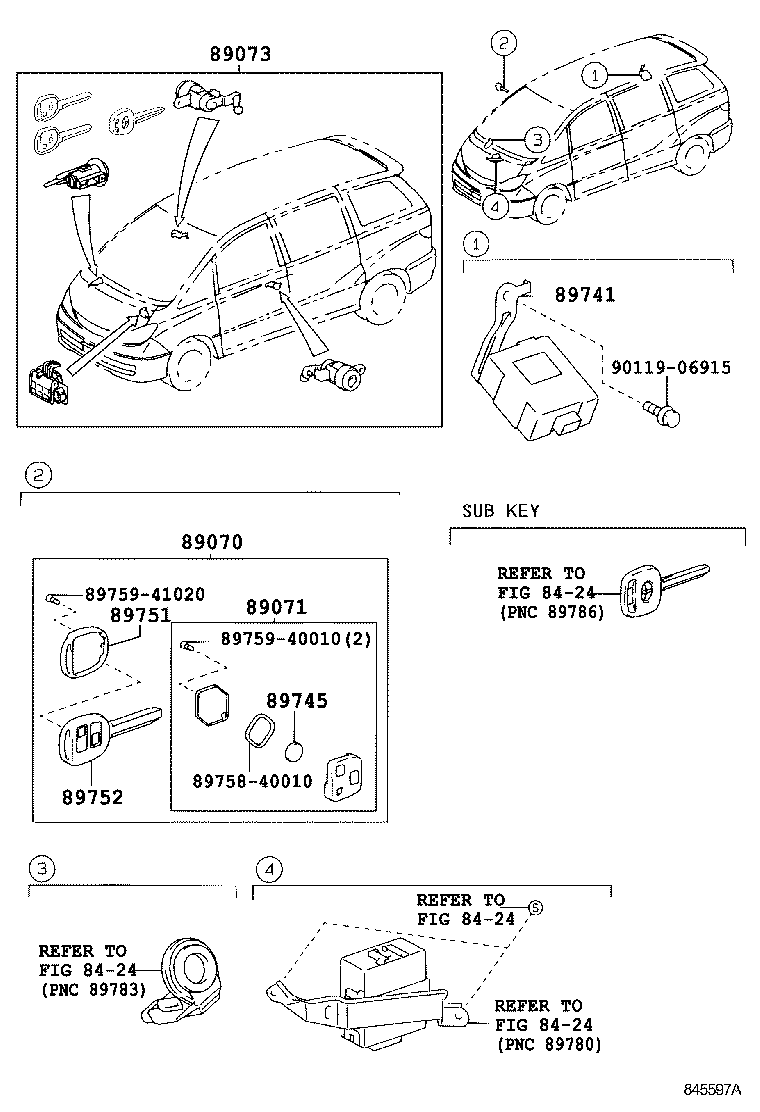

Click highlighted areas on diagram
W(ENGINE IMMOBILIZER SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-28181 |
ACR30,CLR30..EUR |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-42050 |
ACR30,CLR30..08S..MTM |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-41020 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8424 | ||||
(0304- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-28181 |
ACR30,CLR30..EUR |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-42050 |
ACR30,CLR30..08S..MTM |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
ACR30,CLR30 |
2 | ||
| 89752 - CASE, TRANSMITTER HOUSING | ||||
| 89752-13020 |
ACR30,CLR30..08S..MTM |
1 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-41020 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8424 | ||||
