CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

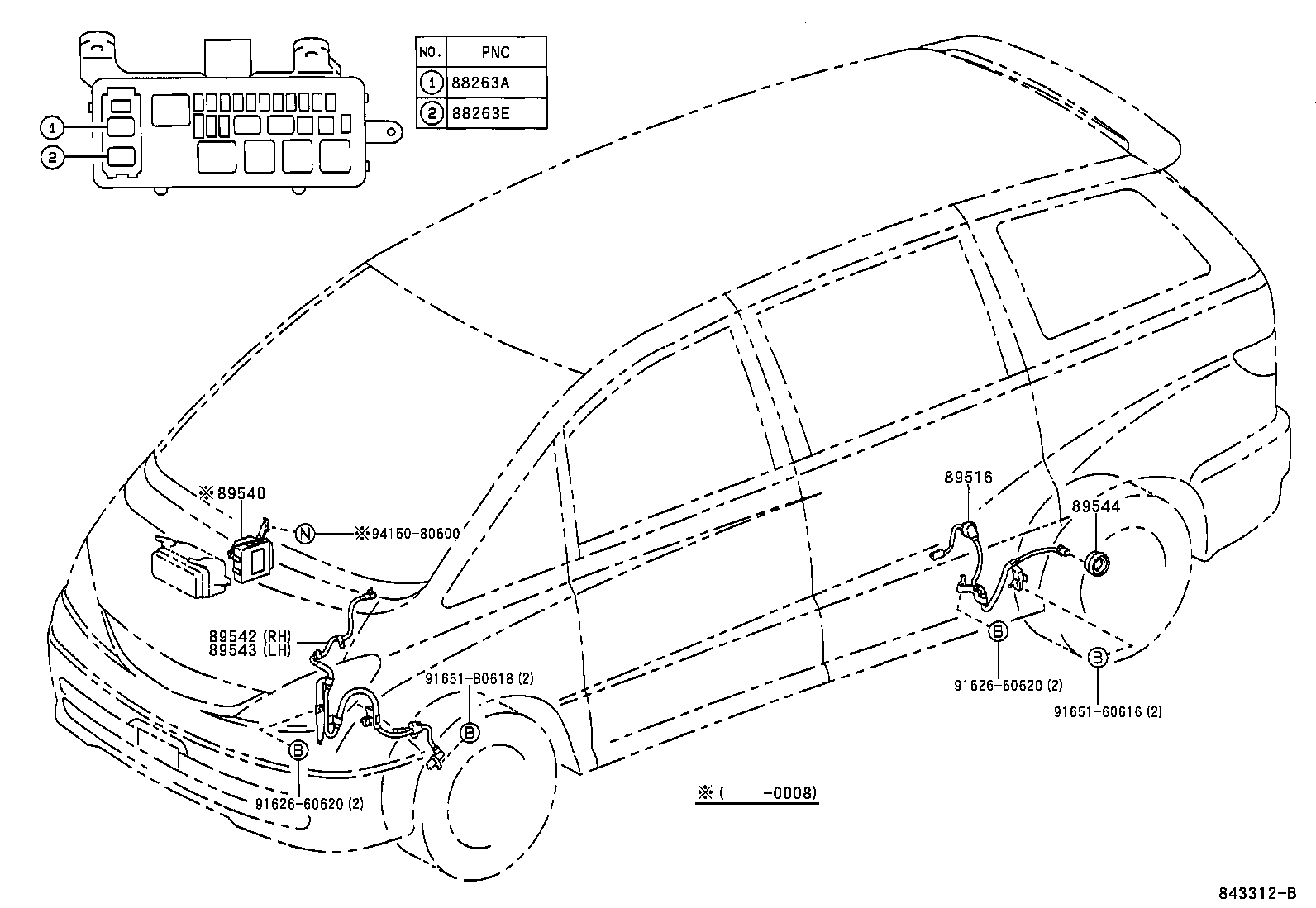

(0002-0304)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-28020 |
ACR30,CLR30 LH |
1 | ||
| 89516-28010 |
ACR30,CLR30 RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-28090 |
ACR30,CLR30 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-28090 |
ACR30,CLR30 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-47010 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 91626-60620 | ||||
| 91651-60616 | ||||
| 91651-B0618 | ||||
| 94150-80600 | ||||

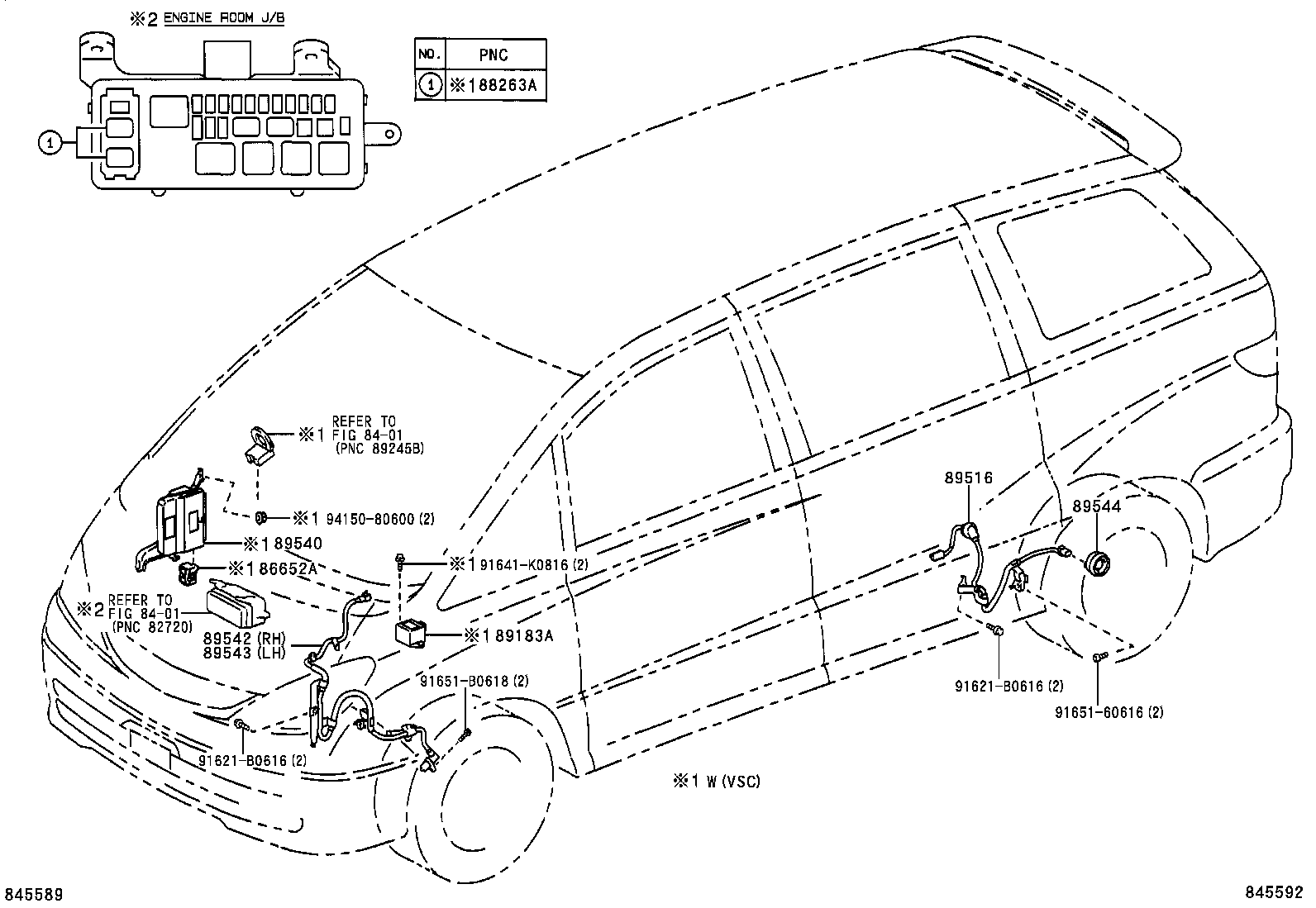

(0304- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-28020 |
ACR30,CLR30 LH |
1 | ||
| 89516-28010 |
ACR30,CLR30 RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-28090 |
ACR30,CLR30 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-28090 |
ACR30,CLR30 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-47010 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 91621-B0616 | ||||
| 91641-K0816 | ||||
| 91651-60616 | ||||
| 91651-B0618 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
