CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0002-0304)RHD

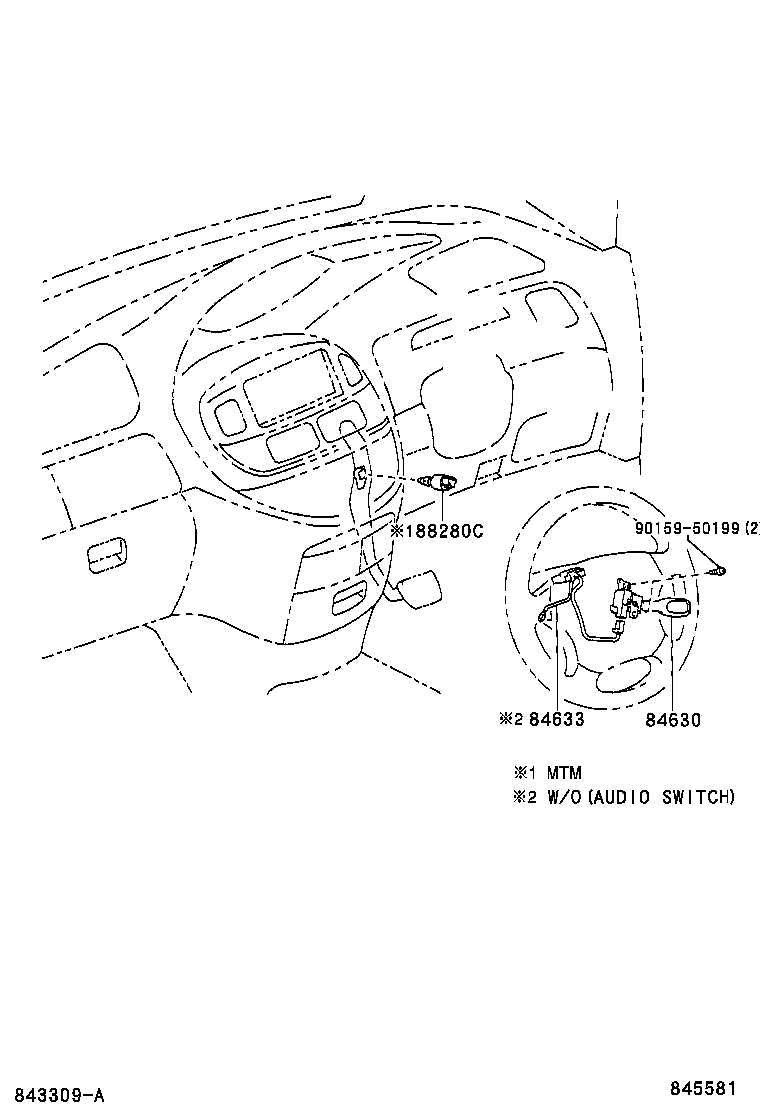

Click highlighted areas on diagram

diagram 84630 88002 88212A 88240A 88280C 9011906539 9016840113 9415080600
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-28070

ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC

 1
88280C - SWITCH ASSY, CLUTCH
88280-14030

ACR30,CLR30..MTM

 1
Common parts
90119-06539
90168-40113
94150-80600

(0304- )RHD

Click highlighted areas on diagram

diagram 84630 84633 88280C 9015950199
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-28070

ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC

 1
88280C - SWITCH ASSY, CLUTCH
88280-14030

ACR30,CLR30..MTM

 1
Common parts
90159-50199
