CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
ILLUST NO. 3 OF 6(0002-0304)RHD

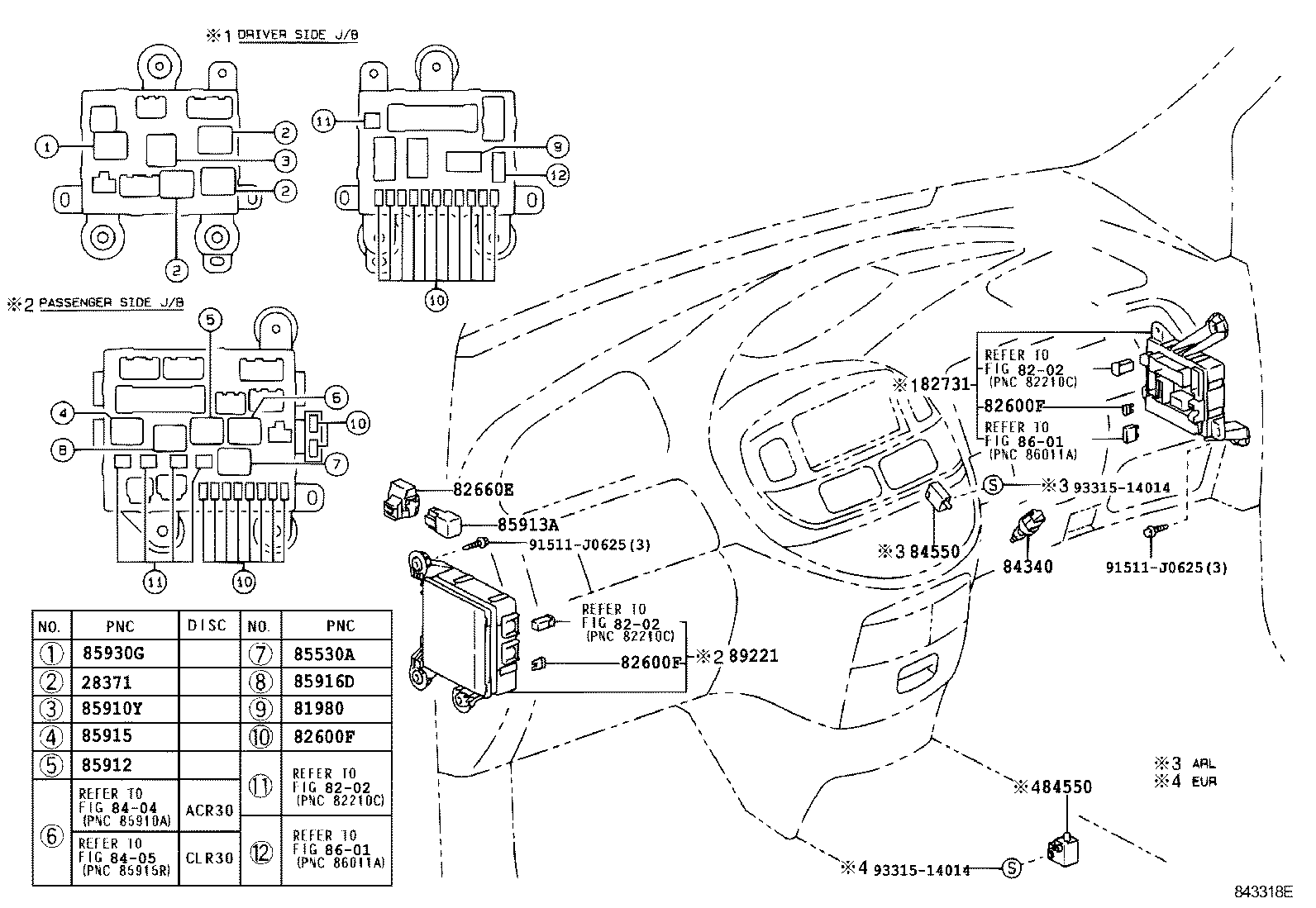

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2AZFE,1CDFTV..ACR30,CLR30..08S..MTM |
2 | ||
| 90987-02012 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR30,CLR30 |
1 | ||
| 81980-50030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
ACR30,CLR30..08S..MTM 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
ACR30,CLR30..08S..MTM 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
ACR30,CLR30..08S..MTM 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ACR30,CLR30..08S..MTM 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30,CLR30..08S..MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
ACR30,CLR30..08S..MTM 10A,MINI FUSE,RED |
3 | ||
| 90982-09013 |
ACR30,CLR30..08S..MTM 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
ACR30,CLR30..08S..MTM 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
ACR30,CLR30..08S..MTM 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
ACR30,CLR30..08S..MTM 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ACR30,CLR30..08S..MTM 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30,CLR30..08S..MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
ACR30,CLR30..08S..MTM 10A,MINI FUSE,RED |
3 | ||
| 90982-09013 |
ACR30,CLR30..08S..MTM 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
ACR30,CLR30..08S..MTM 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
ACR30,CLR30..08S..MTM 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
ACR30,CLR30..08S..MTM 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ACR30,CLR30..08S..MTM 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30,CLR30..08S..MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
ACR30,CLR30..08S..MTM 10A,MINI FUSE,RED |
3 | ||
| 90982-09013 |
ACR30,CLR30..08S..MTM 30A,MINI FUSE,GRN |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-28230 |
ACR30,CLR30 |
1 | ||
| 82660-28230 |
ACR30,CLR30..08S..MTM |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-28010 |
ACR30,CLR30 |
1 | ||
| 82731-28040 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-35030 |
CLR30;ACR30..06S;ACR30..GL..(ARL,GEN) TOKAIRIKA |
1 | ||
| 84340-32070 |
CLR30;ACR30..06S;ACR30..GL..(ARL,GEN) MATSUSHITA |
1 | ||
| 84340-49045 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02009 |
ACR30,CLR30 |
1 | ||
| 90987-02009 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-02016 |
ACR30,CLR30 |
1 | ||
| 90987-02025 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90987-02012 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 82733-28070 |
ACR30,CLR30..RHD..EUR |
1 | ||
| Common parts | ||||
| 91511-J0625 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8601 | ||||

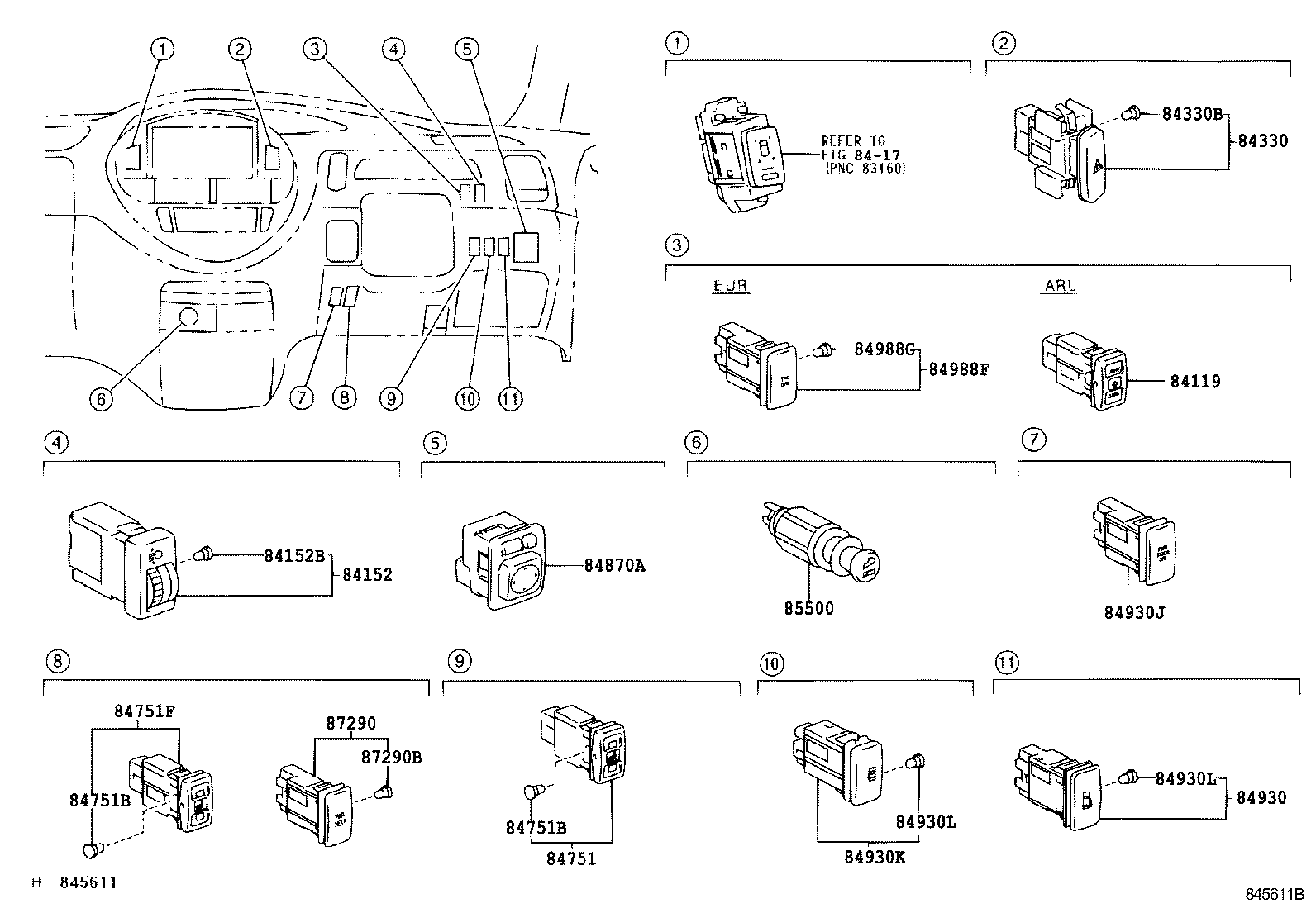

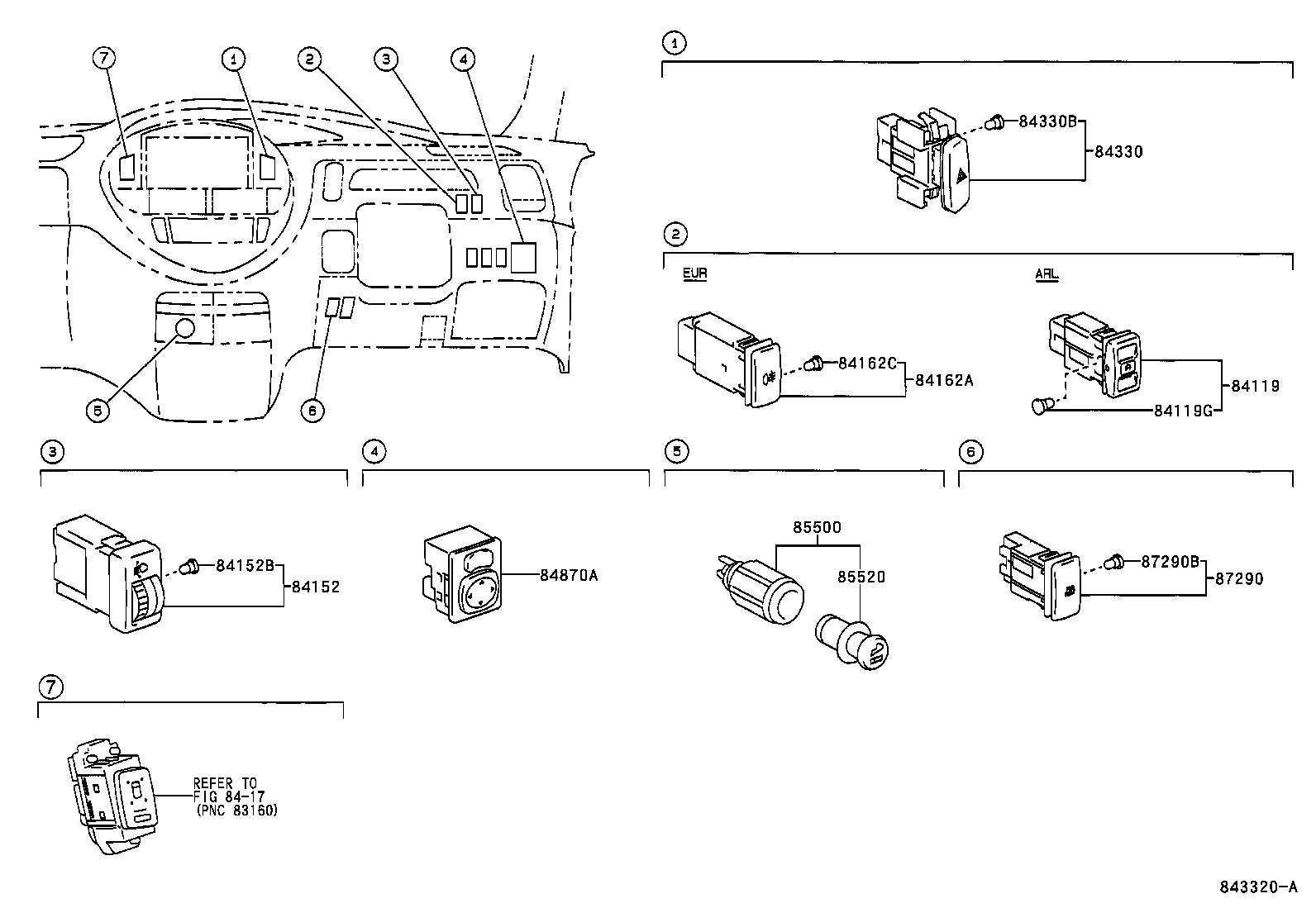

ILLUST NO. 4 OF 6(0002-0304)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-28030B3 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 84152-28030B2 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 84152-44020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-28010B2 |
ACR30,CLR30..EUR,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 84165-28010B3 |
ACR30,CLR30..EUR,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01039 |
ACR30,CLR30..EUR,GEN 14V0.91W,W(GREEN CAP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28160 |
ACR30,CLR30..RHD |
1 | ||
| 84332-28160 |
ACR30,CLR30..RHD..08S..MTM |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
ACR30,CLR30..08S..MTM 14V 0.91W |
1 | ||
| 84999-10860 |
ACR30,CLR30 14V 0.91W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
ACR30..GL..GEN;ACR30,CLR30..EUR W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-28020 |
ACR30,CLR30..08S..MTM W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-34010 |
ACR30..DX..GEN;ACR30,CLR30..(07S,08S)..(ARL,EUR,GCC) |
1 | ||
| 84870-34010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28070 |
ACR30,CLR30 |
1 | ||
| 85500-28070 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACR30,CLR30 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-28010 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
ACR30,CLR30..ARL,EUR,GEN 14V0.91W,W(GREEN CAP |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

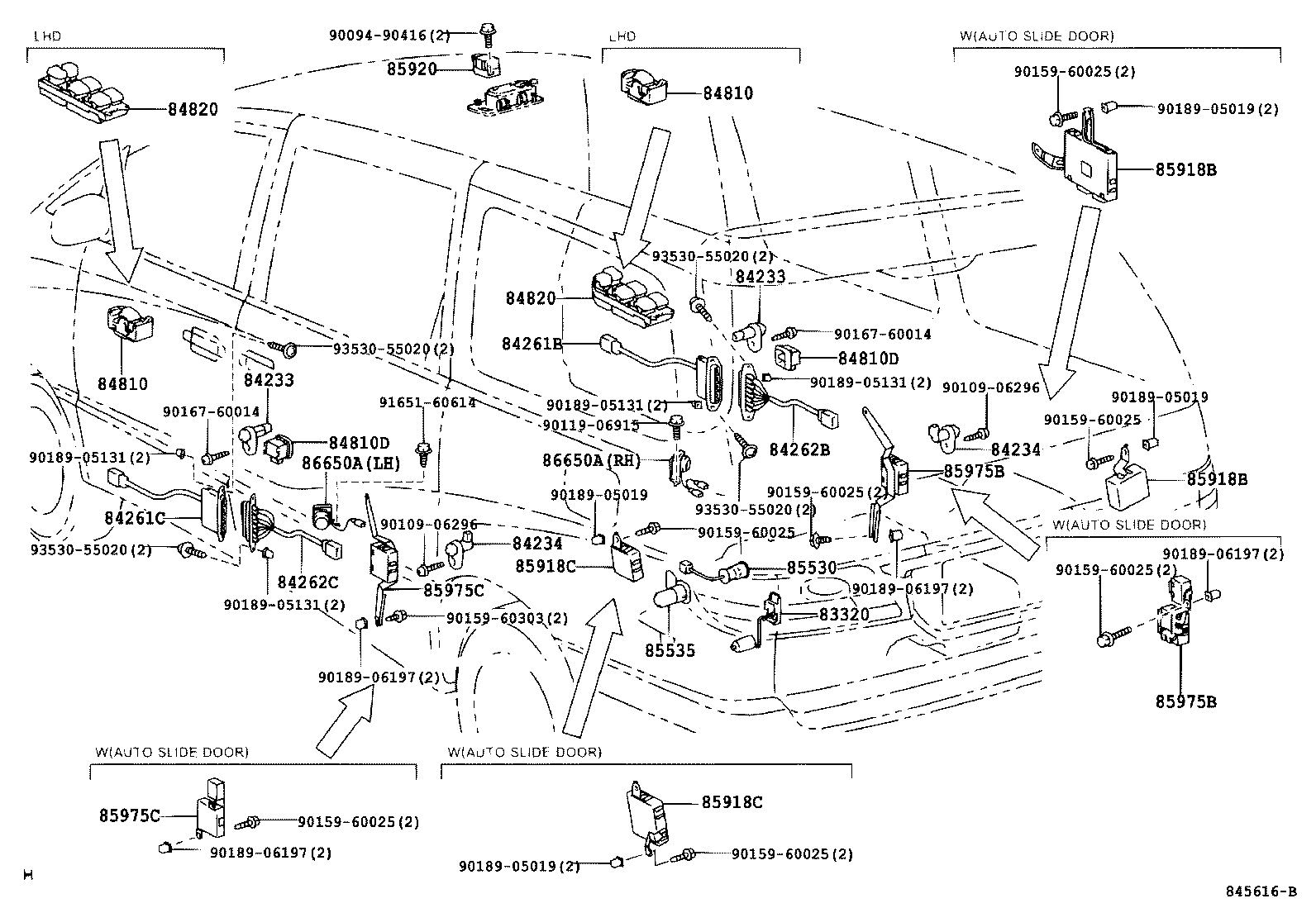

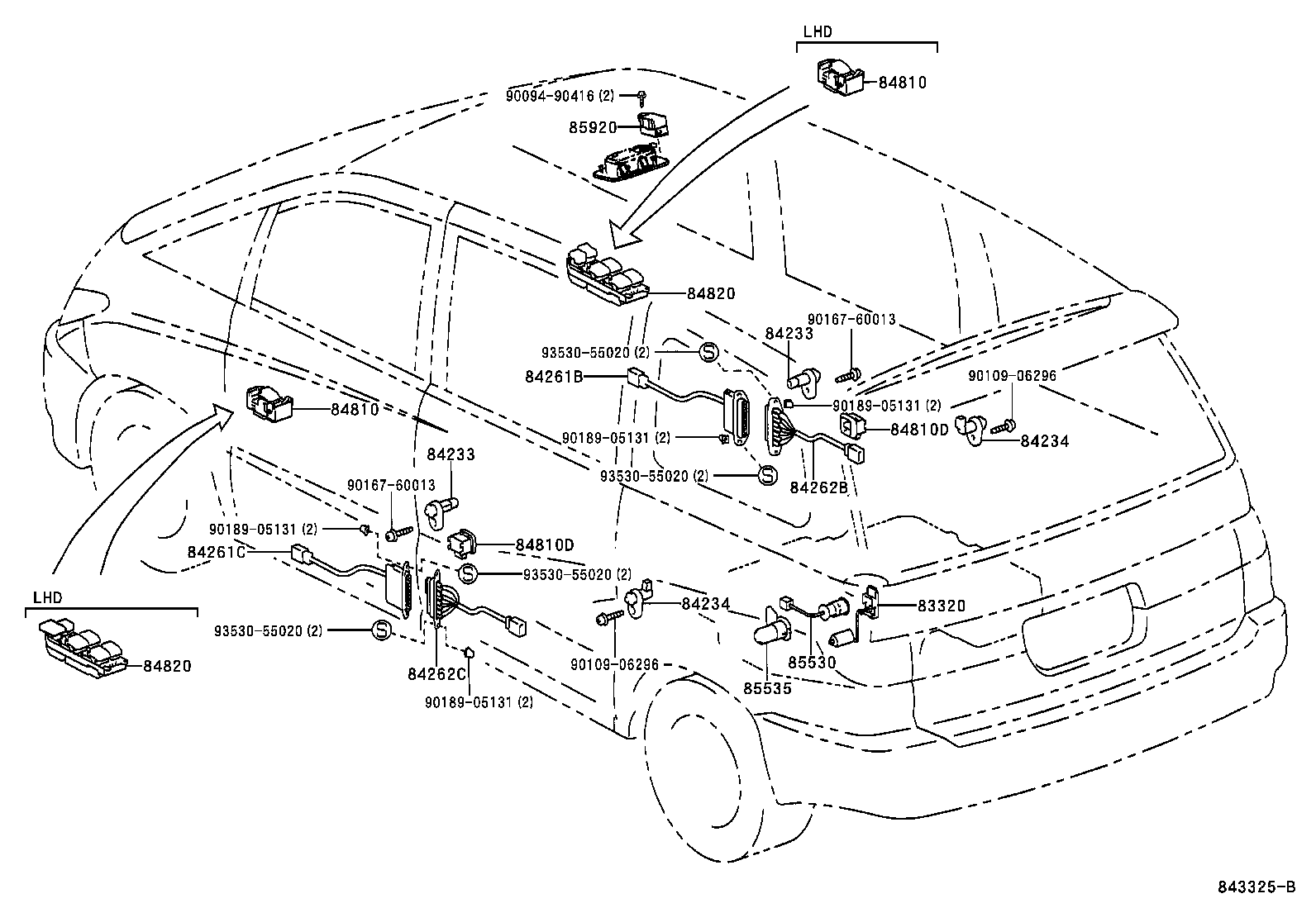

ILLUST NO. 6 OF 6(0002-0304)
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28480 |
ACR30,CLR30 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28180 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28160 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84261-28180 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261C - JUNCTION, SLIDE DOOR CONTROL,MALE NO.1 | ||||
| 84261-28170 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84261-28190 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262-28210 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28210 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262C - JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1 | ||||
| 84262-28220 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28220 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28200 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD..08S..MTM 4DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD..08S..MTM 4DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85535 - PANEL, CIGARETTE LIGHTER HEAT DIFFUSE | ||||
| 85535-28030B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85535-28030B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-28010B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85920-28010B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90109-06296 | ||||
| 90167-60013 | ||||
| 90189-05131 | ||||
| 93530-55020 | ||||

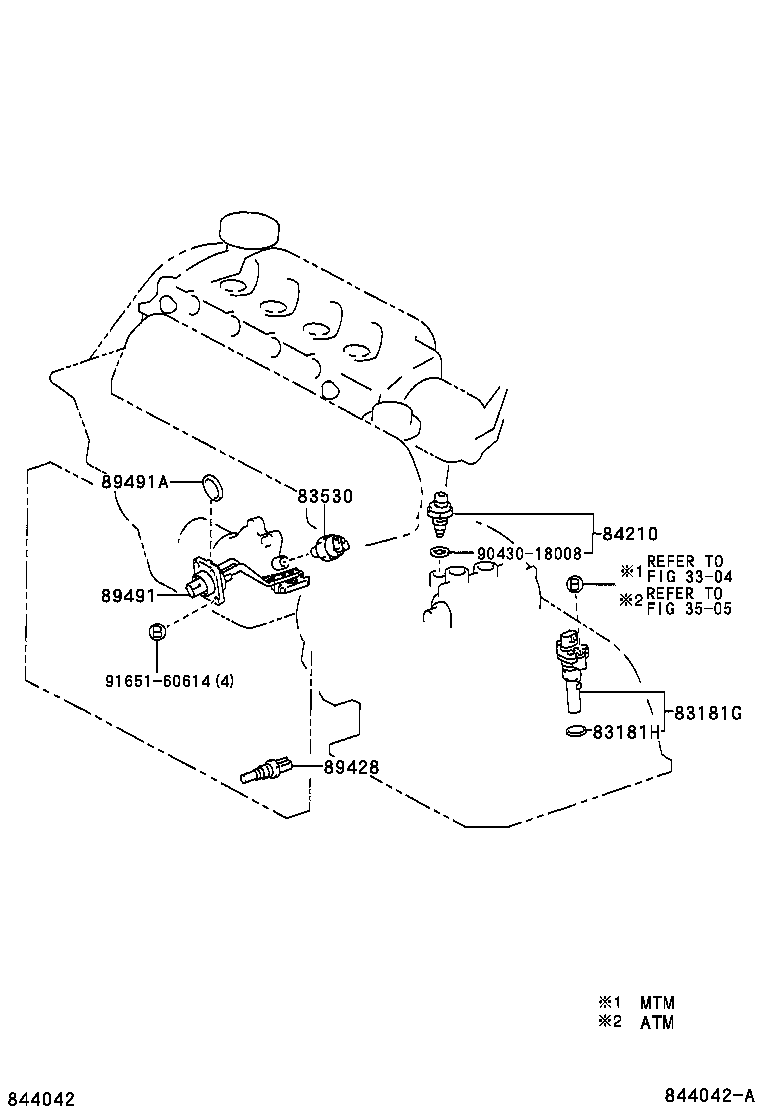

ILLUST NO. 1 OF 6(0102- )CLR30
ENGINE & TRANSMISSI0N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
ACR30,CLR30..MTM |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
ACR30,CLR30..08S..MTM |
1 | ||
| 96711-24018 |
ACR30,CLR30 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
CLR30 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ACR30,CLR30..MTM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
ACR30,CLR30 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28080 |
CLR30 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
ILLUST NO. 4 OF 6(0304- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-28030B3 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 84152-28030B2 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 84152-44020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28160 |
ACR30,CLR30..RHD |
1 | ||
| 84332-28160 |
ACR30,CLR30..RHD..08S..MTM |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
ACR30,CLR30..08S..MTM 14V 0.91W |
1 | ||
| 84999-10860 |
ACR30,CLR30 14V 0.91W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
ACR30..GL..GEN;ACR30,CLR30..EUR W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-28020 |
ACR30,CLR30..08S..MTM W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-34010 |
ACR30..DX..GEN;ACR30,CLR30..(07S,08S)..(ARL,EUR,GCC) |
1 | ||
| 84870-34010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
ACR30,CLR30..08S..MTM 14V0.91W,W(GREEN CAP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28070 |
ACR30,CLR30 |
1 | ||
| 85500-28070 |
ACR30,CLR30..08S..MTM |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-28010 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
ACR30,CLR30..ARL,EUR,GEN 14V0.91W,W(GREEN CAP |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 6 OF 6(0304- )
DOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28480 |
ACR30,CLR30 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30,CLR30..08S..MTM |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28180 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28160 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84261-28180 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261C - JUNCTION, SLIDE DOOR CONTROL,MALE NO.1 | ||||
| 84261-28170 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84261-28190 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262-28210 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28210 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262C - JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1 | ||||
| 84262-28220 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28220 |
ACR30,CLR30..08S..MTM W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28200 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD..08S..MTM 4DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD..08S..MTM 4DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85535 - PANEL, CIGARETTE LIGHTER HEAT DIFFUSE | ||||
| 85535-28030B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85535-28030B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-28010B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85920-28010B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90109-06296 | ||||
| 90119-06915 | ||||
| 90159-60025 | ||||
| 90159-60303 | ||||
| 90167-60014 | ||||
| 90189-05019 | ||||
| 90189-05131 | ||||
| 90189-06197 | ||||
| 91651-60614 | ||||
| 93530-55020 | ||||

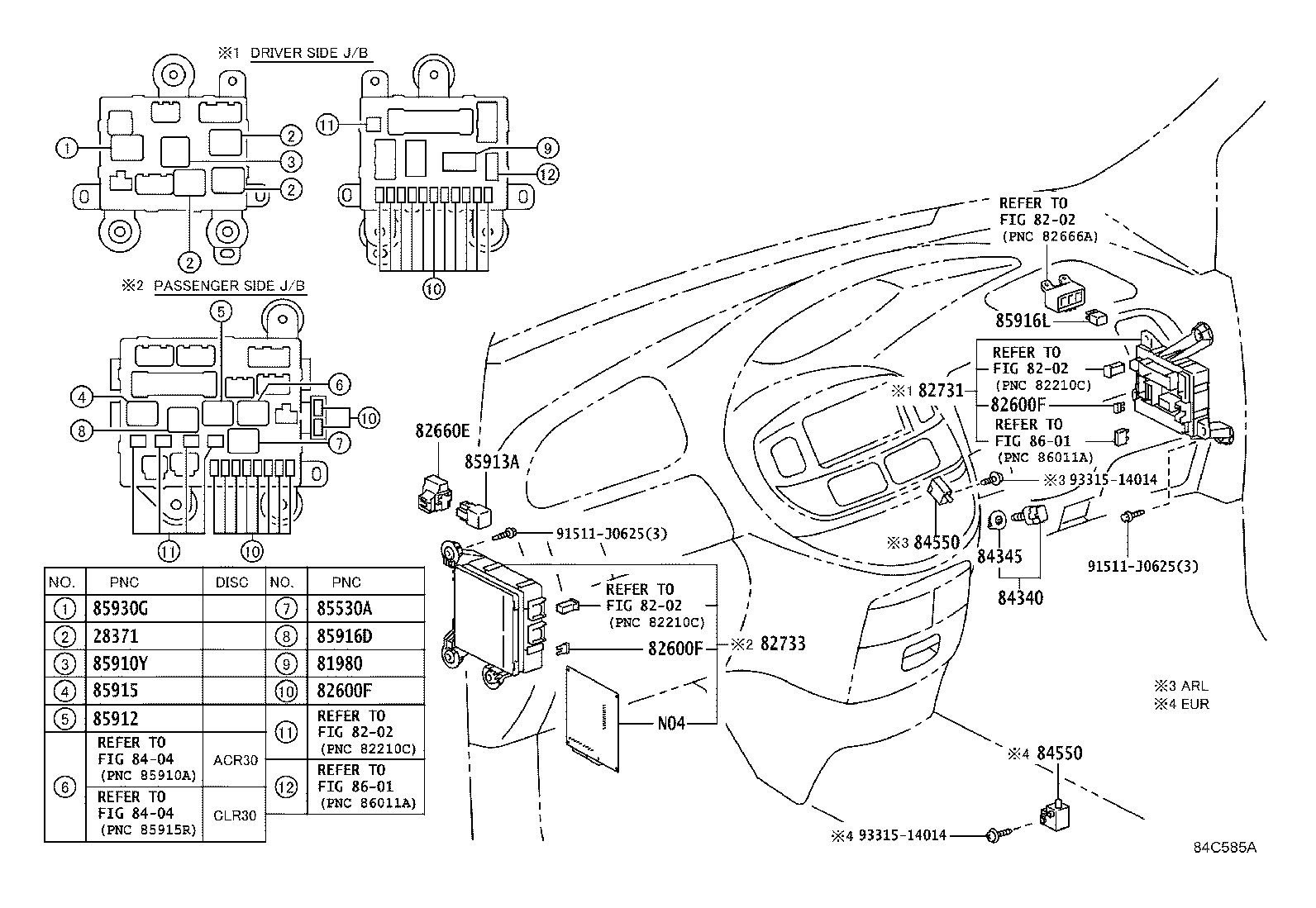

ILLUST NO. 3 OF 6(0304- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2AZFE,1CDFTV..ACR30,CLR30..08S..MTM |
2 | ||
| 90987-02012 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR30,CLR30 |
1 | ||
| 81980-50030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
ACR30,CLR30..08S..MTM 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
ACR30,CLR30..08S..MTM 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
ACR30,CLR30..08S..MTM 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ACR30,CLR30..08S..MTM 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30,CLR30..08S..MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
ACR30,CLR30..08S..MTM 10A,MINI FUSE,RED |
3 | ||
| 90982-09013 |
ACR30,CLR30..08S..MTM 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
ACR30,CLR30..08S..MTM 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
ACR30,CLR30..08S..MTM 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
ACR30,CLR30..08S..MTM 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ACR30,CLR30..08S..MTM 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30,CLR30..08S..MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
ACR30,CLR30..08S..MTM 10A,MINI FUSE,RED |
3 | ||
| 90982-09013 |
ACR30,CLR30..08S..MTM 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09008 |
ACR30,CLR30..08S..MTM 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
ACR30,CLR30..08S..MTM 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
ACR30,CLR30..08S..MTM 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ACR30,CLR30..08S..MTM 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30,CLR30..08S..MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
ACR30,CLR30..08S..MTM 10A,MINI FUSE,RED |
3 | ||
| 90982-09013 |
ACR30,CLR30..08S..MTM 30A,MINI FUSE,GRN |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-28230 |
ACR30,CLR30 |
1 | ||
| 82660-28230 |
ACR30,CLR30..08S..MTM |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-28010 |
ACR30,CLR30 |
1 | ||
| 82731-28040 |
ACR30,CLR30..08S..MTM |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82733-28150 |
ACR30,CLR30..RHD..08S..MTM |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-35030 |
CLR30;ACR30..06S;ACR30..GL..(ARL,GEN) TOKAIRIKA |
1 | ||
| 84340-32070 |
CLR30;ACR30..06S;ACR30..GL..(ARL,GEN) MATSUSHITA |
1 | ||
| 84340-49045 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02009 |
ACR30,CLR30 |
1 | ||
| 90987-02009 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-02016 |
ACR30,CLR30 |
1 | ||
| 90987-02025 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90987-02012 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30,CLR30..08S..MTM |
1 | ||
| Common parts | ||||
| 91511-J0625 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
