CLR30R-MRMDTW (2001)
Toyota Previa/Tarago

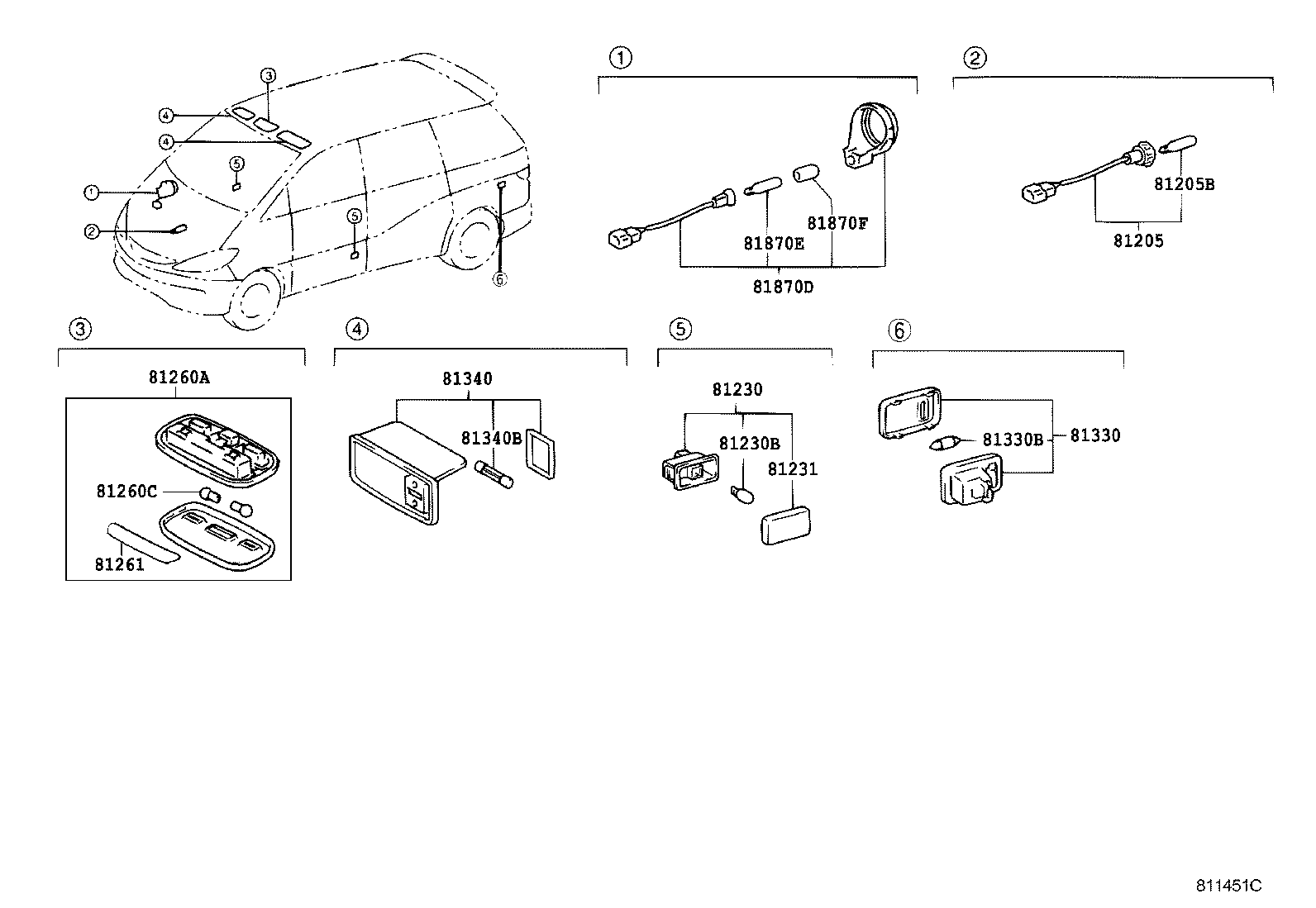

ILLUST NO. 1 OF 2(0002-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81850-28050 |
ACR30,CLR30 |
1 | ||
| 81850-28050 |
ACR30,CLR30 |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
ACR30,CLR30 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,CLR30 14V 1.4W |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
ACR30,CLR30 |
2 | ||
| 81230-30140 |
ACR30,CLR30 |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
ACR30,CLR30 12V 3.8W |
2 | ||
| 90981-11020 |
ACR30,CLR30 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
ACR30,CLR30 |
2 | ||
| 81231-50010 |
ACR30,CLR30 |
2 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-16061B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 81260-16061B2 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
ACR30,CLR30 12V 8W |
2 | ||
| 90981-12005 |
ACR30,CLR30 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-16060 |
ACR30,CLR30 |
1 | ||
| 81261-16060 |
ACR30,CLR30 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ACR30,CLR30 12V 5W |
1 | ||
| 99132-13050 |
ACR30,CLR30 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-33090B6 |
ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,RH |
1 | ||
| 81350-33040B6 |
ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,LH |
1 | ||
| 81350-33040B3 |
ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,LH |
1 | ||
| 81340-33090B9 |
ACR30,CLR30..08S..MTM LT.GRAY,TRIM1#,LH |
1 | ||
| 81340-33090B3 |
ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,RH |
1 | ||
| 81350-33040B6 |
ACR30..GL..ARL;ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,LH |
1 | ||
| 81340-33090B3 |
ACR30..GL..ARL;ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,RH |
1 | ||
| 81350-33040B9 |
ACR30,CLR30..08S..MTM LT.GRAY,TRIM1#,RH |
1 | ||
| 81340-33090B6 |
ACR30..GL..ARL;ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,RH |
1 | ||
| 81350-33040B3 |
ACR30..GL..ARL;ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,LH |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ACR30,CLR30..08S..MTM 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30,CLR30..EUR 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30..GL..ARL;ACR30,CLR30..EUR 12V 1.5W |
2 | ||

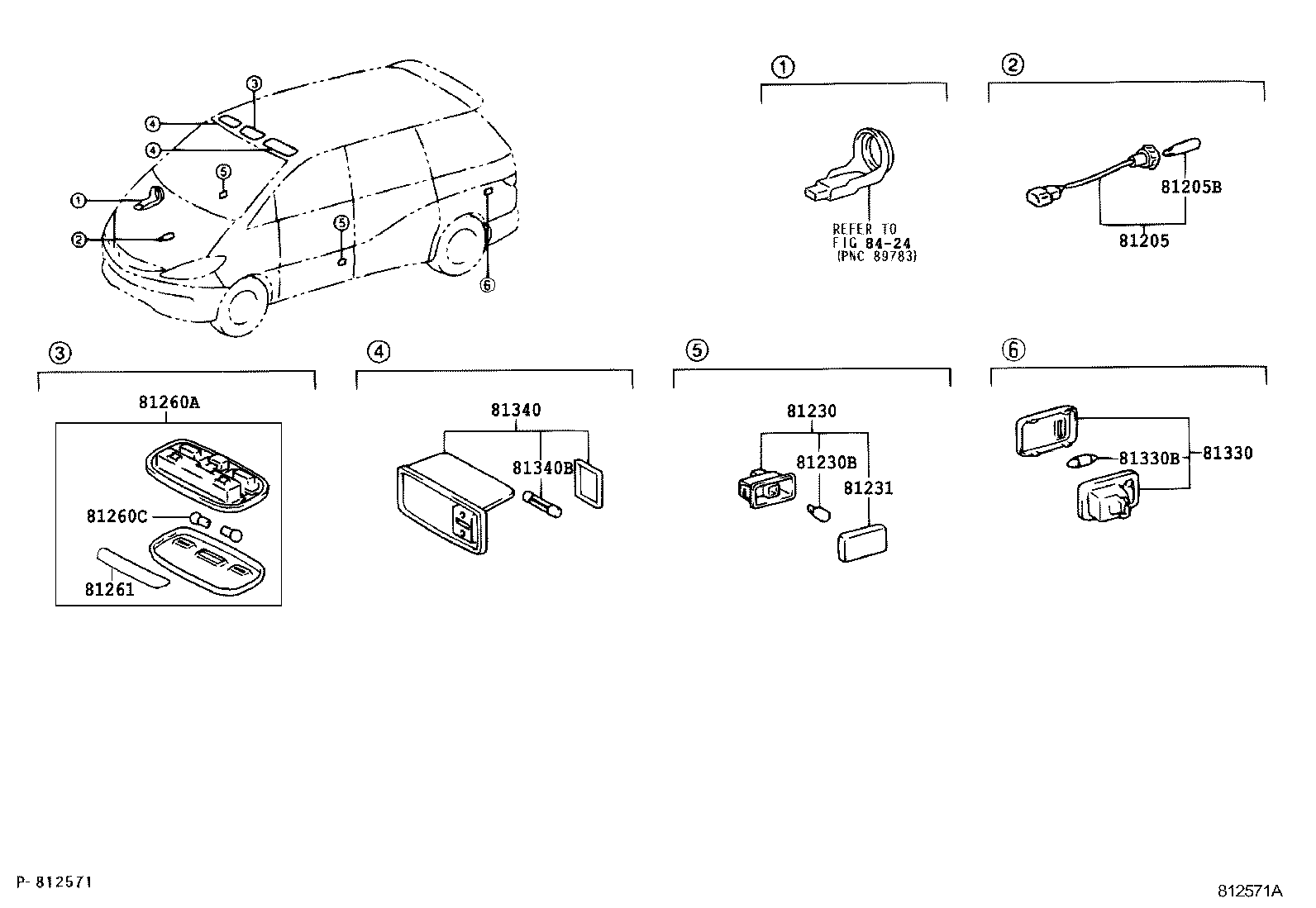

ILLUST NO. 1 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81850-28050 |
ACR30,CLR30 |
1 | ||
| 81850-28050 |
ACR30,CLR30 |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
ACR30,CLR30 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,CLR30 14V 1.4W |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
ACR30,CLR30 |
2 | ||
| 81230-30140 |
ACR30,CLR30 |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
ACR30,CLR30 12V 3.8W |
2 | ||
| 90981-11020 |
ACR30,CLR30 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
ACR30,CLR30 |
2 | ||
| 81231-50010 |
ACR30,CLR30 |
2 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-16061B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 81260-16061B2 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
ACR30,CLR30 12V 8W |
2 | ||
| 90981-12005 |
ACR30,CLR30 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-16060 |
ACR30,CLR30 |
1 | ||
| 81261-16060 |
ACR30,CLR30 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ACR30,CLR30 12V 5W |
1 | ||
| 99132-13050 |
ACR30,CLR30 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-33090B6 |
ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,RH |
1 | ||
| 81350-33040B6 |
ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,LH |
1 | ||
| 81350-33040B3 |
ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,LH |
1 | ||
| 81340-33090B9 |
ACR30,CLR30..08S..MTM LT.GRAY,TRIM1#,LH |
1 | ||
| 81340-33090B3 |
ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,RH |
1 | ||
| 81350-33040B6 |
ACR30..GL..ARL;ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,LH |
1 | ||
| 81340-33090B3 |
ACR30..GL..ARL;ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,RH |
1 | ||
| 81350-33040B9 |
ACR30,CLR30..08S..MTM LT.GRAY,TRIM1#,RH |
1 | ||
| 81340-33090B6 |
ACR30..GL..ARL;ACR30,CLR30..EUR LT.BLUISH GRAY,TRIM11,RH |
1 | ||
| 81350-33040B3 |
ACR30..GL..ARL;ACR30,CLR30..EUR MD.CHARCOAL,TRIM12,LH |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ACR30,CLR30..08S..MTM 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30,CLR30..EUR 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30..GL..ARL;ACR30,CLR30..EUR 12V 1.5W |
2 | ||
| Linked diagrams | ||||
| 8424 | ||||
