CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0304- )

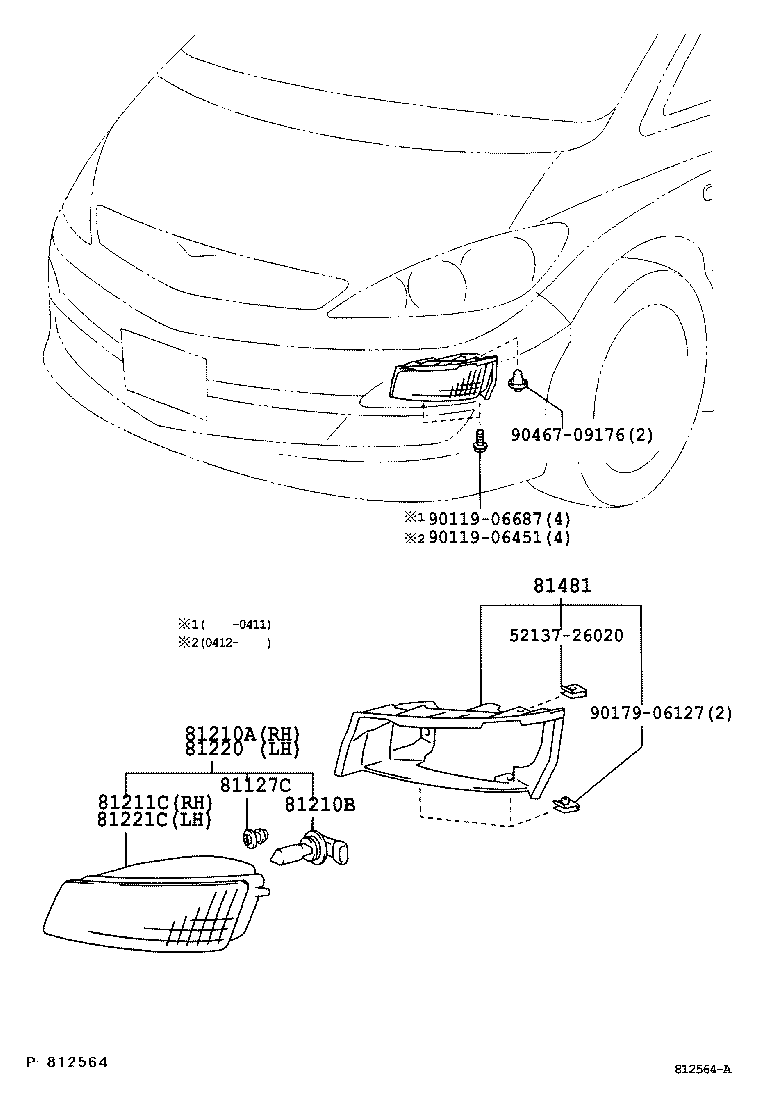

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81127C - BEARING FOG LAMP
90075-10811	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	2
81210A - LAMP ASSY, FOG, RH
81210-28210	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	1
81210B - BULB, FOG LAMP
90981-13047	ACR30,CLR30..08S..MTM 12V 51W,HALOGEN	04/2003 - 04/2004	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-28210	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	1
81220 - LAMP ASSY, FOG, LH
81220-28110	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-28110	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	1
81481 - BRACKET, FOG LAMP
81481-28050	ACR30,CLR30..08S..MTM RH	04/2003 - 04/2004	1
81482-28010	ACR30,CLR30..08S..MTM LH	04/2003 - 04/2004	1
Common parts
52137-26020
90119-06451
90119-06687
90179-06127
90467-09176
