CLR30R-MRMDTW (2001)
Toyota Previa/Tarago

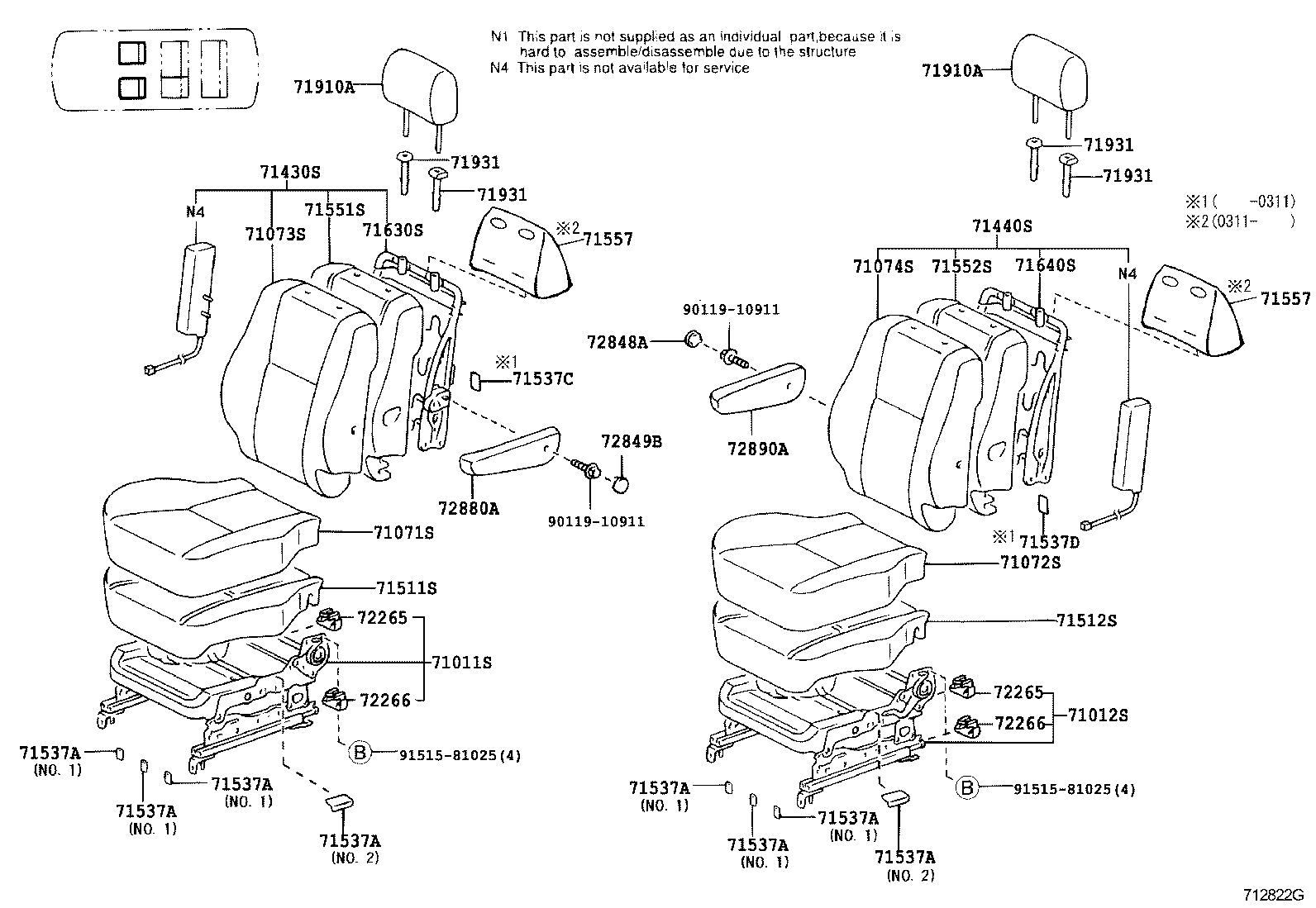

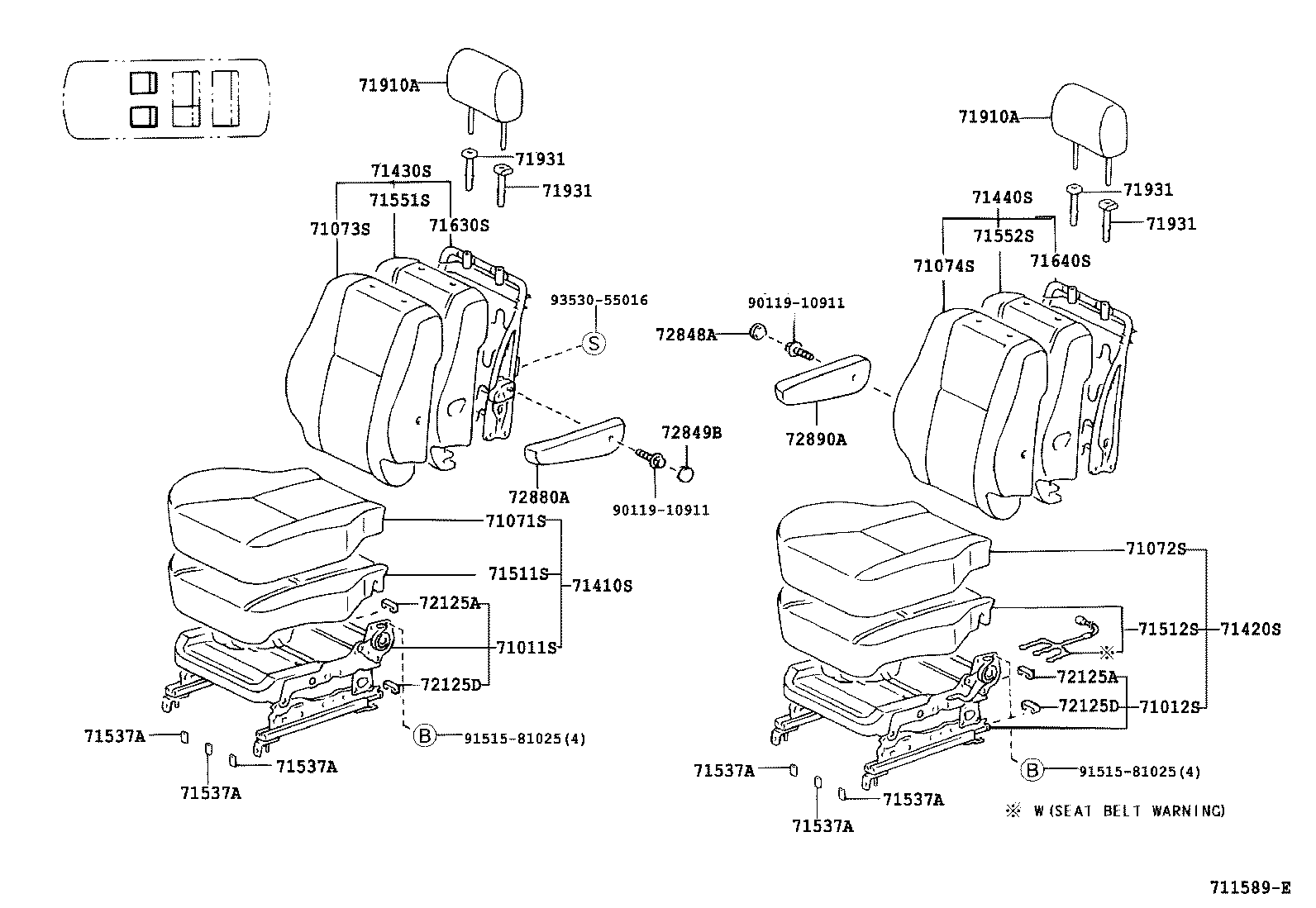

ILLUST NO. 1 OF 4(0002-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28010 |
ACR30,CLR30..RHD |
1 | ||
| 71110-28011 |
ACR30,CLR30..RHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28010 |
ACR30,CLR30..RHD |
1 | ||
| 71120-28011 |
ACR30,CLR30..RHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J570B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2R090B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J570B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R100B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J560B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R150B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
CLR30..08S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2R410B0 |
ACR30,CLR30..RHD..08S..EUR SEAT = TYPE A-*104;W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R400B0 |
ACR30,CLR30..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J590B1 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J590B3 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71074-2J770B0 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2J760B0 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2J400B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104 & W(ARMREST),MD.CHARCOAL,TRIM12 |
1 | ||
| 71410-2J400B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J401B0 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J401B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104 & W(ARMREST),CHARCOAL,TRIM12 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2J380B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104 & W(ARMREST),MD.CHARCOAL,TRIM12 |
1 | ||
| 71420-2J380B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28220 |
ACR30,CLR30..RHD..MTM |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28450 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28270 |
CLR30..LHD..08S;ACR30,CLR30..RHD..MTM W(ARMREST) |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28460 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28290 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
| 93530-55016 | ||||

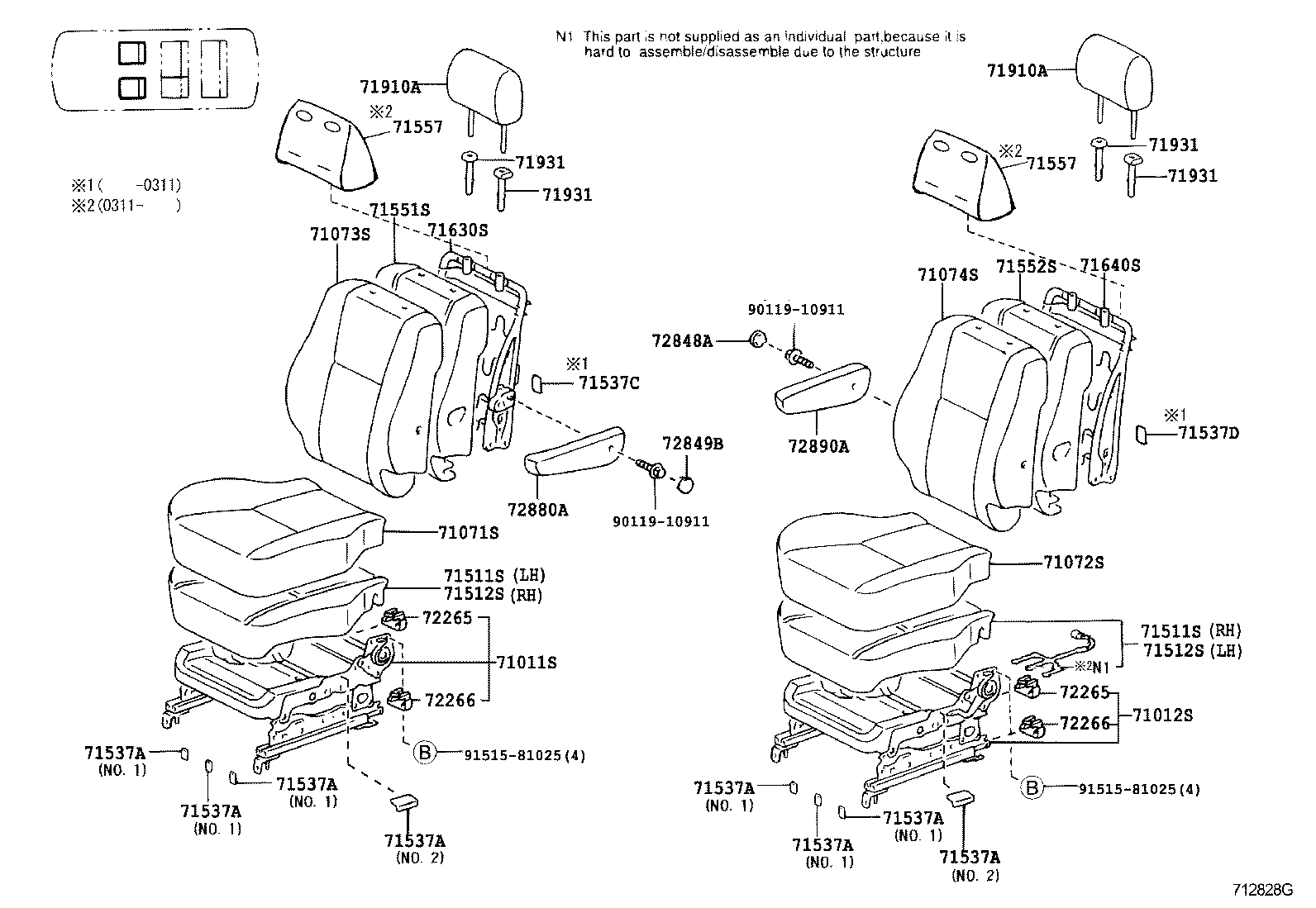

ILLUST NO. 1 OF 4(0304- )
W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28010 |
ACR30,CLR30..RHD |
1 | ||
| 71110-28011 |
ACR30,CLR30..RHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28010 |
ACR30,CLR30..RHD |
1 | ||
| 71120-28011 |
ACR30,CLR30..RHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J570B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2R090B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J570B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R100B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J560B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R150B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
CLR30..08S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2R410B0 |
ACR30,CLR30..RHD..08S..EUR SEAT = TYPE A-*104;W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R400B0 |
ACR30,CLR30..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J590B1 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J590B3 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71074-2J770B0 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2J760B0 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28220 |
ACR30,CLR30..RHD..MTM |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28450 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28270 |
CLR30..LHD..08S;ACR30,CLR30..RHD..MTM W(ARMREST) |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28460 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28290 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..EUR DRIVER SIDE |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..EUR DRIVER SIDE |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..08S..EUR DRIVER SIDE |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..08S..EUR DRIVER SIDE |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
ILLUST NO. 1 OF 4(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28010 |
ACR30,CLR30..RHD |
1 | ||
| 71110-28011 |
ACR30,CLR30..RHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28010 |
ACR30,CLR30..RHD |
1 | ||
| 71120-28011 |
ACR30,CLR30..RHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J570B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2R090B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J570B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R100B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J560B1 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2R150B0 |
ACR30,CLR30..RHD..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..RHD..DX SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
CLR30..08S SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2R410B0 |
ACR30,CLR30..RHD..08S..EUR SEAT = TYPE A-*104;W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71073-2R400B0 |
ACR30,CLR30..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J590B1 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J590B3 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71074-2J770B0 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1# |
1 | ||
| 71074-2J760B0 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28220 |
ACR30,CLR30..RHD..MTM |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71511-28220 |
ACR30,CLR30..RHD..MTM |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
ACR30,CLR30..EUR |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28450 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28270 |
CLR30..LHD..08S;ACR30,CLR30..RHD..MTM W(ARMREST) |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28460 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(SRS SIDE AIR BAG) |
1 | ||
| 71551-28290 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..EUR DRIVER SIDE |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..EUR DRIVER SIDE |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..08S..EUR DRIVER SIDE |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
ACR30,CLR30..RHD..08S..EUR DRIVER SIDE |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
