Toyota Previa/tarago CLR30 LOCK CYLINDER SET

CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

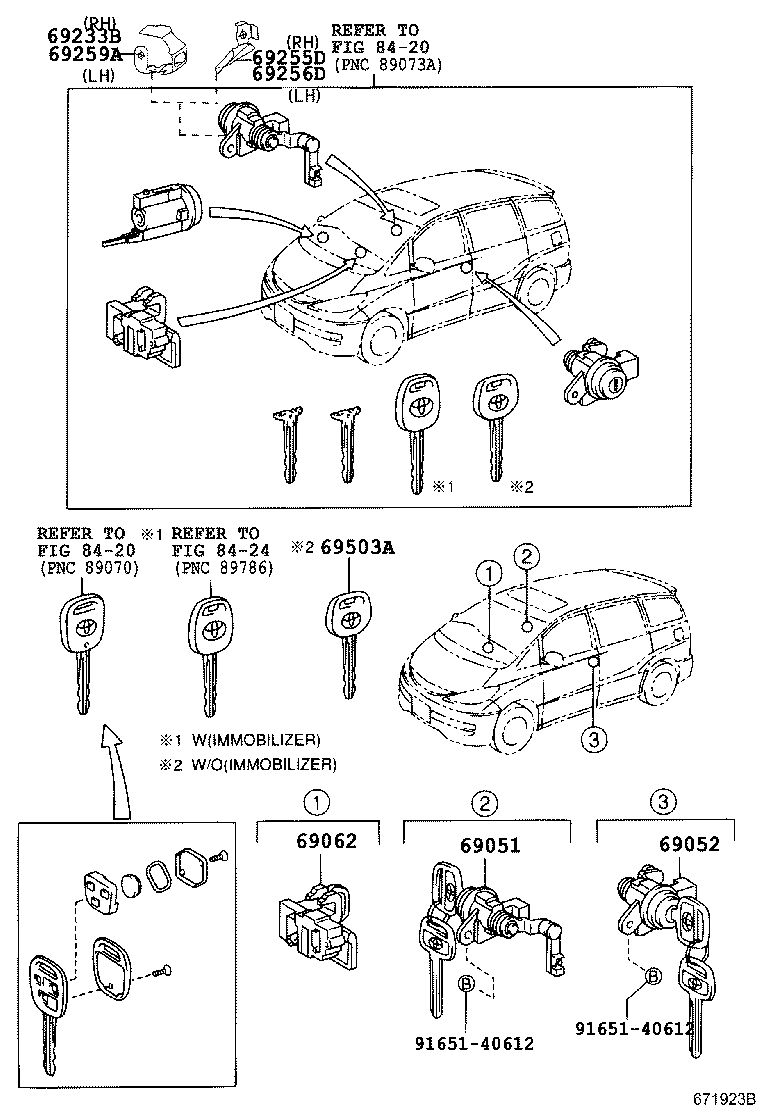

Click highlighted areas on diagram

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-28240	CLR30;ACR30..GCC	02/2001 - 04/2003	1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-28230	CLR30;ACR30..GCC	02/2001 - 04/2003	1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-28070	ACR30,CLR30	04/2003 - 12/2999	1
69056-28060	ACR30,CLR30	02/2000 - 04/2003	1
69233B - RETAINER, DOOR OUTSIDE HANDLE, RH
69233-28010	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69233-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69255D - PROTECTOR, DOOR OUTSIDE HANDLE
69255-28020	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69255-28020	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69256D - PROTECTOR, DOOR OUTSIDE HANDLE, RH
69256-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69256-28010	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69259A - RETAINER, DOOR OUTSIDE HANDLE, LH
69259-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69259-28010	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69503A - KEY, BLANK
90999-00199	ACR30,CLR30..08S..MTM MASTER KEY,W(*68)	04/2003 - 04/2004	2
Common parts
91651-40612
Linked diagrams
8420
8424

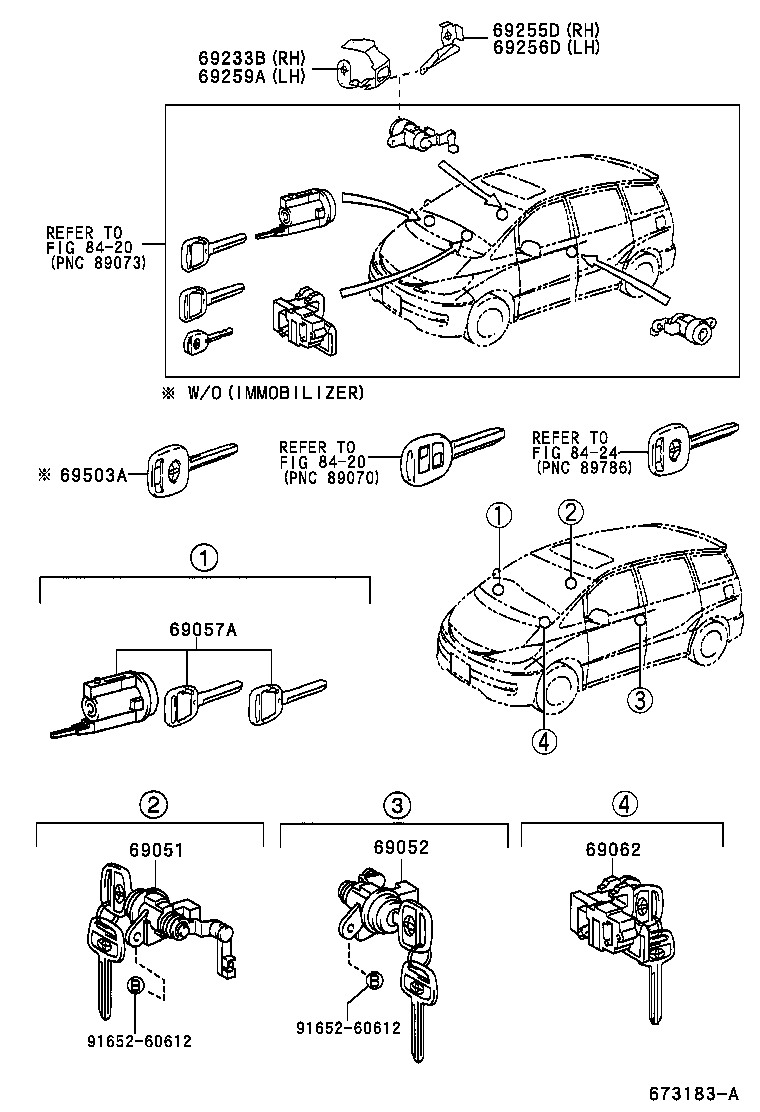

Click highlighted areas on diagram

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-28240	CLR30;ACR30..GCC	02/2001 - 04/2003	1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-28230	CLR30;ACR30..GCC	02/2001 - 04/2003	1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-28070	ACR30,CLR30	04/2003 - 12/2999	1
69056-28060	ACR30,CLR30	02/2000 - 04/2003	1
69233B - RETAINER, DOOR OUTSIDE HANDLE, RH
69233-28010	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69233-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69255D - PROTECTOR, DOOR OUTSIDE HANDLE
69255-28020	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69255-28020	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69256D - PROTECTOR, DOOR OUTSIDE HANDLE, RH
69256-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69256-28010	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69259A - RETAINER, DOOR OUTSIDE HANDLE, LH
69259-28010	ACR30,CLR30..RHD..EUR	04/2003 - 12/2999	1
69259-28010	ACR30,CLR30..RHD..EUR	02/2000 - 04/2003	1
69503A - KEY, BLANK
90999-00199	ACR30,CLR30..08S..MTM MASTER KEY,W(*68)	04/2003 - 04/2004	2
Common parts
91652-60612
Linked diagrams
8420
8424
