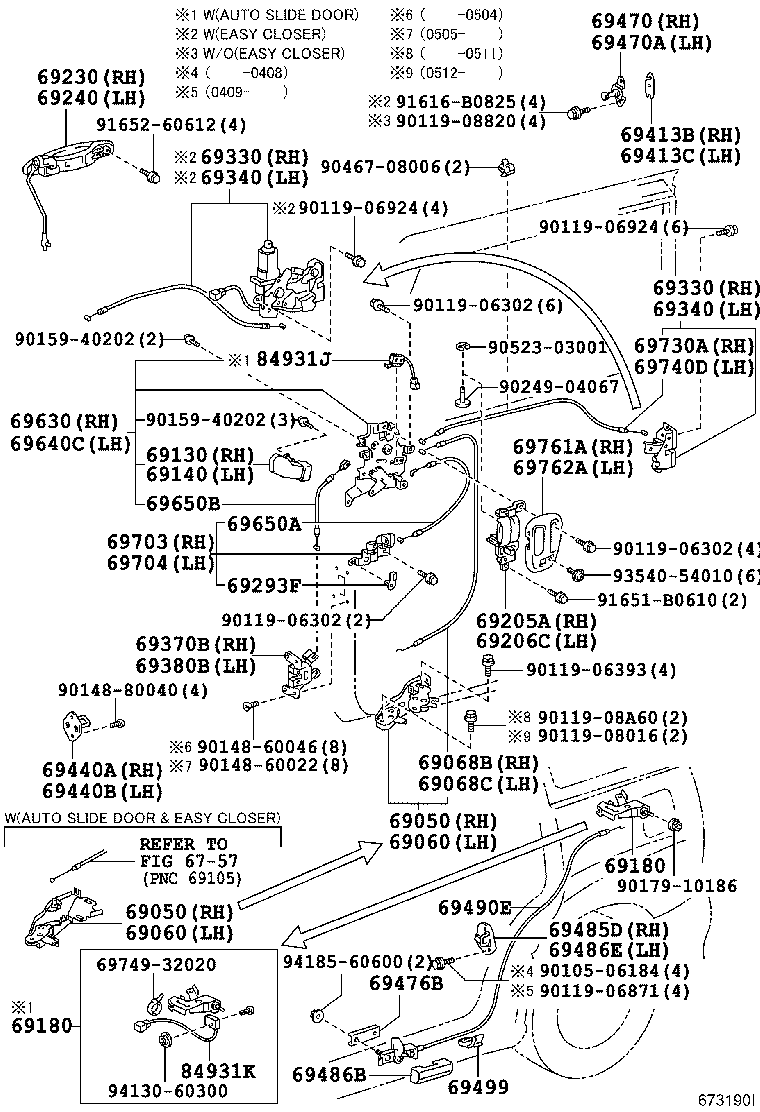

CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
(0002-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-28010 |
ACR30,CLR30 |
1 | ||
| 69050-28010 |
ACR30,CLR30 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-28040 |
ACR30,CLR30 |
1 | ||
| 69060-28040 |
ACR30,CLR30 |
1 | ||
| 69068B - CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2 | ||||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69068C - CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2 | ||||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-28050 |
ACR30,CLR30 |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-28080 |
ACR30,CLR30 |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28060 |
ACR30,CLR30 |
1 | ||
| 69180-28060 |
ACR30,CLR30 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 69207-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 69208-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-28070A1 |
ACR30,CLR30 WHITE,056 |
1 | ||
| 69230-28070D0 |
ACR30,CLR30 RED MC.,3J7 |
1 | ||
| 69230-28070G0 |
ACR30,CLR30 DK.GREEN MC.,6Q7 |
1 | ||
| 69230-28070J1 |
ACR30,CLR30 GRAYISH BLUE ME.,8P6 |
1 | ||
| 69230-28070C0 |
ACR30,CLR30 BLACK MC.CC.,210 |
1 | ||
| 69230-28070F0 |
ACR30,CLR30 CHAMPAGNE ME.,583 |
1 | ||
| 69230-28070J0 |
ACR30,CLR30 DK.BLUE MC.,8P4 |
1 | ||
| 69230-28070B0 |
ACR30,CLR30 SILVER ME.,1C0 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-28100A1 |
ACR30,CLR30 WHITE,056 |
1 | ||
| 69240-28100C0 |
ACR30,CLR30 BLACK MC.CC.,210 |
1 | ||
| 69240-28100J1 |
ACR30,CLR30 GRAYISH BLUE ME.,8P6 |
1 | ||
| 69240-28100J0 |
ACR30,CLR30 DK.BLUE MC.,8P4 |
1 | ||
| 69240-28100B0 |
ACR30,CLR30 SILVER ME.,1C0 |
1 | ||
| 69240-28100D0 |
ACR30,CLR30 RED MC.,3J7 |
1 | ||
| 69240-28100G0 |
ACR30,CLR30 DK.GREEN MC.,6Q7 |
1 | ||
| 69240-28100F0 |
ACR30,CLR30 CHAMPAGNE ME.,583 |
1 | ||
| 69293F - SNAP, DOOR OUTSIDE HANDLE | ||||
| 69293-22020 |
ACR30,CLR30 LH |
1 | ||
| 69293-22010 |
ACR30,CLR30 RH |
1 | ||
| 69293-22020 |
ACR30,CLR30 LH |
1 | ||
| 69293-22010 |
ACR30,CLR30 RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-28060 |
CLR30..RHD |
1 | ||
| 69330-28060 |
CLR30..RHD |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-28150 |
CLR30..RHD |
1 | ||
| 69340-28150 |
CLR30..RHD |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-28060 |
ACR30,CLR30 |
1 | ||
| 69370-28060 |
ACR30,CLR30 |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-28060 |
ACR30,CLR30 |
1 | ||
| 69380-28060 |
ACR30,CLR30 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28080 |
ACR30,CLR30 |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28080 |
ACR30,CLR30 |
1 | ||
| 69476B - PLATE, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69476-28010 |
ACR30,CLR30 |
1 | ||
| 69476-28010 |
ACR30,CLR30 |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-28010 |
ACR30,CLR30 |
1 | ||
| 69485-28010 |
ACR30,CLR30 |
1 | ||
| 69486B - COVER, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69486-28040 |
ACR30,CLR30 |
1 | ||
| 69486-28040 |
ACR30,CLR30 |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-28020 |
ACR30,CLR30 |
1 | ||
| 69486-28020 |
ACR30,CLR30 |
1 | ||
| 69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-28021 |
ACR30,CLR30 |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28010 |
ACR30,CLR30 |
1 | ||
| 69499-28010 |
ACR30,CLR30 |
1 | ||
| 69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE | ||||
| 69630-28120 |
ACR30,CLR30 |
1 | ||
| 69630-28120 |
ACR30,CLR30 |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-28200 |
ACR30,CLR30 |
1 | ||
| 69640-28200 |
ACR30,CLR30 |
1 | ||
| 69650A - CABLE ASSY, SLIDE DOOR LOCK CONTROL | ||||
| 69650-28040 |
ACR30,CLR30 |
2 | ||
| 69650-28041 |
ACR30,CLR30 |
2 | ||
| 69650-28041 |
ACR30,CLR30 |
2 | ||
| 69650B - CABLE ASSY, SLIDE DOOR LOCK CONTROL | ||||
| 69650-28120 |
ACR30,CLR30 |
2 | ||
| 69650-28120 |
ACR30,CLR30 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69703-28010 |
ACR30,CLR30 |
1 | ||
| 69703-28010 |
ACR30,CLR30 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69704-28010 |
ACR30,CLR30 |
1 | ||
| 69704-28010 |
ACR30,CLR30 |
1 | ||
| 69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH | ||||
| 69730-28060 |
CLR30..RHD |
1 | ||
| 69730-28060 |
CLR30..RHD |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-28060 |
CLR30..RHD |
1 | ||
| 69730-28060 |
CLR30..RHD |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90119-06302 | ||||
| 90119-06393 | ||||
| 90119-06924 | ||||
| 90119-08820 | ||||
| 90119-08A60 | ||||
| 90148-60046 | ||||
| 90148-80040 | ||||
| 90159-40202 | ||||
| 90179-10112 | ||||
| 90249-04067 | ||||
| 90467-08006 | ||||
| 90523-03001 | ||||
| 91651-60610 | ||||
| 91652-60612 | ||||
| 93540-54010 | ||||
| 94185-60600 | ||||

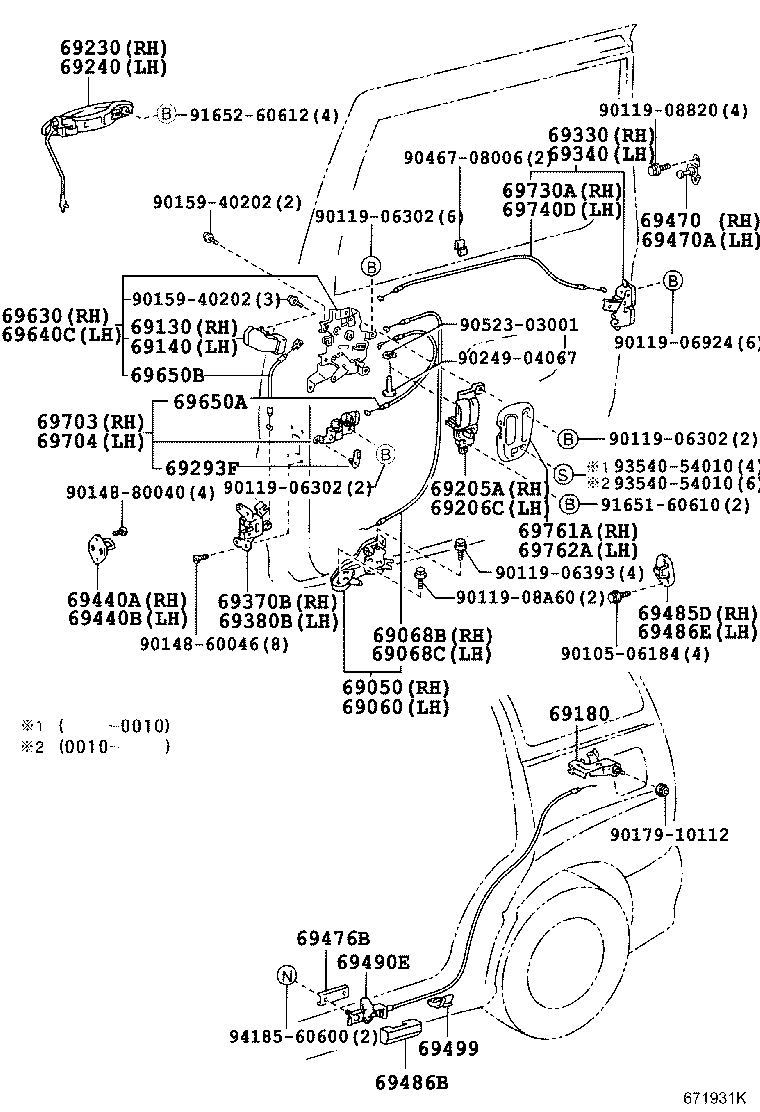

(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-28010 |
ACR30,CLR30 |
1 | ||
| 69050-28010 |
ACR30,CLR30 |
1 | ||
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-28010 |
ACR30,CLR30 |
1 | ||
| 69050-28010 |
ACR30,CLR30 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-28040 |
ACR30,CLR30 |
1 | ||
| 69060-28040 |
ACR30,CLR30 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-28040 |
ACR30,CLR30 |
1 | ||
| 69060-28040 |
ACR30,CLR30 |
1 | ||
| 69068B - CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2 | ||||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69068C - CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2 | ||||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69068-28010 |
ACR30,CLR30 |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-28050 |
ACR30,CLR30 |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-28080 |
ACR30,CLR30 |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28060 |
ACR30,CLR30 |
1 | ||
| 69180-28060 |
ACR30,CLR30 |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28060 |
ACR30,CLR30 |
1 | ||
| 69180-28060 |
ACR30,CLR30 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 69207-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 69208-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-28070A1 |
ACR30,CLR30 WHITE,056 |
1 | ||
| 69230-28070D0 |
ACR30,CLR30 RED MC.,3J7 |
1 | ||
| 69230-28070G0 |
ACR30,CLR30 DK.GREEN MC.,6Q7 |
1 | ||
| 69230-28070J1 |
ACR30,CLR30 GRAYISH BLUE ME.,8P6 |
1 | ||
| 69230-28070C0 |
ACR30,CLR30 BLACK MC.CC.,210 |
1 | ||
| 69230-28070F0 |
ACR30,CLR30 CHAMPAGNE ME.,583 |
1 | ||
| 69230-28070J0 |
ACR30,CLR30 DK.BLUE MC.,8P4 |
1 | ||
| 69230-28070B0 |
ACR30,CLR30 SILVER ME.,1C0 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-28100A1 |
ACR30,CLR30 WHITE,056 |
1 | ||
| 69240-28100C0 |
ACR30,CLR30 BLACK MC.CC.,210 |
1 | ||
| 69240-28100J1 |
ACR30,CLR30 GRAYISH BLUE ME.,8P6 |
1 | ||
| 69240-28100J0 |
ACR30,CLR30 DK.BLUE MC.,8P4 |
1 | ||
| 69240-28100B0 |
ACR30,CLR30 SILVER ME.,1C0 |
1 | ||
| 69240-28100D0 |
ACR30,CLR30 RED MC.,3J7 |
1 | ||
| 69240-28100G0 |
ACR30,CLR30 DK.GREEN MC.,6Q7 |
1 | ||
| 69240-28100F0 |
ACR30,CLR30 CHAMPAGNE ME.,583 |
1 | ||
| 69293F - SNAP, DOOR OUTSIDE HANDLE | ||||
| 69293-22020 |
ACR30,CLR30 LH |
1 | ||
| 69293-22010 |
ACR30,CLR30 RH |
1 | ||
| 69293-22020 |
ACR30,CLR30 LH |
1 | ||
| 69293-22010 |
ACR30,CLR30 RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-28060 |
CLR30..RHD |
1 | ||
| 69330-28060 |
CLR30..RHD |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-28060 |
CLR30..RHD |
1 | ||
| 69330-28060 |
CLR30..RHD |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-28150 |
CLR30..RHD |
1 | ||
| 69340-28150 |
CLR30..RHD |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-28150 |
CLR30..RHD |
1 | ||
| 69340-28150 |
CLR30..RHD |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-28060 |
ACR30,CLR30 |
1 | ||
| 69370-28060 |
ACR30,CLR30 |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-28060 |
ACR30,CLR30 |
1 | ||
| 69380-28060 |
ACR30,CLR30 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69440-28050 |
ACR30,CLR30 |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28080 |
ACR30,CLR30 |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28080 |
ACR30,CLR30 |
1 | ||
| 69476B - PLATE, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69476-28010 |
ACR30,CLR30 |
1 | ||
| 69476-28010 |
ACR30,CLR30 |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-28010 |
ACR30,CLR30 |
1 | ||
| 69485-28010 |
ACR30,CLR30 |
1 | ||
| 69486B - COVER, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69486-28040 |
ACR30,CLR30 |
1 | ||
| 69486-28040 |
ACR30,CLR30 |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-28020 |
ACR30,CLR30 |
1 | ||
| 69486-28020 |
ACR30,CLR30 |
1 | ||
| 69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-28021 |
ACR30,CLR30 |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28010 |
ACR30,CLR30 |
1 | ||
| 69499-28010 |
ACR30,CLR30 |
1 | ||
| 69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE | ||||
| 69630-28120 |
ACR30,CLR30 |
1 | ||
| 69630-28120 |
ACR30,CLR30 |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-28200 |
ACR30,CLR30 |
1 | ||
| 69640-28200 |
ACR30,CLR30 |
1 | ||
| 69650A - CABLE ASSY, SLIDE DOOR LOCK CONTROL | ||||
| 69650-28040 |
ACR30,CLR30 |
2 | ||
| 69650-28041 |
ACR30,CLR30 |
2 | ||
| 69650-28041 |
ACR30,CLR30 |
2 | ||
| 69650B - CABLE ASSY, SLIDE DOOR LOCK CONTROL | ||||
| 69650-28120 |
ACR30,CLR30 |
2 | ||
| 69650-28120 |
ACR30,CLR30 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69703-28010 |
ACR30,CLR30 |
1 | ||
| 69703-28010 |
ACR30,CLR30 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69704-28010 |
ACR30,CLR30 |
1 | ||
| 69704-28010 |
ACR30,CLR30 |
1 | ||
| 69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH | ||||
| 69730-28060 |
CLR30..RHD |
1 | ||
| 69730-28060 |
CLR30..RHD |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-28060 |
CLR30..RHD |
1 | ||
| 69730-28060 |
CLR30..RHD |
1 | ||
| Common parts | ||||
| 69749-32020 | ||||
| 90105-06184 | ||||
| 90119-06302 | ||||
| 90119-06393 | ||||
| 90119-06871 | ||||
| 90119-06924 | ||||
| 90119-08016 | ||||
| 90119-08820 | ||||
| 90119-08A60 | ||||
| 90148-60022 | ||||
| 90148-60046 | ||||
| 90148-80040 | ||||
| 90159-40202 | ||||
| 90179-10186 | ||||
| 90249-04067 | ||||
| 90467-08006 | ||||
| 90523-03001 | ||||
| 91616-B0825 | ||||
| 91651-B0610 | ||||
| 91652-60612 | ||||
| 93540-54010 | ||||
| 94130-60300 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 6757 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
