Toyota Previa/tarago CLR30 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
PREVIA/TARAGO
CLR30R-MRMDTW (2001)
5252 - FRONT BUMPER & BUMPER STAY

CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0002-0304)

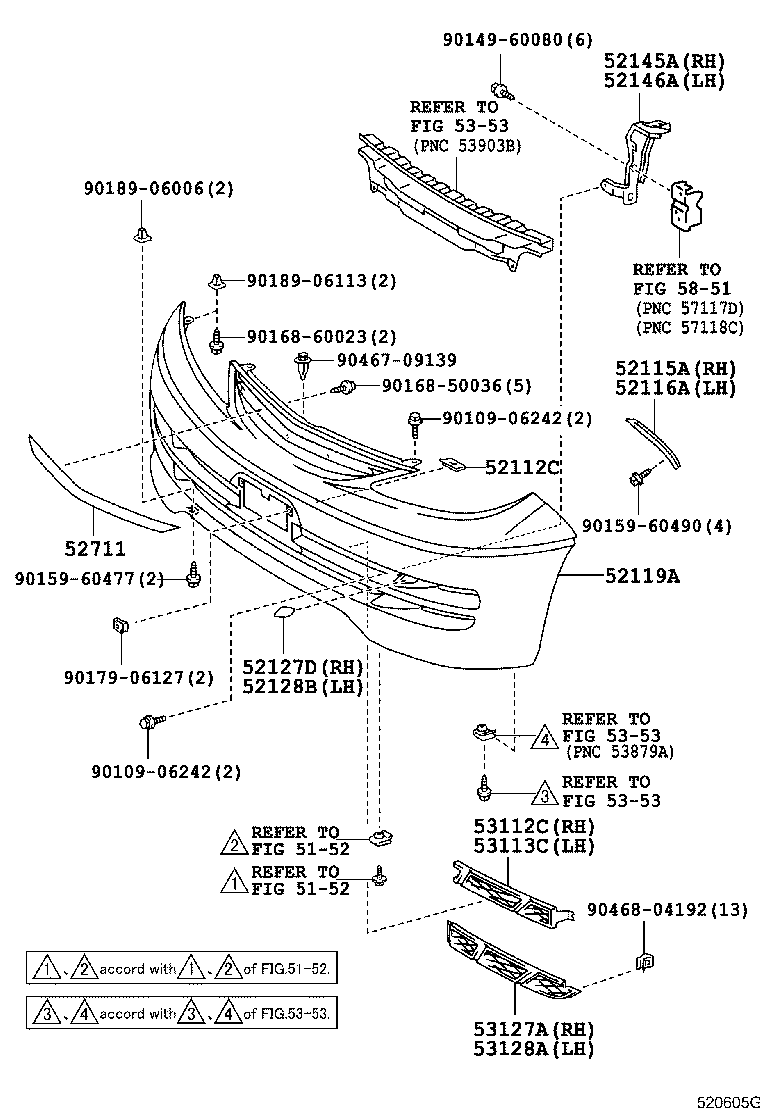

Click highlighted areas on diagram

Part #	Description	Period	Qty
52112C - EXTENSION, FRONT BUMPER
52112-28080	ACR30,CLR30	02/2001 - 04/2003	6
52112-28080	ACR30,CLR30	04/2003 - 12/2999	2
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-28090	ACR30,CLR30	04/2003 - 12/2999	1
52115-28070	ACR30,CLR30	02/2000 - 04/2003	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-28030	ACR30,CLR30	02/2000 - 04/2003	1
52116-28050	ACR30,CLR30	04/2003 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-28922	ACR30,CLR30..EUR W(CLEARANCE SONAR & BACK SONAR)	02/2001 - 04/2001	1
52119-28914	ACR30,CLR30..EUR	02/2000 - 04/2001	1
52119-28929	ACR30,CLR30..EUR	04/2001 - 04/2003	1
52119-28932	ACR30,CLR30..EUR W(CLEARANCE SONAR & BACK SONAR)	04/2001 - 04/2003	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-28080D0	ACR30,CLR30 RED MC.,3J7	02/2000 - 04/2003	1
52127-28080J0	ACR30,CLR30 DK.BLUE MC.,8P4	02/2000 - 04/2003	1
52127-28080A1	ACR30,CLR30 WHITE,056	02/2000 - 04/2003	1
52127-28080B0	ACR30,CLR30 SILVER ME.,1C0	02/2000 - 04/2003	1
52127-28080C0	ACR30,CLR30 BLACK MC.CC.,210	02/2000 - 04/2003	1
52127-28080F0	ACR30,CLR30 CHAMPAGNE ME.,583	02/2000 - 04/2003	1
52127-28080G0	ACR30,CLR30 DK.GREEN MC.,6Q7	02/2000 - 04/2003	1
52127-28080J1	ACR30,CLR30 GRAYISH BLUE ME.,8P6	02/2000 - 04/2003	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-28050C0	ACR30,CLR30 BLACK MC.CC.,210	02/2000 - 04/2003	1
52128-28050D0	ACR30,CLR30 RED MC.,3J7	02/2000 - 04/2003	1
52128-28050A1	ACR30,CLR30 WHITE,056	02/2000 - 04/2003	1
52128-28050F0	ACR30,CLR30 CHAMPAGNE ME.,583	02/2000 - 04/2003	1
52128-28050G0	ACR30,CLR30 DK.GREEN MC.,6Q7	02/2000 - 04/2003	1
52128-28050J1	ACR30,CLR30 GRAYISH BLUE ME.,8P6	02/2000 - 04/2003	1
52128-28050J0	ACR30,CLR30 DK.BLUE MC.,8P4	02/2000 - 04/2003	1
52128-28050B0	ACR30,CLR30 SILVER ME.,1C0	02/2000 - 04/2003	1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-28040	ACR30,CLR30	02/2000 - 04/2003	1
52145-28070	ACR30,CLR30	04/2003 - 12/2999	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-28050	ACR30,CLR30	02/2000 - 04/2003	1
52146-28090	ACR30,CLR30	04/2003 - 12/2999	1
52711 - MOULDING, FRONT BUMPER
52711-28050	ACR30,CLR30	02/2000 - 04/2003	1
52711-28090	ACR30,CLR30	04/2003 - 12/2999	1
53112C - GRILLE, RADIATOR, LOWER RH
53112-28020	ACR30,CLR30..EUR	02/2000 - 04/2003	1
53113C - GRILLE, RADIATOR, LOWER LH
53113-28010	ACR30,CLR30..EUR	02/2000 - 04/2003	1
53127A - GRILLE, RADIATOR, LOWER RH
53127-28010	ACR30,CLR30..EUR	02/2000 - 04/2003	1
53128A - GRILLE, RADIATOR, LOWER LH
53128-28010	ACR30,CLR30..EUR	02/2000 - 04/2003	1
Common parts
90109-06242
90149-60080
90159-60477
90159-60490
90168-50036
90168-60023
90179-06127
90189-06006
90189-06113
90467-09139
90468-04192
Linked diagrams
5152
5353
5851

(0304- )

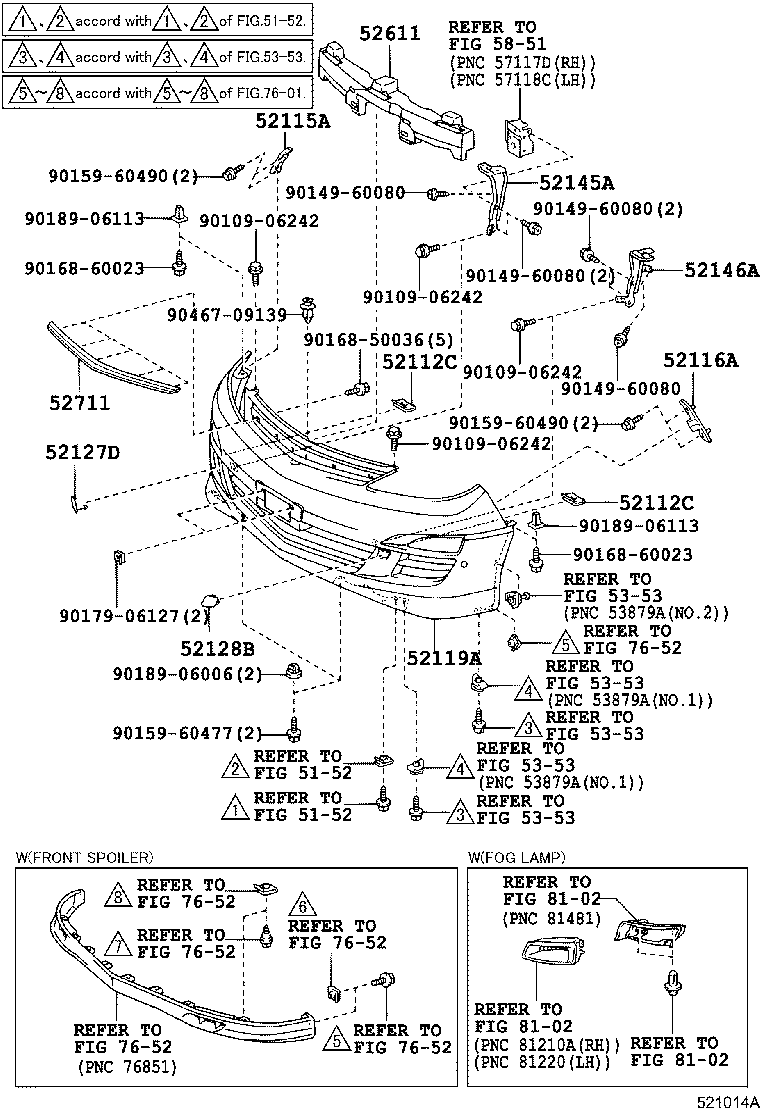

Click highlighted areas on diagram

Part #	Description	Period	Qty
52112C - EXTENSION, FRONT BUMPER
52112-28080	ACR30,CLR30	02/2001 - 04/2003	6
52112-28080	ACR30,CLR30	04/2003 - 12/2999	2
52112C - EXTENSION, FRONT BUMPER
52112-28080	ACR30,CLR30	02/2001 - 04/2003	6
52112-28080	ACR30,CLR30	04/2003 - 12/2999	2
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-28090	ACR30,CLR30	04/2003 - 12/2999	1
52115-28070	ACR30,CLR30	02/2000 - 04/2003	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-28030	ACR30,CLR30	02/2000 - 04/2003	1
52116-28050	ACR30,CLR30	04/2003 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-28922	ACR30,CLR30..EUR W(CLEARANCE SONAR & BACK SONAR)	02/2001 - 04/2001	1
52119-28914	ACR30,CLR30..EUR	02/2000 - 04/2001	1
52119-28929	ACR30,CLR30..EUR	04/2001 - 04/2003	1
52119-28932	ACR30,CLR30..EUR W(CLEARANCE SONAR & BACK SONAR)	04/2001 - 04/2003	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-28080D0	ACR30,CLR30 RED MC.,3J7	02/2000 - 04/2003	1
52127-28080J0	ACR30,CLR30 DK.BLUE MC.,8P4	02/2000 - 04/2003	1
52127-28080A1	ACR30,CLR30 WHITE,056	02/2000 - 04/2003	1
52127-28080B0	ACR30,CLR30 SILVER ME.,1C0	02/2000 - 04/2003	1
52127-28080C0	ACR30,CLR30 BLACK MC.CC.,210	02/2000 - 04/2003	1
52127-28080F0	ACR30,CLR30 CHAMPAGNE ME.,583	02/2000 - 04/2003	1
52127-28080G0	ACR30,CLR30 DK.GREEN MC.,6Q7	02/2000 - 04/2003	1
52127-28080J1	ACR30,CLR30 GRAYISH BLUE ME.,8P6	02/2000 - 04/2003	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-28050C0	ACR30,CLR30 BLACK MC.CC.,210	02/2000 - 04/2003	1
52128-28050D0	ACR30,CLR30 RED MC.,3J7	02/2000 - 04/2003	1
52128-28050A1	ACR30,CLR30 WHITE,056	02/2000 - 04/2003	1
52128-28050F0	ACR30,CLR30 CHAMPAGNE ME.,583	02/2000 - 04/2003	1
52128-28050G0	ACR30,CLR30 DK.GREEN MC.,6Q7	02/2000 - 04/2003	1
52128-28050J1	ACR30,CLR30 GRAYISH BLUE ME.,8P6	02/2000 - 04/2003	1
52128-28050J0	ACR30,CLR30 DK.BLUE MC.,8P4	02/2000 - 04/2003	1
52128-28050B0	ACR30,CLR30 SILVER ME.,1C0	02/2000 - 04/2003	1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-28040	ACR30,CLR30	02/2000 - 04/2003	1
52145-28070	ACR30,CLR30	04/2003 - 12/2999	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-28050	ACR30,CLR30	02/2000 - 04/2003	1
52146-28090	ACR30,CLR30	04/2003 - 12/2999	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28070	ACR30,CLR30	04/2003 - 12/2999	1
52711 - MOULDING, FRONT BUMPER
52711-28050	ACR30,CLR30	02/2000 - 04/2003	1
52711-28090	ACR30,CLR30	04/2003 - 12/2999	1
Common parts
90109-06242
90149-60080
90159-60477
90159-60490
90168-50036
90168-60023
90179-06127
90189-06006
90189-06113
90467-09139
Linked diagrams
5152
5353
5851
7652
8102

CLR30R-MRMDTW (2001)

(0002-0304)

(0304- )
