CLR30R-MRMDTW (2001)
Toyota Previa/Tarago

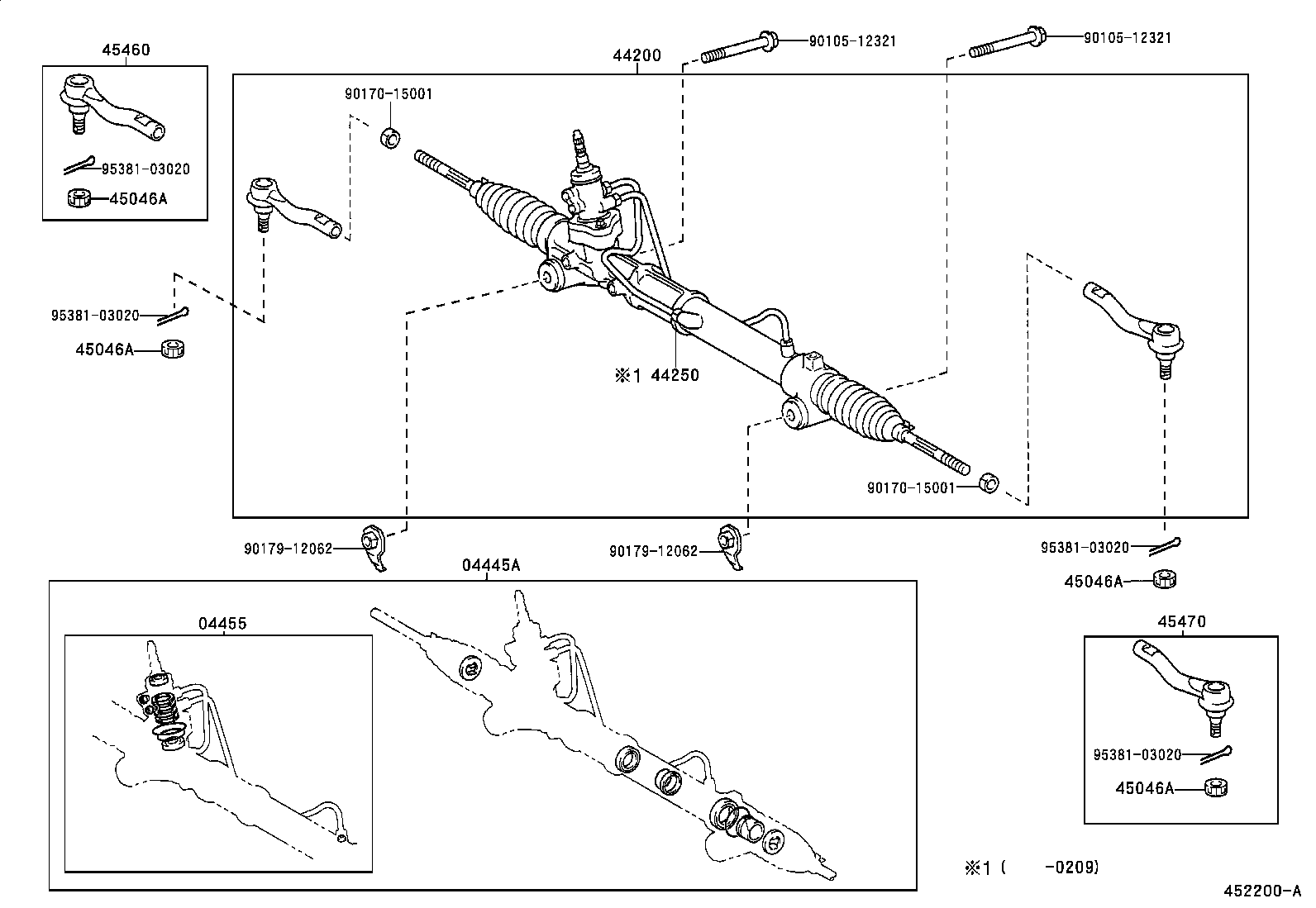

ILLUST NO. 1 OF 2(0002-0304)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-28100 |
ACR30,CLR30..RHD |
1 | ||
| 04445-28120 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-28061 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04455-28070 |
ACR30,CLR30..RHD |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-28450 |
ACR30,CLR30..RHD W(205/65R15 TIRE) |
1 | ||
| 44200-28460 |
ACR30,CLR30..RHD W(215/60R16 TIRE) |
1 | ||
| 44200-28560 |
ACR30,CLR30..RHD..08S..MTM |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-28460 |
ACR30,CLR30..RHD W(215/60R16 TIRE) |
1 | ||
| 44250-28450 |
ACR30,CLR30..RHD W(205/65R15 TIRE) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-59055 |
ACR30,CLR30..08S..MTM |
1 | ||
| 45460-29425 |
ACR30,CLR30 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29185 |
ACR30,CLR30 |
1 | ||
| 45470-59055 |
ACR30,CLR30..08S..MTM |
1 | ||
| Common parts | ||||
| 90105-12321 | ||||
| 90170-15001 | ||||
| 90179-12062 | ||||
| 95381-03020 | ||||

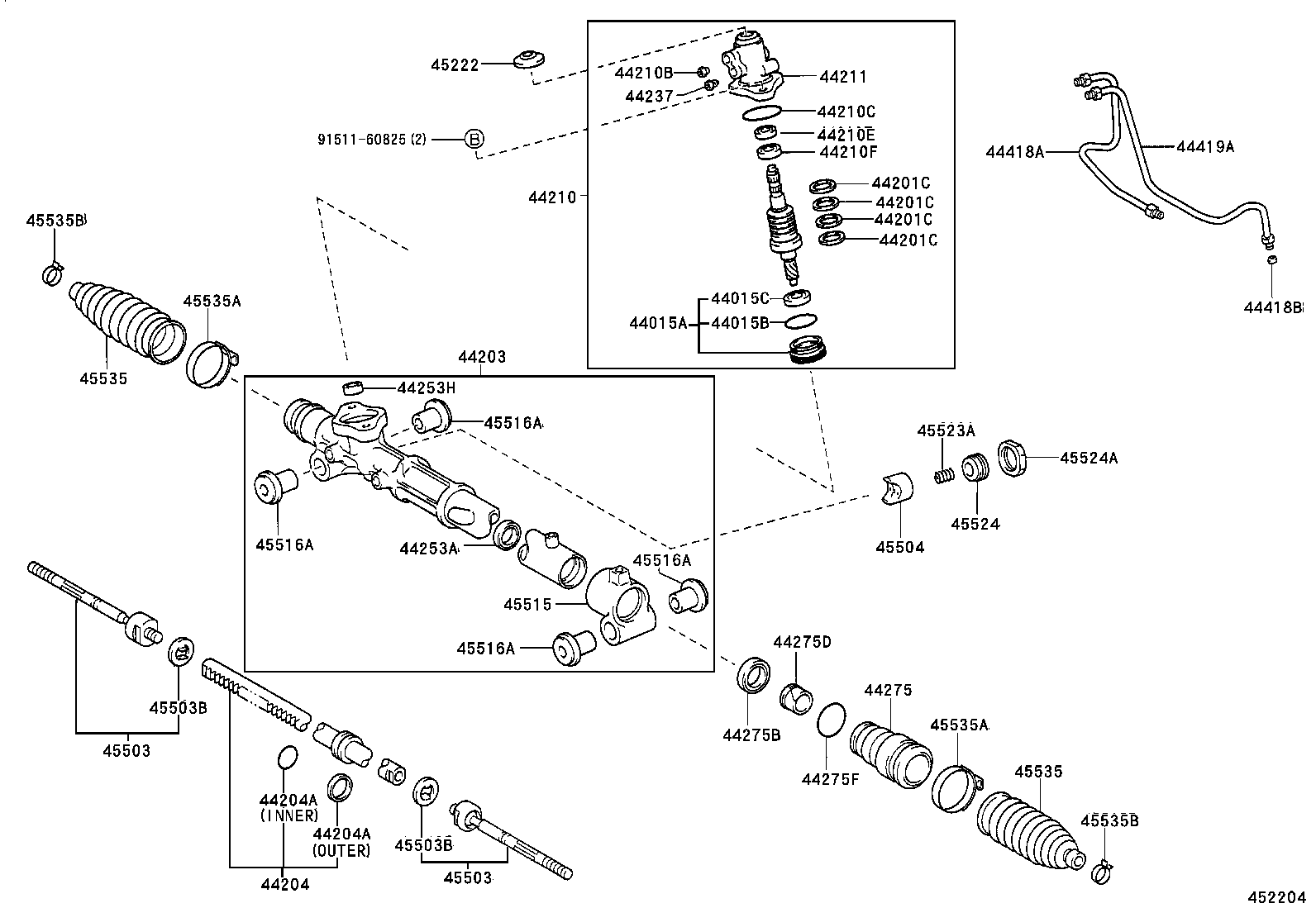

ILLUST NO. 2 OF 2(0002-0304)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-43010 |
ACR30,CLR30 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
ACR30,CLR30 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25027 |
ACR30,CLR30 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
ACR30,CLR30 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
ACR30,CLR30 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
ACR30,CLR30 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
ACR30,CLR30 |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-28330 |
ACR30,CLR30..RHD |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28130 |
ACR30,CLR30..RHD W(205/65R15 TIRE) |
1 | ||
| 44204-28140 |
ACR30,CLR30..RHD W(215/60R16 TIRE) |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-45001 |
ACR30,CLR30 OUTER |
1 | ||
| 90301-41007 |
ACR30,CLR30 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-45001 |
ACR30,CLR30 OUTER |
1 | ||
| 90301-41007 |
ACR30,CLR30 INNER |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-28270 |
ACR30,CLR30..RHD |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
ACR30,CLR30 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
ACR30,CLR30 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19013 |
ACR30,CLR30 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
ACR30,CLR30 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-21010 |
ACR30,CLR30..RHD |
1 | ||
| 44237 - SEAT, PRESSURE CONTROL VALVE ORIFICE | ||||
| 44237-21010 |
ACR30,CLR30 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30014 |
ACR30,CLR30 |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90364-13005 |
ACR30,CLR30 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-28040 |
ACR30,CLR30 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30014 |
ACR30,CLR30 |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-43007 |
ACR30,CLR30 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28160 |
ACR30,CLR30..RHD |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
ACR30,CLR30 |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28140 |
ACR30,CLR30..RHD |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22040 |
ACR30,CLR30 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29765 |
ACR30,CLR30 |
2 | ||
| 45503-59075 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29765 |
ACR30,CLR30 |
2 | ||
| 45503-59075 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
ACR30,CLR30..08S..MTM OD=38 |
2 | ||
| 90214-14007 |
ACR30,CLR30 OD=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
ACR30,CLR30..08S..MTM OD=38 |
2 | ||
| 90214-14007 |
ACR30,CLR30 OD=38 |
2 | ||
| 45504 - END SUB-ASSY, STEERING RACK, NO.2 | ||||
| 45504-28030 |
ACR30,CLR30 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-28050 |
ACR30,CLR30 |
1 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-28050 |
ACR30,CLR30 |
4 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-28050 |
ACR30,CLR30 |
4 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-28050 |
ACR30,CLR30 |
4 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-28050 |
ACR30,CLR30 |
4 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-40039 |
ACR30,CLR30 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-28030 |
ACR30,CLR30 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
ACR30,CLR30 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28030 |
ACR30,CLR30 |
2 | ||
| 45535-28030 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28030 |
ACR30,CLR30 |
2 | ||
| 45535-28030 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
ACR30,CLR30 |
2 | ||
| 90460-55016 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
ACR30,CLR30 |
2 | ||
| 90460-55016 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30..08S..MTM |
2 | ||
| Common parts | ||||
| 91511-60825 | ||||

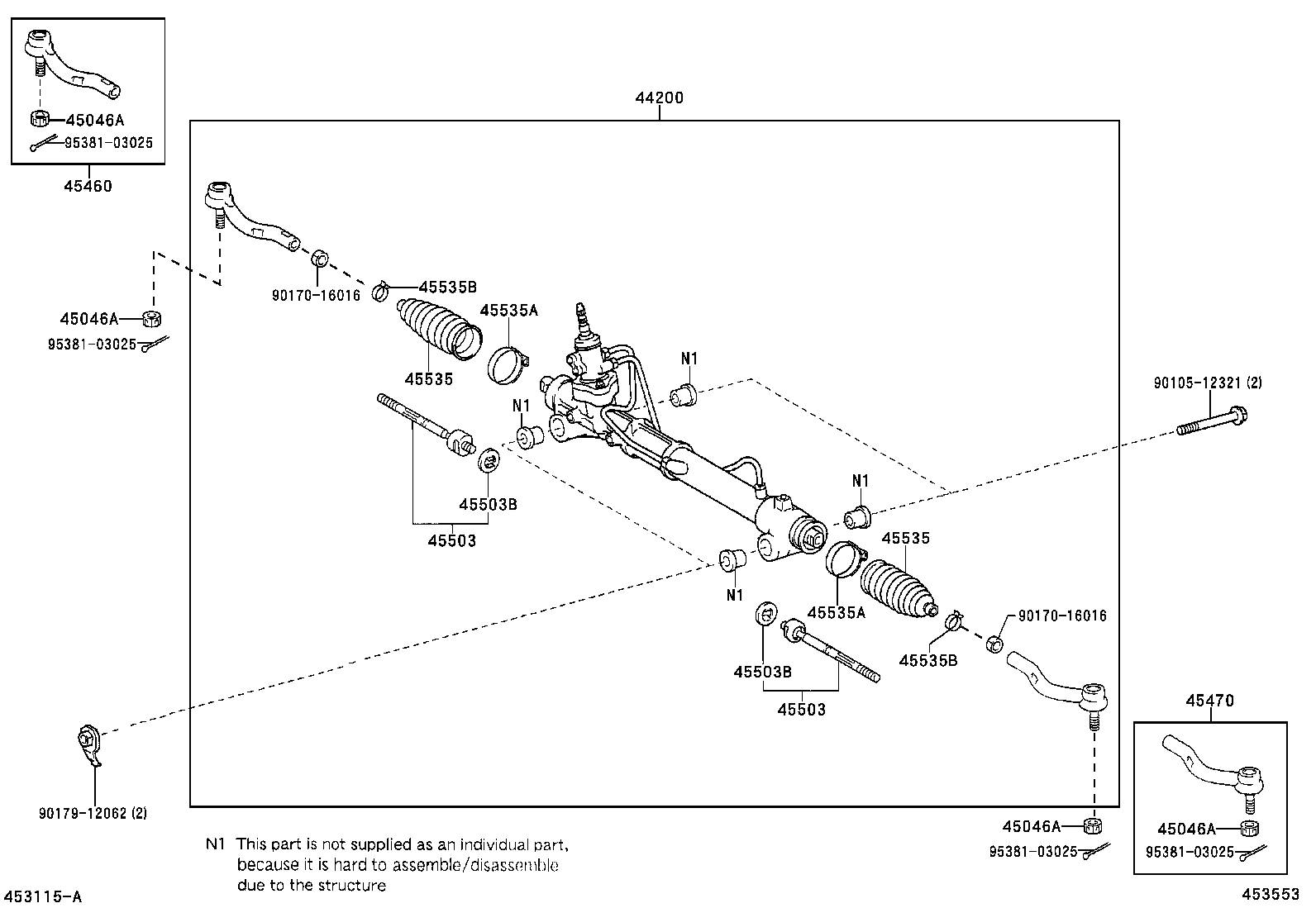

ILLUST NO. 1 OF 2(0304- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-28450 |
ACR30,CLR30..RHD W(205/65R15 TIRE) |
1 | ||
| 44200-28460 |
ACR30,CLR30..RHD W(215/60R16 TIRE) |
1 | ||
| 44200-28560 |
ACR30,CLR30..RHD..08S..MTM |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACR30,CLR30..08S..MTM |
2 | ||
| 90171-12028 |
ACR30,CLR30 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-59055 |
ACR30,CLR30..08S..MTM |
1 | ||
| 45460-29425 |
ACR30,CLR30 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29185 |
ACR30,CLR30 |
1 | ||
| 45470-59055 |
ACR30,CLR30..08S..MTM |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29765 |
ACR30,CLR30 |
2 | ||
| 45503-59075 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29765 |
ACR30,CLR30 |
2 | ||
| 45503-59075 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
ACR30,CLR30..08S..MTM OD=38 |
2 | ||
| 90214-14007 |
ACR30,CLR30 OD=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
ACR30,CLR30..08S..MTM OD=38 |
2 | ||
| 90214-14007 |
ACR30,CLR30 OD=38 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28030 |
ACR30,CLR30 |
2 | ||
| 45535-28030 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28030 |
ACR30,CLR30 |
2 | ||
| 45535-28030 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
ACR30,CLR30 |
2 | ||
| 90460-55016 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
ACR30,CLR30 |
2 | ||
| 90460-55016 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30..08S..MTM |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30 |
2 | ||
| 90467-19021 |
ACR30,CLR30..08S..MTM |
2 | ||
| Common parts | ||||
| 90105-12321 | ||||
| 90170-16016 | ||||
| 90179-12062 | ||||
| 95381-03025 | ||||

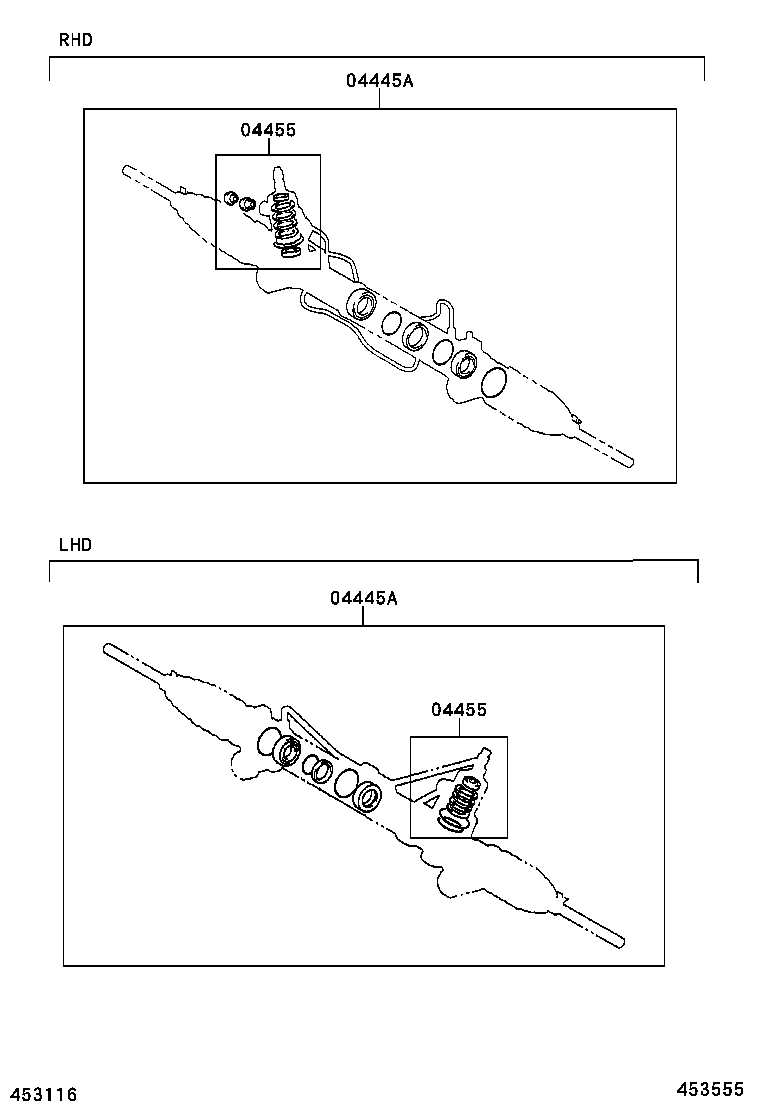

ILLUST NO. 2 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-28100 |
ACR30,CLR30..RHD |
1 | ||
| 04445-28120 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-28100 |
ACR30,CLR30..RHD |
1 | ||
| 04445-28120 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-28061 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04455-28070 |
ACR30,CLR30..RHD |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-28061 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04455-28070 |
ACR30,CLR30..RHD |
1 | ||
