CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0102- )CLR30..RHD

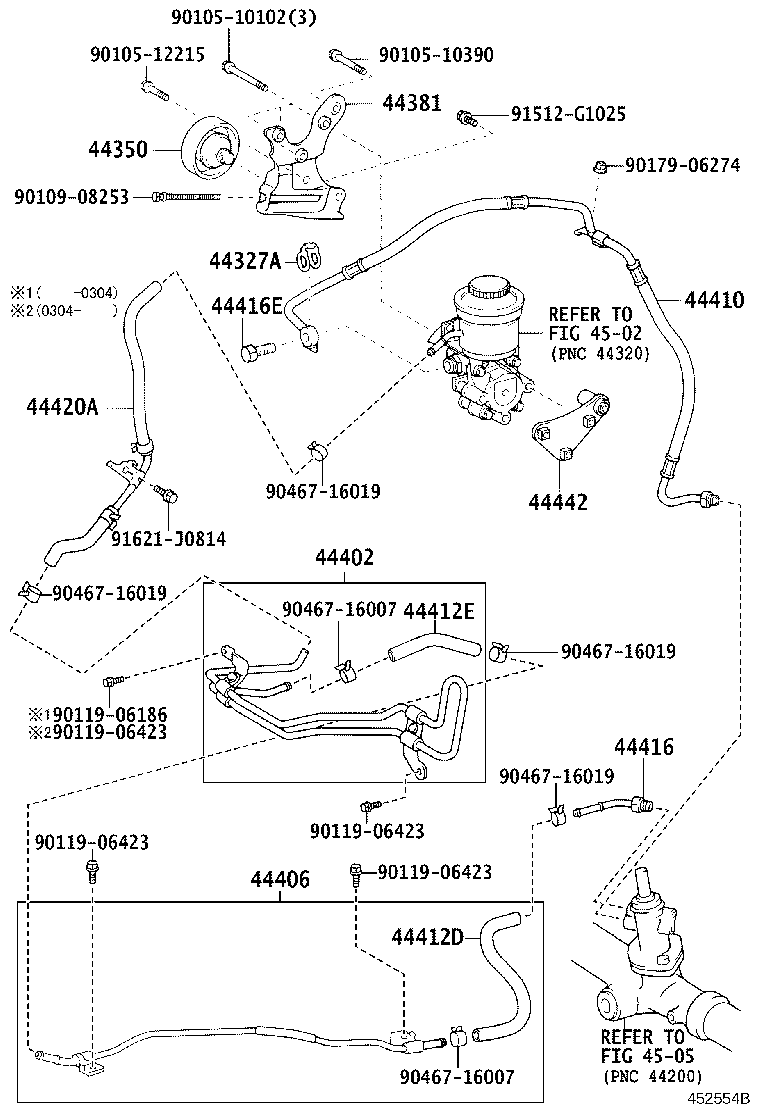

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACR30,CLR30 |
1 | ||
| 44327-12010 |
ACR30,CLR30 |
1 | ||
| 44327-30030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACR30,CLR30 |
1 | ||
| 44327-12010 |
ACR30,CLR30 |
1 | ||
| 44327-30030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-32010 |
CLR30 |
1 | ||
| 44350-32010 |
CLR30..08S |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-28010 |
CLR30 |
1 | ||
| 44381-28010 |
CLR30..08S |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-28030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 44402-28010 |
ACR30,CLR30 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-28300 |
ACR30,CLR30..RHD |
1 | ||
| 44406-28300 |
CLR30..RHD..08S |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-28470 |
CLR30..RHD..08S |
1 | ||
| 44410-28470 |
CLR30..RHD |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-58020 |
ACR30,CLR30..RHD |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-28460 |
ACR30..DX..GCC;CLR30..07S,08S;CLR30..LHD..06S;ACR30..LHD..(06S,07S);ACR30..RHD..(07S,08S) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-28370 |
ACR30,CLR30..RHD |
1 | ||
| 44416-28370 |
ACR30,CLR30..RHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACR30,CLR30..08S..MTM |
1 | ||
| 96341-41603 |
ACR30,CLR30 |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACR30,CLR30..08S..MTM |
1 | ||
| 96341-41603 |
ACR30,CLR30 |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-28120 |
CLR30 |
1 | ||
| 44420-28120 |
CLR30..08S |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-28020 |
CLR30 |
1 | ||
| 44442-28020 |
CLR30..08S |
1 | ||
| Common parts | ||||
| 90105-10102 | ||||
| 90105-10390 | ||||
| 90105-12215 | ||||
| 90109-08253 | ||||
| 90119-06186 | ||||
| 90119-06423 | ||||
| 90179-06274 | ||||
| 90467-16007 | ||||
| 90467-16019 | ||||
| 91512-G1025 | ||||
| 91621-J0814 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
